RP 34 VU. Precision vacuum regulator G 3/4", -1 to 0,7 bar
€201,693.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-RP-34-VU
Manufacturer Nr.
RP 34 VU
Precision vacuum regulator G 3/4", -1 to 0,7 bar
Frequently Bought Together
-
This Item:
€201,693.00Excl. 19% VAT , excl. Shipping Cost
-
VSFS 14A/18-25. Spring plunger G 1/4" (AG)xG 1/8" (Female thread), stroke 25mm, Standard
€3,567.00Excl. 19% VAT , excl. Shipping Cost
-

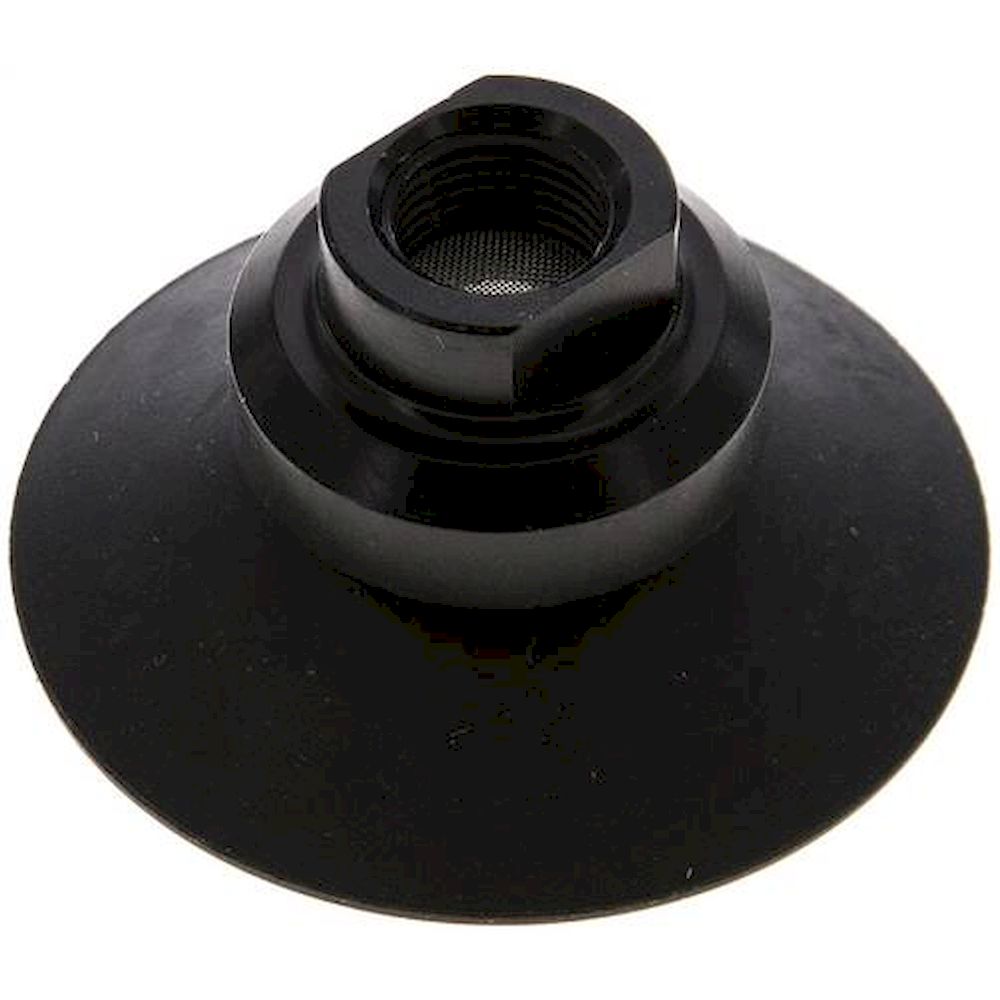

VSP 40 FK CR. Flat suction cups, support rib, P,series- 42x2mm, CR (50A), black
€1,342.00Excl. 19% VAT , excl. Shipping Cost
Total price
Application:
These vacuum regulators allow precise pressure regulation in the vacuum and overpressure range. They provide the facility to regulate the vacuum as a bypass or in shut-off technology:
1. Bypass adjustment*: This adjustment should be used, if an existing vacuum must be reduced by delivering compressed air. Recommended for adjusting large vacuum quantities. 2. Stop adjustment*: The vacuum is pulled and adjusted by the regulator. Once the desired value is reached, the regulator is closed. Recommended to save energy.
Materials:
Body: Aluminium die-casting, internal parts: stainless steel/brass, diaphragms: NBR
Temperature range:
-40 to +90 °C
Input pressure:
max. 17 bar
Pressure gauge connection:
G 1/4"
Control accuracy:
± 2.5 mbar
These vacuum regulators allow precise pressure regulation in the vacuum and overpressure range. They provide the facility to regulate the vacuum as a bypass or in shut-off technology:
1. Bypass adjustment*: This adjustment should be used, if an existing vacuum must be reduced by delivering compressed air. Recommended for adjusting large vacuum quantities. 2. Stop adjustment*: The vacuum is pulled and adjusted by the regulator. Once the desired value is reached, the regulator is closed. Recommended to save energy.
Materials:
Body: Aluminium die-casting, internal parts: stainless steel/brass, diaphragms: NBR
Temperature range:
-40 to +90 °C
Input pressure:
max. 17 bar
Pressure gauge connection:
G 1/4"
Control accuracy:
± 2.5 mbar
| Thread | G 3/4" |
| Suction performance [m³/h] | 48,0 |
| Suction performance [l/min] | 800 |
| Pressure gauge connection | G 1/4" |
| Pressure regulation range [bar] | -1 to 0.7 |
| D [mm] | 115 |
| L [mm] | 87 |
| H [mm] | 238 |
| Mounting brackets | RP 34 VU W |
| Manufacturer Nr. | RP 34 VU |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571604394 |
| Weight | 24.000000 |
| HS-Code | 90328100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

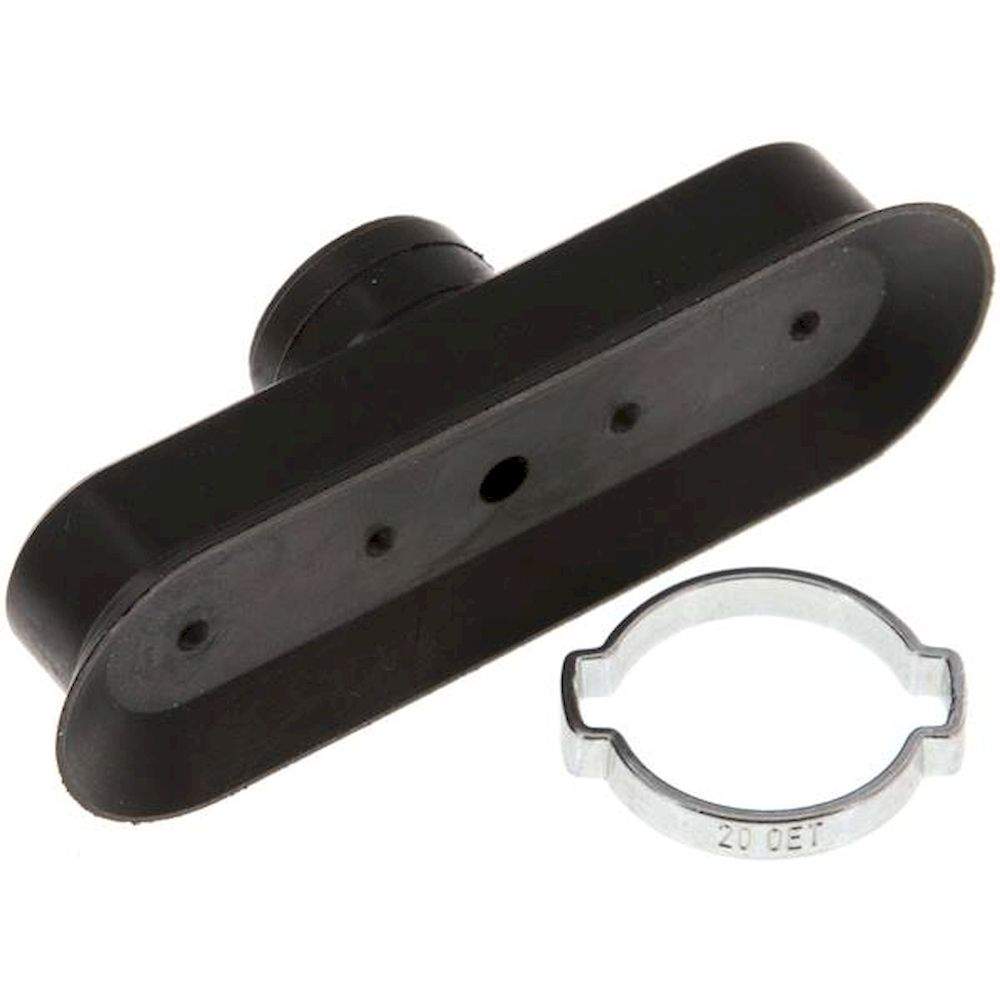

VS 75X25 O NBR. Oval teats, 75 x 25mm, stroke 3mm, NBR (60A), black
€2,288.00
Excl. 19% VAT ,
excl. Shipping Cost
VS 30X10 O SI. Oval teats, 30 x 10mm, stroke 2mm, Silicone (60A), transparent
€1,166.00
Excl. 19% VAT ,
excl. Shipping Cost

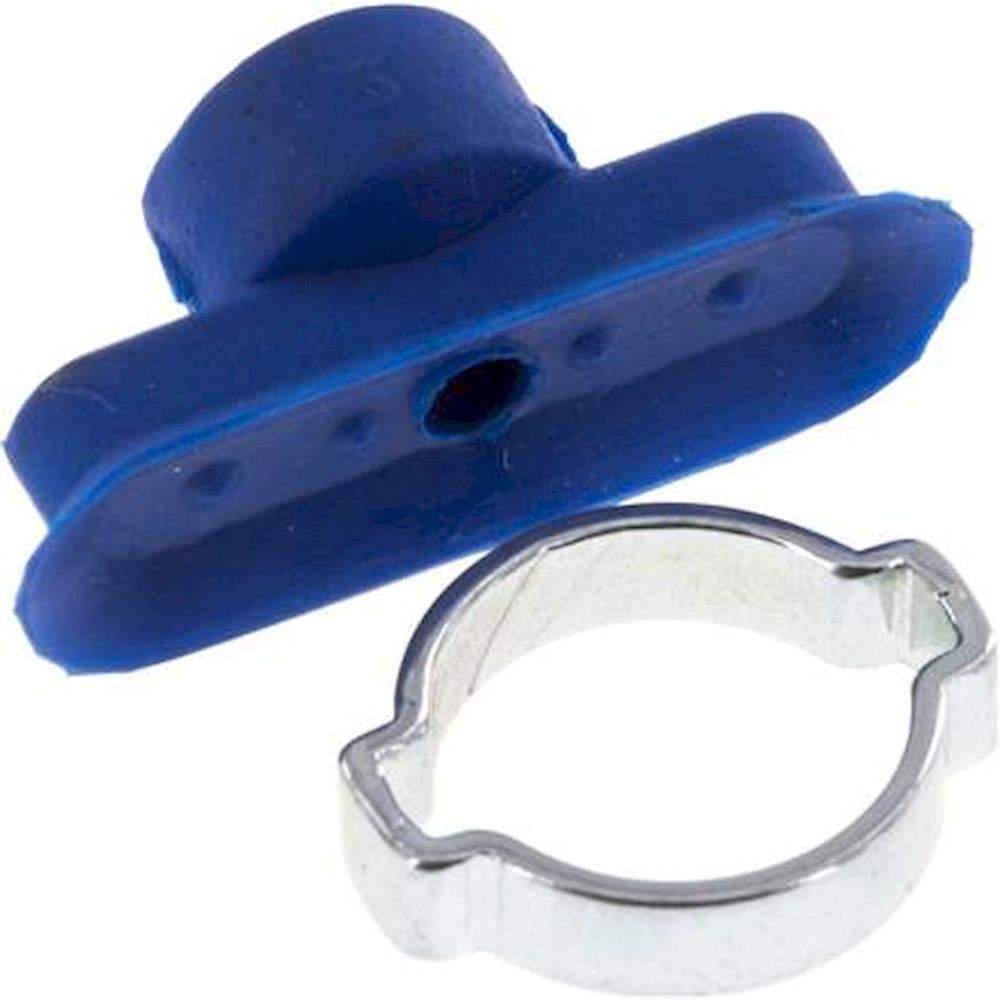

VS 30X10 O PUR. Oval teats, 30 x 10mm, stroke 2mm, PUR (65A), blue
€2,262.00
Excl. 19% VAT ,
excl. Shipping Cost
VSP 12. Multi stage ejectors to 87% vacuum, G 1/8", to 110 l/min
€13,052.00
Excl. 19% VAT ,
excl. Shipping Cost
VLP 32. Multi stage ejectors to 70% vacuum, G 1-1/2", to 2100 l/min
€113,549.00
Excl. 19% VAT ,
excl. Shipping Cost
M 238 VU 24V=. 2/2-way vacuum valve (NC), G 3/8", -0,9 to 2bar, 24 V DC
€15,194.00
Excl. 19% VAT ,
excl. Shipping Cost

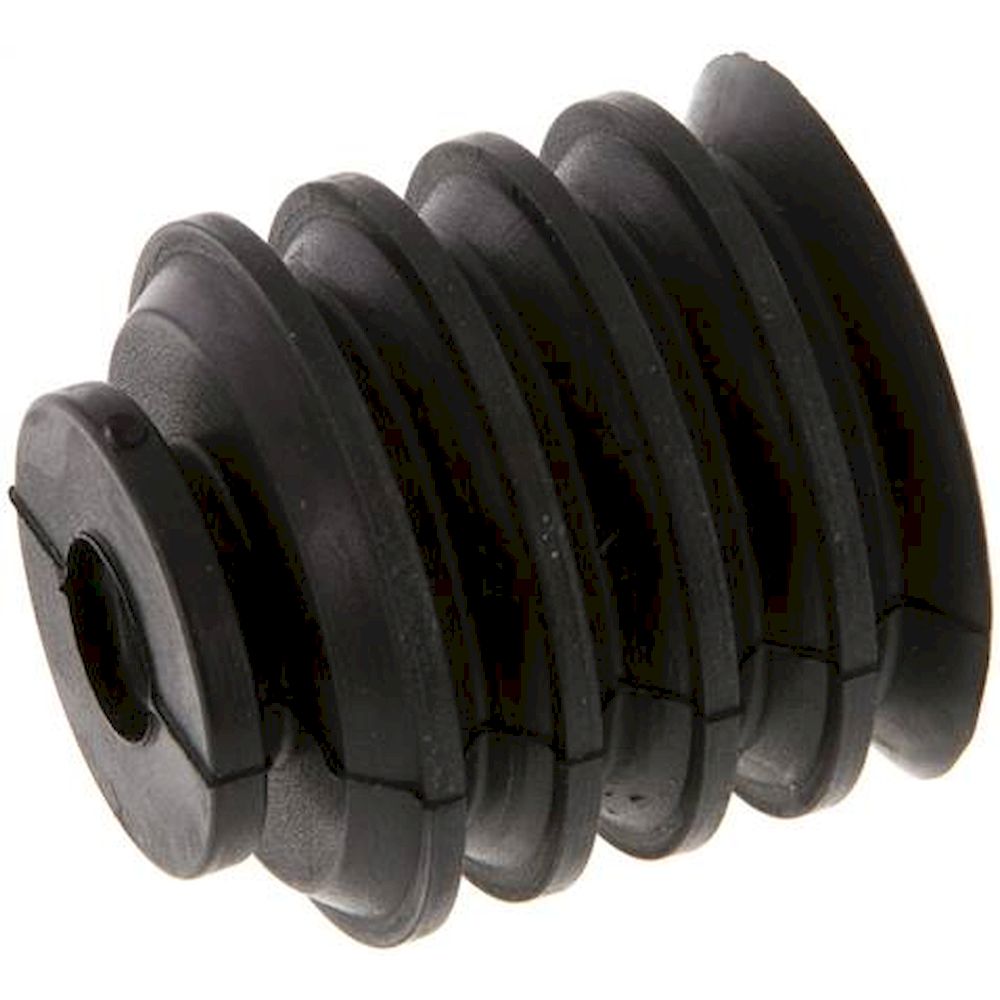

VSP 30 B4 CR. Bellows suction pad, 4,5-way, P-series, 30x21mm, CR (50A), black
