EMC SFSA 32/60. ISO 21287 cylinders, double acting, piston 32 mm, stroke 60 mm
€4,767.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SFSA-32/60
Manufacturer Nr.
SFSA 32/60
ISO 21287 cylinders, double acting, piston 32 mm, stroke 60 mm
Frequently Bought Together
-
This Item:
€4,767.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SFS 100/150-B. ISO 21287 cylinders, double acting, piston 100 mm, stroke 150 mm
€13,112.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SFS 50/80-B. ISO 21287 cylinders, double acting, piston 50 mm, stroke 80 mm
€4,238.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
| Piston diameter [mm] | 32 |
| Stroke [mm] | 60 |
| Version | non-rotating piston rod |
| G (compressed air port) | G 1/8" |
| Repair sets | SFS 32 REP |
| AD [mm] | 16 |
| AF [mm] | 10 |
| BG [mm] | 16 |
| D1 [mm] | 28 |
| D2 | M 5 |
| D3 [mm] | 5 |
| E [mm] | 45,5 |
| KJ [mm] | 44,5 |
| LA [mm] | 5 |
| PL1 [mm] | 15,5 |
| PL2 [mm] | 8,0 |
| RS [mm] | 5,2 |
| RT | M 6 |
| RU [mm] | 9,0 |
| S [mm] | 0 |
| TG [mm] | 32,5 |
| ZA [mm] | 44 |
| ZD [mm] | 61,0 |
| Manufacturer Nr. | SFSA 32/60 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571932091 |
| Weight | 6.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

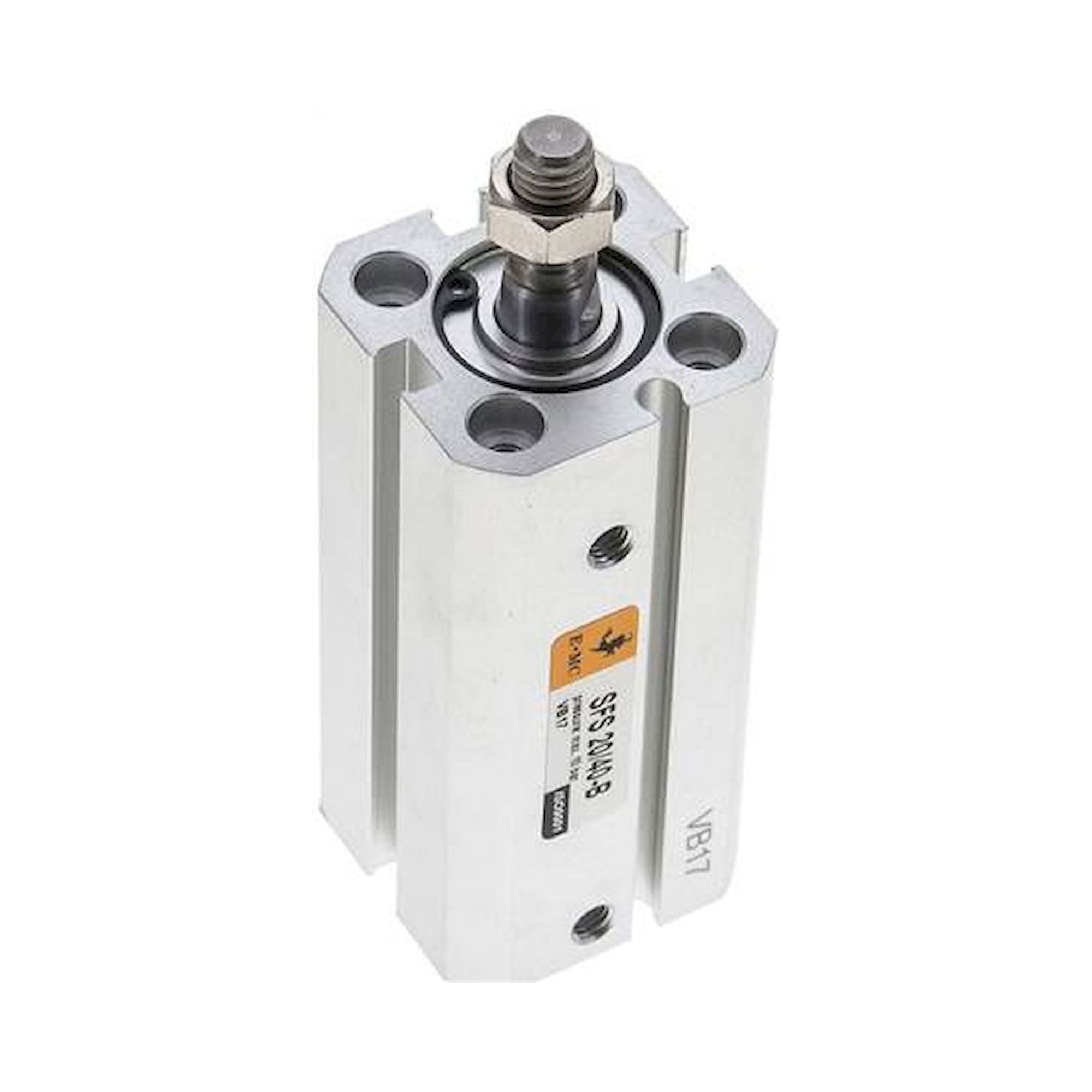

EMC SFS 20/40-B. ISO 21287 cylinders, double acting, piston 20 mm, stroke 40 mm
€2,278.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 63/200-AG. ISO 21287 cylinders, double acting, piston 63 mm, stroke 200 mm
€9,385.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 63/150-AG. ISO 21287 cylinders, double acting, piston 63 mm, stroke 150 mm
€8,768.00
Excl. 19% VAT ,
excl. Shipping Cost

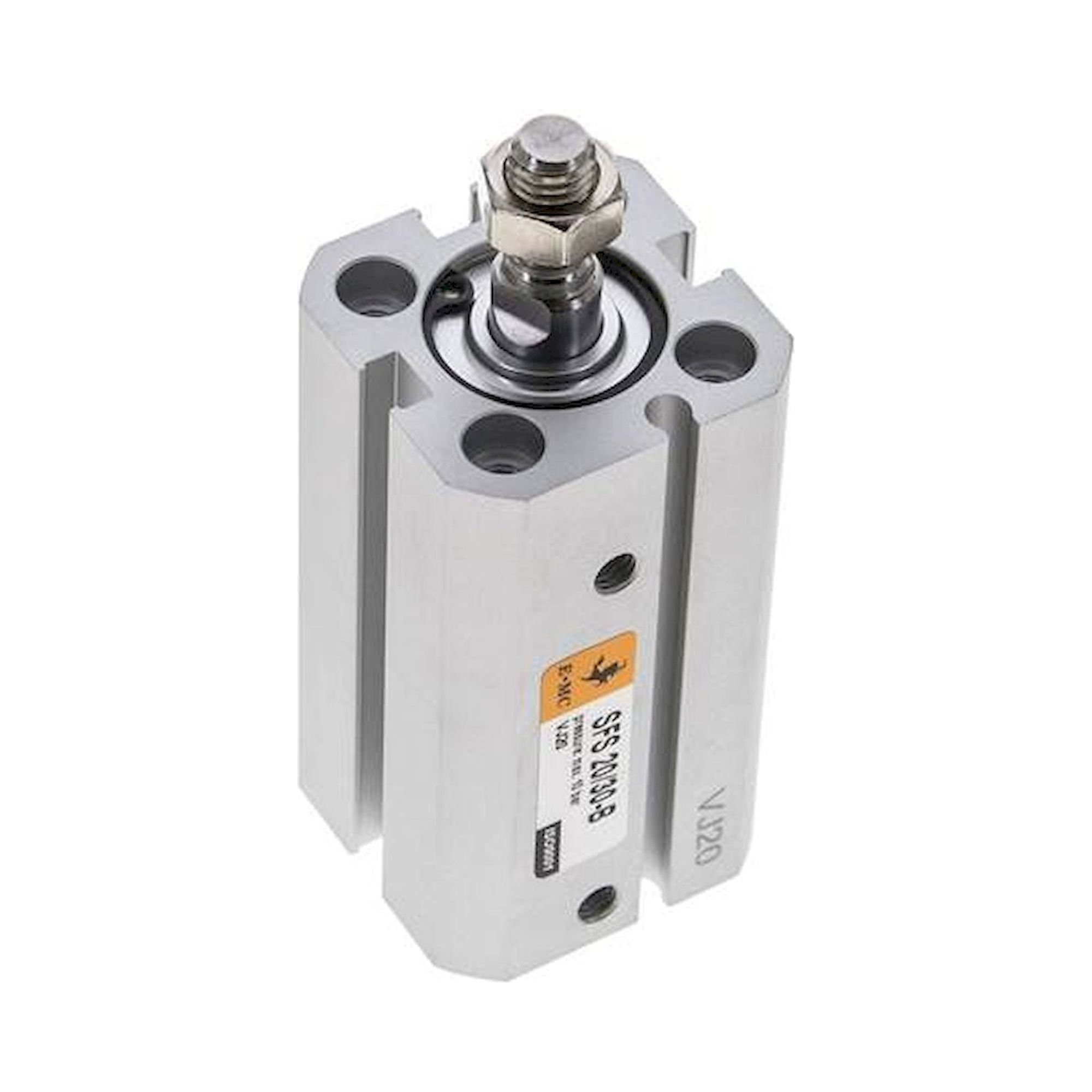

EMC SFS 20/30-B. ISO 21287 cylinders, double acting, piston 20 mm, stroke 30 mm
