EMC SFSBS 25/5-B. ISO 21287 cylinders, single acting, piston 25 mm, stroke 5 mm
€2,781.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SFSBS-25/5-B
Manufacturer Nr.
SFSBS 25/5-B
ISO 21287 cylinders, single acting, piston 25 mm, stroke 5 mm
Frequently Bought Together
-
This Item:
€2,781.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAEE 20/10-AG. ISO 21287 cylinders, single acting, piston 20 mm, stroke 10 mm
€7,895.00Excl. 19% VAT , excl. Shipping Cost
-

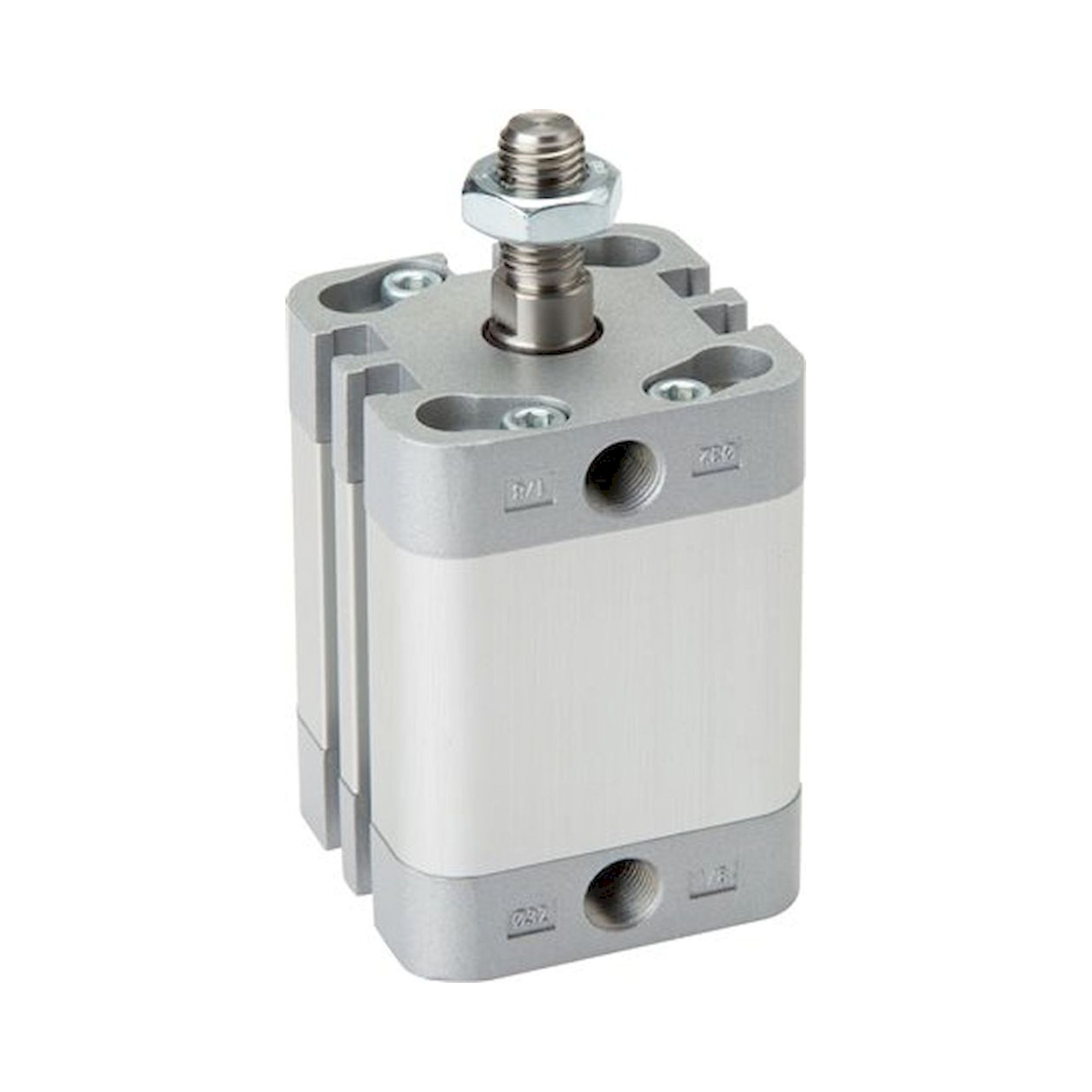

Airtec NAE 63/5-AG. ISO 21287 cylinders, single acting, piston 63 mm, stroke 5 mm
€10,024.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 63: hard chromium-plated steel) seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 63: hard chromium-plated steel) seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
| Piston diameter [mm] | 25 |
| Stroke [mm] | 5 |
| Version | Piston rod with male thread |
| KK (piston rod male thread) | M 8 |
| G (compressed air port) | M 5 |
| Repair sets | SFS 25 REP |
| A [mm] | 16 |
| AD [mm] | 12 |
| AF [mm] | 10 |
| BG [mm] | 15 |
| CH [mm] | 10 |
| E [mm] | 40,0 |
| E1 [mm] | 0 |
| LA [mm] | 5 |
| PL1 [mm] | 17,5 |
| PL2 [mm] | 5,5 |
| RT | M 5 |
| S [mm] | 0 |
| TG [mm] | 26,0 |
| WH [mm] | 6 |
| ZA [mm] | 39 |
| ZB [mm] | 45 |
| Manufacturer Nr. | SFSBS 25/5-B |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571929527 |
| Weight | 19.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

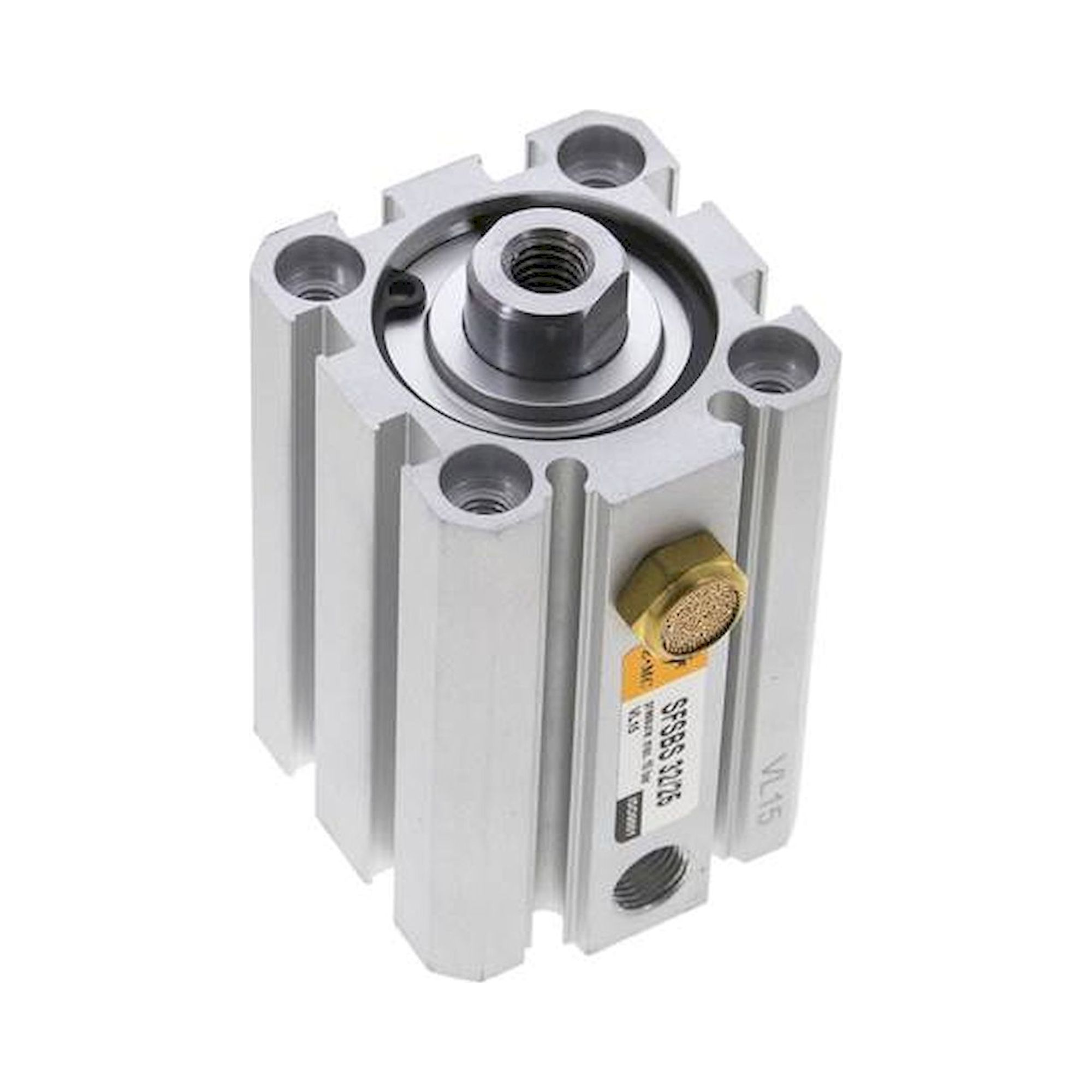

EMC SFSBS 32/25. ISO 21287 cylinders, single acting, piston 32 mm, stroke 25 mm
€331.00
Excl. 19% VAT ,
excl. Shipping Cost

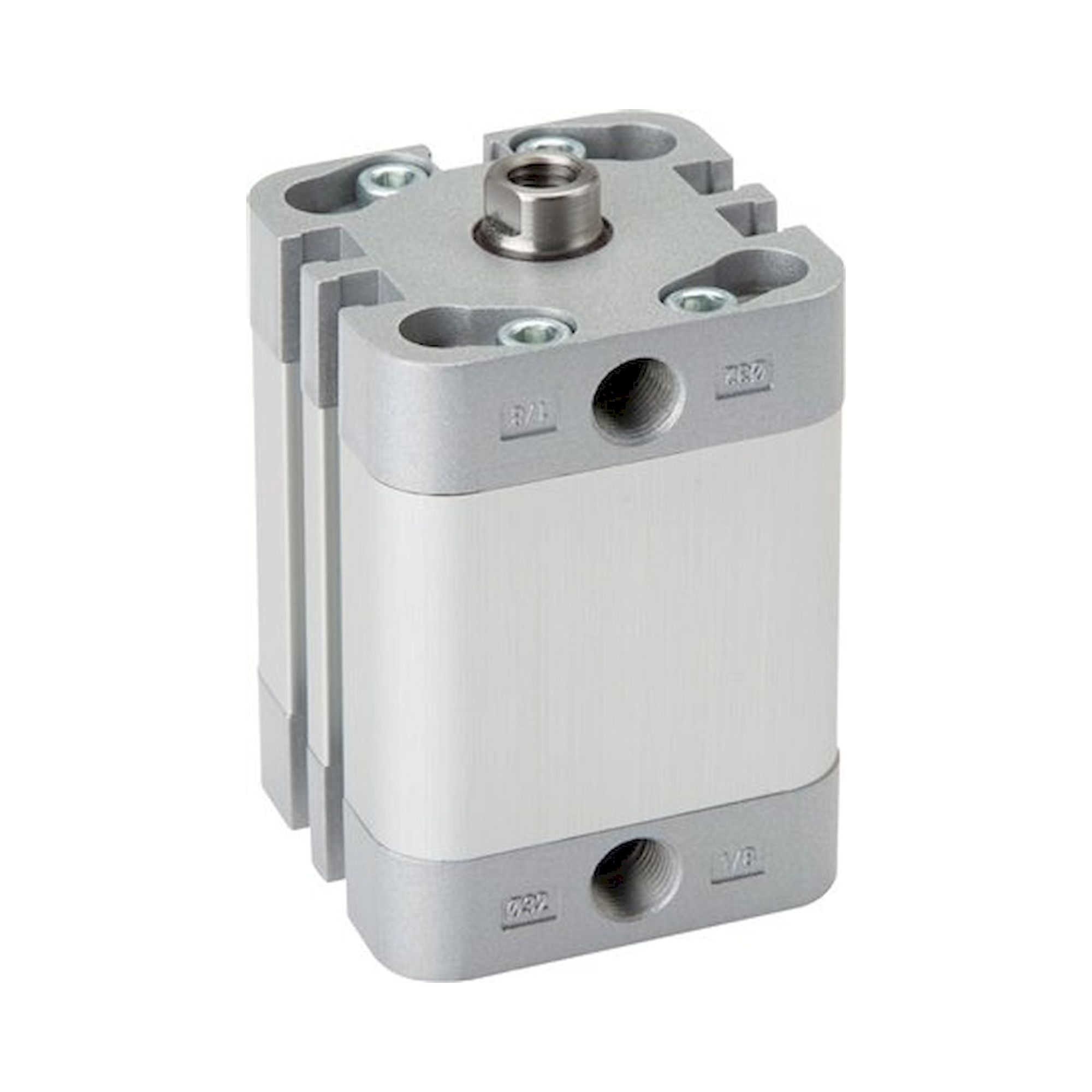

Airtec NAE 40/20. ISO 21287 cylinders, single acting, piston 40 mm, stroke 20 mm
€6,599.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 25/5. ISO 21287 cylinders, single acting, piston 25 mm, stroke 5 mm
€4,861.00
Excl. 19% VAT ,
excl. Shipping Cost

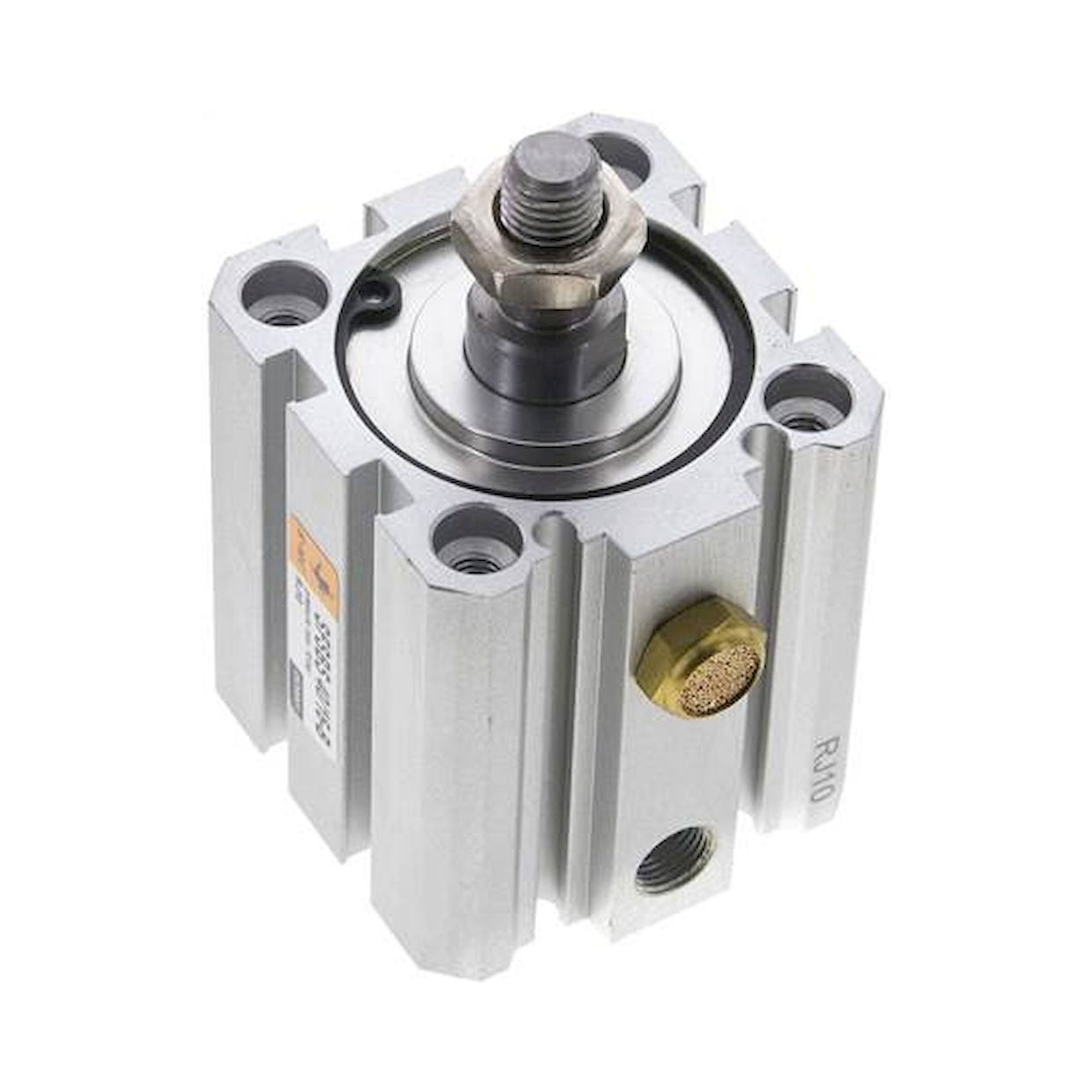

EMC SFSBS 40/15-B. ISO 21287 cylinders, single acting, piston 40 mm, stroke 15 mm
€3,368.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSBS 25/15. ISO 21287 cylinders, single acting, piston 25 mm, stroke 15 mm
€2,956.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAEE 50/20-AG. ISO 21287 cylinders, single acting, piston 50 mm, stroke 20 mm
€13,155.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAE 25/25. ISO 21287 cylinders, single acting, piston 25 mm, stroke 25 mm
€5,013.00
Excl. 19% VAT ,
excl. Shipping Cost

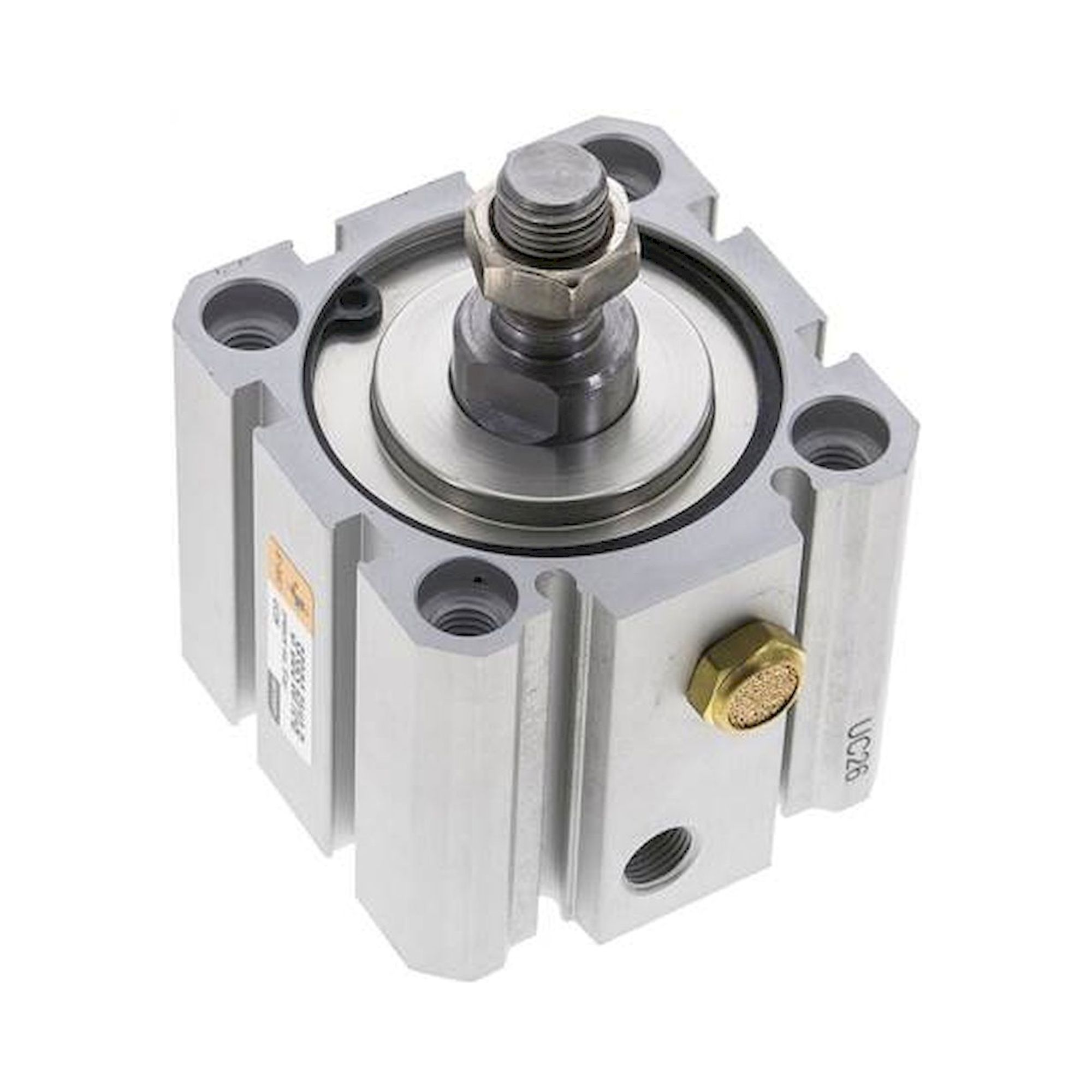

EMC SFSBS 50/10-B. ISO 21287 cylinders, single acting, piston 50 mm, stroke 10 mm
