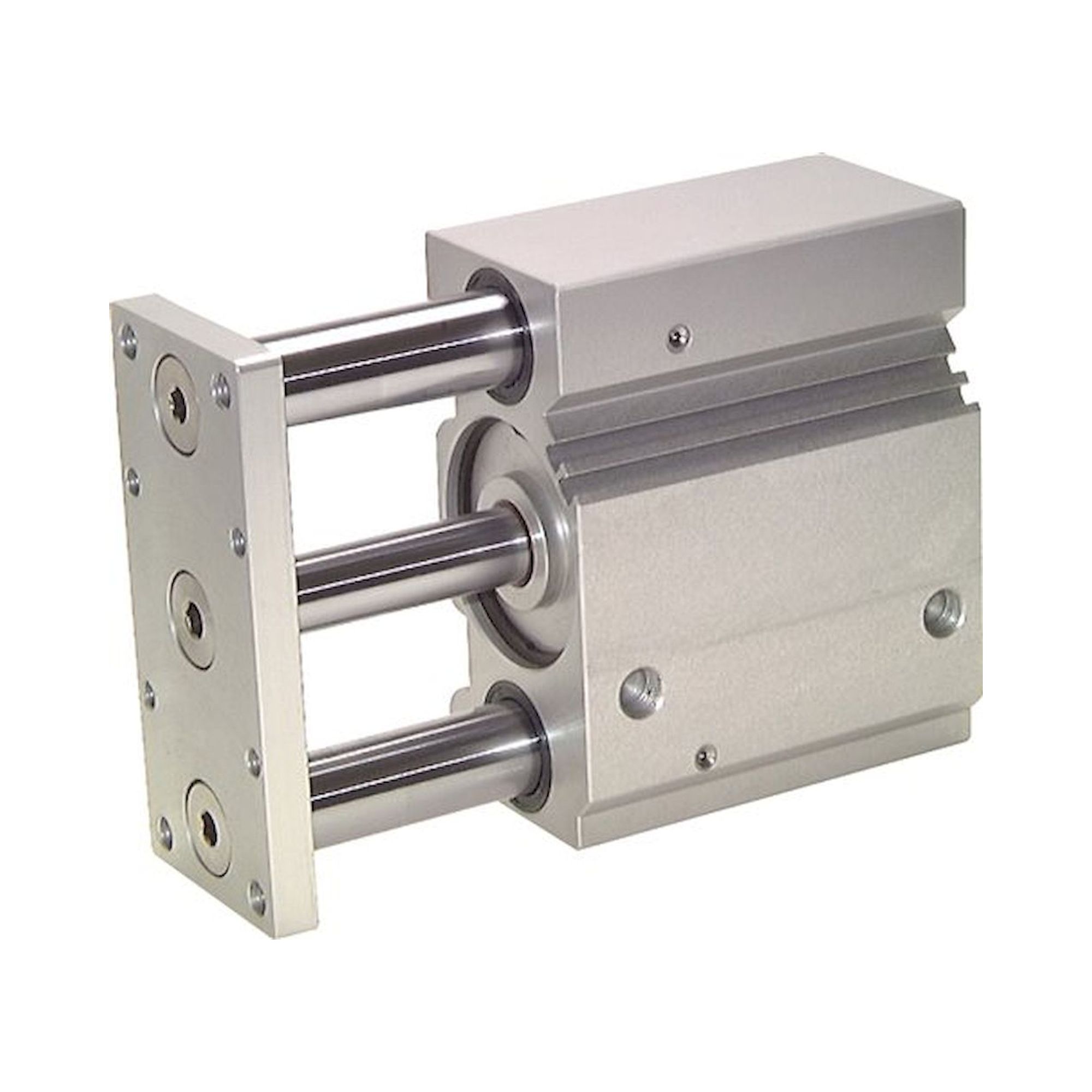

EMC SGM 63/50. Guide cylinder, with slide bearing, pistons 63mm, stroke 50mm

Name: EMC SGM 63/50. Guide cylinder, with slide bearing, pistons 63mm, stroke 50mm
Brand: E.MC
SKU: FL-SGM-63/50
Price: 23558 EUR
Availability: InStock

€23,558.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-SGM-63/50

Manufacturer Nr.

SGM 63/50

Guide cylinder, with slide bearing, pistons 63mm,stroke 50mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: EMC SGM 63/50. Guide cylinder, with slide bearing, pistons 63mm, stroke 50mm
€23,558.00
Excl. 19% VAT , excl. Shipping Cost
EMC SGM 63/200. Guide cylinder, with slide bearing, pistons 63mm, stroke 200mm
€32,618.00
Excl. 19% VAT , excl. Shipping Cost
ZDFM 63 REP. Reparatursatz für ZDFM-Zylinder 63mm
€3,259.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM

Piston diameter [mm]	63
Stroke [mm]	50
Version	with slide bearing
G (compressed air port)	G 1/4"
Repair sets	SGM 63 REP
lateral force permissible [N]	245
permissible torque at the end-plate [Nm]	12,10
C [mm]	49,0
D [mm]	25
D1 [mm]	20
E [mm]	0
FA [mm]	16
FB [mm]	28
GA [mm]	13,5
GB [mm]	16,5
GC [mm]	28,0
GD [mm]	14,0
GE [mm]	16,5
H [mm]	162
J [mm]	55,0
K [mm]	50
L1 [mm]	8
L2 [mm]	4
M	M 10
M1 [mm]	20
ML [mm]	22
MM	M 10
N [mm]	24
NN [mm]	52
P [mm]	8,7
PA (+0,03 / -0) [mm]	5
PP [mm]	6,0
Q [mm]	50
QL [mm]	130
R (± 0,02) [mm]	80
RR [mm]	124
T [mm]	14.0 (9.0 deep)
V [mm]	110
VA [mm]	17,8
VB [mm]	11,0
VC [mm]	10,0
VD [mm]	7,0
VE [mm]	18,5
W [mm]	78
WA [mm]	142
WB [mm]	58
WL [mm]	158
WW [mm]	70
