EMC SQN 32/70 SZ. Compact cylinders, double acting, piston 32 mm, stroke 70 mm
€3,666.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SQN-32/70-SZ
Manufacturer Nr.
SQN 32/70 SZ
Compact cylinders, double acting, piston 32 mm, stroke 70 mm
Frequently Bought Together
-
This Item:
€3,666.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 20/5 SZ. Compact cylinders, double acting, piston 20 mm, stroke 5 mm
€1,674.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SQ 80/5 SZ. Compact cylinders, double acting, piston 80 mm, stroke 5 mm
€733.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
| Piston diameter [mm] | 32 |
| Stroke [mm] | 70 |
| H (piston rod thread) | M 8 |
| G (compressed air port) | G 1/8" |
| Repair sets | SQN 32 REP |
| A [mm] | 40,0 |
| B [mm] | 33,0 |
| C [mm] | 13 |
| D [mm] | 16 |
| E [mm] | 45 |
| F [mm] | 7,5 |
| J [mm] | 4,5 |
| K [mm] | 14 |
| L [mm] | 7,0 |
| M [mm] | 34 |
| N [mm] | 5,5 |
| O [mm] | 9 (5,5 deep) |
| P | M 6 |
| P1 [mm] | 17,0 |
| Q [mm] | 10,5 |
| Manufacturer Nr. | SQN 32/70 SZ |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571638962 |
| Weight | 46.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
EMC SQN 50/50 SZ. Compact cylinders, double acting, piston 50 mm, stroke 50 mm
€4,104.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 80/30 SZ. Compact cylinders, double acting, piston 80 mm, stroke 30 mm
€792.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 80/35 SZ. Compact cylinders, double acting, piston 80 mm, stroke 35 mm
€8,086.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 80/20 SZ. Compact cylinders, double acting, piston 80 mm, stroke 20 mm
€7,669.00
Excl. 19% VAT ,
excl. Shipping Cost

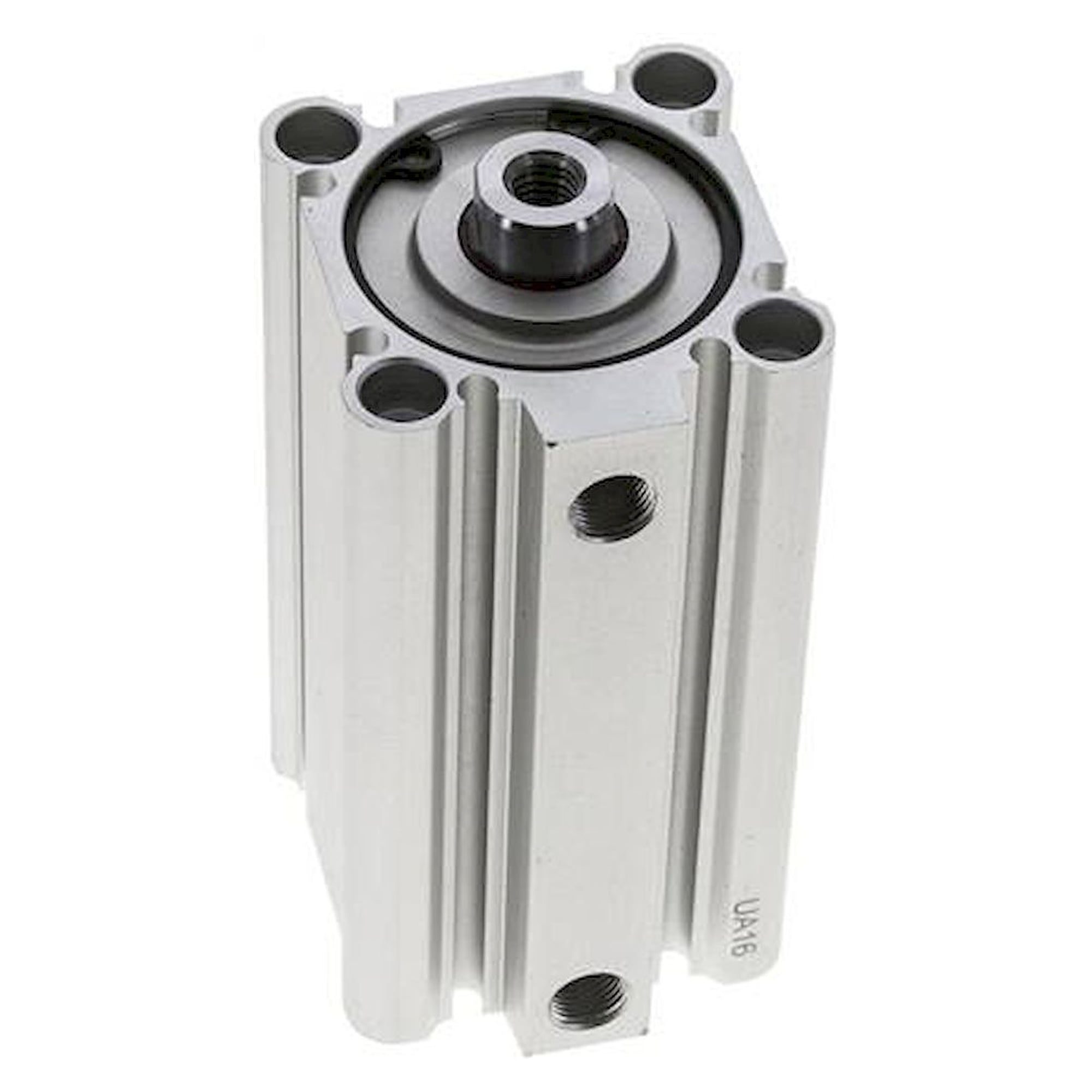

EMC SQN 40/60 SZ. Compact cylinders, double acting, piston 40 mm, stroke 60 mm
