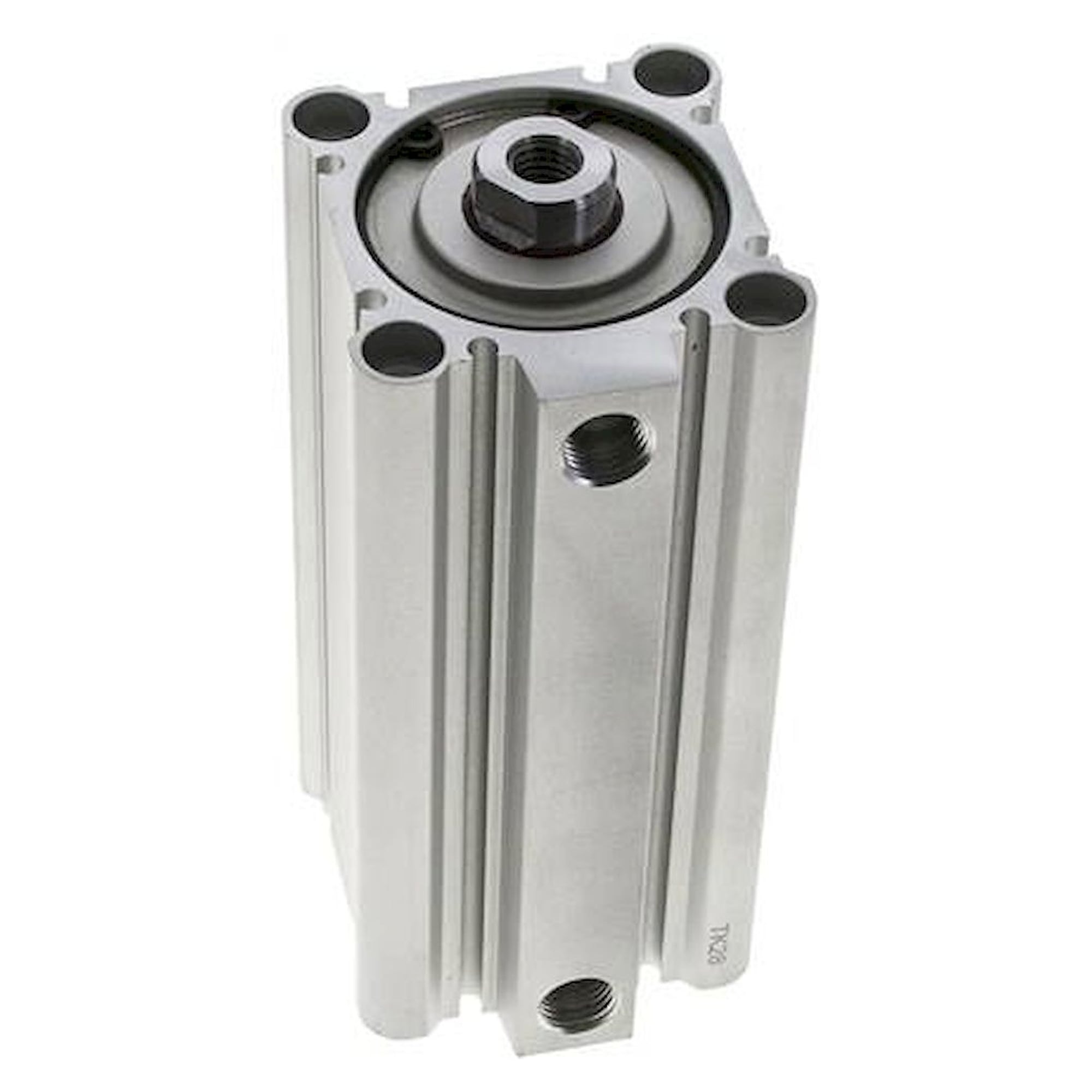

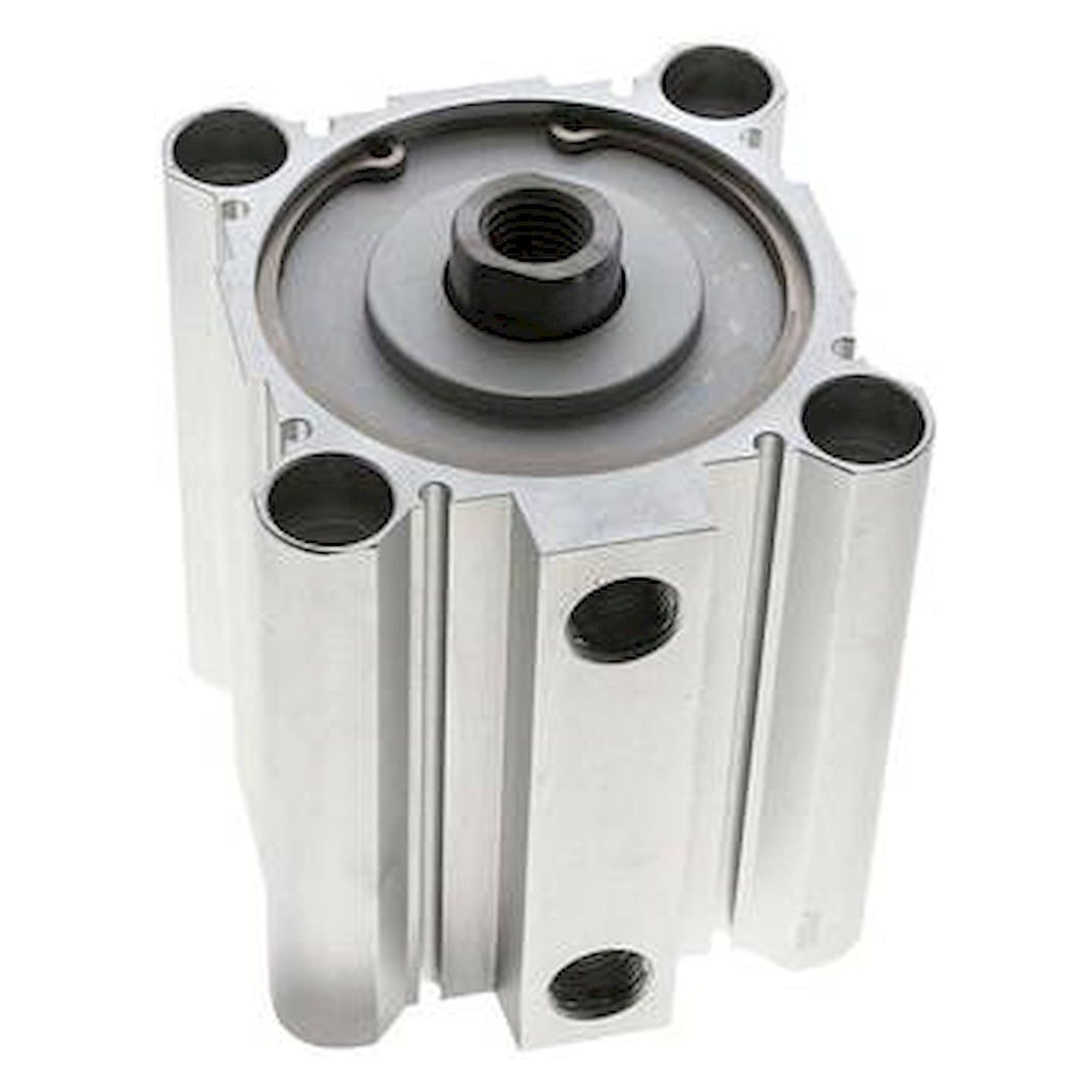

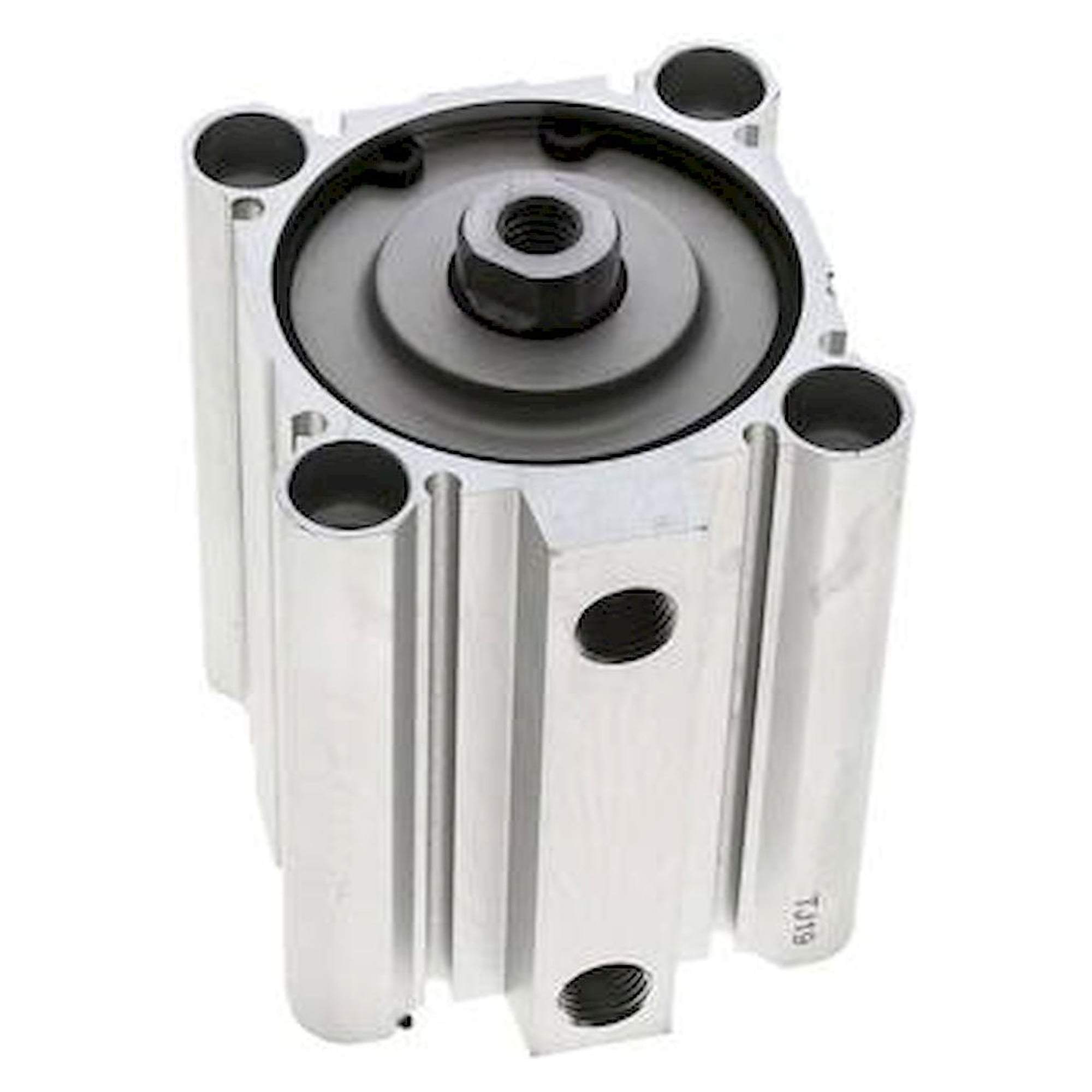

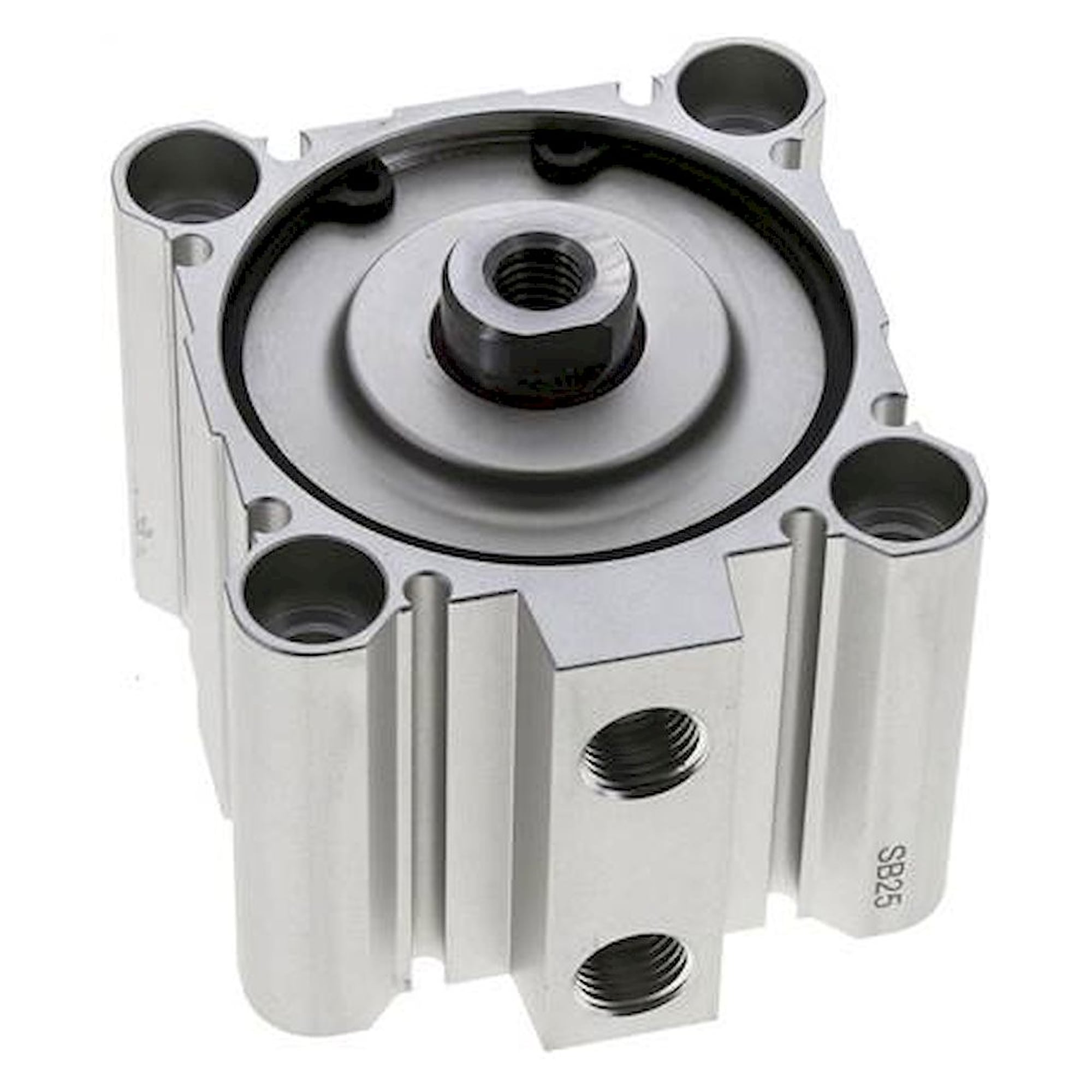

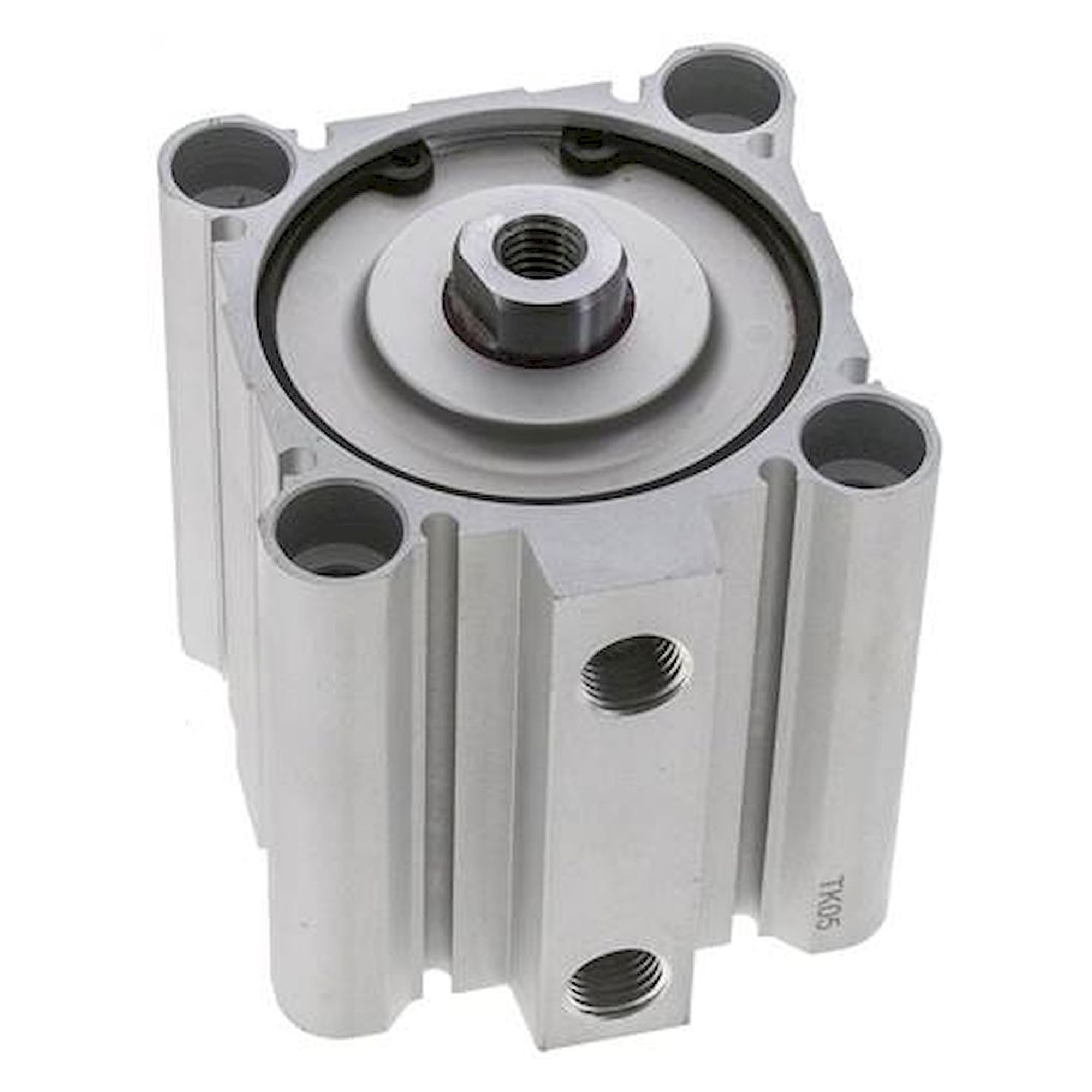

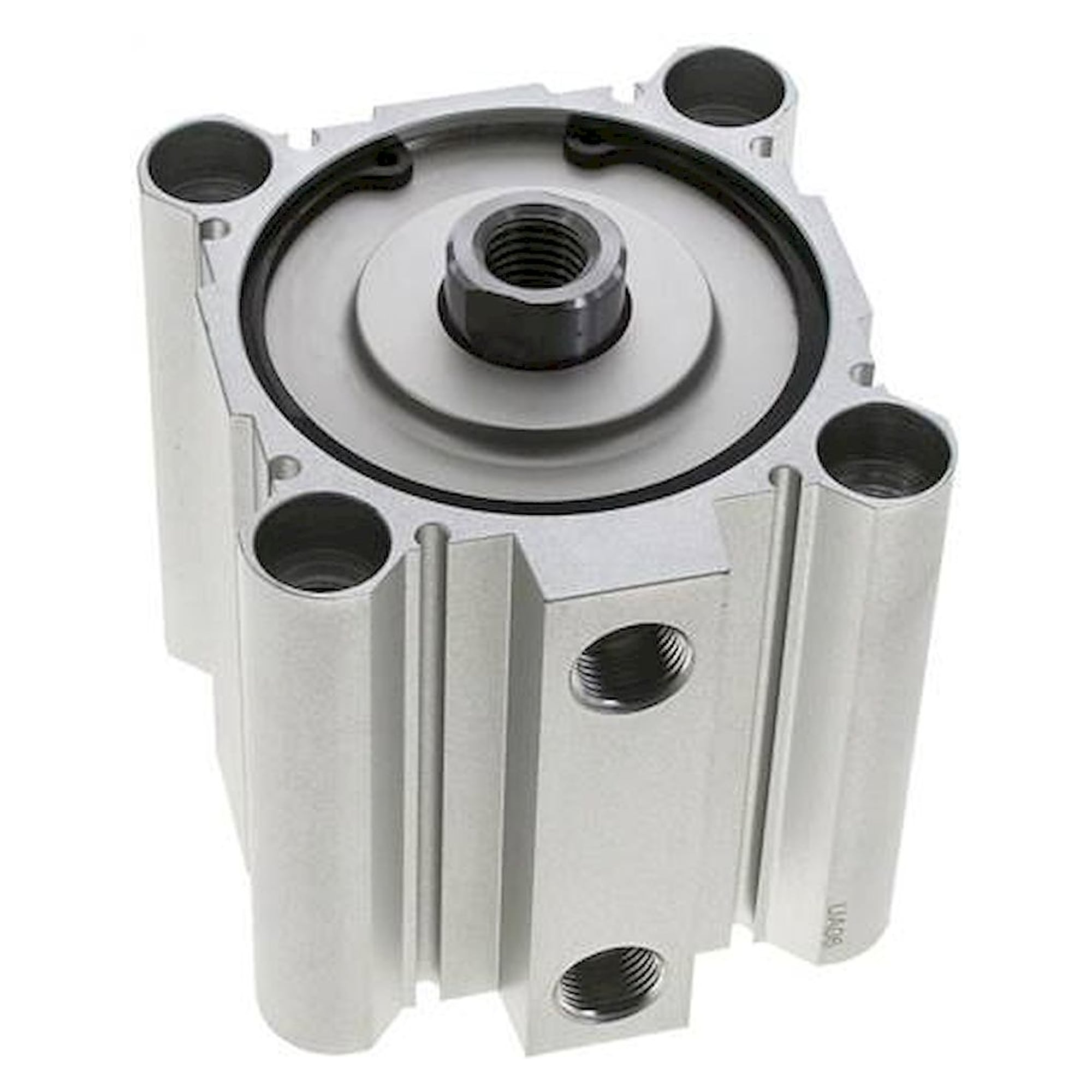

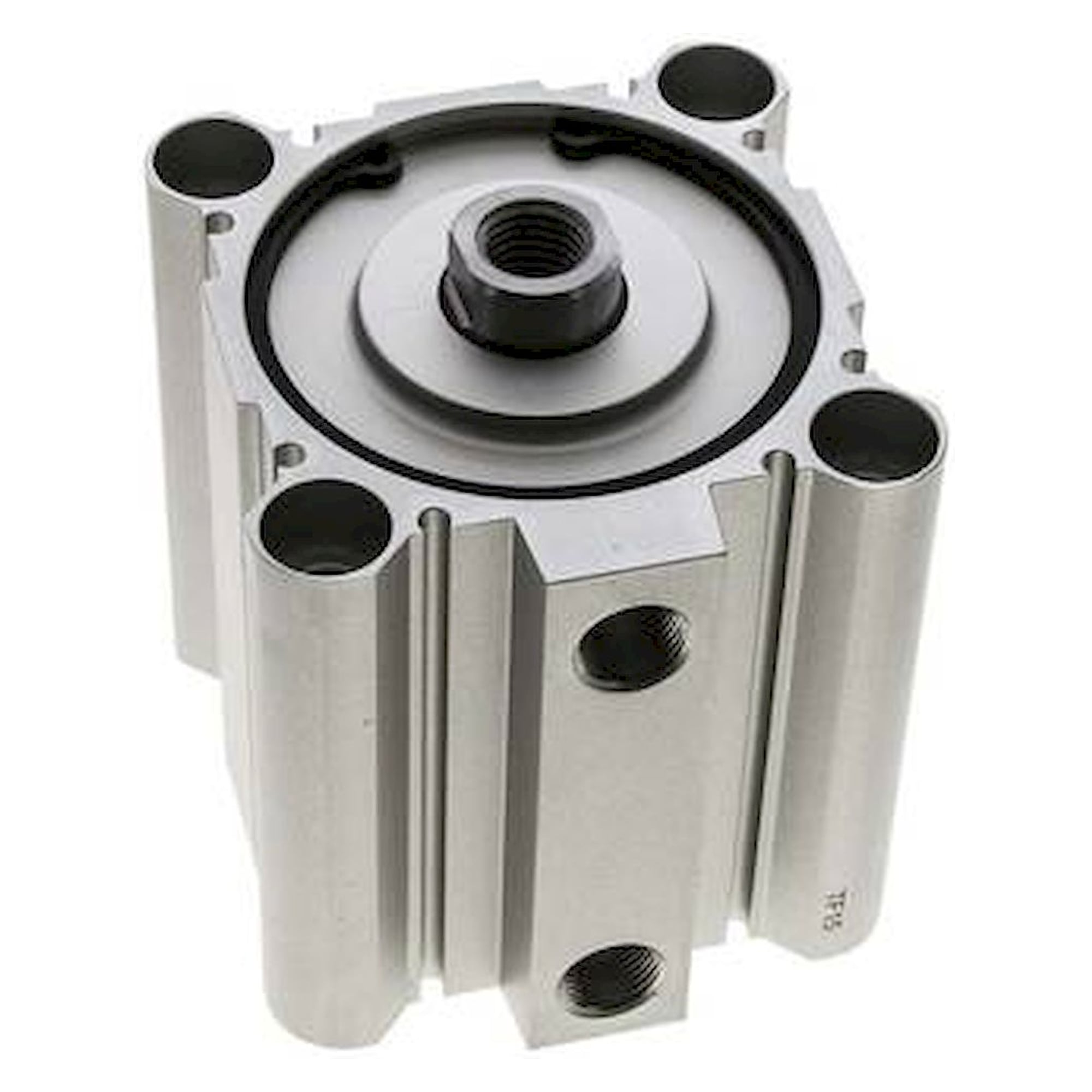

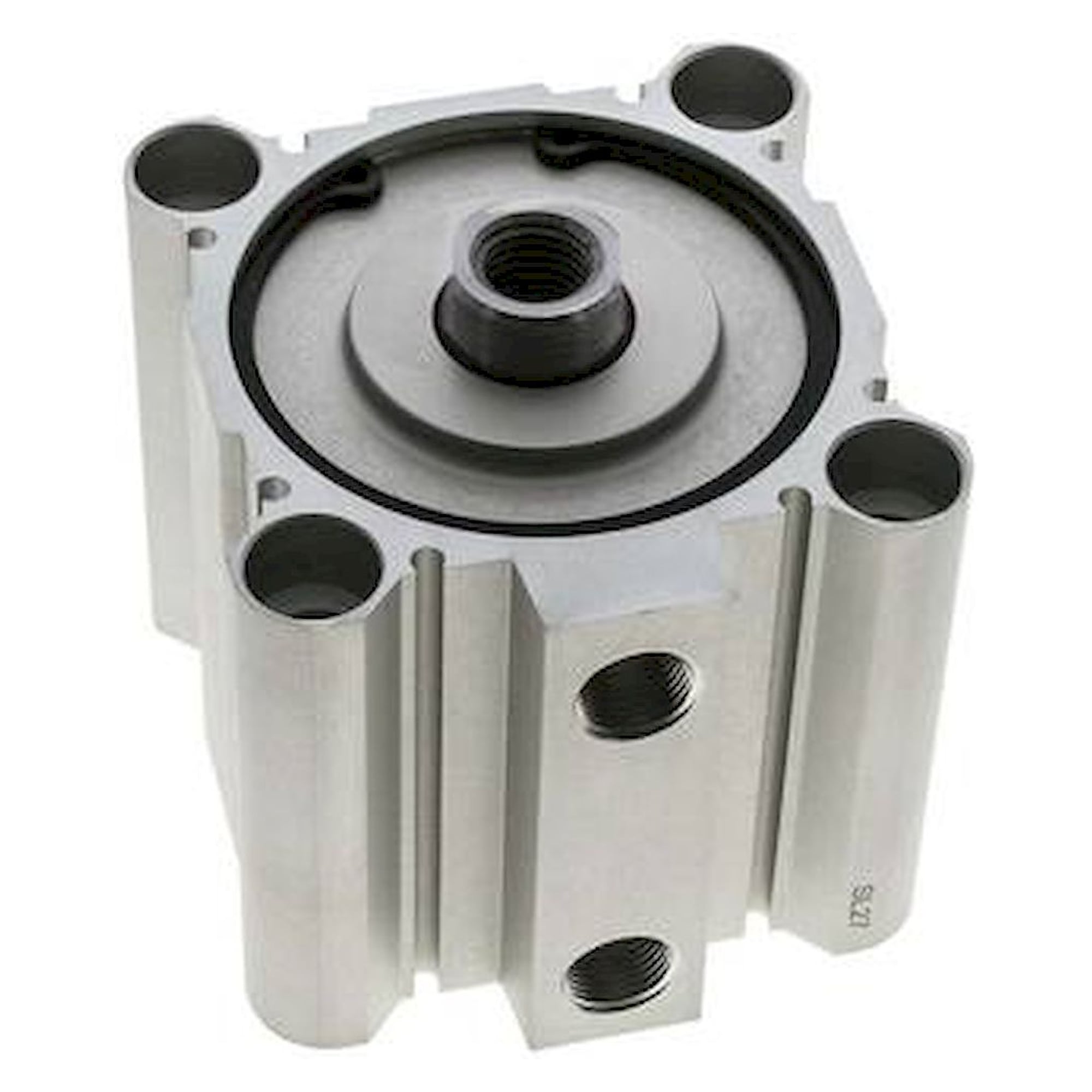

Compact cylinder SQ

SQ compact cylinders are double-acting pneumatic actuators engineered with space-saving designs for industrial automation applications requiring precise linear motion in confined spaces. These cylinders feature bore sizes up to 100mm with stroke lengths ranging from 5mm to 100mm, making them essential components in packaging machinery, assembly automation, material handling systems, and manufacturing equipment. Industries including automotive production, food processing, pharmaceutical manufacturing, and electronics assembly rely on SQ compact cylinders for their ability to deliver consistent force output while occupying minimal installation space compared to standard ISO cylinders.

Technical selection of SQ compact cylinders requires matching the bore diameter to your required force output, with 80mm and 100mm pistons being the primary options available in the EMC SQN and SQ series. Stroke length selection depends on your application's travel requirements, with available strokes ranging from 5mm for precise positioning tasks up to 100mm for extended reach applications. The force calculation follows F = P × A formula where operating pressure typically ranges 2-10 bar and effective piston area determines output force, with 100mm bore cylinders providing approximately 7850mm² effective area for maximum force generation in compact installations.

SQ compact cylinders are manufactured to comply with ISO 21287 standards for compact cylinder dimensions and ISO 4762 for mounting configurations, ensuring international compatibility and interchangeability. These pneumatic actuators meet DIN EN ISO 9001 quality management requirements and typically carry CE marking for European machinery directive compliance. For hazardous area applications, ATEX-certified variants are available meeting directive 2014/34/EU, while industrial installations require adherence to ISO 4414 pneumatic system safety standards and proper integration with ISO 5599-1 valve interfaces for complete system certification.

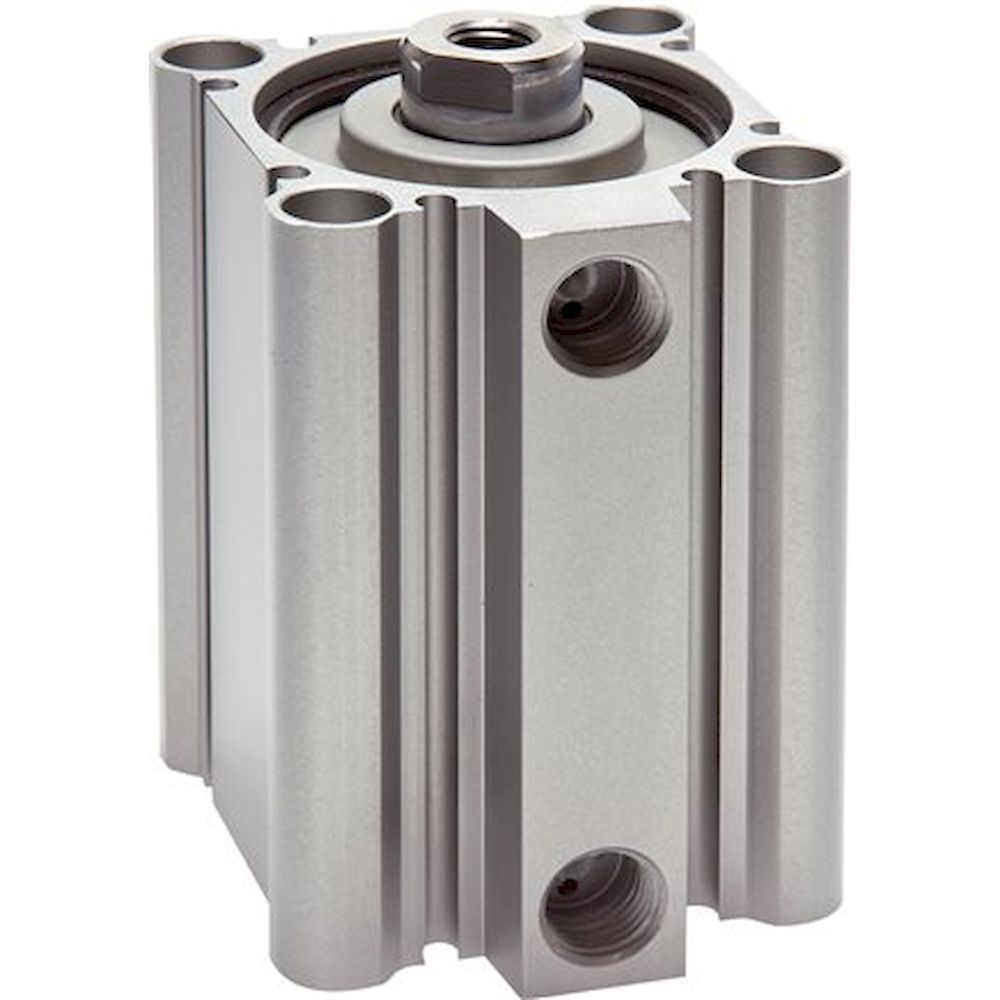

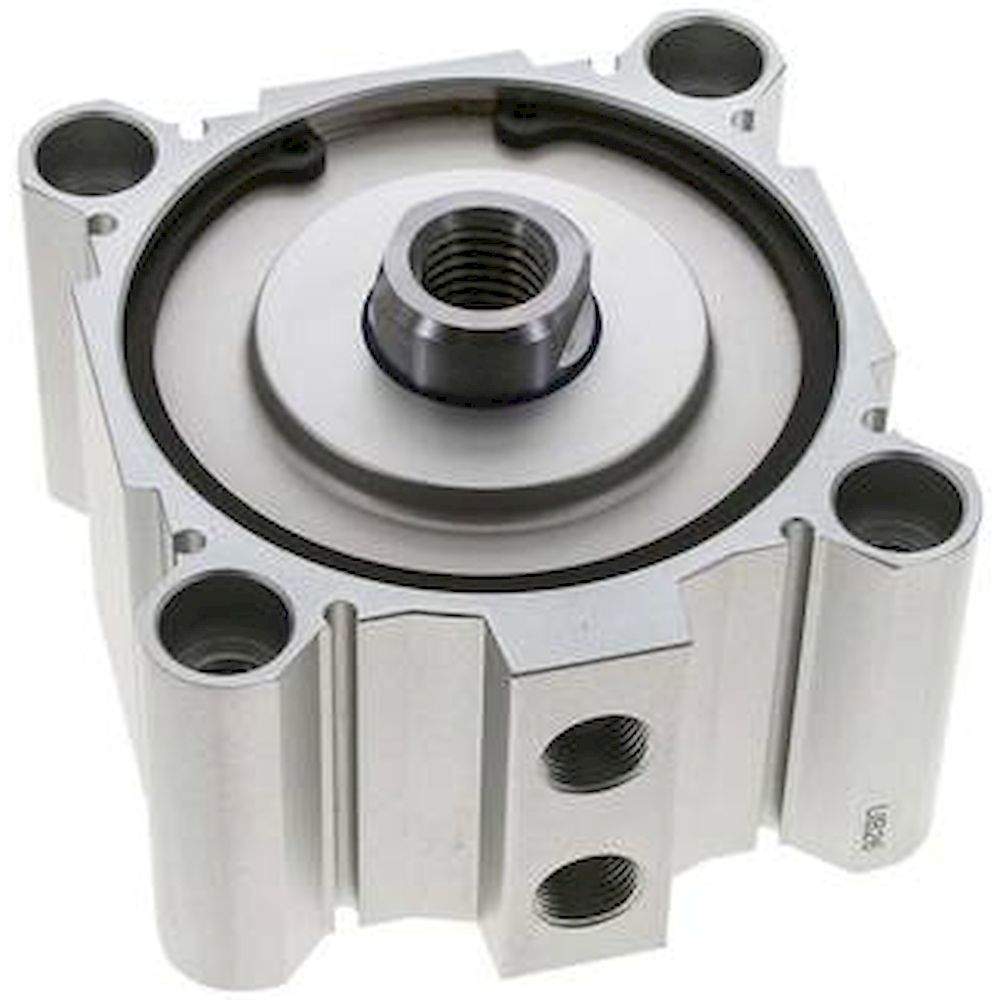

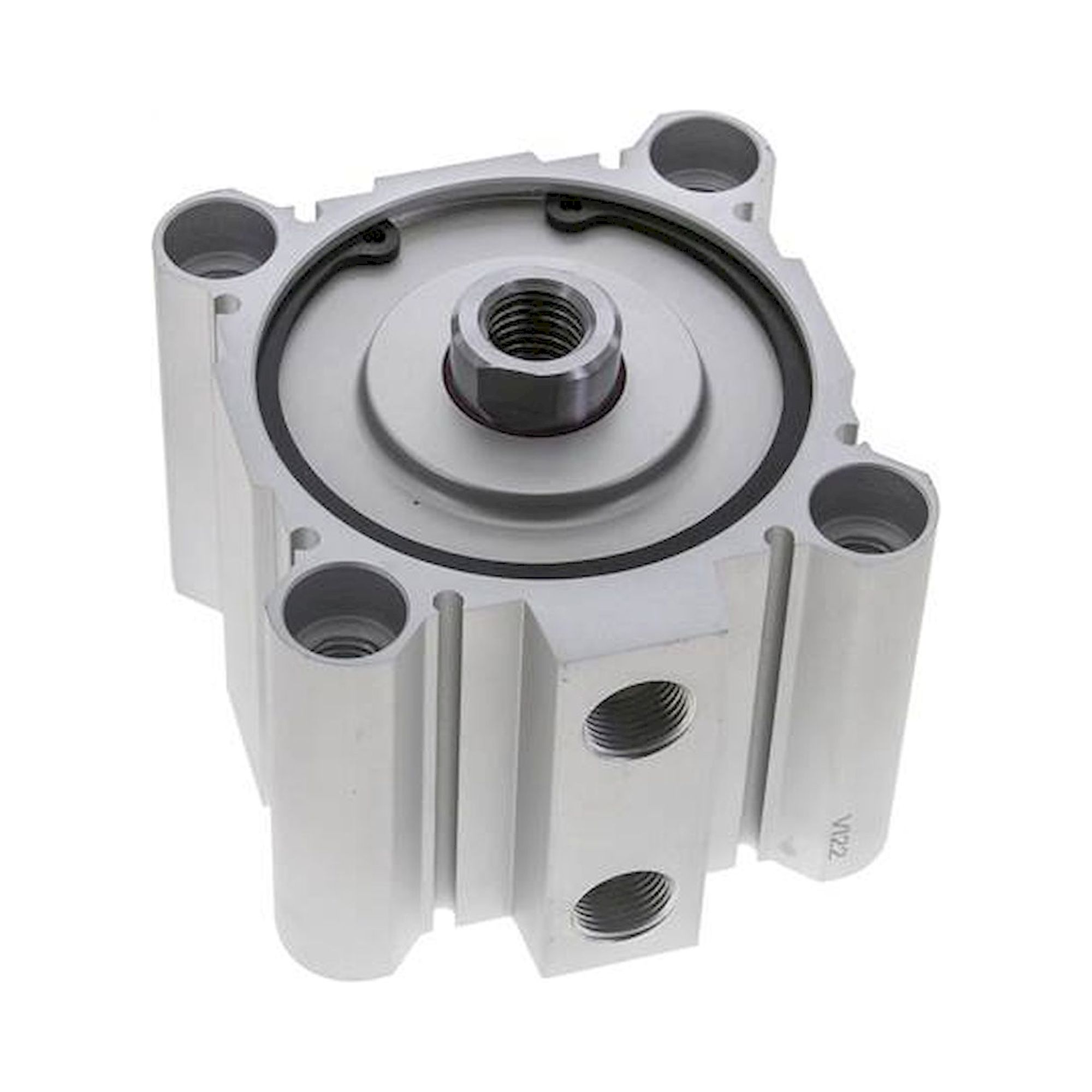

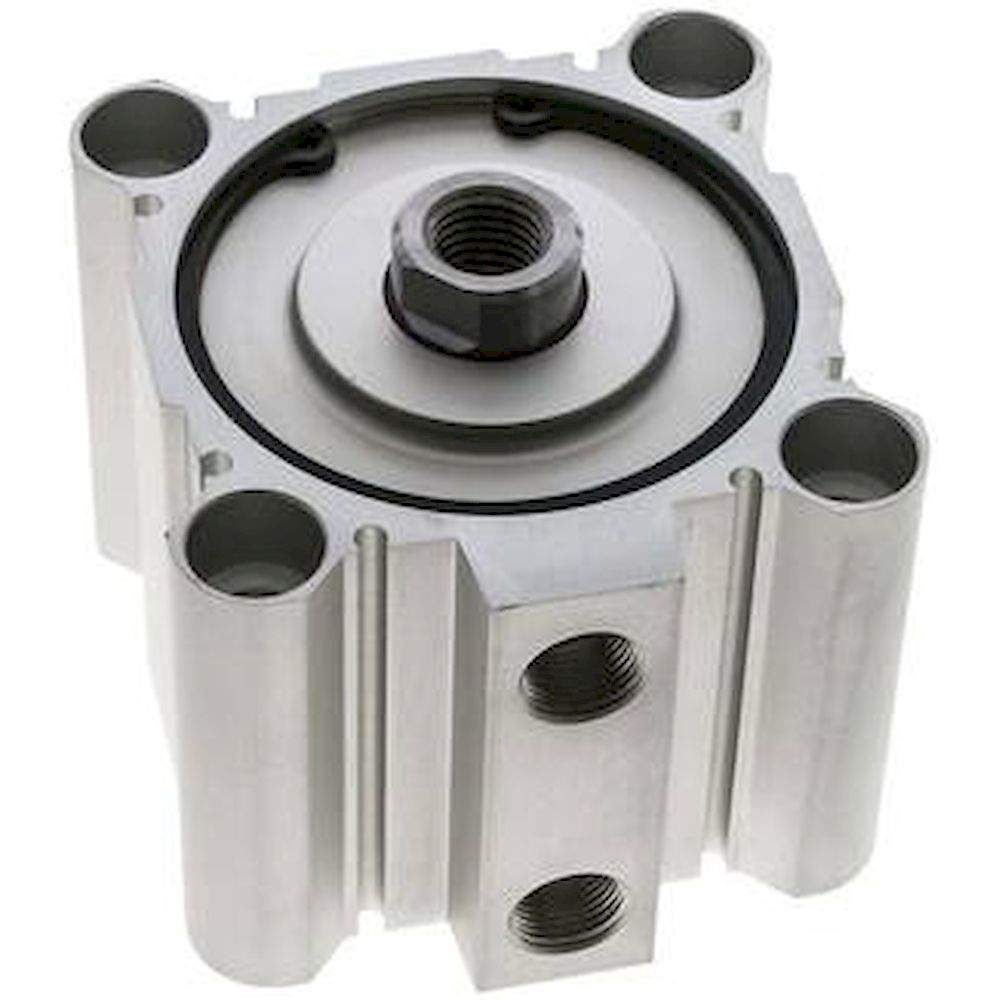

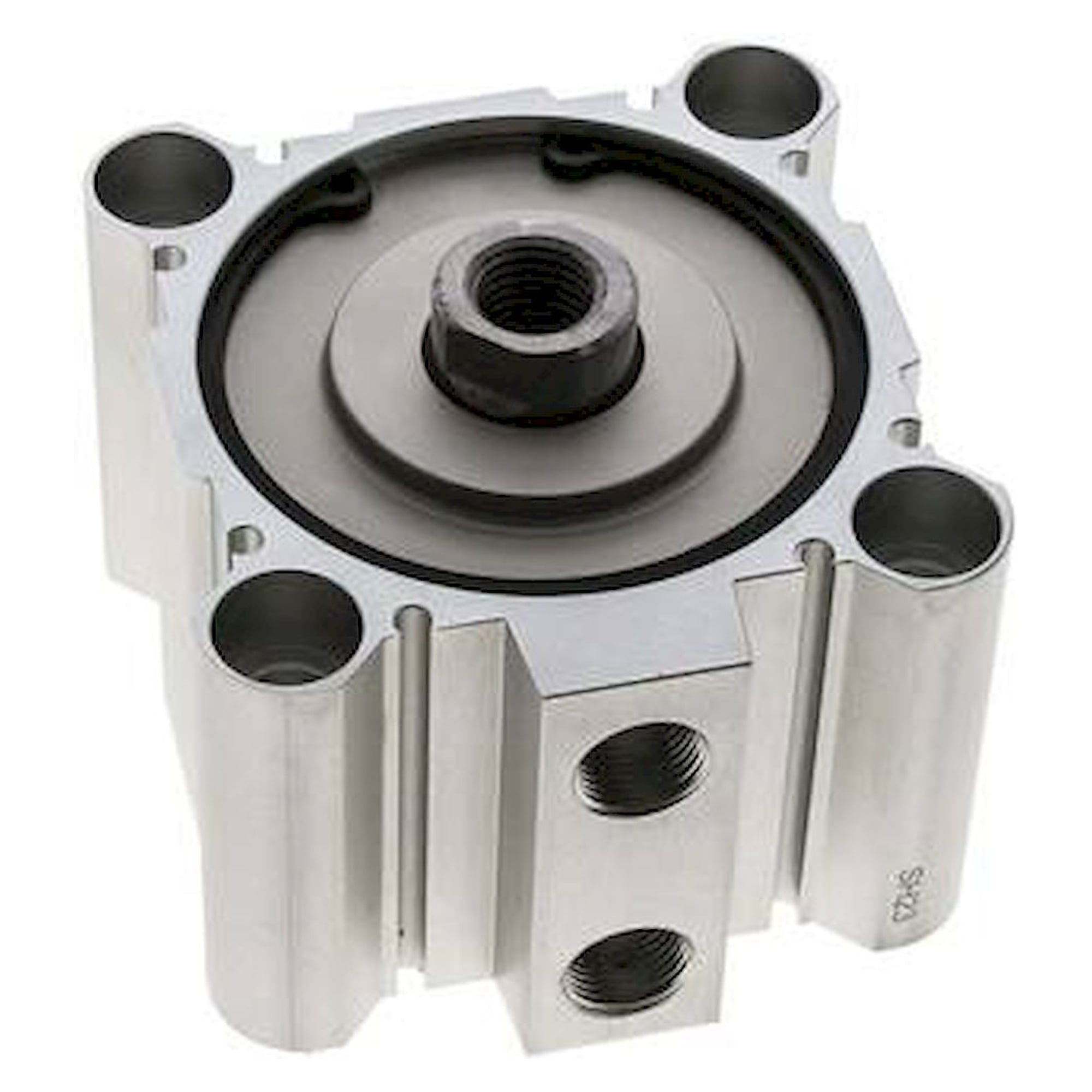

The EMC SQ and EMC SQN compact cylinder series differ primarily in their mounting configurations and internal cushioning systems, with both offering identical 80mm and 100mm bore sizes across stroke ranges from 5mm to 100mm. EMC SQN variants typically feature integrated magnetic sensors for position feedback and enhanced mounting flexibility, while standard EMC SQ models provide cost-effective solutions for basic positioning applications. Both series maintain the same double-acting operation principle and pressure ratings, but SQN cylinders often include additional sensor mounting grooves and T-slot compatibility for more complex automation integration requirements.

SQ compact cylinders require G1/8 or M5 threaded pneumatic connections compatible with standard compressed air systems operating at 2-10 bar working pressure with filtered, lubricated air according to ISO 8573-1 class 7:4:4 quality standards. Installation mounting follows ISO 15552 compact cylinder standards with foot mounting, flange mounting, or pivot mounting options depending on application requirements. Electrical connections for sensor-equipped SQN variants utilize M8 or M12 circular connectors with IP65 protection rating, while proper installation requires adequate clearance for stroke movement and access to manual override functions for maintenance procedures.

SQ compact cylinders operate safely within temperature ranges of -5°C to +80°C ambient conditions with working pressure limits of 2-10 bar maximum, featuring IP65 ingress protection rating against dust and water jets for industrial environments. These cylinders incorporate integrated safety features including pressure relief capabilities and fail-safe spring return options where specified, meeting machinery safety directive EN ISO 13849-1 category 2 requirements for automation applications. Maximum operating frequency reaches 300 cycles per minute depending on stroke length and load conditions, with proper system design including pressure regulation and emergency stop circuits required for safe operation in industrial pneumatic systems.

SQ compact cylinders require routine maintenance every 1 million cycles or 12 months of operation, whichever occurs first, including inspection of seals, lubrication system functionality, and mounting bolt torque verification to manufacturer specifications. Expected service life ranges from 10-20 million cycles depending on operating pressure, cycle frequency, and environmental conditions, with seal replacement typically required at 50-70% of rated cycle life. Preventive maintenance includes monthly visual inspection for external damage and leakage, quarterly compressed air quality verification per ISO 8573-1 standards, and annual complete disassembly inspection including piston seal replacement and internal component wear assessment to maintain optimal performance and safety compliance.
