EMC SQN 63/15 SZ. Compact cylinders, double acting, piston 63 mm, stroke 15 mm
€5,597.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SQN-63/15-SZ
Manufacturer Nr.
SQN 63/15 SZ
Compact cylinders, double acting, piston 63 mm, stroke 15 mm
Frequently Bought Together
-
This Item:
€5,597.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 32/60 SZ. Compact cylinders, double acting, piston 32 mm, stroke 60 mm
€3,718.00Excl. 19% VAT , excl. Shipping Cost
-
EMC SQN 20/15 SZ. Compact cylinders, double acting, piston 20 mm, stroke 15 mm
€1,928.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
| Piston diameter [mm] | 63 |
| Stroke [mm] | 15 |
| H (piston rod thread) | M 10 |
| G (compressed air port) | G 1/4" |
| Repair sets | SQN 63 REP |
| A [mm] | 54,0 |
| B [mm] | 46,0 |
| C [mm] | 15 |
| D [mm] | 20 |
| E [mm] | 77 |
| F [mm] | 10,5 |
| J [mm] | 7,0 |
| K [mm] | 17 |
| L [mm] | 8,0 |
| M [mm] | 60 |
| N [mm] | 9,0 |
| O [mm] | 14 (9 deep) |
| P | M 10 |
| P1 [mm] | 28,5 |
| Q [mm] | 15,0 |
| Manufacturer Nr. | SQN 63/15 SZ |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571639372 |
| Weight | 75.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
EMC SQN 100/15 SZ. Compact cylinders, double acting, piston 100 mm, stroke 15 mm
€9,467.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQ 25/45 SZ. Compact cylinders, double acting, piston 25 mm, stroke 45 mm
€2,622.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 25/20 SZ. Compact cylinders, double acting, piston 25 mm, stroke 20 mm
€2,189.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQ 100/90 SZ. Compact cylinders, double acting, piston 100 mm, stroke 90 mm
€13,185.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 12/10 SZ. Compact cylinders, double acting, piston 12 mm, stroke 10 mm
€1,407.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SQN 100/5 SZ. Compact cylinders, double acting, piston 100 mm, stroke 5 mm
€9,081.00
Excl. 19% VAT ,
excl. Shipping Cost

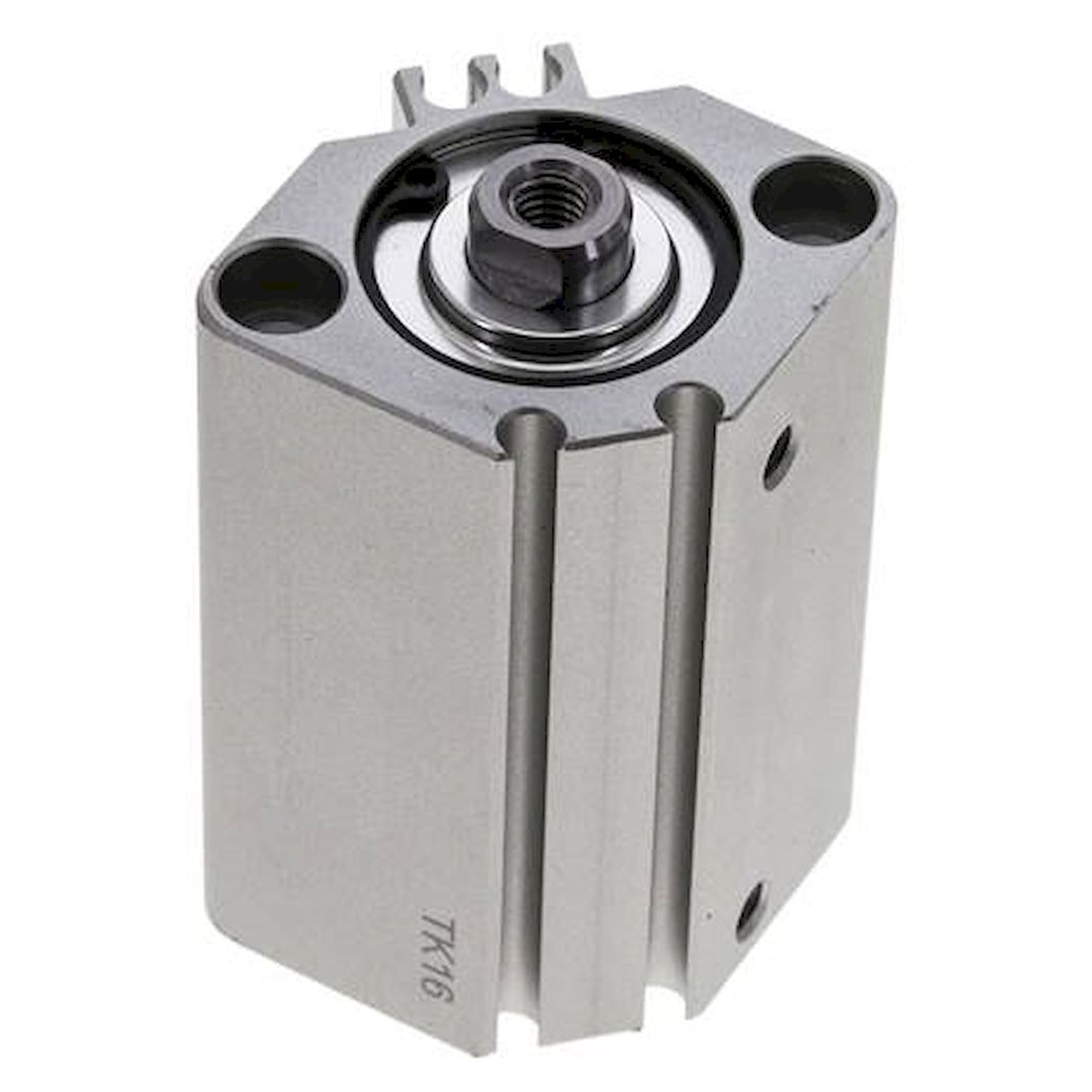

EMC SQN 25/35 SZ. Compact cylinders, double acting, piston 25 mm, stroke 35 mm
