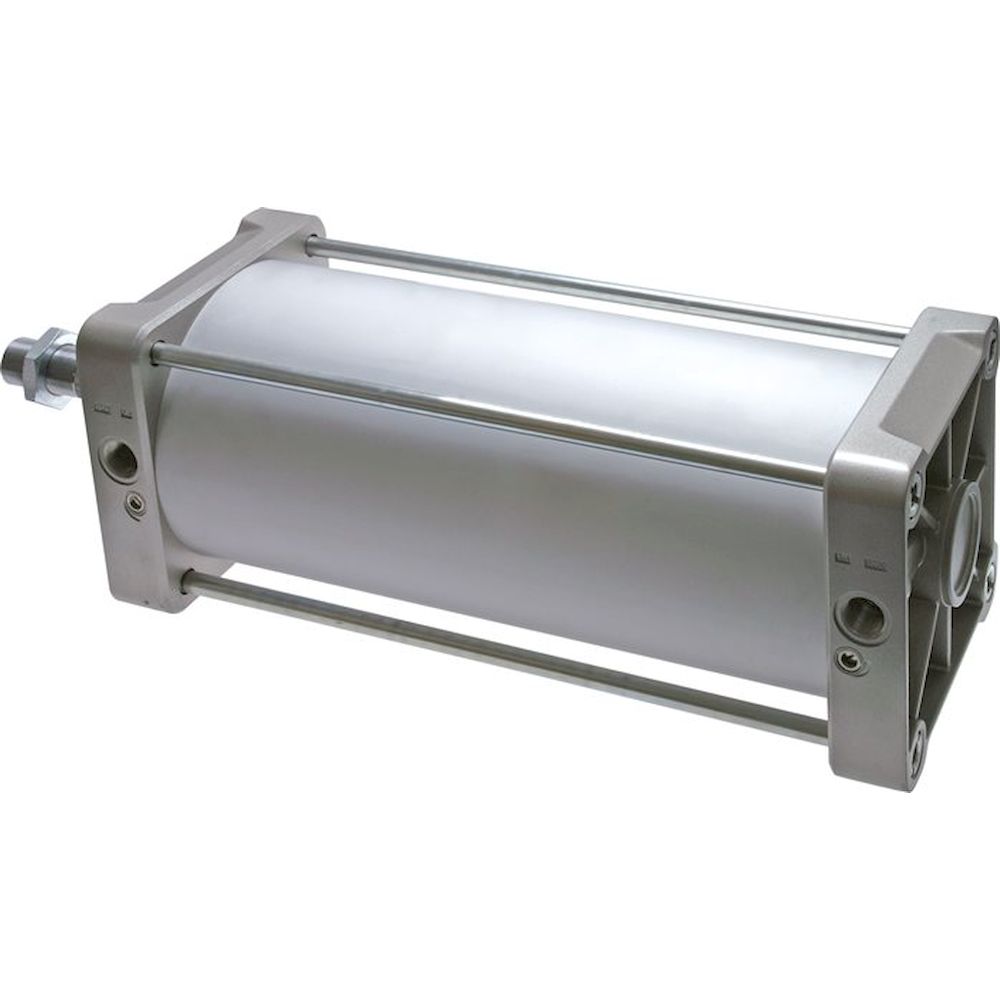

TM 320/2000. ISO 15552 cylinders, piston 320 mm, stroke 2000 mm, ECO

Name: TM 320/2000. ISO 15552 cylinders, piston 320 mm, stroke 2000 mm, ECO
Brand: Fluidics equipment
SKU: FL-TM-320/2000
Price: 808359 EUR
Availability: InStock

€808,359.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-TM-320/2000

Manufacturer Nr.

TM 320/2000

ISO 15552 cylinders, piston 320 mm, stroke 2000 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: TM 320/2000. ISO 15552 cylinders, piston 320 mm, stroke 2000 mm, ECO
€808,359.00
Excl. 19% VAT , excl. Shipping Cost
TM 320/100. ISO 15552 cylinders, piston 320 mm, stroke 100 mm, ECO
€313,822.00
Excl. 19% VAT , excl. Shipping Cost

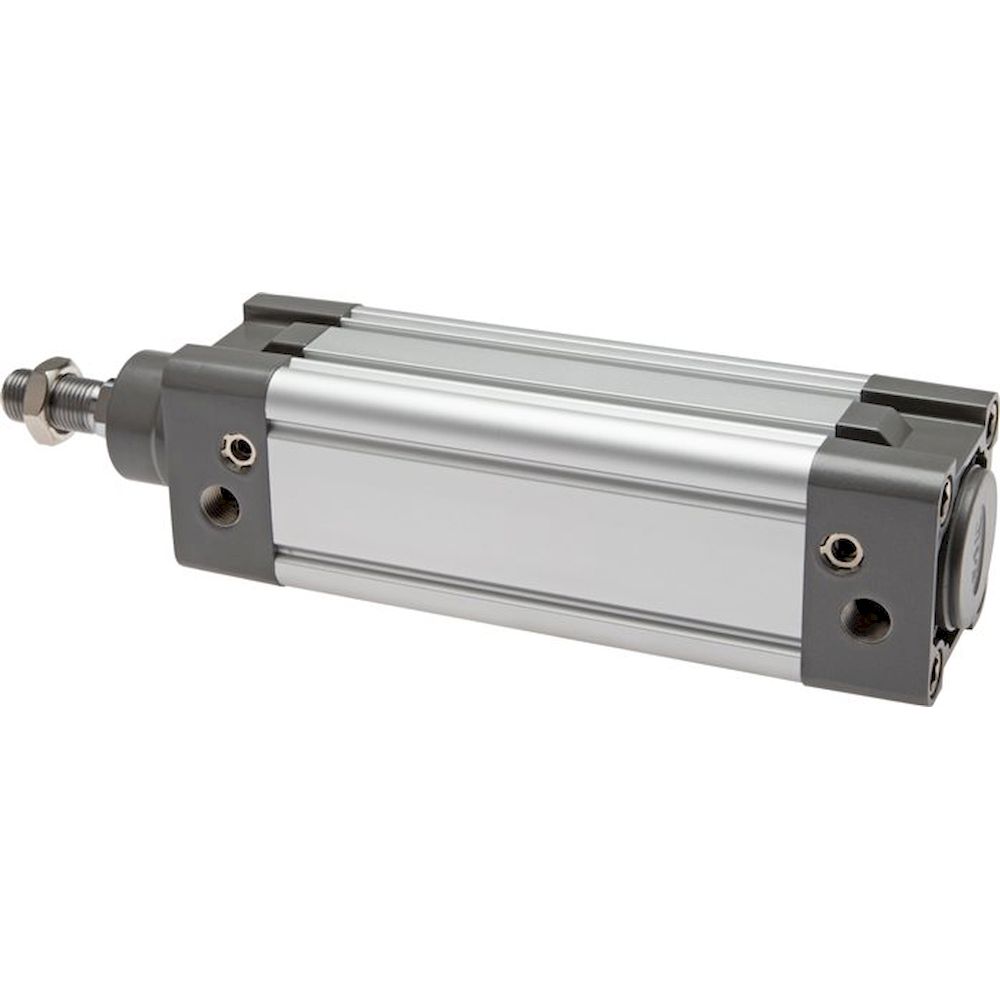

EMC XLE 50/25. ISO 15552 cylinders, piston 50 mm, stroke 25 mm, ECO
€6,043.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	320
Stroke [mm]	2000
A (piston rod thread)	M 48x2
G (compressed air port)	G 1"
Repair sets	TM 320 REP
B [mm]	63
C [mm]	110
D [mm]	90
F [mm]	96
G [mm]	120
H [mm]	340
K [mm]	10,0
M [mm]	350,0
N [mm]	270,0
CH [mm]	55
RT	M 24

Information

More Information
Manufacturer Nr.	TM 320/2000
Manufacturer	Fluidics equipment
EAN	4050571699413
Weight	1.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
