Airtec TM 50/100 ES. ISO 15552-stainless steel cylinder, 50, stroke 100 mm

Name: Airtec TM 50/100 ES. ISO 15552-stainless steel cylinder, 50, stroke 100 mm
Brand: Airtec
SKU: FL-TM-50/100-ES
Price: 46332 EUR
Availability: InStock

€46,332.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-TM-50/100-ES

Manufacturer Nr.

TM 50/100 ES

ISO 15552-stainless steel cylinder, 50, stroke 100 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

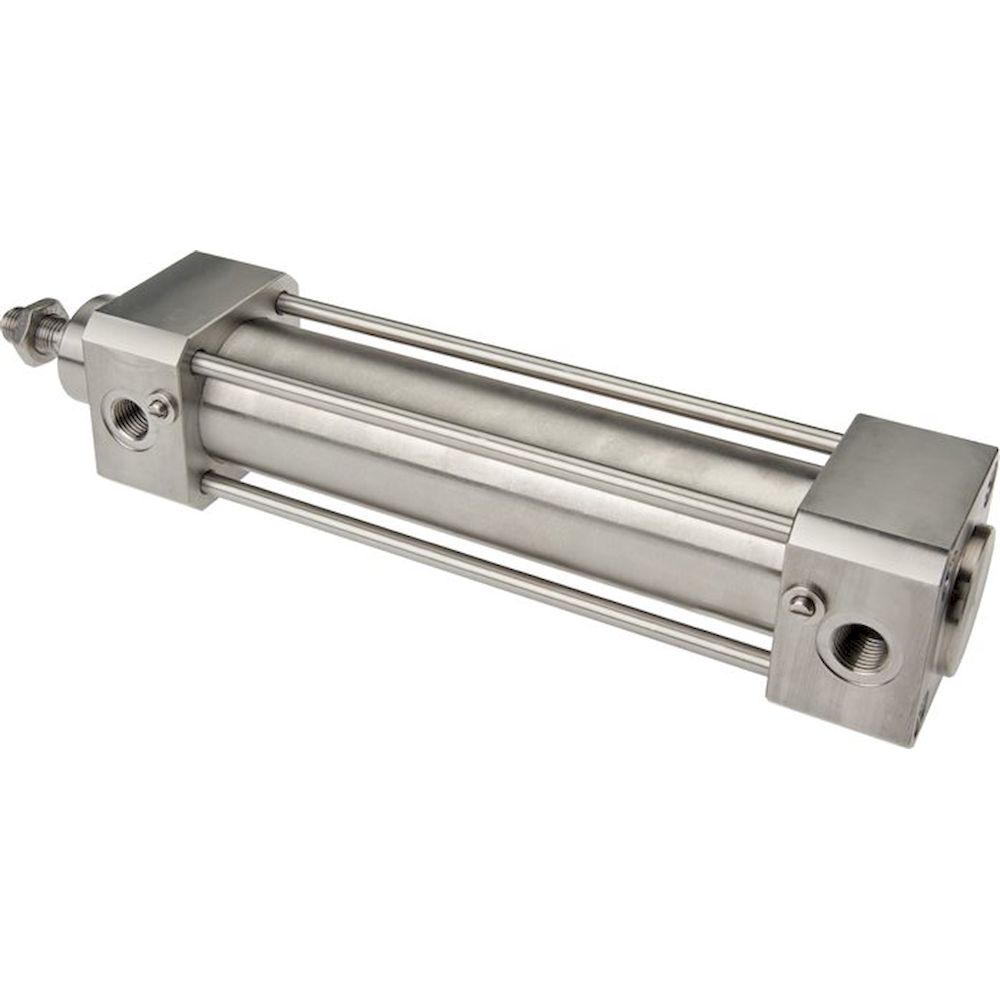

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec TM 50/100 ES. ISO 15552-stainless steel cylinder, 50, stroke 100 mm
€46,332.00
Excl. 19% VAT , excl. Shipping Cost
Airtec TM 50/50 ES. ISO 15552-stainless steel cylinder, 50, stroke 50 mm
€45,312.00
Excl. 19% VAT , excl. Shipping Cost
Airtec TM 125/80 ES. ISO 15552-stainless steel cylinder, 125, stroke 80 mm
€140,152.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head, base and cylinder pipe: 1.4301, piston rod: 1.4401, seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
C in combination with mounting E1

Piston diameter [mm]	50
Stroke [mm]	100
A (piston rod thread)	M 16x1,5
G (compressed air port)	G 1/4"
B [mm]	20
C [mm]	40
D [mm]	25,5
F [mm]	32
G [mm]	37
H [mm]	143
K [mm]	4
M [mm]	65
N [mm]	46,5
CH [mm]	17
RT	M 8

Information

More Information
Manufacturer Nr.	TM 50/100 ES
Manufacturer	Airtec
EAN	4050571699796
Weight	34.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
