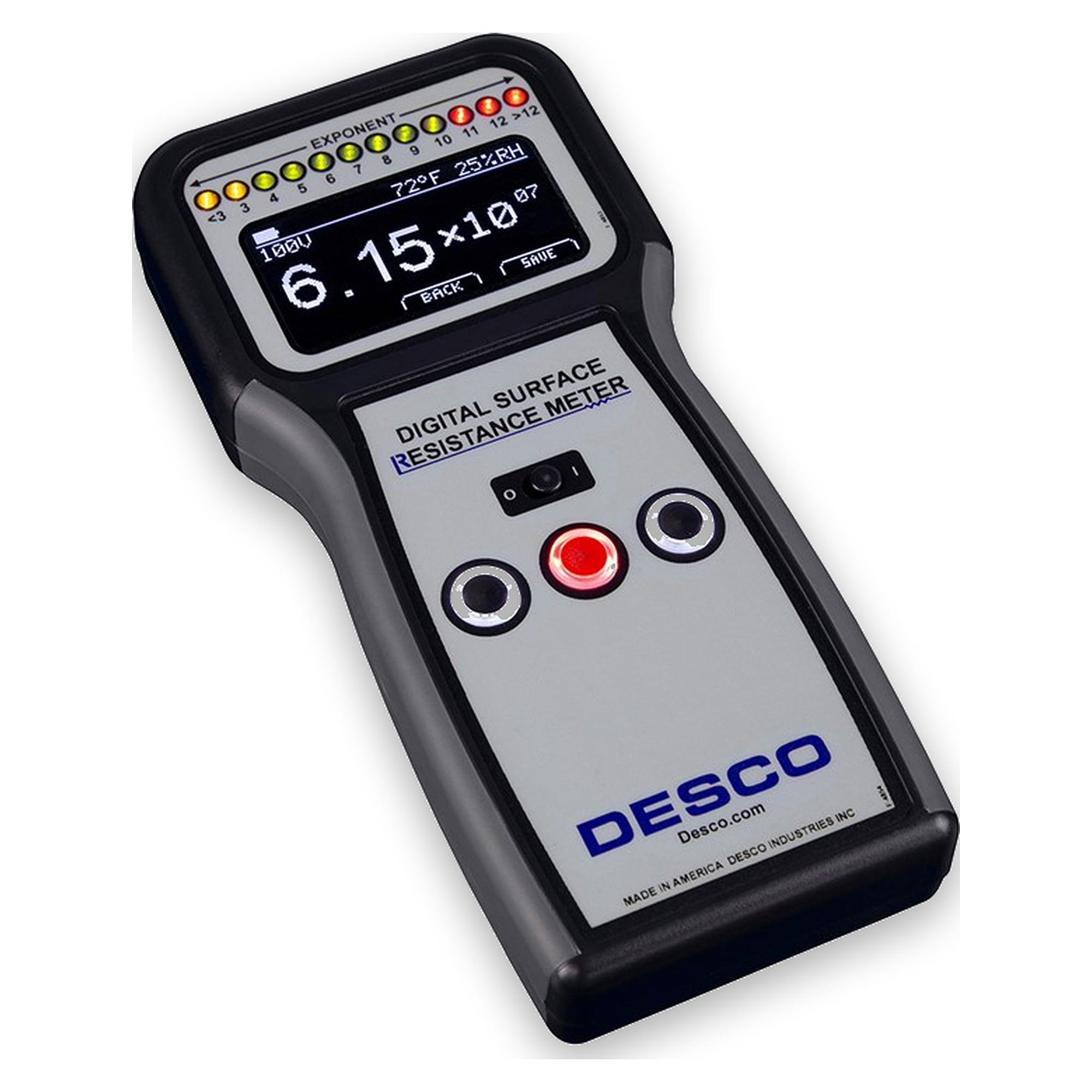

Digital surface resistance tester with OLED display - A1-ESD DESCO 19291

The DESCO 19291 is a digital teraohmmeter for point-to-point and point-to-ground resistance measurements on ESD workstations, floor coverings and packaging materials. With switchable test voltages of 10 V and 100 V, it covers the relevant resistance range from conductive to insulating and delivers reproducible, standard-compliant results for ongoing ESD control.

Key benefits

• Large display: OLED display showing reading, temperature, relative humidity and test voltage at the same time.
• Complete documentation: internal memory for up to 100 readings.
• Fast range classification: additional LED indicator for the resistance exponent.
• Two test voltages: 10 V and 100 V for standard-compliant testing of different materials.
• Wide range: below 1.0 x 10³ to above 1.0 x 10¹² Ω.

Technical data

• Method: point-to-point and point-to-ground
• Measuring range: below 1.0 x 10³ to above 1.0 x 10¹² Ω
• Test voltage: 10 V and 100 V, switchable
• Display: OLED display plus LED exponent indicator
• Memory: up to 100 readings
• Additional values: temperature and relative humidity

Applications

• Regular inspection and auditing of ESD protected areas (EPA)
• Checking of workstations, dissipative floor coverings, table mats and packaging
• Fault analysis and quality assurance in electronics production

Standards and compliance

Supports resistance measurements per IEC 61340-5-1 and the associated test standards of the IEC 61340 series.
