ESD measurement set with high-resistance meter, field meter and grounding block - A1-ESD Kit 822

The ESD measurement Kit 822 combines the two most relevant ESD instruments in a practical aluminium case and adds a grounding block for safe personal and equipment equipotential bonding during measurement. The set thus covers resistance measurement of surfaces and dissipation paths as well as the measurement of electrostatic fields, and is ready to use straight away.

Key benefits

• Two core instruments plus grounding block in one case
• TeraResist 8000 high-resistance meter for surface and dissipation resistance
• Two ME10 electrodes for standard-compliant, reproducible point measurements
• EFM 822 field meter for fast determination of fields and potentials
• Grounding block for safe equipotential bonding at the measuring point
• Battery chargers and all cables included in the set

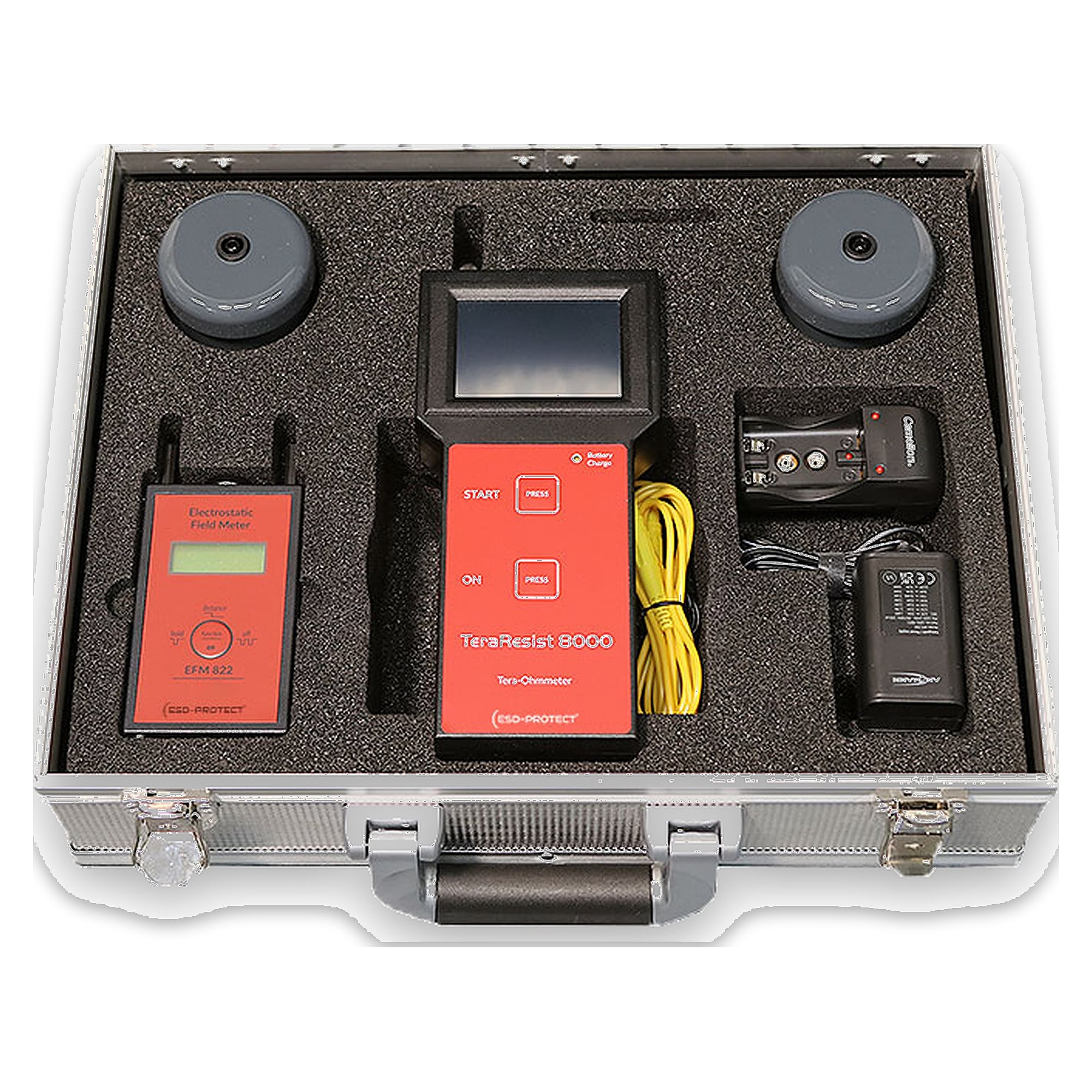

Scope of supply

• TeraResist 8000 high-resistance meter (EP0201075)
• Two ME10 electrodes (EP0204021)
• EFM 822 field meter (EP0201013)
• Grounding block (EP0101013)
• Battery chargers for both instruments
• Connection cables to the electrodes, earthing cable for the EFM
• Aluminium case

Applications

• Periodic audits and documentation in ESD protected areas (EPA)
• Resistance measurement on floor coverings, table mats and workstations
• Field and potential measurement to assess charging

Standards and compliance

Suitable for resistance and field measurement within ESD control measures to IEC 61340.
