Compressed-air gooseneck ioniser for point-of-use static discharge and dust removal on components. Neutralises static charges in under 1.5 seconds at an ion balance below ±50 V.
Gooseneck ioniser, compressed air, offset below ±50 V
A1-ESD
Original product
Net price (excl. VAT)
€456.00
Item
EP0401042
Manufacturer no.
EP0401042
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.EP0401042
ConditionNew
Article
EP0401042
Frequently Bought Together
- This Item: €456.00
- Ionizing air gun Simco-Ion orION with Sidekick €1,563.71
- Ionizing air gun EMIT Ion Python with foot switch and gooseneck €1,705.20
Total price

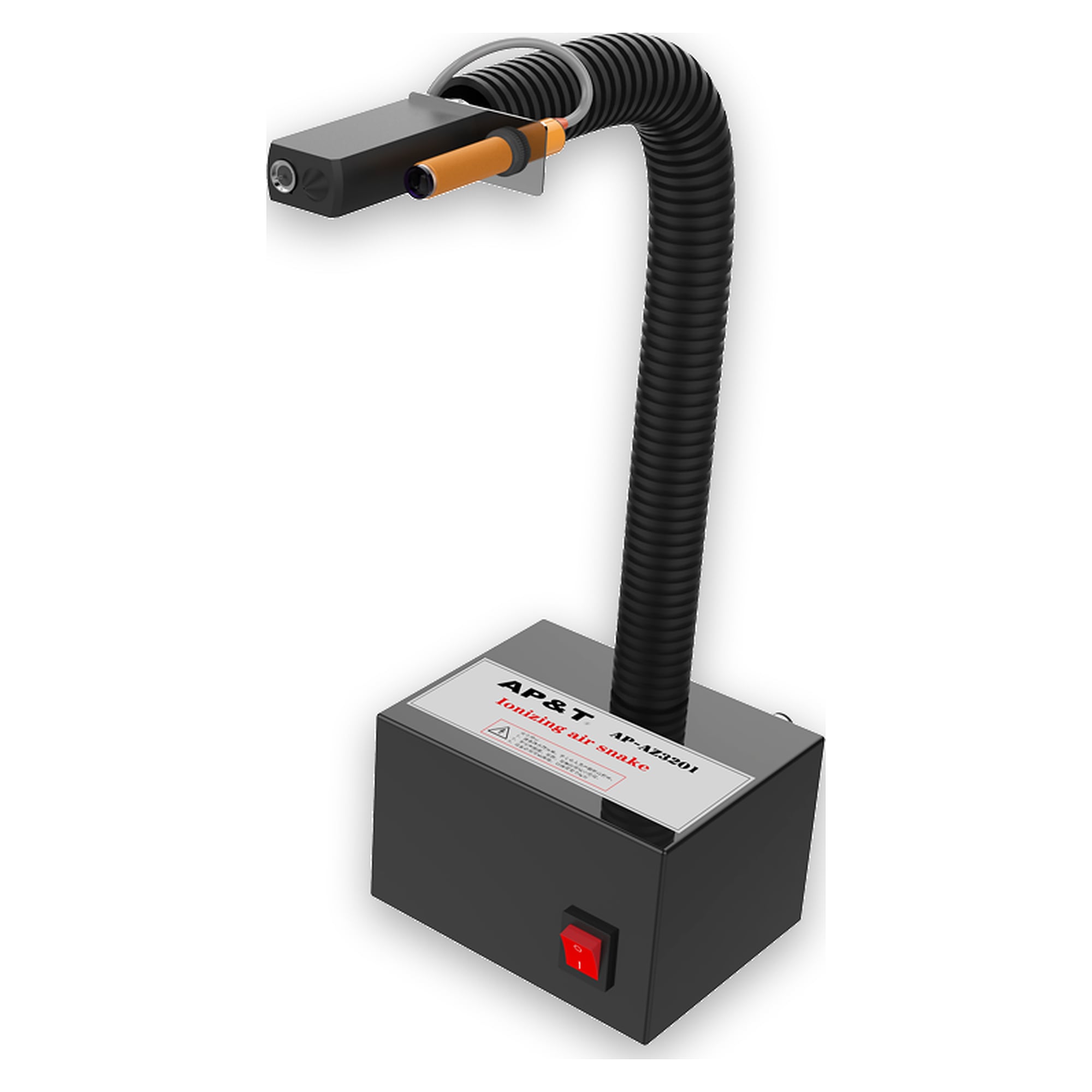

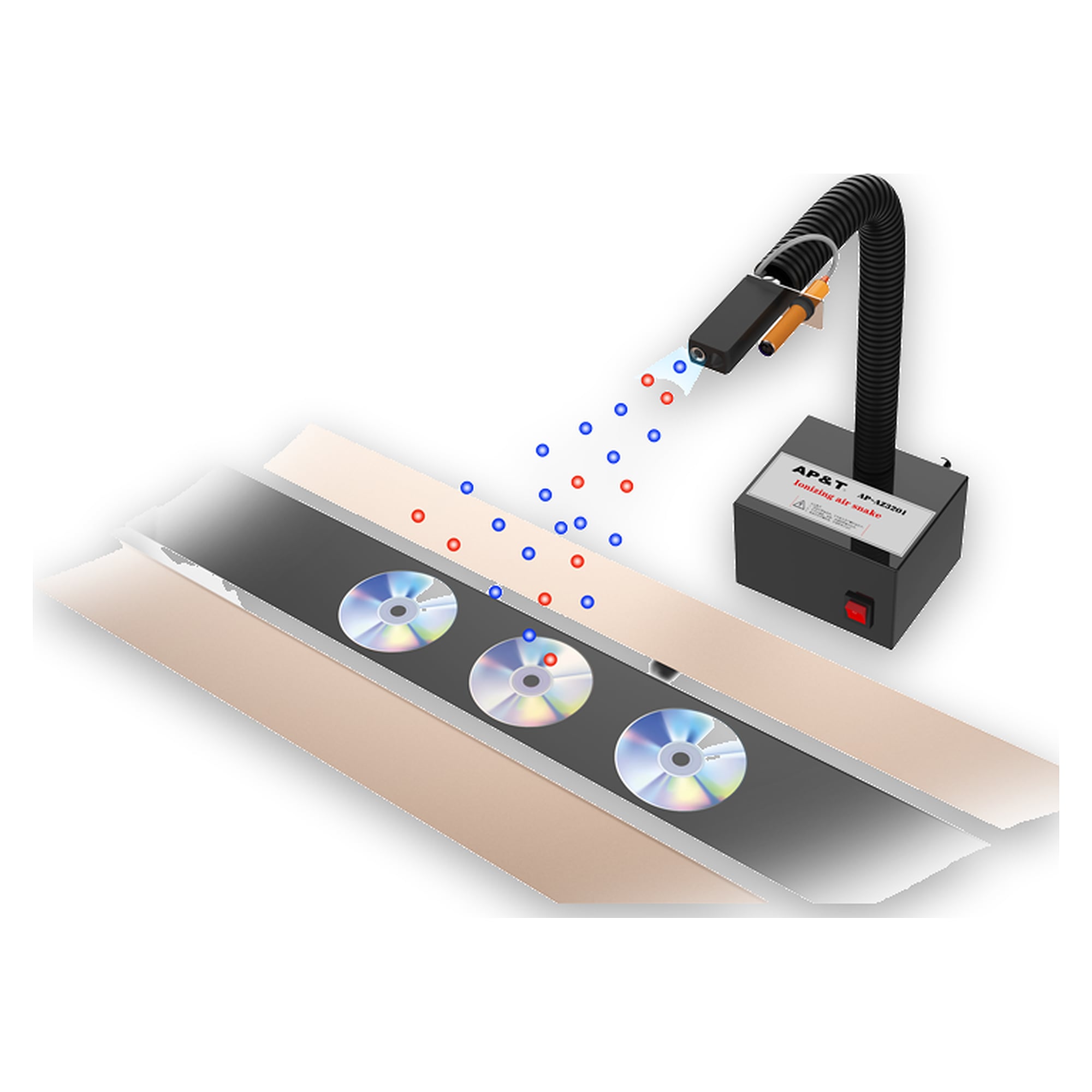

The AZ3201 gooseneck ioniser discharges electrostatically charged components directly at the workstation while removing adhering dust. The flexible gooseneck aims precisely at the area to be neutralised, and the compressed air carries the generated ions to the object.
Benefits
- Fast static discharge in under 1.5 seconds at a 150 mm distance
- Stable ion balance with offset voltage below ±50 V (150 mm from the outlet)
- Flexible gooseneck for precise aiming at the part or workpiece
- Compact build with supplied power adapter and mounting bracket
Technical specifications
- Type: gooseneck ioniser, compressed-air operated
- Neutralisation time: under 1.5 seconds (at 150 mm distance)
- Offset voltage: below ±50 V (150 mm from the outlet)
- Operating voltage: AC 3500 V (high-voltage generation)
- Dimensions: 156 x 127 x 117 mm (L x W x H)
- Weight: 724 g (incl. power adapter and bracket)
- Scope of delivery: ioniser, power adapter, bracket
Applications
- Discharge and cleaning of PCBs, housings and small parts
- Point-of-use dust removal at assembly and test stations
Standards and compliance
Suitable for use in EPA areas per IEC 61340-5-1.
| Norm | IEC 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | EP0401042 |
| Manufacturer | A1-ESD |
| Weight | 0.724000 |
| Height | 117 |
| Width | 127 |
| Depth | 156 |
| Sales unit | 1 Stück |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
