Anodized aluminum profile 90x45 mm for Vario bin systems, supplied in variable cut lengths from 50 mm to 3000 mm. Profile cross-section area 7 cm², mass 1.8 kg/m - for building material chutes in manual assembly workstations.
Material Chute Profile 90x45 mm, Anodized Aluminum, 50-3000 mm Cut Length - Bosch Rexroth 3842993071
BOSCH REXROTH Original product
Net price (excl. VAT)
€5.27
Item BRR-3842993071
Manufacturer no. 3842993071
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842993071
Country of originGermany
Customs tariff number76041090
ConditionNew
Article
BRR-3842993071
Frequently Bought Together
- This Item: €5.27

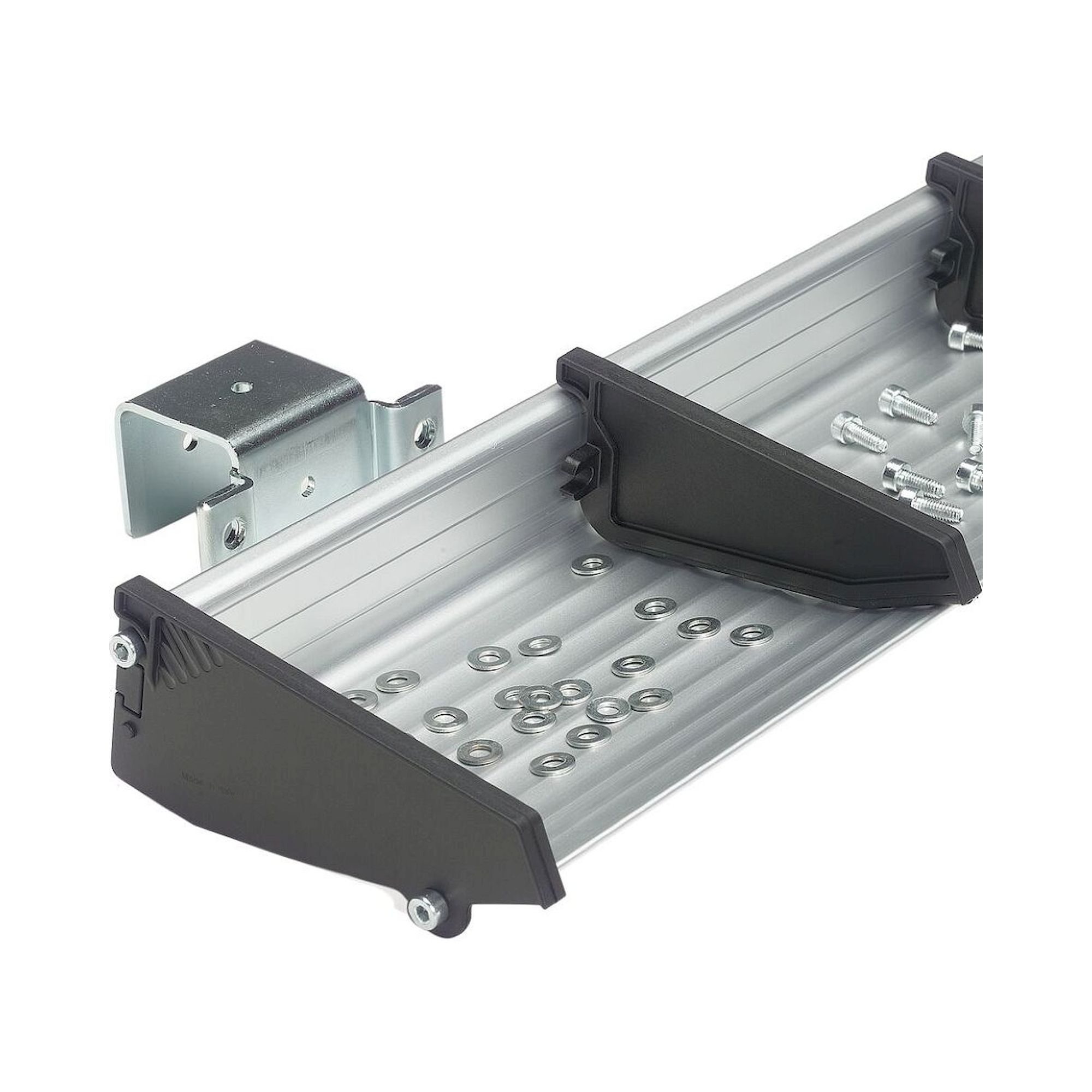

- Connection Bracket GZ, Galvanized Sheet Steel, ESD - Bosch Rexroth 3842544780 €11.76
- ESD Aluminium Chute Profile 90x90 mm, 1500 mm Length - Bosch Rexroth 3842558333 €791.61
Total price
The 90x45 profile forms the load-bearing structure for material chutes within the Bosch Rexroth Vario bin system. Supplied to a cut length specified at order, it adapts precisely to workstation depths and shelf spacing in manual production environments.
- Variable length from 50 mm to 3000 mm - no fixed grid pitch, cut to order
- Aluminum, anodized - resistant to corrosion, oils, and common cleaning agents
- Profile area 7 cm² and area moments of inertia lx 20.7 cm⁴ / ly 54.3 cm⁴ - sufficient rigidity for part bins in manual assembly operation
- System-compatible with the full Bosch Rexroth Vario bin range
Technical data
| Attribute | Value |
|---|---|
| Profile cross-section | 90 x 45 mm |
| Length min [L min] | 50 mm |
| Length max [L max] | 3000 mm |
| Condition on delivery | Variable length |
| Delivery unit | 1 |
| Profile surface [A] | 7 cm² |
| Area moment of inertia in x-direction [lx] | 20.7 cm⁴ |
| Area moment of inertia in y-direction [ly] | 54.3 cm⁴ |
| Mass [m] | 1.8 kg/m |
| Material | Aluminum, anodized |
| Manufacturer Nr. | 3842993071 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.200000 |
| HS-Code | 76041090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
