Bosch Rexroth assembly technology

Grab Containers

The Bosch Rexroth GB grab bin series covers small-parts containers in four basic sizes: GB-0805 (82 x 50 x 173 mm), GB-1205 (123 x 50 x 173 mm), GB-1210 (123 x 100 x 173 mm), and GB-1710 (173 x 100 x 245 mm). All four sizes are available in standard plastic and in an ESD black version (GB-0805 ESD SW, GB-1205/1210/1710 ESD), each combinable with transparent covers and tool-free snap-in grip tabs (GB-Z08, GB-Z12) and grip scoops (GB-S08, GB-S12, GB-S17). ESD grip tabs (90 x 54 x 277 mm and 131 x 54 x 277 mm) and ESD grip scoops (e.g., 82 x 50 x 86 mm) are additionally available for EPA zones.

60 items
1 manufacturer
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Grab Containers

What matters when choosing: properties, comparison and typical applications.

Technical features

📦 Four base sizes GB-0805 to GB-1710 - external dimensions 82-173 x 50-100 x 173-245 mm

⚡ Standard and ESD black - all sizes in two versions for EPA zones

✦ Transparent covers - for all four sizes; ESD covers in black

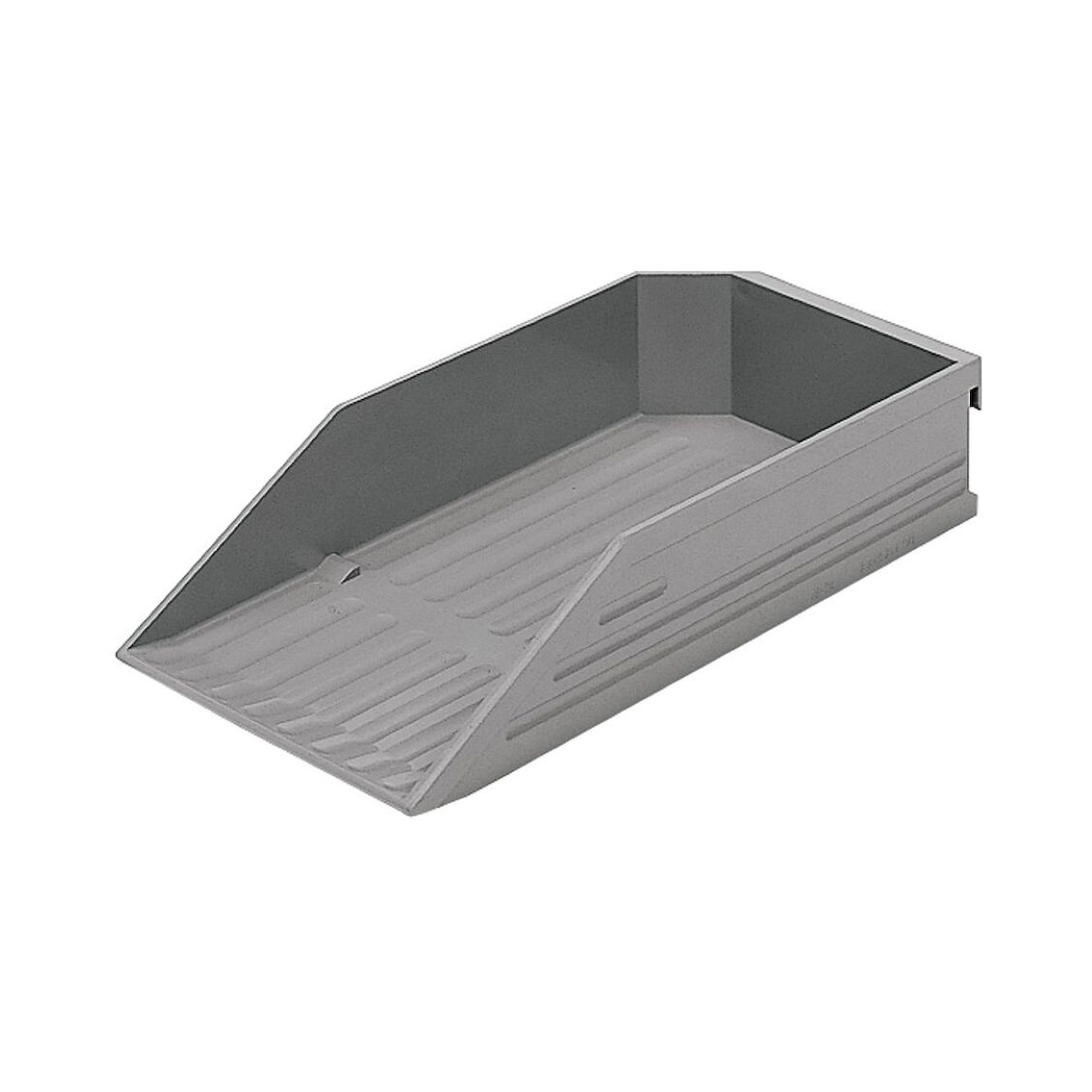

⚙ Grip tabs GB-Z08/Z12 and ESD - tool-free snap-in, 277 mm height

✓ Grip scoops GB-S08/S12/S17 - for ergonomic part access, ESD version available

Size overview

Type	External dimensions (W x D x H)	Standard	ESD black
GB-0805	82 x 50 x 173 mm	3842344750	3842346280
GB-1205	123 x 50 x 173 mm	3842344751	3842346281
GB-1210	123 x 100 x 173 mm	3842344752	3842346282

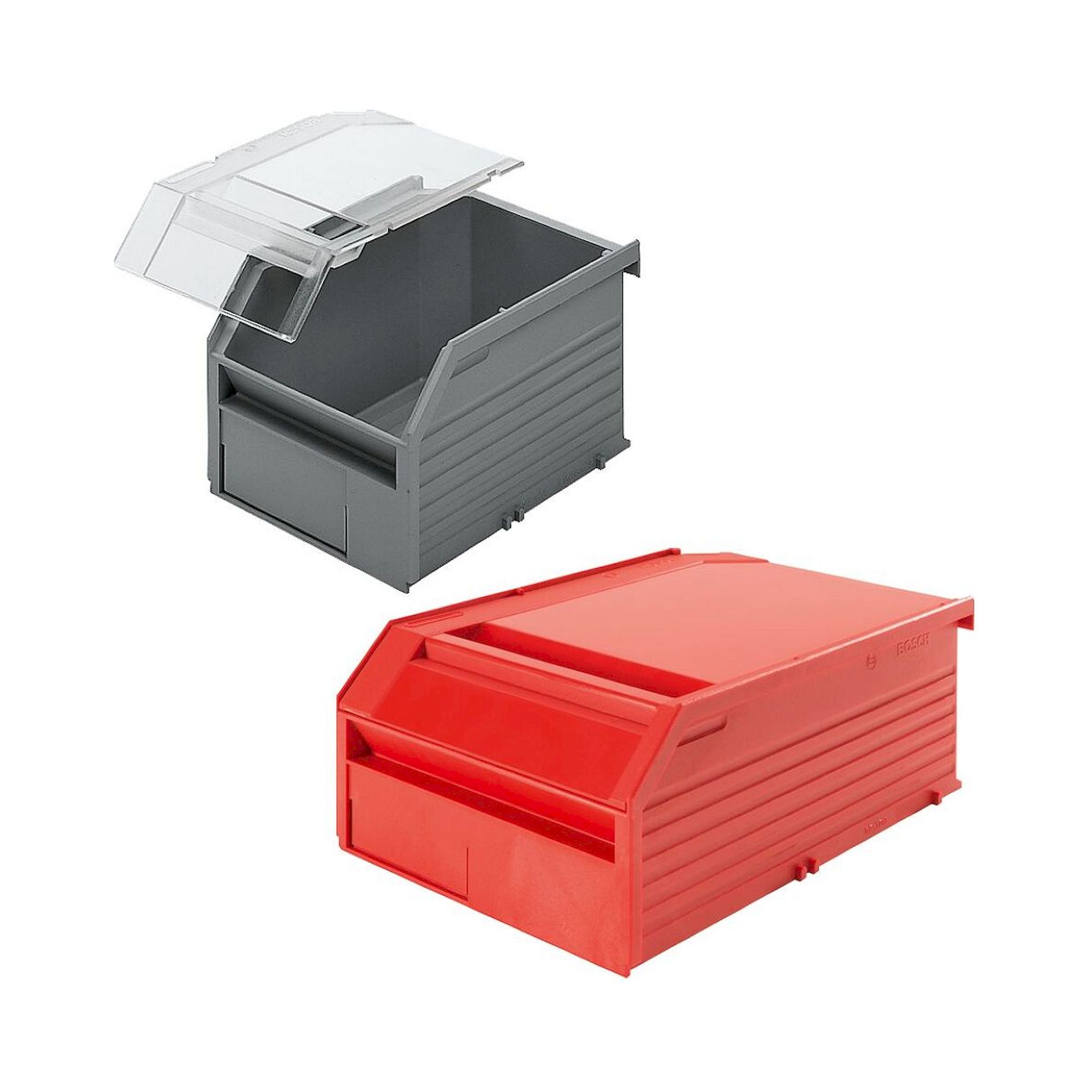

GB-1710	173 x 100 x 245 mm	3842344753	3842346283

Typical applications

Typical applications: Small-parts presentation at manual assembly workstations in Bosch Rexroth shelving systems, ESD-compliant parts supply in EPA zones for electronics and automotive manufacturing, consumables and wear parts at service workstations, material supply in lean lines following FIFO principles, and ergonomic part retrieval using grip tabs and grip scoops.

FAQ

Frequently asked questions about Grab Containers

What are Bosch Rexroth gripper containers and what industrial applications use them?

Bosch Rexroth gripper containers are modular storage and handling systems designed for organised material flow in industrial assembly environments. These containers integrate seamlessly with Bosch Rexroth's aluminium profile systems to create flexible workplace solutions for automotive manufacturing, electronics assembly, packaging operations, and general industrial production lines. The gripper containers feature standardised dimensions like 180x90mm and 90x90mm profiles with material chute functionality, enabling efficient part presentation and inventory management at assembly stations. Their modular design allows rapid reconfiguration of workstation layouts to accommodate changing production requirements.

What are the key technical selection criteria for Bosch Rexroth gripper containers?

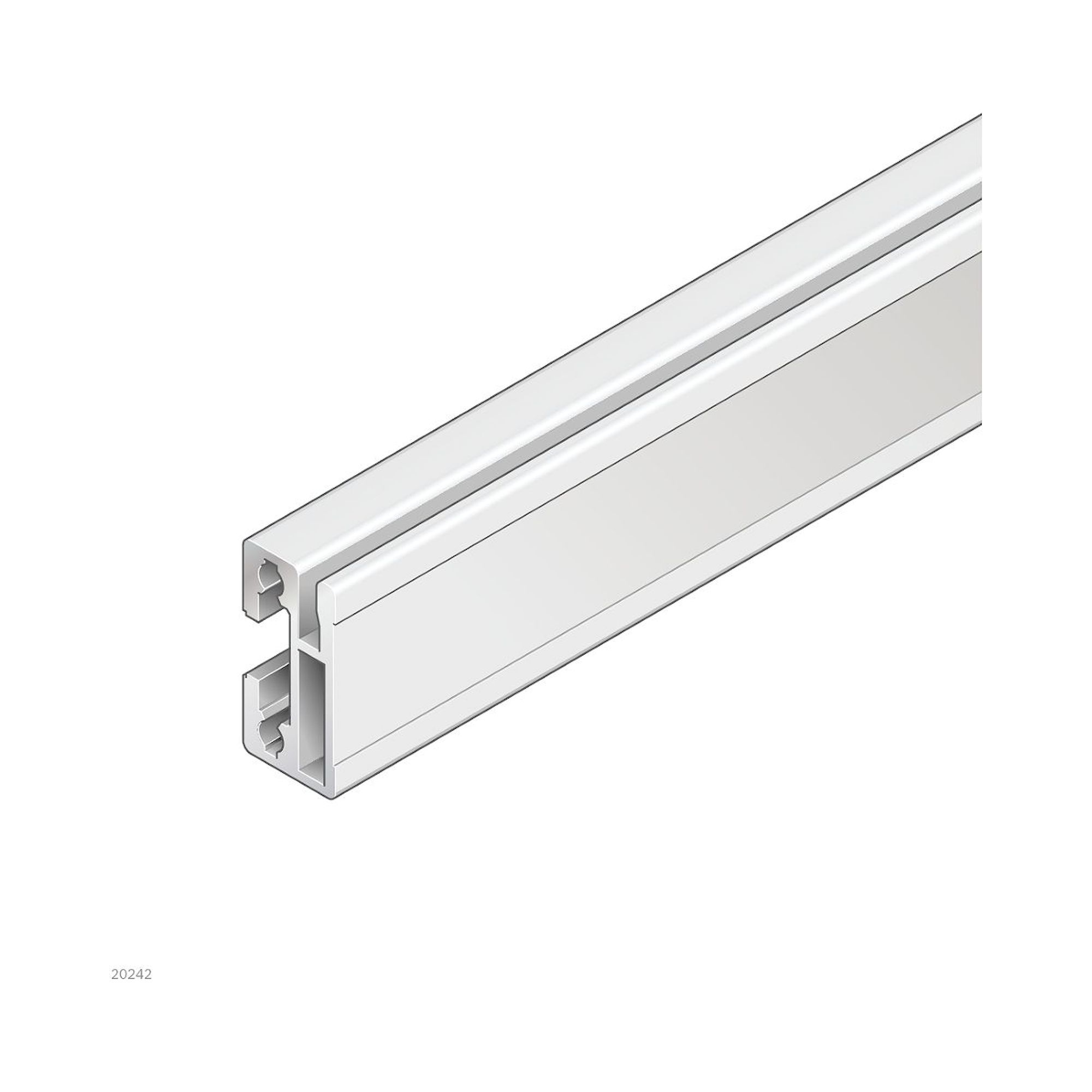

Selection of Bosch Rexroth gripper containers depends on container profile dimensions, material compatibility, and mounting configuration requirements. The system offers profile sizes including 180x90mm, 90x90mm, and 90x45mm variants with standard lengths of 1500mm and 3000mm for material chutes. ESD-compatible versions like the Greifbehaelter VG 180X90 ESD (part 3842558327) provide electrostatic discharge protection critical for electronics handling applications. Base pedestals such as the SG-180 KPL and SG-90 KPL models support different container sizes, while the 15x30mm hanging profiles (3842554156) enable flexible mounting options within existing profile frameworks.

What standards and certifications apply to Bosch Rexroth gripper container systems?

Bosch Rexroth gripper containers comply with ISO 9001 quality management standards and DIN EN 61340 electrostatic discharge protection requirements for ESD-designated variants. The aluminium profile construction meets DIN EN 755 specifications for extruded aluminium alloys, ensuring consistent mechanical properties and dimensional tolerances. ESD-protected models achieve surface resistance values between 10^6 and 10^9 ohms per IEC 61340-5-1 standards, making them suitable for handling static-sensitive electronic components. The modular connection system follows ISO 4762 specifications for socket head cap screws and T-slot compatibility standards used throughout industrial automation applications.

What are the differences between standard and ESD variants of Bosch Rexroth gripper containers?

Standard Bosch Rexroth gripper containers use conventional aluminium profiles and polymer components optimised for general industrial applications, while ESD variants incorporate conductive materials to prevent electrostatic discharge buildup. The ESD models like Greifbehaelter VG 180X90 ESD feature surface resistivity values compliant with IEC 61340 standards, typically achieving 10^6 to 10^9 ohm resistance ranges. ESD base pedestals such as the Sockel SG-180 KPL ESD maintain electrical continuity throughout the system, requiring proper grounding connections to facility earth systems. Visual identification typically includes ESD labeling and may feature distinctive coloring to prevent mixing with standard components in electronics manufacturing environments.

What are the installation requirements for Bosch Rexroth gripper container systems?

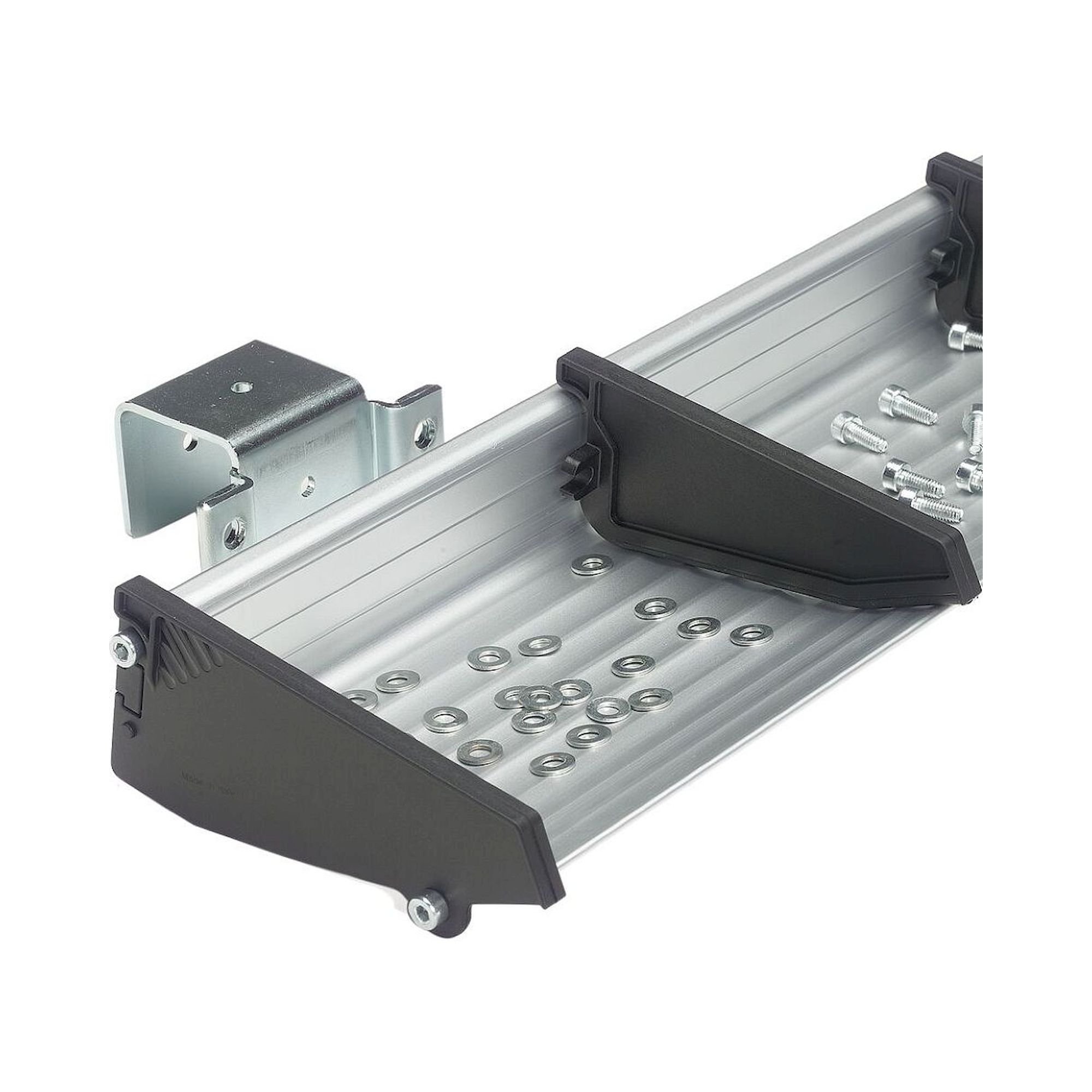

Bosch Rexroth gripper containers install directly into standard 30x30mm or 40x40mm aluminium profile frameworks using T-slot connections and M8 fasteners per DIN 912 specifications. The base pedestals require stable mounting surfaces capable of supporting loaded container weights plus dynamic forces from material handling operations. ESD variants demand electrical continuity through grounding straps connected to facility earth systems with resistance below 1 megohm as specified in IEC 61340-5-1. Installation templates like the Bohrschablone GRIPPER PAN (part 3842546854) ensure precise positioning and hole patterns, while the modular design permits field reconfiguration without specialised tooling or permanent structural modifications.

What safety ratings and operating conditions apply to Bosch Rexroth gripper containers?

Bosch Rexroth gripper containers operate reliably in industrial environments with ambient temperatures from -10°C to +60°C and relative humidity up to 85% non-condensing conditions. The aluminium profile construction provides IP20 protection against solid objects larger than 12mm diameter, suitable for indoor industrial applications but requiring additional protection in harsh environments. Load capacity varies by container size and mounting configuration, with typical working loads ranging from 20kg to 50kg per container depending on profile dimensions and support structure. The anodised aluminium surfaces resist corrosion and wear while maintaining dimensional stability across temperature cycles, ensuring consistent performance in demanding production environments.

What maintenance and inspection requirements apply to Bosch Rexroth gripper container systems?

Bosch Rexroth gripper containers require minimal maintenance beyond periodic inspection of T-slot connections and cleaning of material contact surfaces every 6 months under normal industrial conditions. ESD variants need quarterly verification of grounding continuity using megohm meters to ensure resistance values remain below IEC 61340-5-1 specifications of 1x10^9 ohms maximum. The aluminium profile construction typically provides 15-20 years service life in standard industrial environments, with replacement indicators including visible wear on sliding surfaces, loose T-slot connections, or compromised ESD properties. Annual torque verification of M8 mounting fasteners to 25 Nm ensures structural integrity, while damaged components can be individually replaced without system-wide replacement requirements.
