The product may differ from the illustration
Anodized aluminum strut profile with 40x120L cross-section and 8 open slots for flexible assembly system construction. Factory-machined D17 bores in slots B/H, C/G and D/F plus M12 tapped cores throughout eliminate on-site drilling. ESD-suitable and available cut to length from 80 mm to 6000 mm.
Strut Profile 40x120L D17/D17, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842993142
BOSCH REXROTH Original product
Net price (excl. VAT)
€25.85
Item BRR-3842993142
Manufacturer no. 3842993142
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842993142
Country of originGermany
Customs tariff number76169990
ConditionNew
Article
BRR-3842993142
Frequently Bought Together
- This Item: €25.85
- Strut Profile 80x160L D17/D17, 12 Slots, ESD-Rated, Anodized Aluminum - Bosch Rexroth 3842993155 €40.11
- Strut Profile 40x160L, Anodized Aluminum, Slot 10, ESD - Bosch Rexroth 3842529345 €2,480.50
Total price
The strut profile 40x120L D17/D17 in anodized aluminum is a load-bearing structural element for workstation and machine frame systems within the Bosch Rexroth aluminum profile system. The 40 mm modular dimension and 8 open slots (slot width 10 mm) allow direct integration with all 40-series system components. Factory machining includes M12 tapped cores in all central bores plus D17 bores in slots B/H, C/G and D/F; D17V bores are provided in slots A/E - no additional drilling is required for standard connectors.
- ESD-suitable: safe for use in electrostatically sensitive production and assembly areas
- High bending stiffness: area moment of inertia lx = 203.2 cm⁴ and moment of resistance Wx = 33.9 cm³ in the primary load direction
- Flexible cut-to-length: from 80 mm to 6000 mm, packaging unit 1 piece
- Factory-machined profile: no additional drilling required for standard connectors
- Anodized natural finish: corrosion-resistant and suitable for cleanroom and laboratory environments
Technical data
| Property | Value |
|---|---|
| Cross-section | 40x120L |
| Dimensions | 40 x 120 mm |
| Modular dimension | 40 mm |
| Profile slot width | 10 mm |
| Open slots | 8 |
| Profile type | Standard |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD-suitable | Yes |
| Length min. (L min) | 80 mm |
| Length max. (L max) | 6000 mm |
| Profile surface (A) | 15.5 cm² |
| Mass (m) | 4.2 kg/m |
| Area moment of inertia X (lx) | 203.2 cm⁴ |
| Moment of resistance X (Wx) | 33.9 cm³ |
| Area moment of inertia Y (ly) | 27.8 cm⁴ |
| Moment of resistance Y (Wy) | 13.9 cm³ |
| Torsional moment of inertia (It) | 17.2 cm⁴ |
| Moment of torsion resistance (Wt) | 10 cm³ |
| Profile machining | M12 in all central bores; D17 in slots B/H, C/G, D/F; D17V in slots A/E |
| Packaging unit | 1 piece |

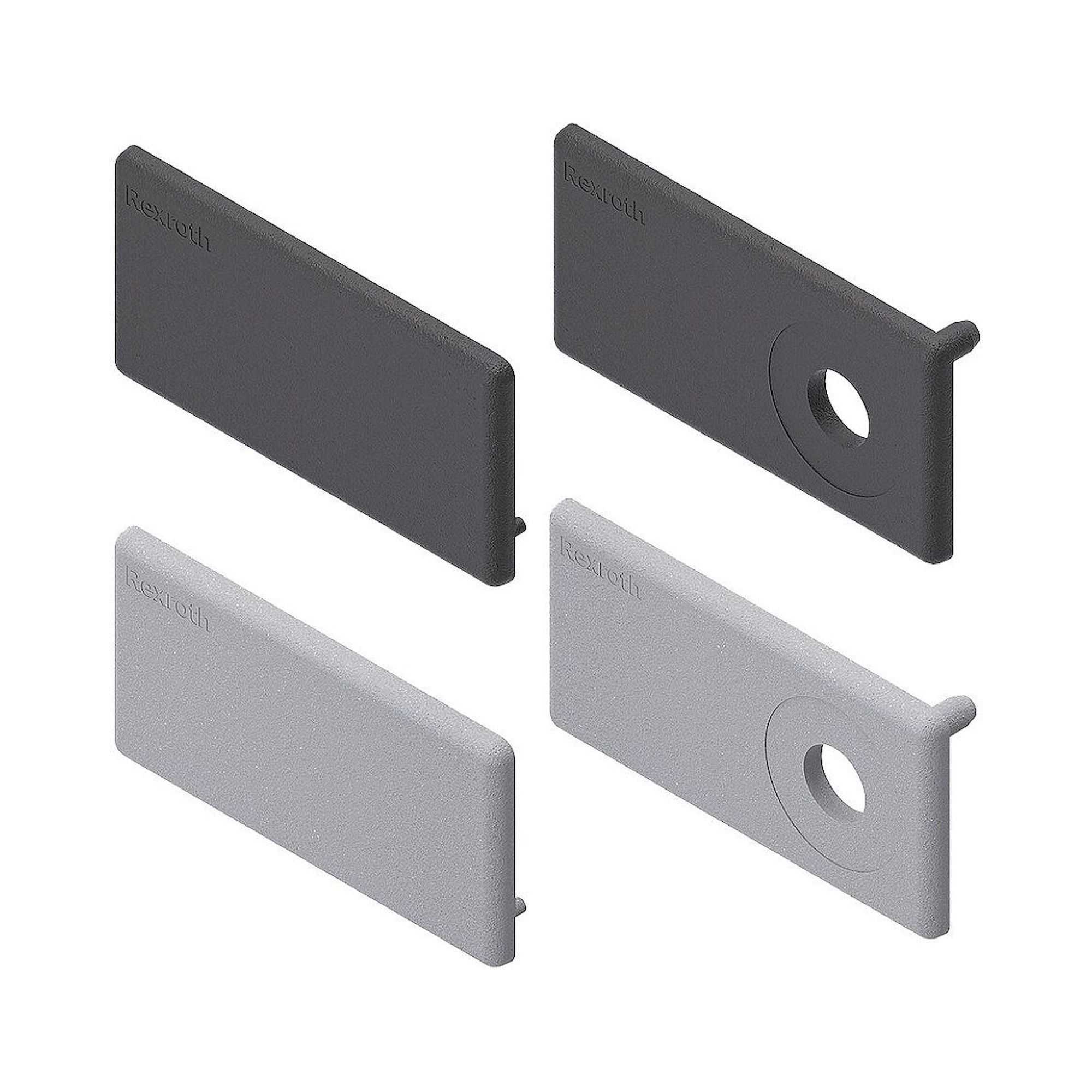

| Recommended accessories | Cover cap 40x40 signal gray, Cover cap 40x40 black, Cover cap 40x80 signal gray, Cover cap 40x80 black |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | 3842993142 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
