Strut profiles , slot 10, modular dimensions 40
Strut profiles

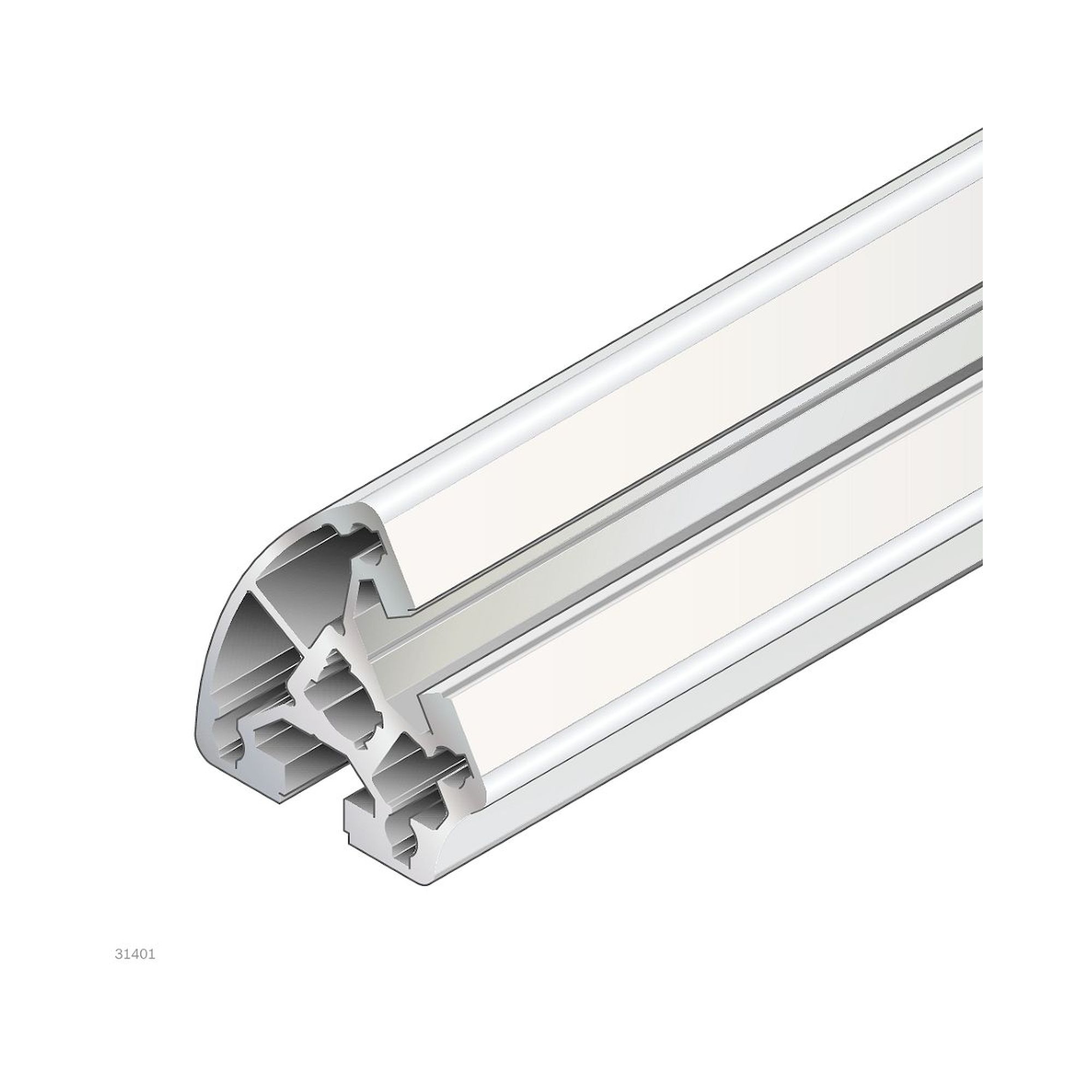

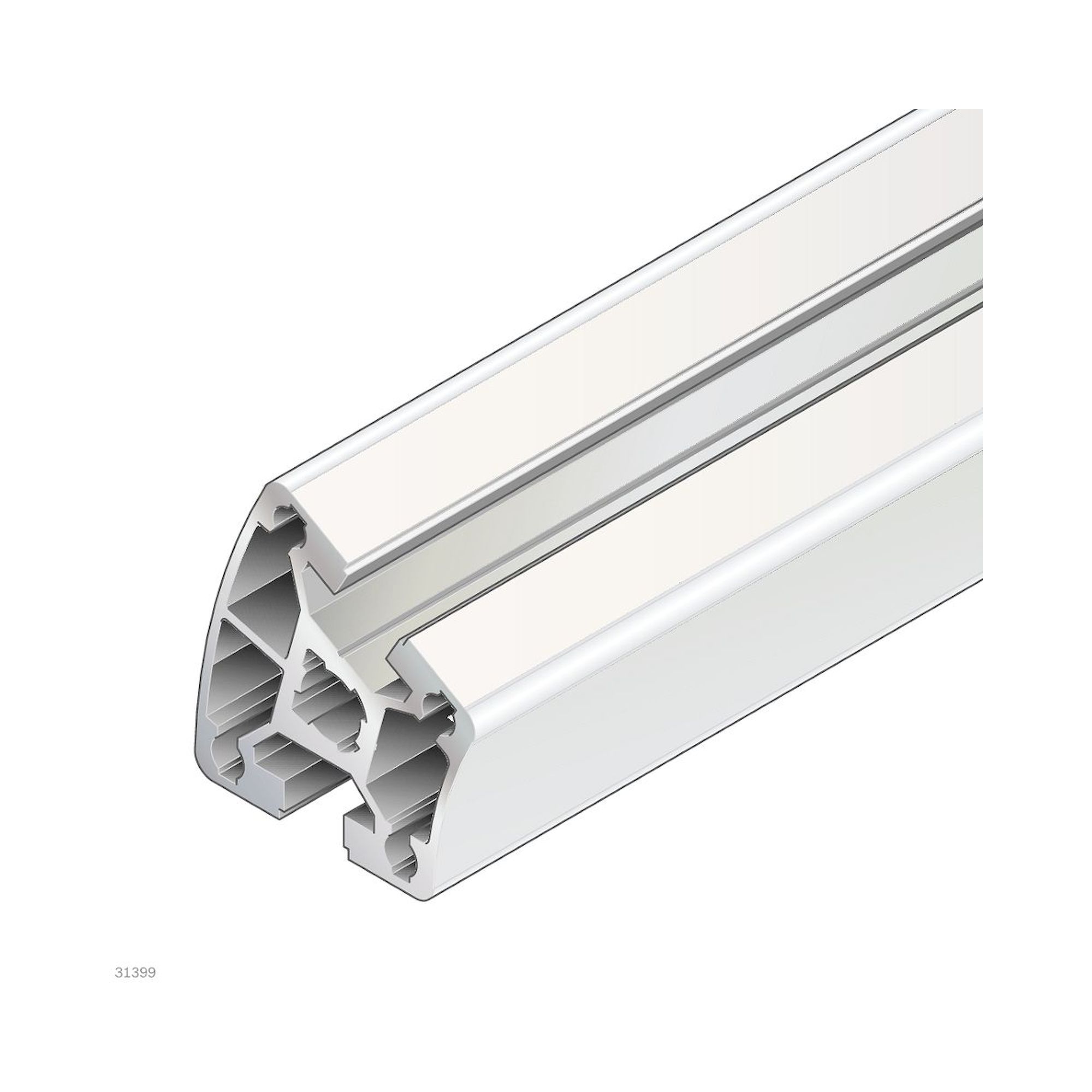

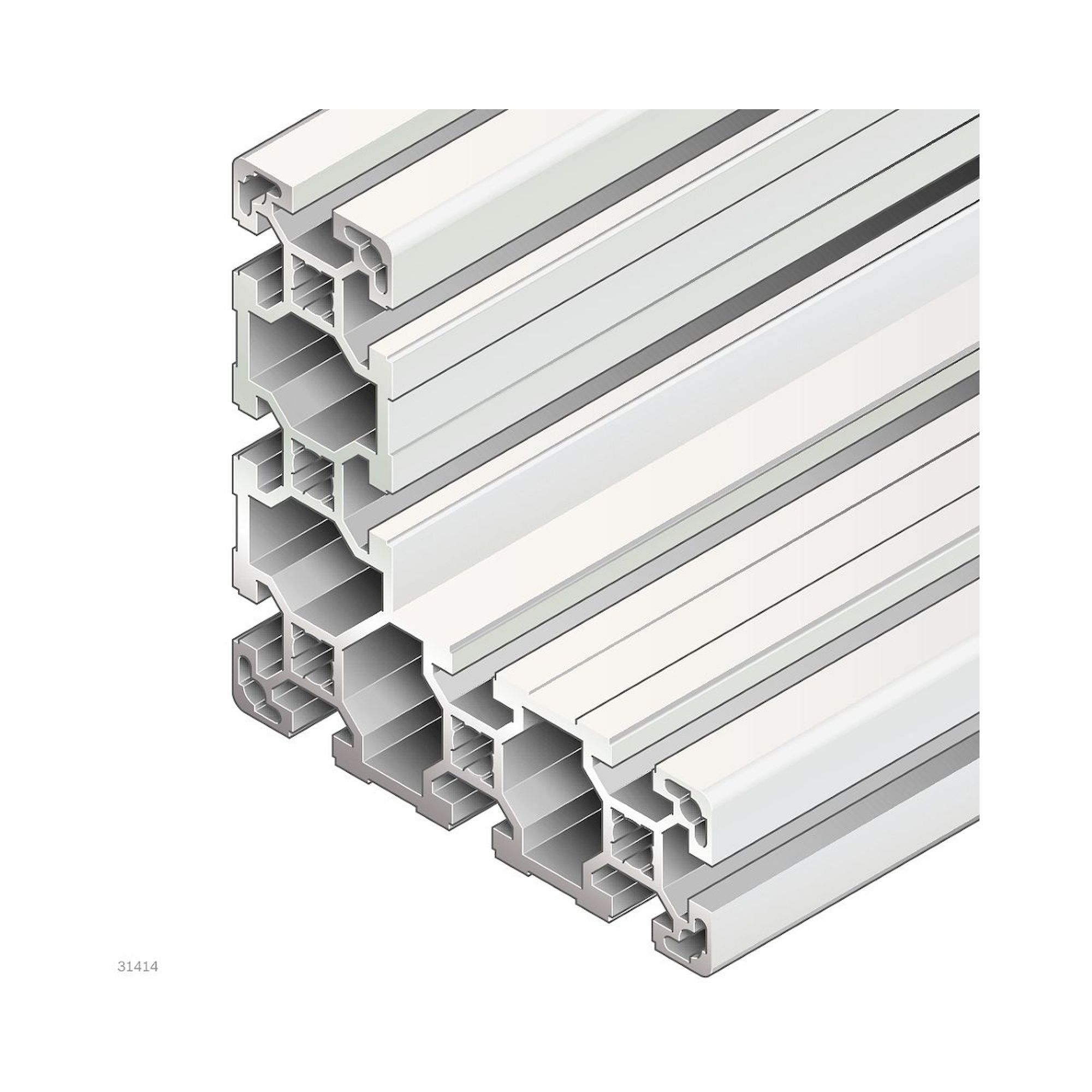

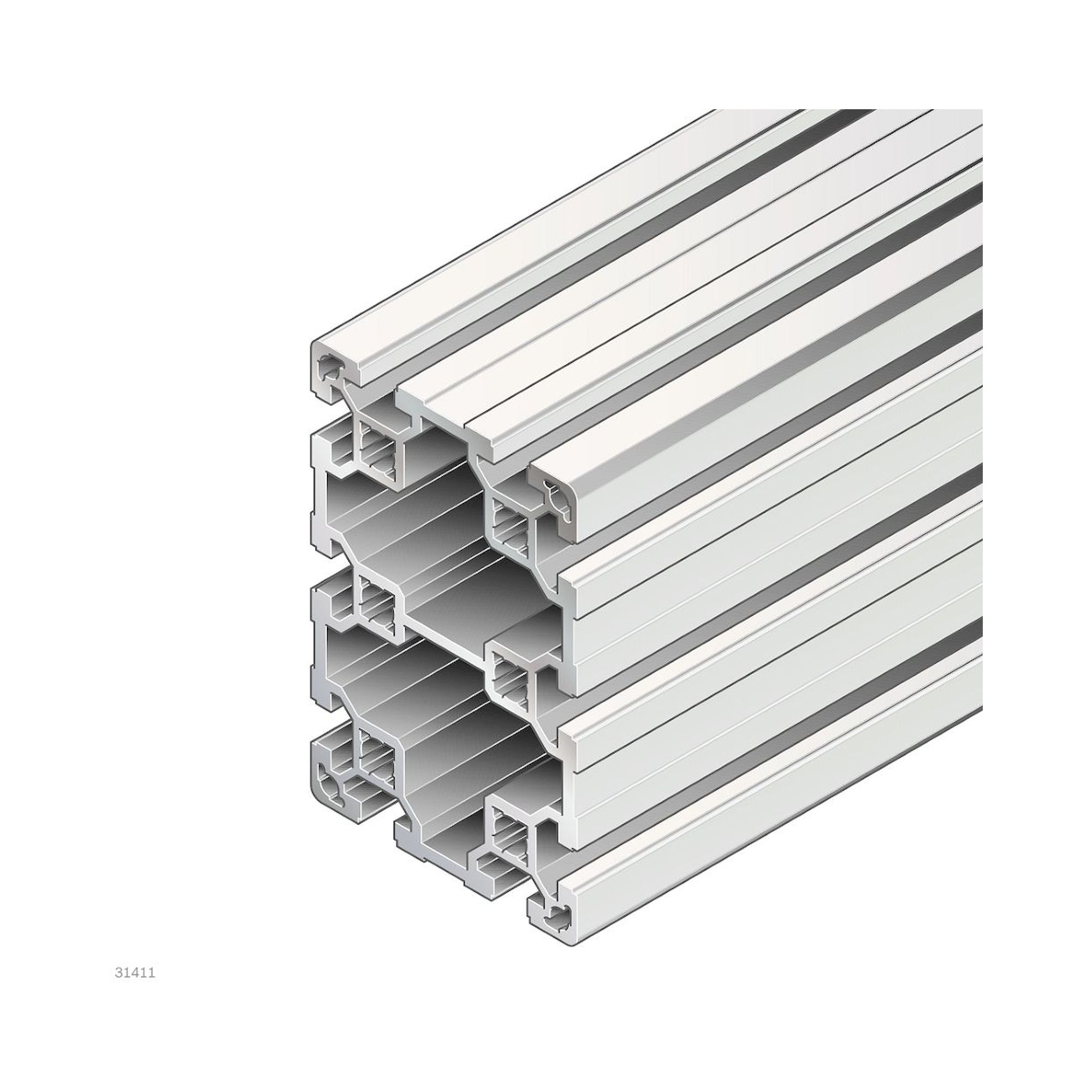

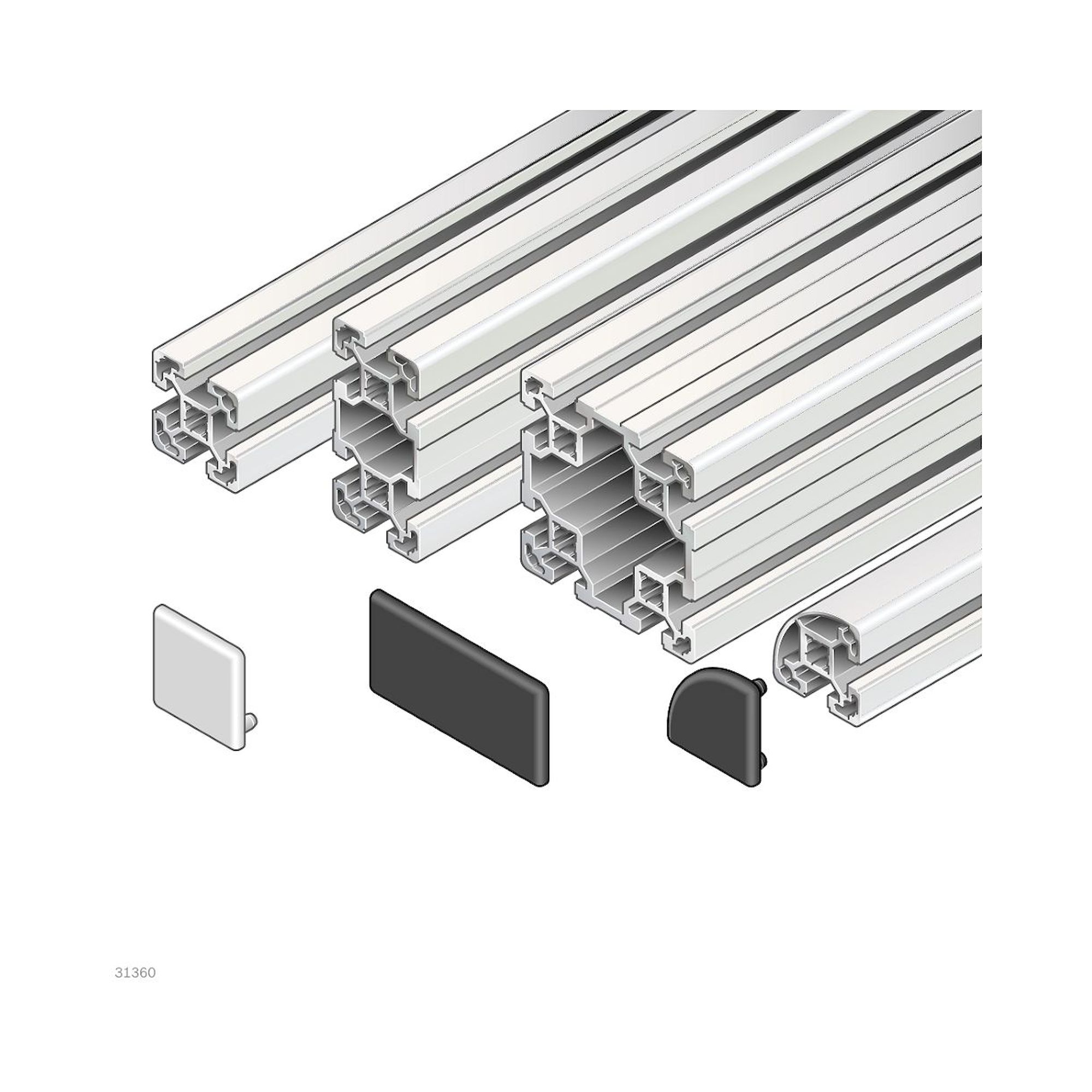

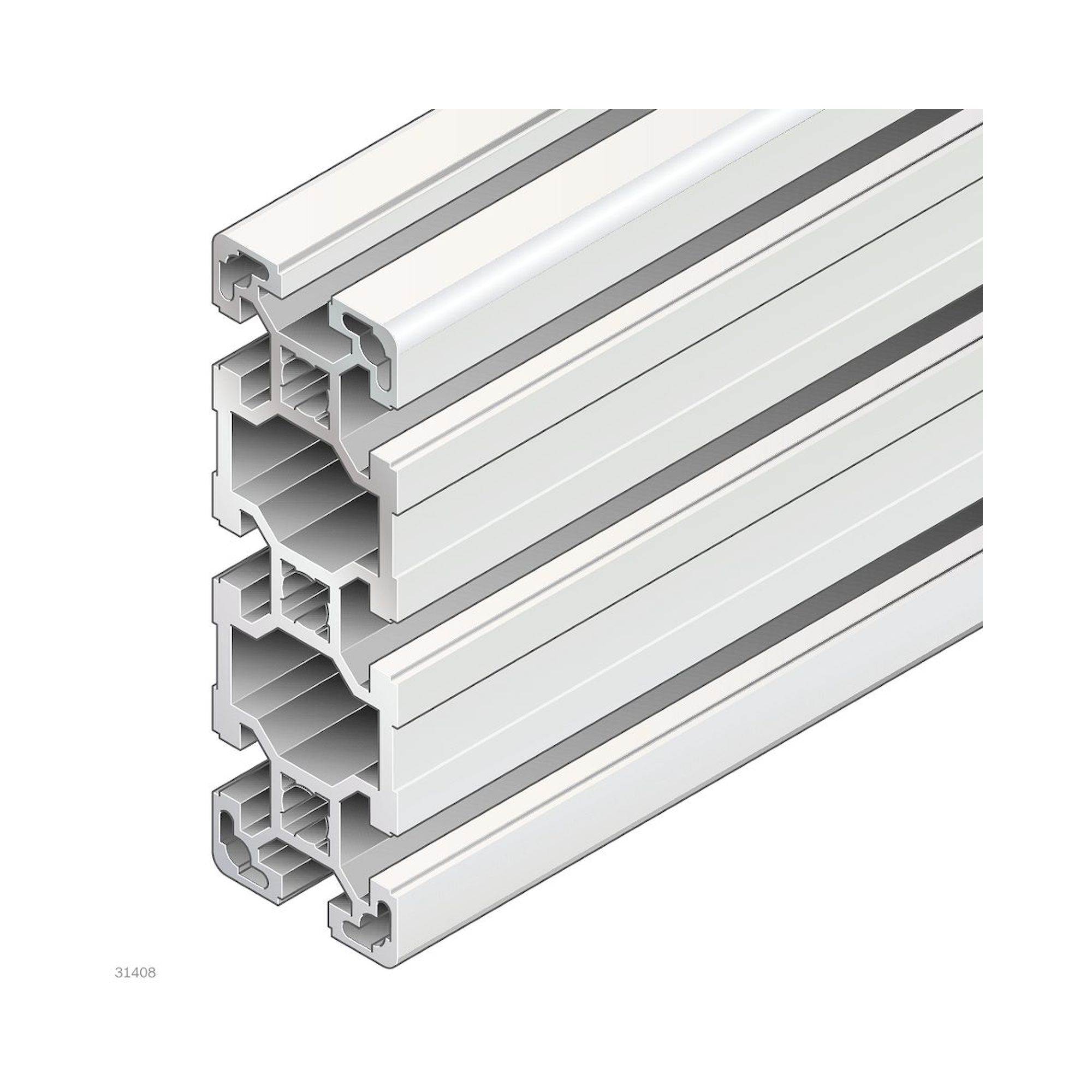

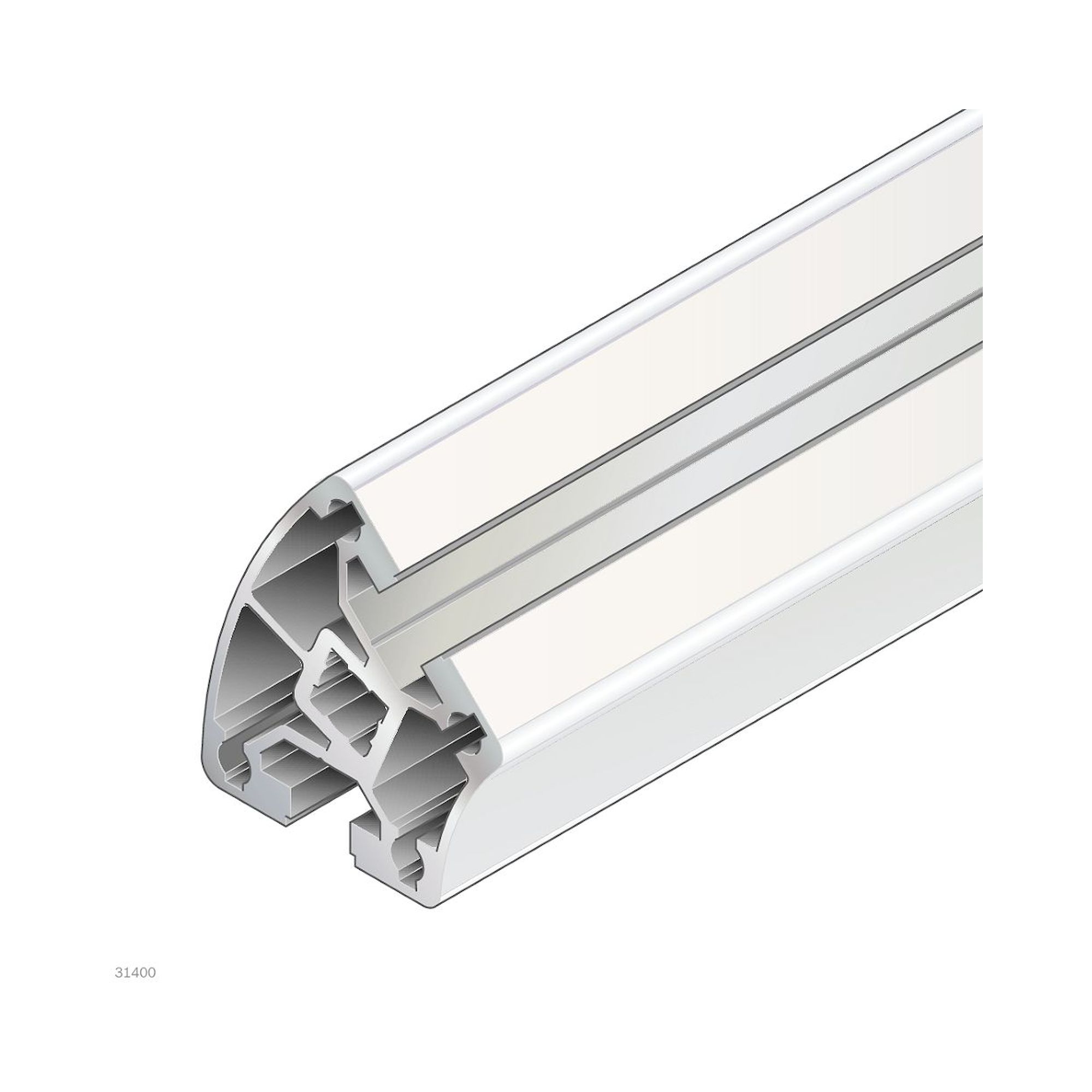

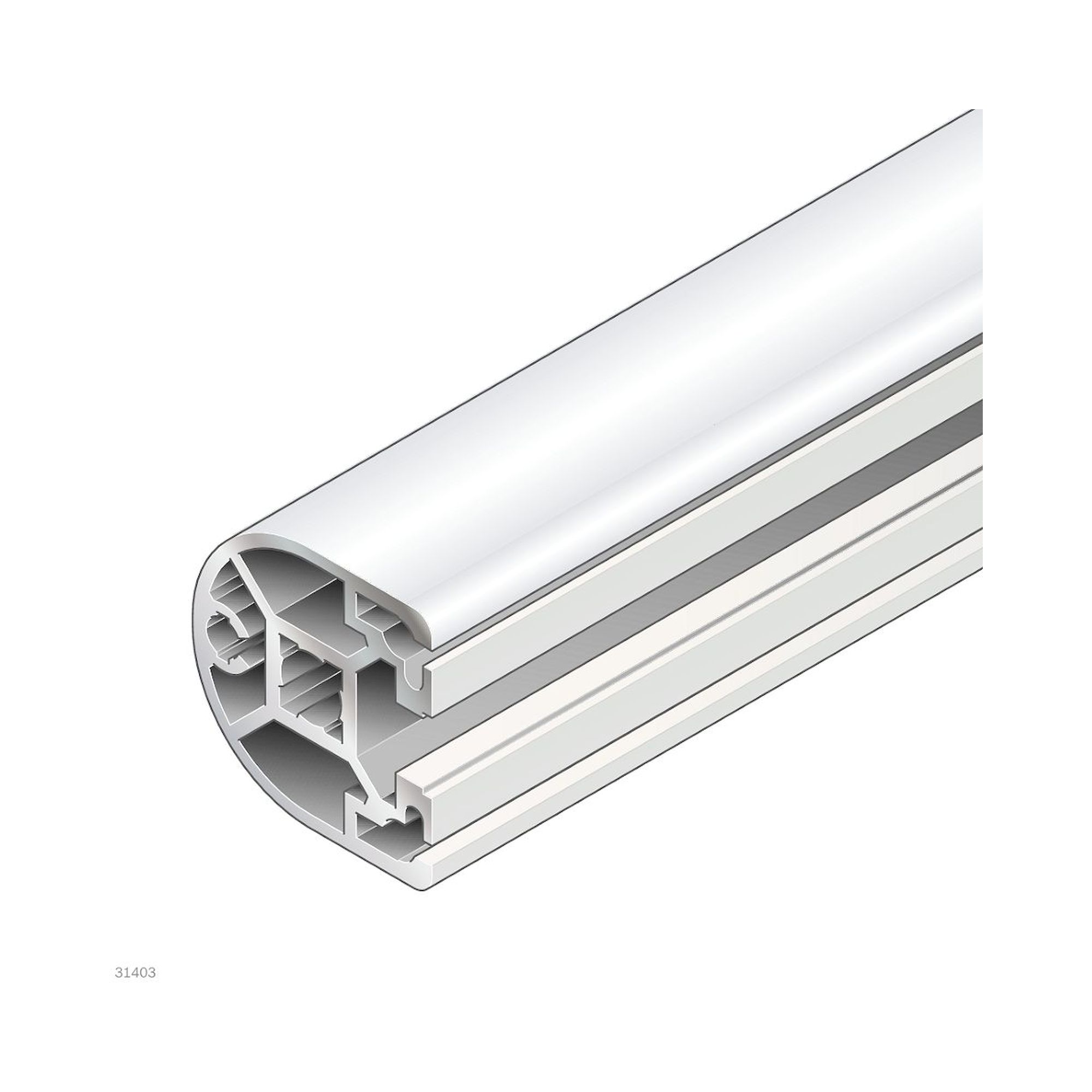

Bosch Rexroth strut profiles with slot 10 and modular dimension R40 (40 mm grid) form the core element of the aluminium modular construction system. Cross-sections from 40x40L through 40x80L, 80x80L up to 80x160L cover a broad range of load-bearing frames, assembly structures and machine guards. Profiles are supplied as standard bars of 6,070 mm length and can be cut to any required dimension. Left-right (LR), single-slot-open (1N) and double-slot-open (2N) variants enable different connection and assembly configurations within the same modular system.
The 40x40L profile includes 20 T-slot nuts per bar, the 80x80L includes six and the 80x160L includes three. All standard profiles are grey-coated. Connection hardware such as T-slot nuts, angle brackets and coupling sleeves are available from the same Bosch Rexroth modular range.
| Profile | Cross-section | T-nuts/bar | Bar length |
|---|---|---|---|

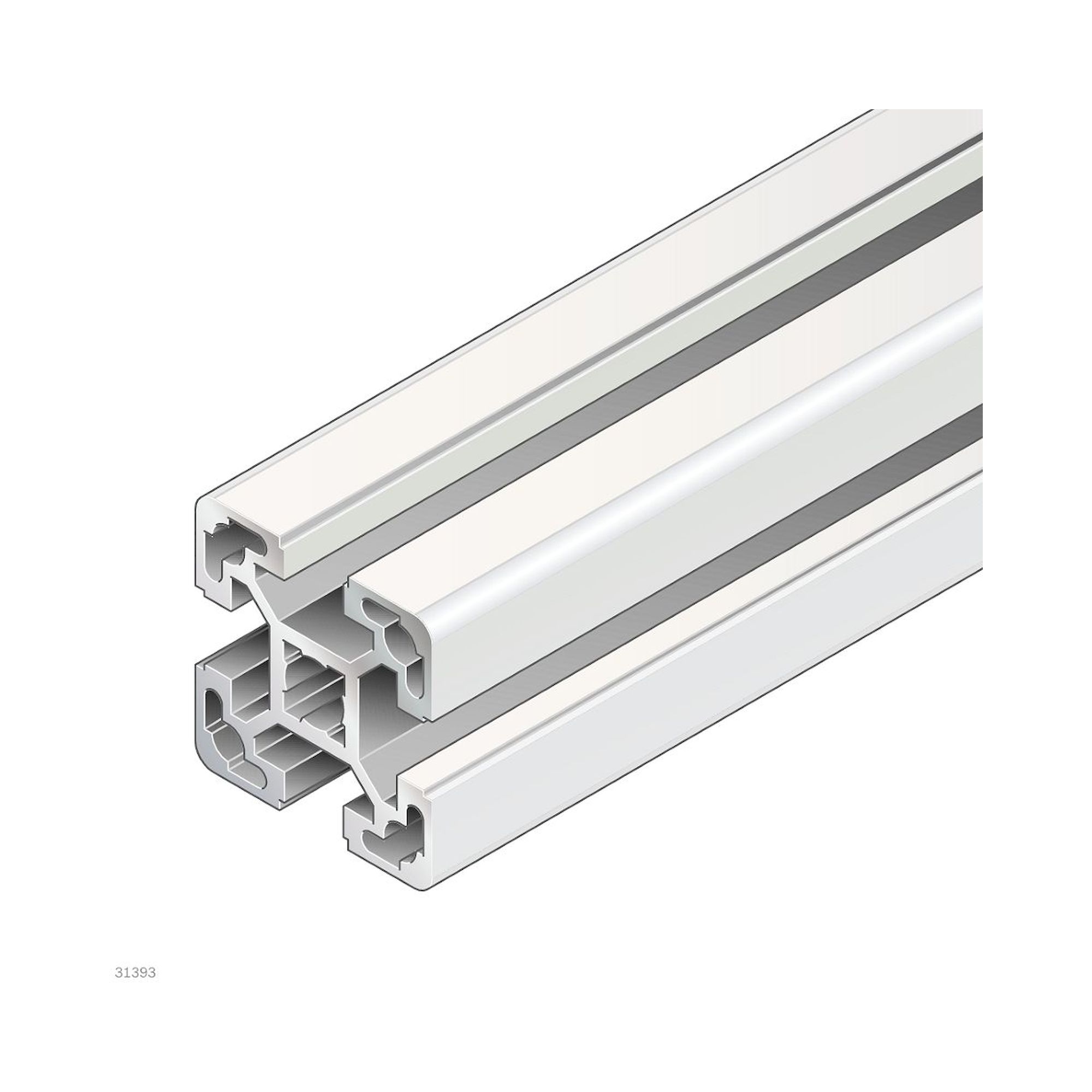

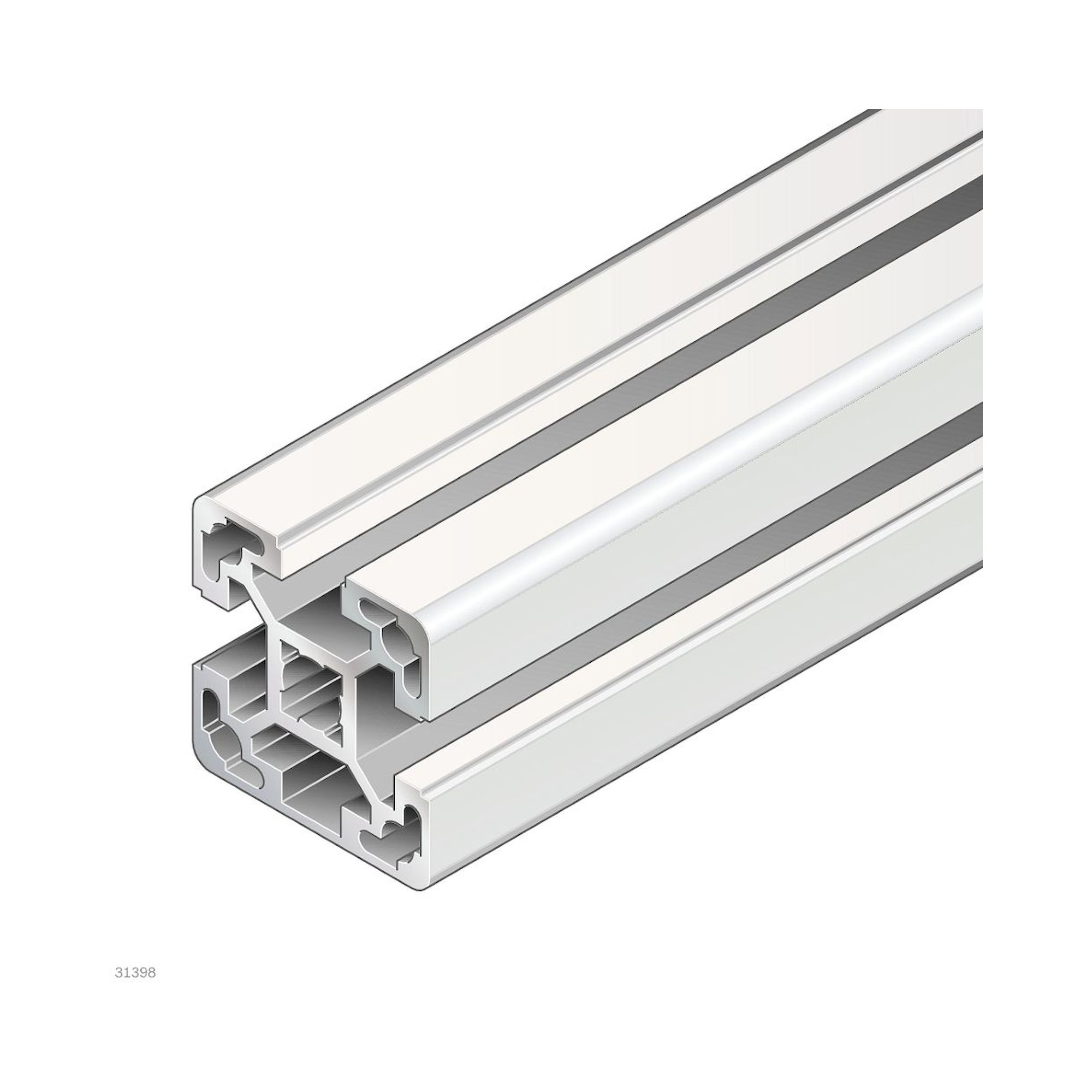

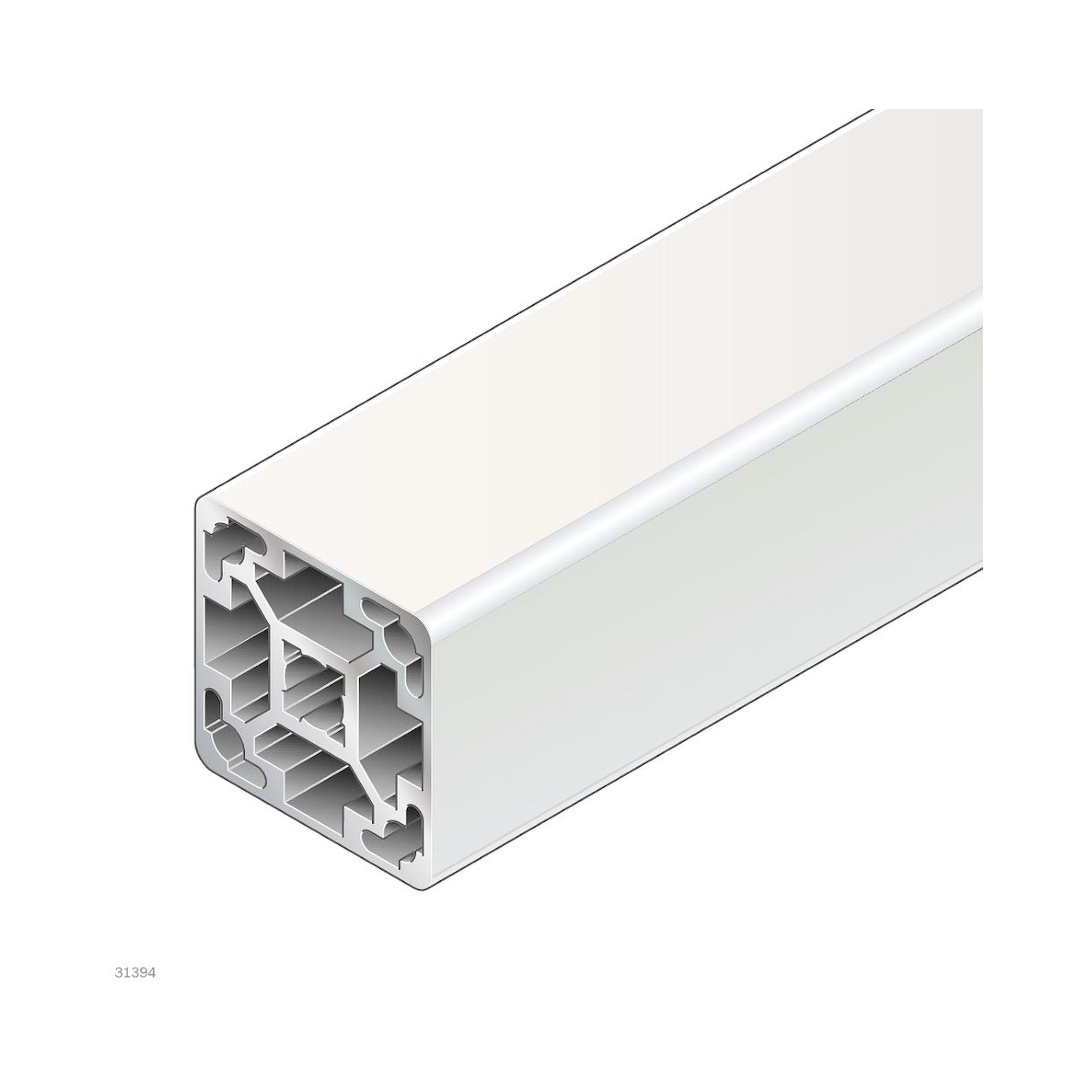

| 40x40L (3842529339) | 40 x 40 mm | 20 | 6,070 mm |

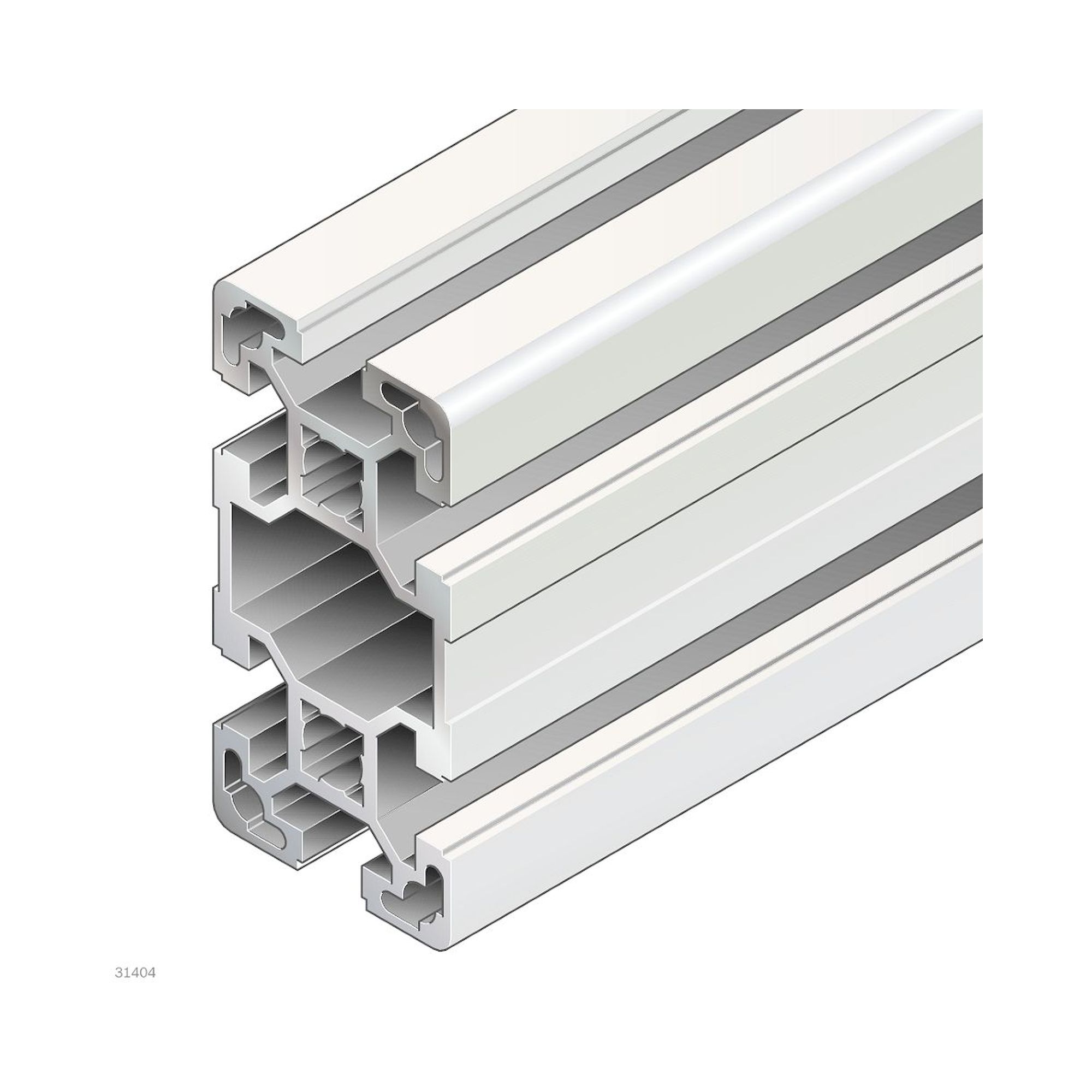

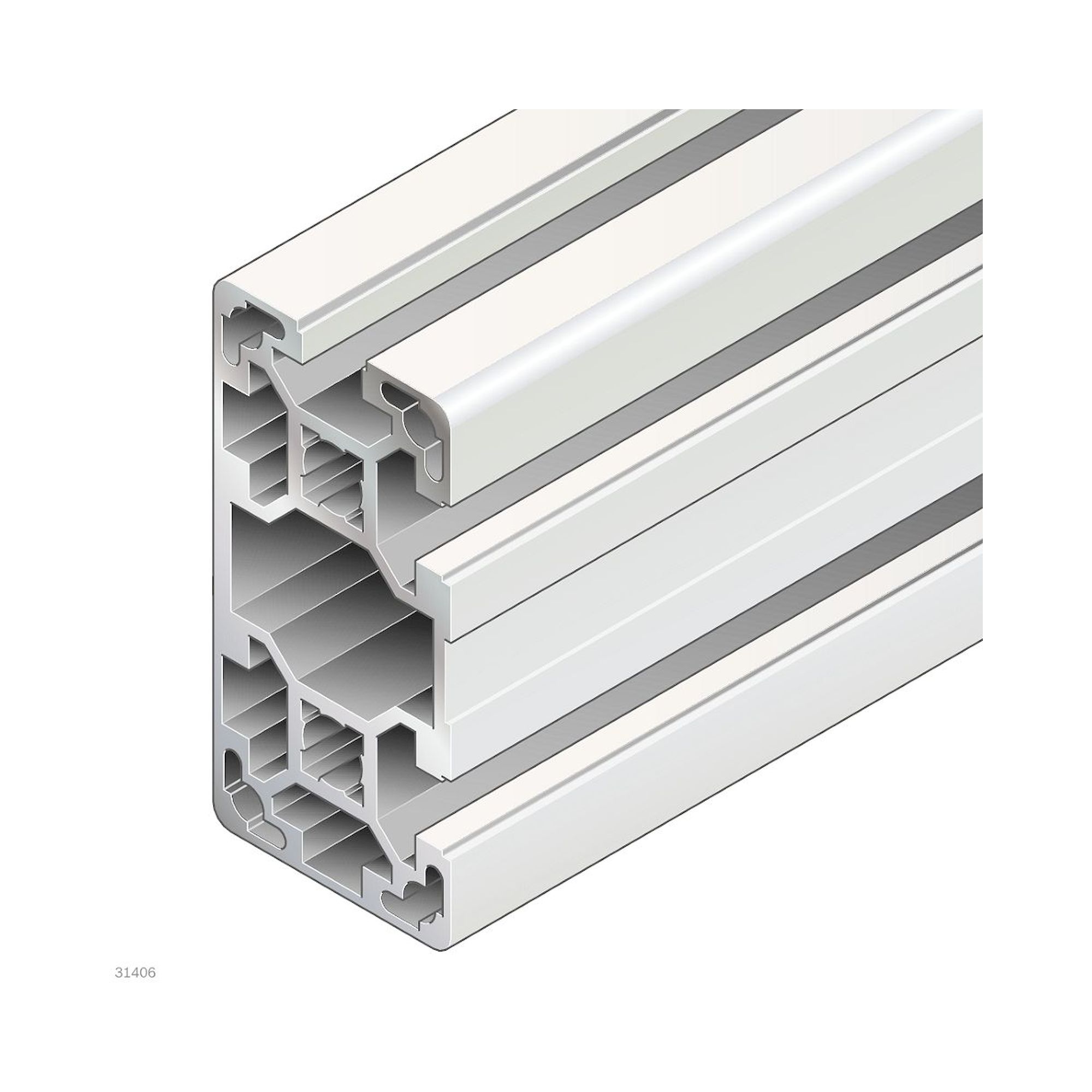

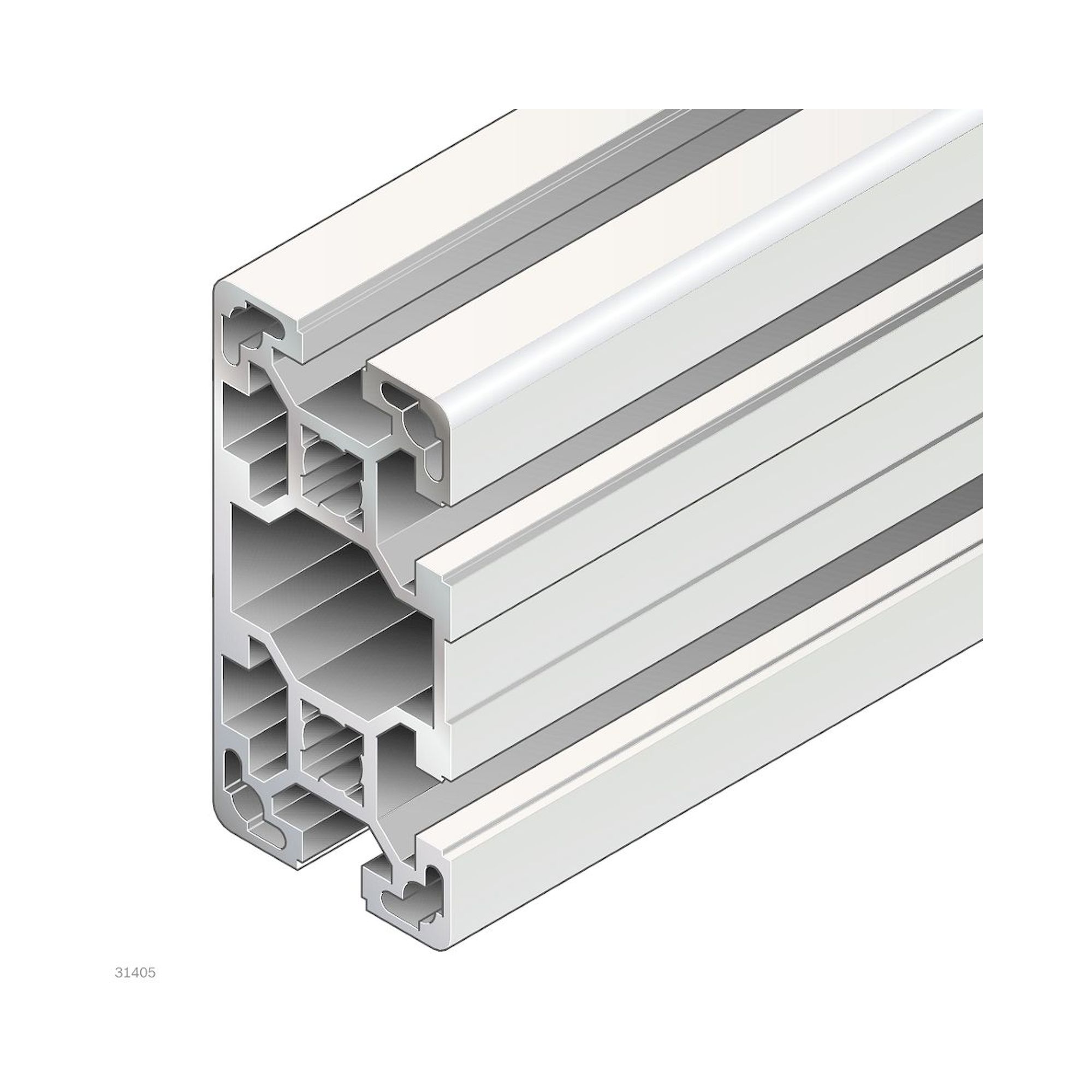

| 40x80L (3842529341) | 40 x 80 mm | 12 | 6,070 mm |

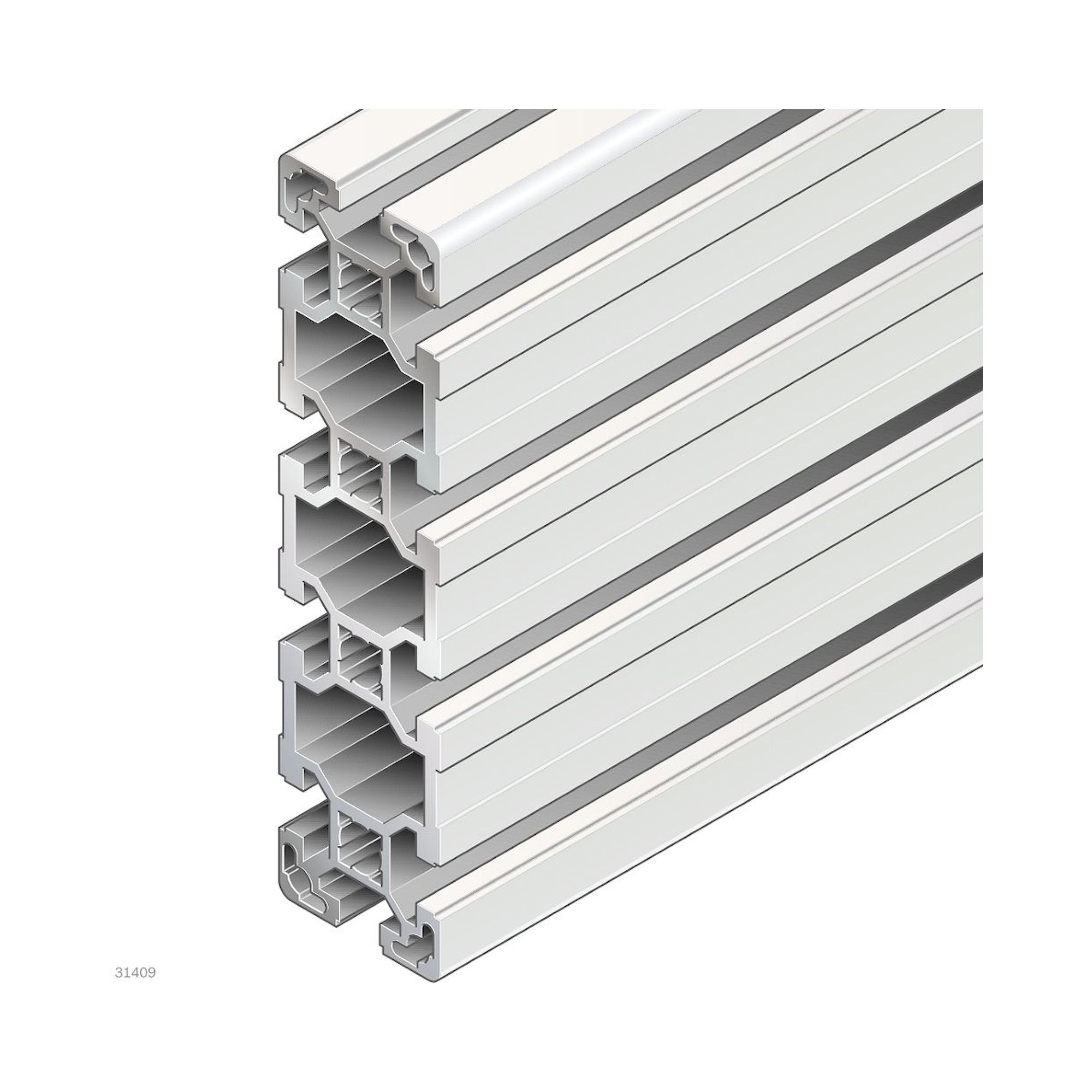

| 40x160L (3842529345) | 40 x 160 mm | 6 | 6,070 mm |

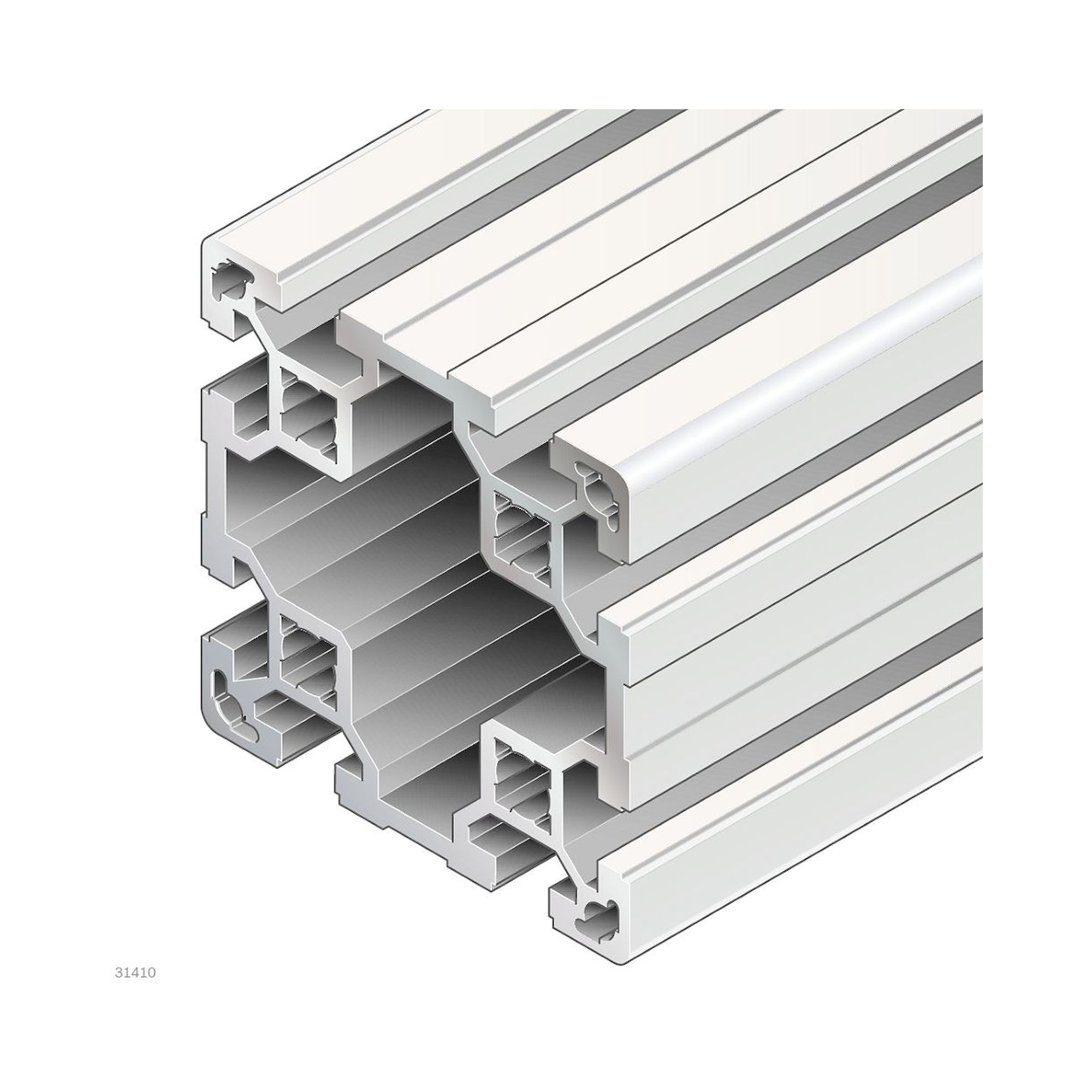

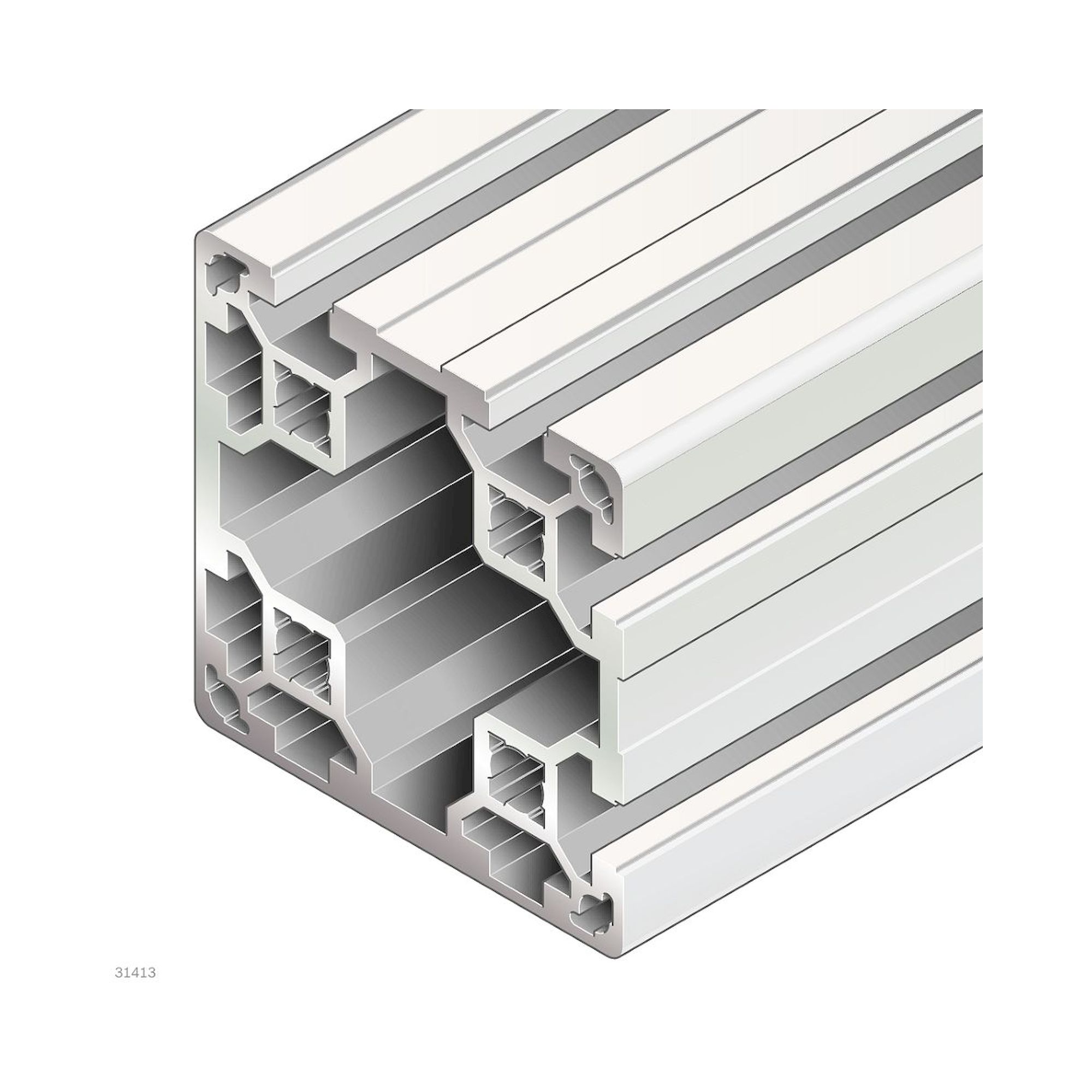

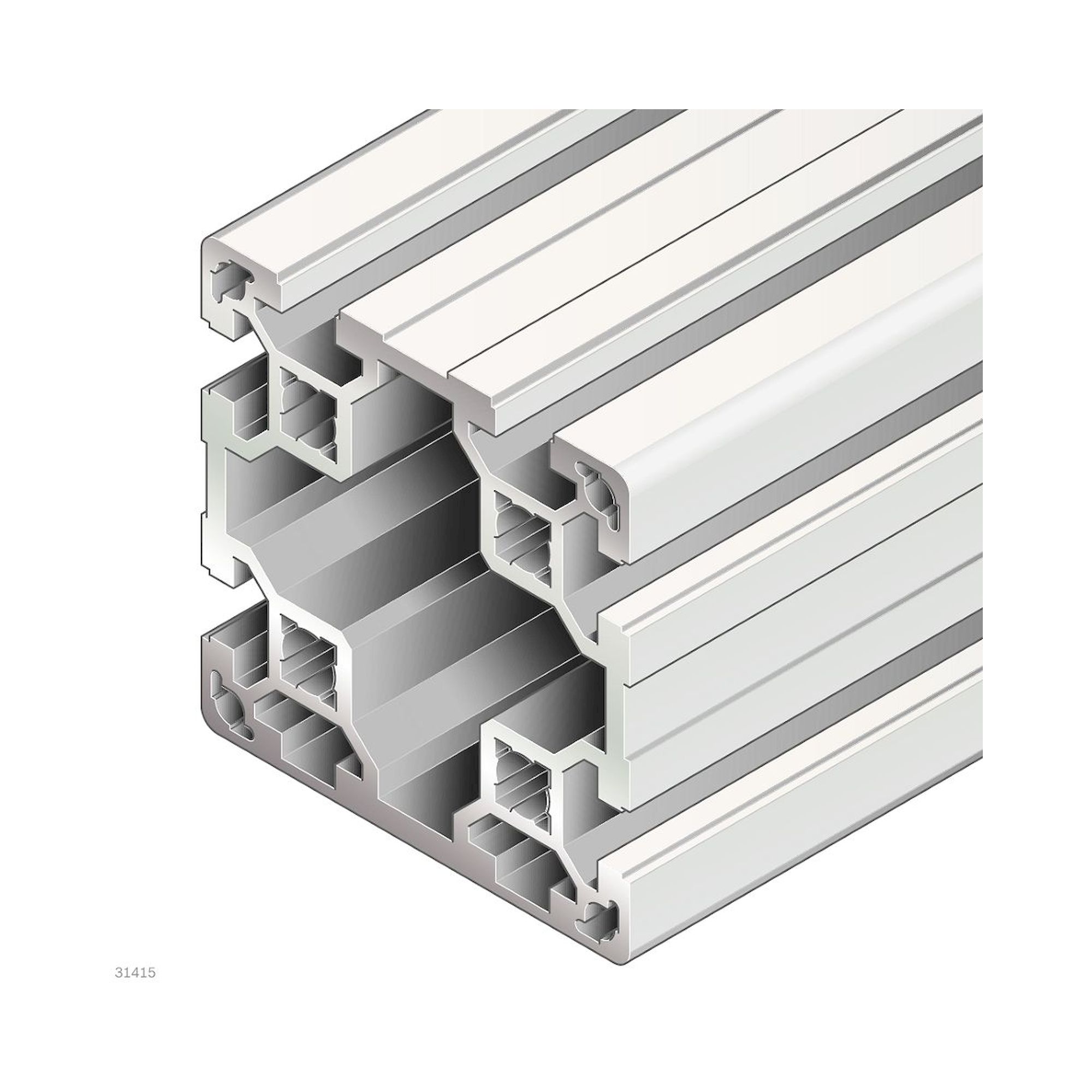

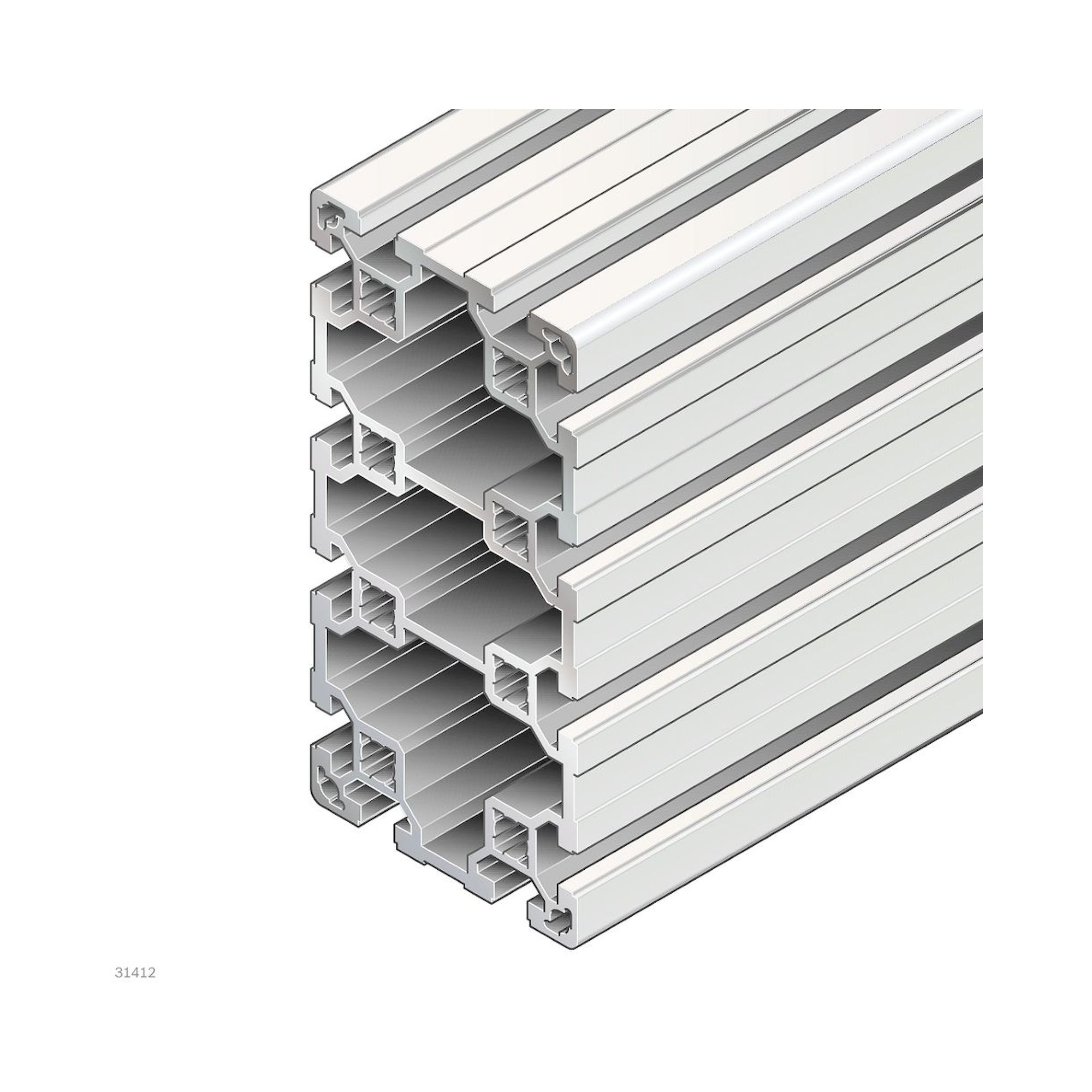

| 80x80L (3842529347) | 80 x 80 mm | 6 | 6,070 mm |
| 80x160L (3842529349) | 80 x 160 mm | 3 | 6,070 mm |

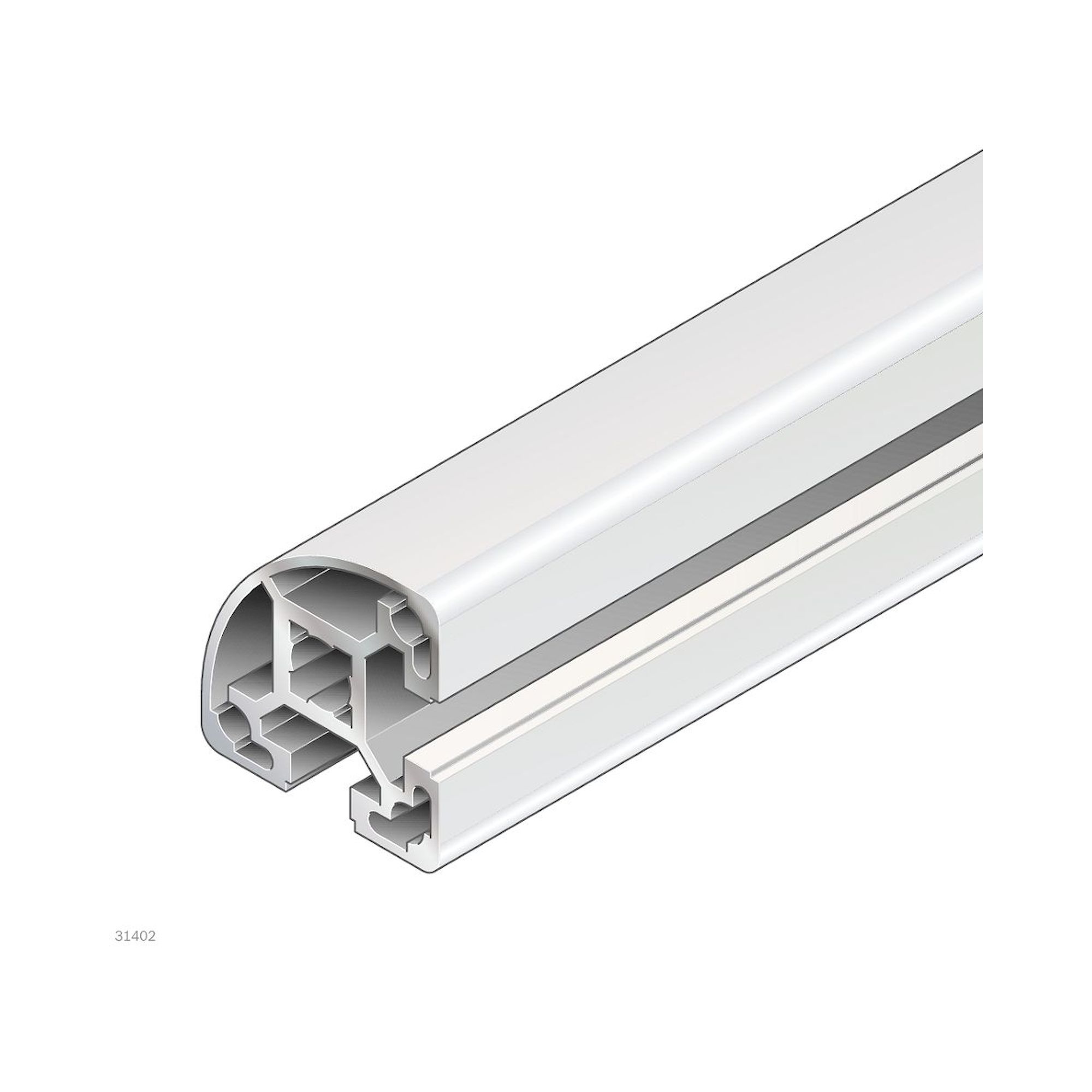

| 40x40LR (3842529359) | 40 x 40 mm, L/R | 20 | 6,070 mm |

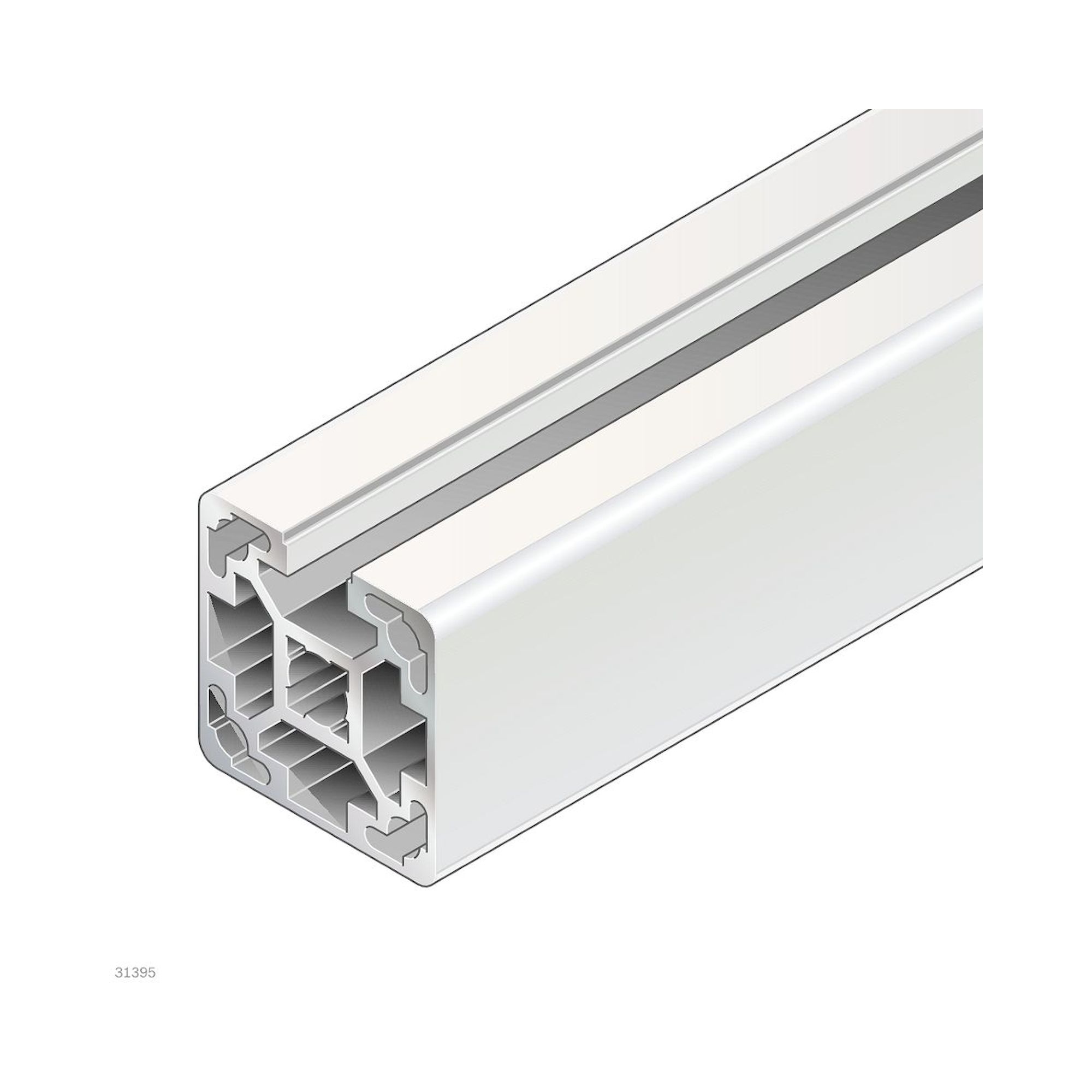

| 40x40L 1N (3842529361) | 40 x 40 mm, single-slot-open | 20 | 6,070 mm |

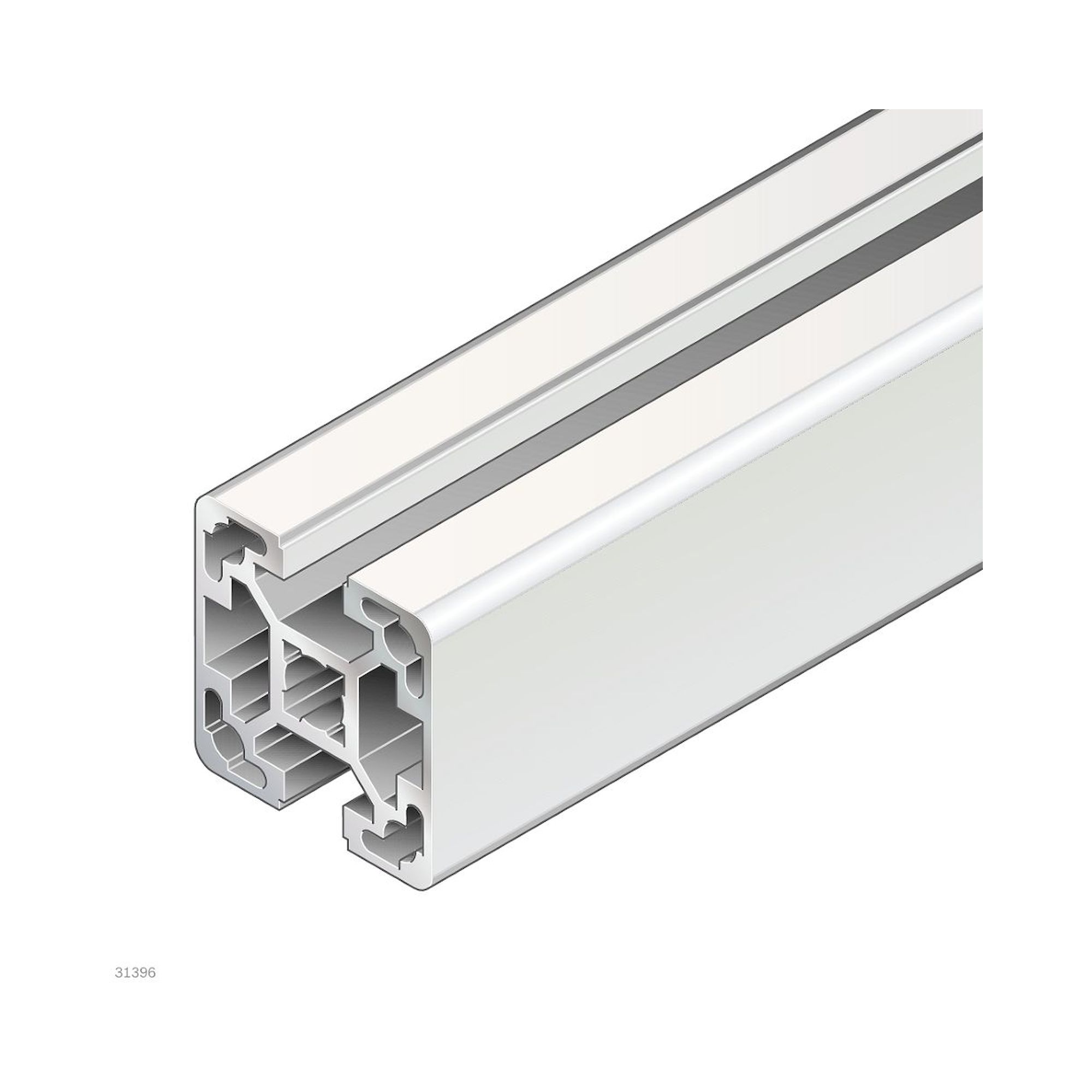

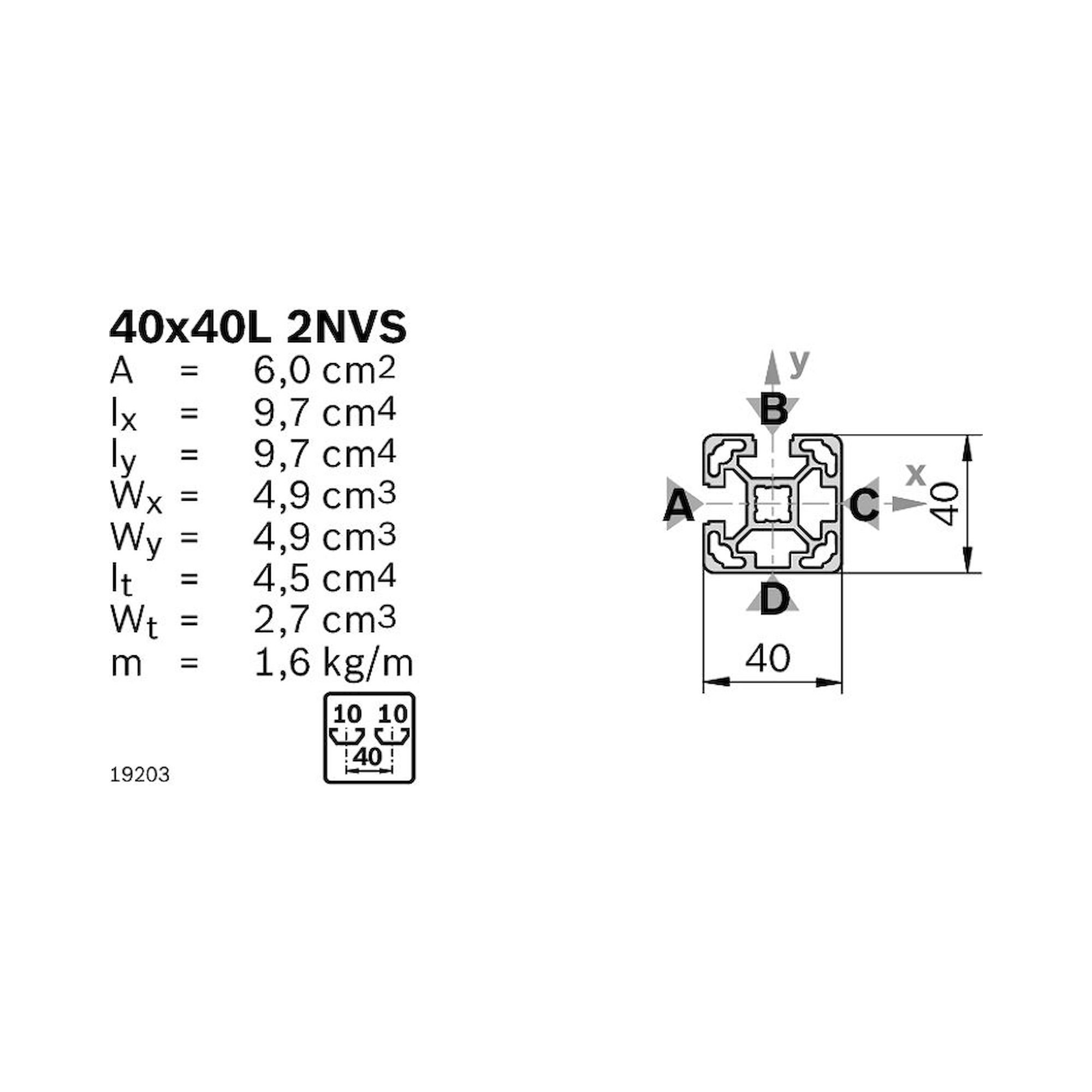

| 40x40L 2N (3842529363) | 40 x 40 mm, double-slot-open | 20 | 6,070 mm |
Typical applications: Assembly frames and workstation systems in electronics and automotive manufacturing, machine guards and protective enclosures, modular shelving and transport frames, as well as extensions to existing Bosch Rexroth modular structures using compatible connectors.
