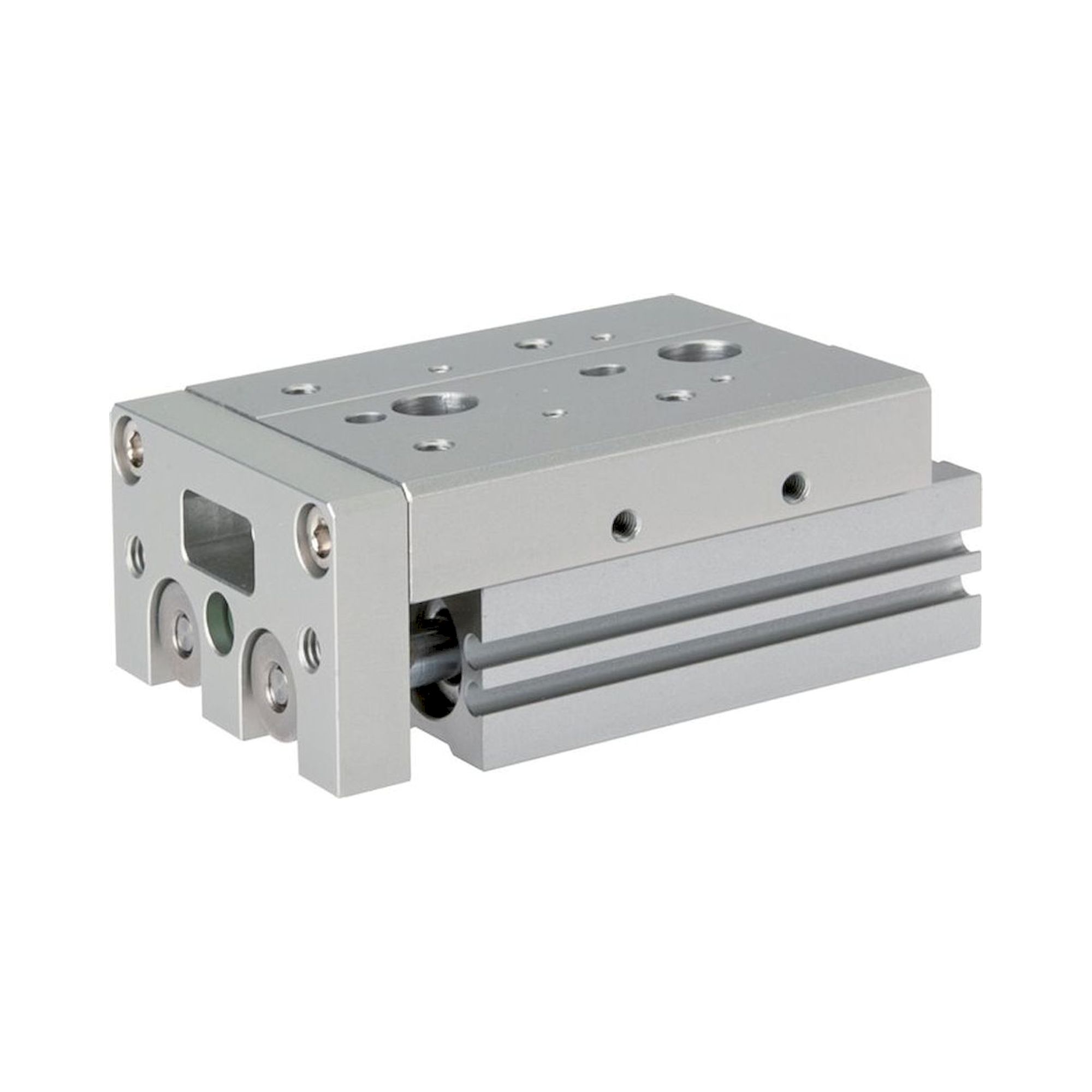

EMC ELS 20/30-BS. Compact carriages, pistons 20mm, stroke 30mm, with stroke limitation for deploying (shock absorber)
Compact carriages, pistons 20mm, stroke 30mm, with stroke limitation for deploying (shock absorber)
- This Item: €436.06Excl. 19% VAT , excl. Shipping Cost
- EMC ELS 16/20-AS. Compact carriages, pistons 16mm, stroke 20mm, with stroke limitation for deploying (fixed stop) €325.90Excl. 19% VAT , excl. Shipping Cost
- EMC ELS 12/20-A. Compact carriages, pistons 12mm, stroke 20mm, with stroke limitation on both sides (fixed stop) €320.63Excl. 19% VAT , excl. Shipping Cost
Materials:
Body and plate: Anodized aluminium, piston rods: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10°C to +60°C
Operating pressure:
max. 7 bar
Piston speed
50 - 500 mm/s
Version:
With Magnetic piston
Optional:
with stroke limitation (fixed stop) while deploying (-10 mm) -AS*, with stroke limitation (fixed stop) retracting (-10 mm) -AT*, with stroke limitation (fixed stop) on both sides (-20 mm)-A*, with stroke limitation (shock absorber) while deploying (not Ø 6, Ø 8: -20mm, Ø 12: -18 mm, Ø 16 & 20: -25 mm, Ø 25: -35 mm) -BS*, with stroke limitation (shock absorber) while retracting (not Ø 6, Ø 8: -20 mm, Ø 12: -18 mm, Ø 16 & 20: -25 mm, Ø 25: -35 mm) -BT*, with stroke limitation (shock absorber) on both sides (not Ø 6, Ø 8: -40 mm, Ø 12: -36 mm, Ø 16 & 20: -50 mm, Ø 25: -70 mm) -B*
Cylinder switch type:
D
Advantages:
•high rigidity,
•numerous fastening options,
•position holes for accurately repeatable workpiece mounting,
•stroke adjustable by stroke limiters (as fixed stop or shock absorber),
•main installation dimensions identical to SMC Series MXS
Manufacturer Nr. | ELS 20/30-BS |
---|---|
Manufacturer | E.MC |
EAN | 4050571877514 |
Weight | 12.000000 |
HS-Code | 84123100 |
