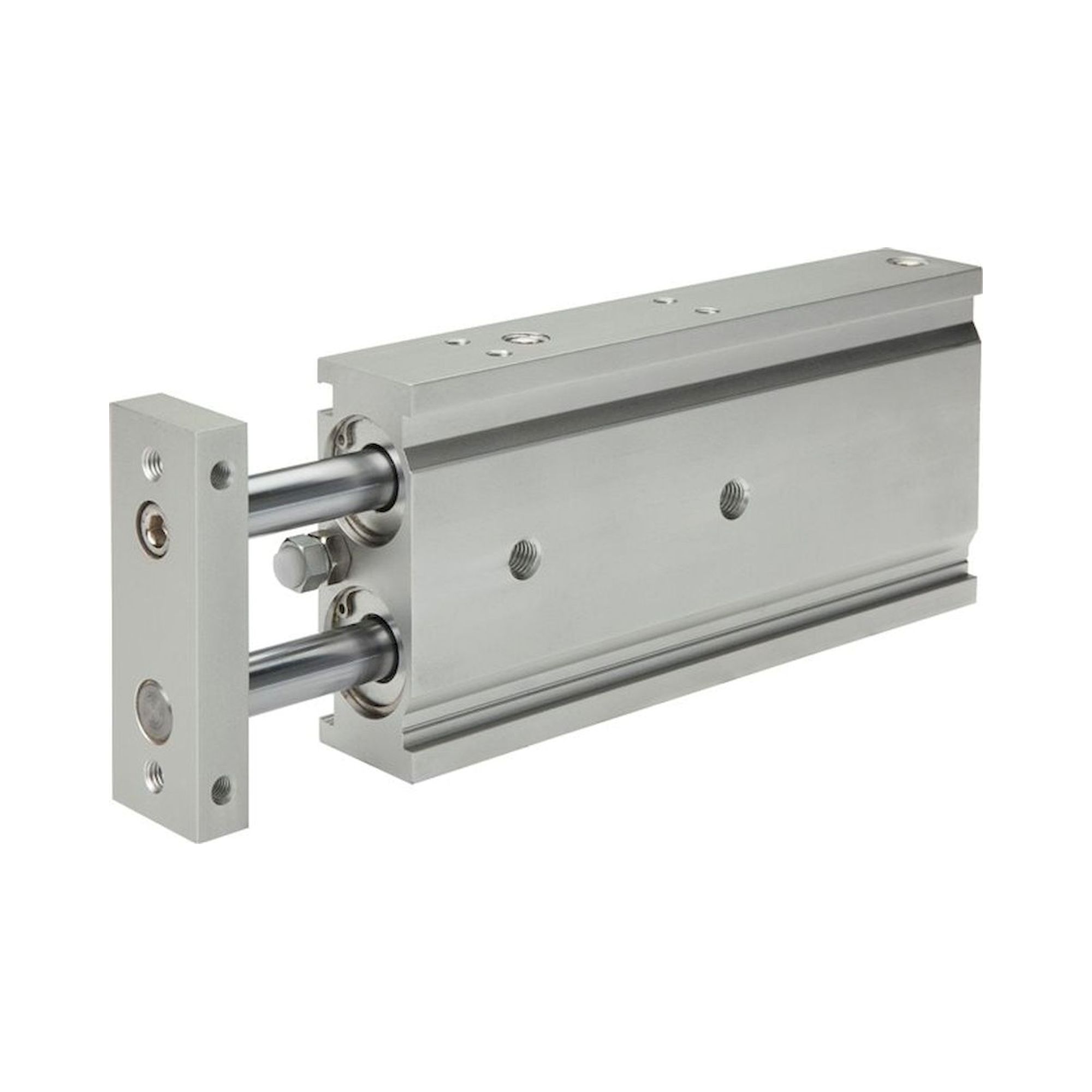

EMC EXSM 20/50. Double piston cylinder, piston 20mm, stroke 50mm

Name: EMC EXSM 20/50. Double piston cylinder, piston 20mm, stroke 50mm
Brand: E.MC
SKU: FL-EXSM-20/50
Price: 15038 EUR
Availability: InStock

€15,038.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EXSM-20/50

Manufacturer Nr.

EXSM 20/50

Double piston cylinder, piston 20mm, stroke 50mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: EMC EXSM 20/50. Double piston cylinder, piston 20mm, stroke 50mm
€15,038.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 20/40. Double piston cylinder, piston 20mm, stroke 40mm
€14,201.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 16/30. Double piston cylinder, piston 16mm, stroke 30mm
€11,372.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body and plate: Anodized aluminium, piston rods: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•Guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.2° (±),
•ideal for Pick-and-Place applications,
•stroke adjustment range 0 to -5 mm,
•air connection from the top or below (closed with stopper plugs),
•main installation dimensions identical to SMC series CXS

Piston diameter [mm]	20
Stroke [mm]	50
Stroke (adjustment range) [mm]	45 - 50
Version	Double piston cylinder
G (compressed air port)	M 5
Repair sets	EXSM 20 REP
lateral force permissible [N]	5,3
A [mm]	94,0
B [mm]	24,0
C [mm]	70
D [mm]	40
D1	40
E [mm]	30
E1 [mm]	30
F [mm]	53,0
H [mm]	12
I [mm]	28
K [mm]	50
L [mm]	62
M [mm]	23
N1 [mm]	46,0
N2 [mm]	9,0
R [mm]	6,5
S [mm]	64
T [mm]	25
V [mm]	10
W [mm]	9,5
P1	9.5 (5.3 deep)
P2	M 6
P3	M 5
P4	M 4
P5 [mm]	5,2
P6	M 4
Q2 [mm]	10
Q4 [mm]	6,0
Q6 [mm]	5,5
