LE 50/500 CG. Guide unit for ISO15552-50mm, stroke 500mm

Name: LE 50/500 CG. Guide unit for ISO15552-50mm, stroke 500mm
Brand: Fluidics equipment
SKU: FL-LE-50/500-CG
Price: 28656 EUR
Availability: InStock

€28,656.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LE-50/500-CG

Manufacturer Nr.

LE 50/500 CG

Guide unit for ISO15552-Ø 50mm, stroke 500mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

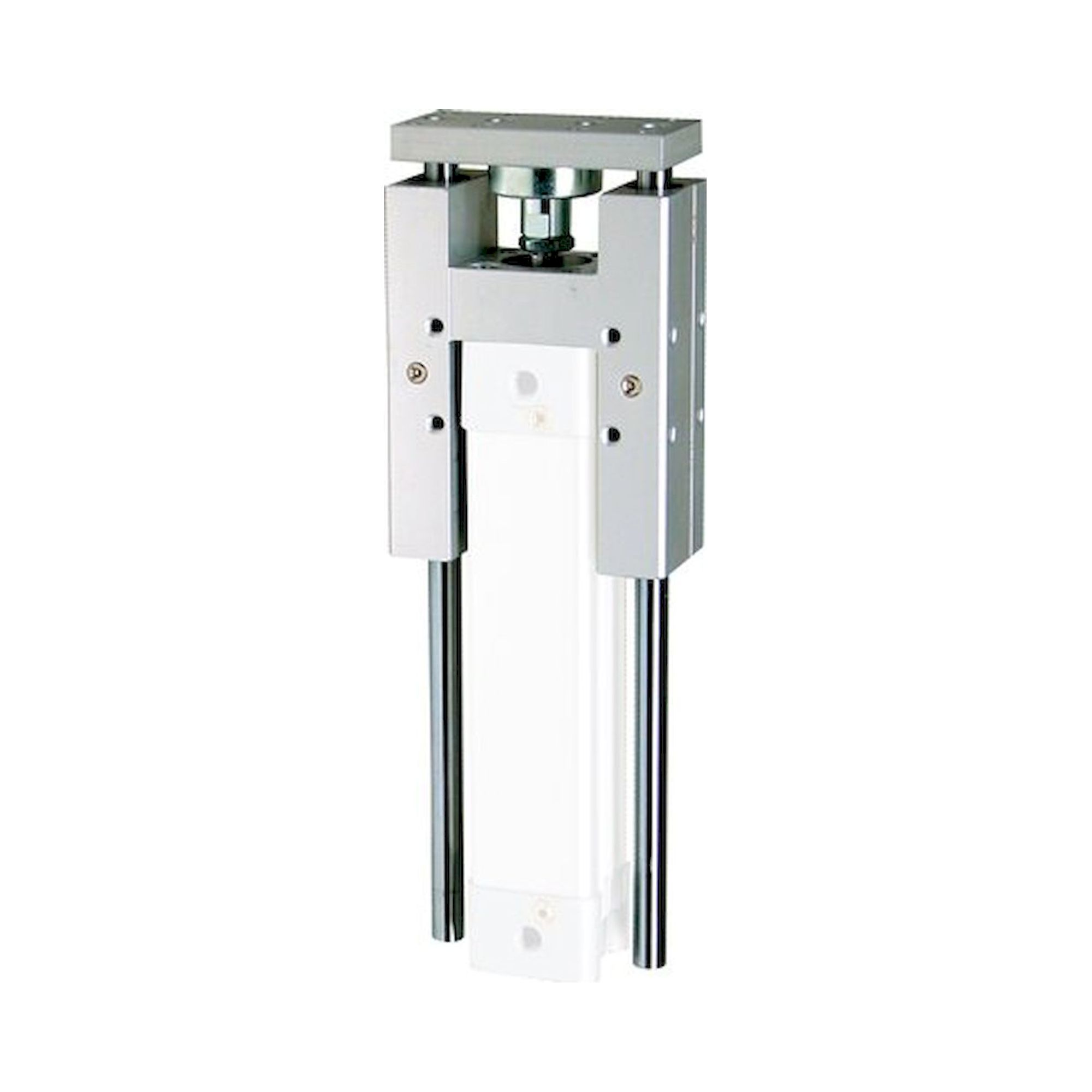

The product may differ from the illustration

Frequently Bought Together

This Item: LE 50/500 CG. Guide unit for ISO15552-50mm, stroke 500mm
€28,656.00
Excl. 19% VAT , excl. Shipping Cost
LE 100/500 HG. Guide unit for ISO15552-100mm, stroke 500mm
€73,794.00
Excl. 19% VAT , excl. Shipping Cost
LE 80/50 HG. Guide unit for ISO15552-80mm, stroke 50mm
€55,585.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	C with sliding guide
for piston diameter [mm]	50
Stroke [mm]	500
MA / MB* [Nm]	21 / 19
A [mm]	137
B [mm]	70
C [mm]	70,2
CH [mm]	20
D1 [mm]	25
E1 [mm]	18,80
E2 [mm]	56,5
E3 [mm]	18,80
F [mm]	134
G [mm]	65
H [mm]	15
I [mm]	20
L6 [mm]	143
L7 [mm]	64
L8 [mm]	59
N [mm]	9,0
O [mm]	16
P [mm]	15
Q [mm]	8,5
S	M 8
T [mm]	100
U [mm]	85
V [mm]	46,5
Z [mm]	104

Information

More Information
Manufacturer Nr.	LE 50/500 CG
Manufacturer	Fluidics equipment
EAN	4050571465452
Weight	1.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
