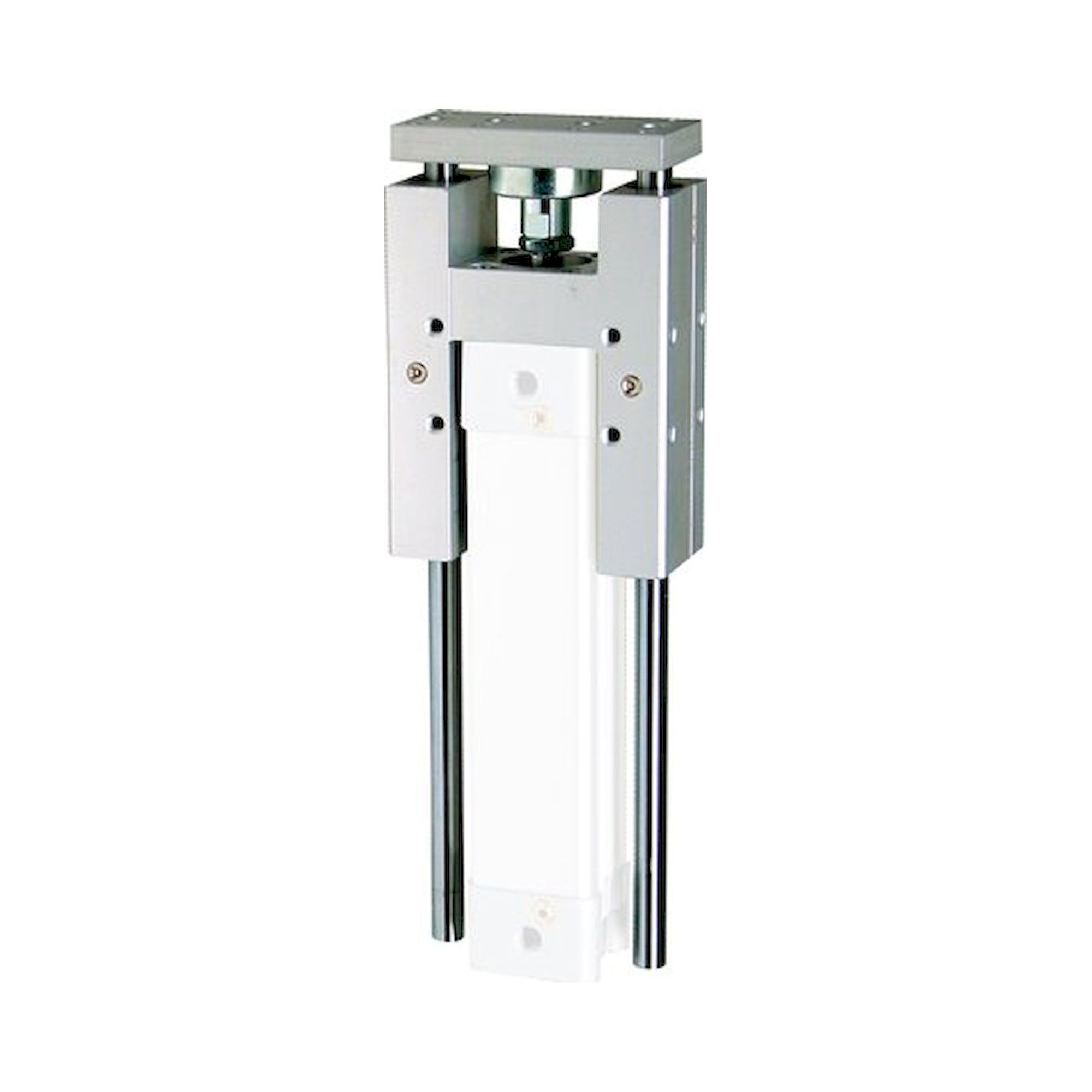

LE 63/320 HG. Guide unit for ISO15552-63mm, stroke 320mm

Name: LE 63/320 HG. Guide unit for ISO15552-63mm, stroke 320mm
Brand: Fluidics equipment
SKU: FL-LE-63/320-HG
Price: 39882 EUR
Availability: InStock

€39,882.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LE-63/320-HG

Manufacturer Nr.

LE 63/320 HG

Guide unit for ISO15552-Ø 63mm, stroke 320mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LE 63/320 HG. Guide unit for ISO15552-63mm, stroke 320mm
€39,882.00
Excl. 19% VAT , excl. Shipping Cost
LE 50/250 HK. Guide unit for ISO15552-50mm, stroke 250mm
€43,461.00
Excl. 19% VAT , excl. Shipping Cost
LE 50/400 HG. Guide unit for ISO15552-50mm, stroke 400mm
€34,406.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Function:
Guide units are used for anti-rotation safety and absorbing side forces with standard cylinders.

Materials:
Body: anodized aluminium, guide rods: hard chromium plated steel, wiper: NBR, bearing: steel or sintered bronze

Temperature range:
-30 to +100 °C

Version	H with sliding guide
for piston diameter [mm]	63
Stroke [mm]	320
MA / MB* [Nm]	60 / 54
A [mm]	152
B [mm]	85
C [mm]	85,2
CH [mm]	20
D [mm]	34
E [mm]	15,3
F [mm]	147
G [mm]	80
H [mm]	15
I [mm]	20
L1 [mm]	243
L2 [mm]	18
L3 [mm]	106
L4 [mm]	178
N [mm]	9,0
O [mm]	16
P [mm]	15
Q [mm]	9,0
S	M 8
T [mm]	105
U [mm]	100
V [mm]	56,5
Z [mm]	119

Information

More Information
Manufacturer Nr.	LE 63/320 HG
Manufacturer	Fluidics equipment
EAN	4050571465667
Weight	6.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
