LZ 25/100. Kolbenstangenloser Zylinder, Kolben 25 mm, Hub 100 mm

Fluidics equipment
€29,212.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-LZ-25/100

Manufacturer Nr.
LZ 25/100
Kolbenstangenloser Zylinder, Kolben Ø 25 mm, Hub 100 mm
Add to Wish List Add to Compare

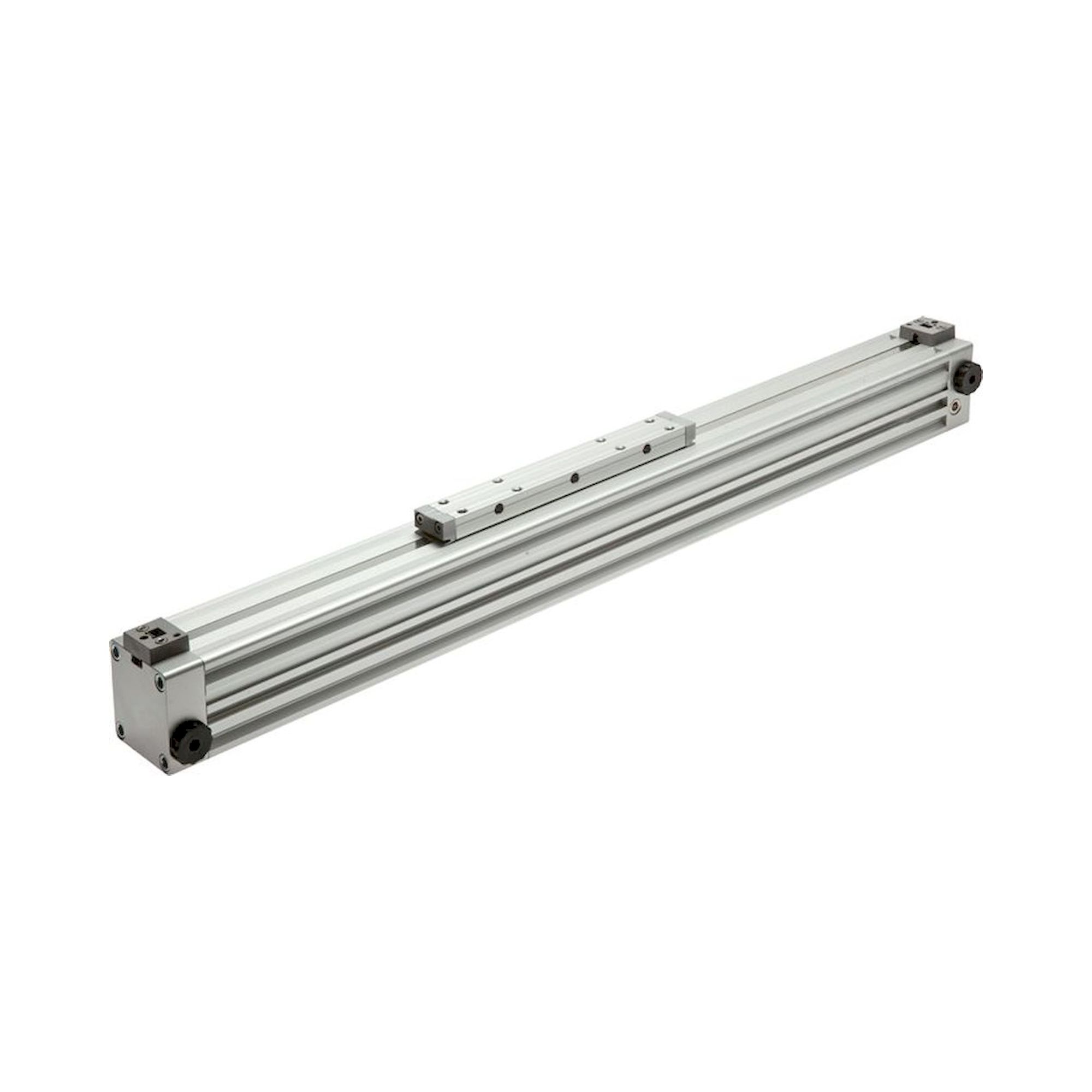

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm] 25
Stroke [mm] 100
Version Standard
D (compressed air port) G 1/8"
Repair sets (with all wear parts) LZ 25/2500 REP
Repair sets (only damping ring and grooved ring) LZ 25 REP
lateral force permissible [N] 0
A [mm] 100
A1 [mm] 67,5
AF [mm] 70
AF1 [mm] 19
AM [mm] 13
B [mm] 45
E [mm] 131
E1 [mm] 66
F [mm] 100
F1 [mm] 35
G [mm] 50
J [mm] 3,5
M [mm] 20,0
MF [mm] 66
N M 4
N1 [mm] 7,0
O [mm] 4,5
OP [mm] 4,4
S [mm] 33,0
T M 4
T1 [mm] 9
U [mm] 42
W [mm] 53,0
WF [mm] 64
Damper length [mm] 18
More Information
Manufacturer Nr. LZ 25/100
Manufacturer Fluidics equipment
EAN 4050571817855
Weight 1.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
