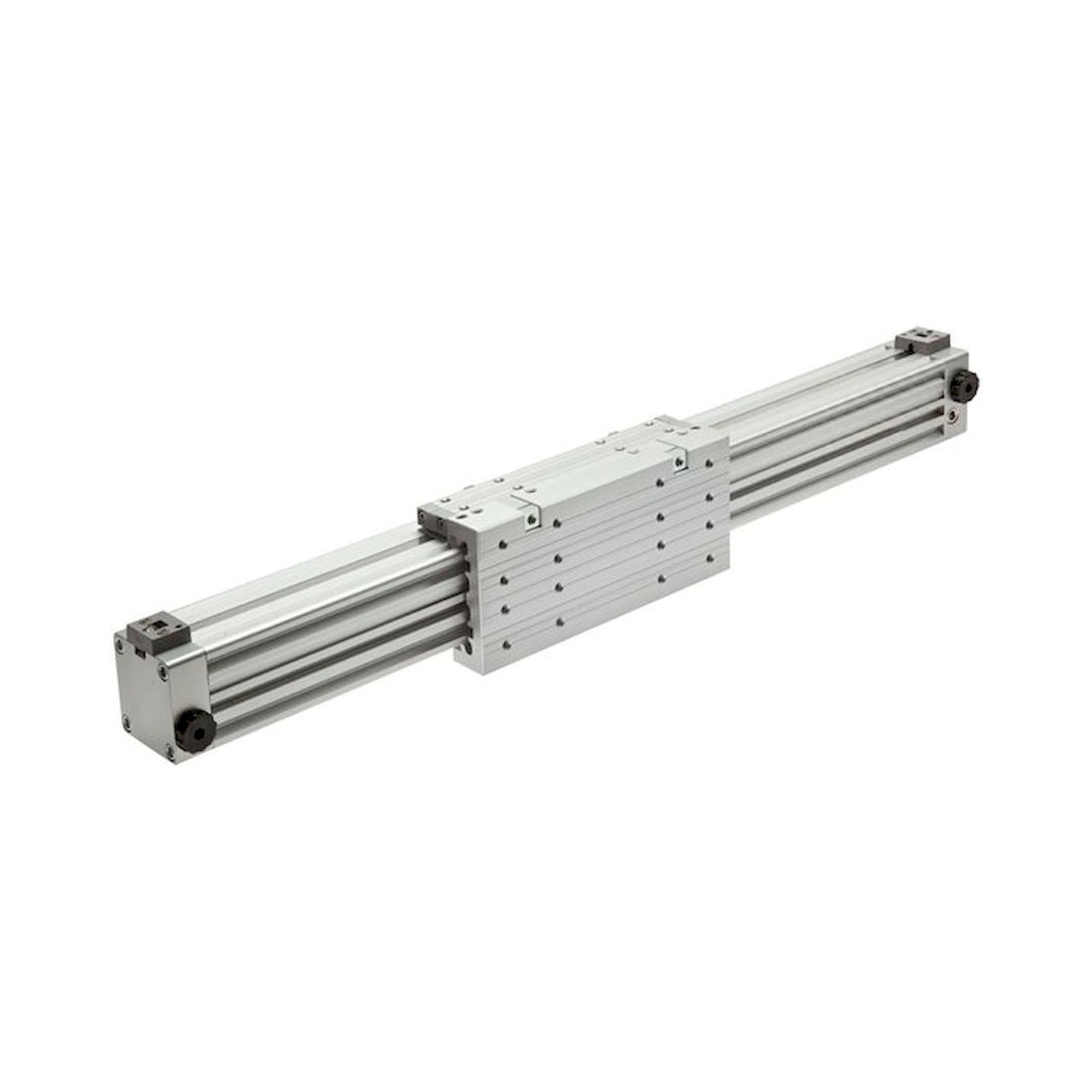

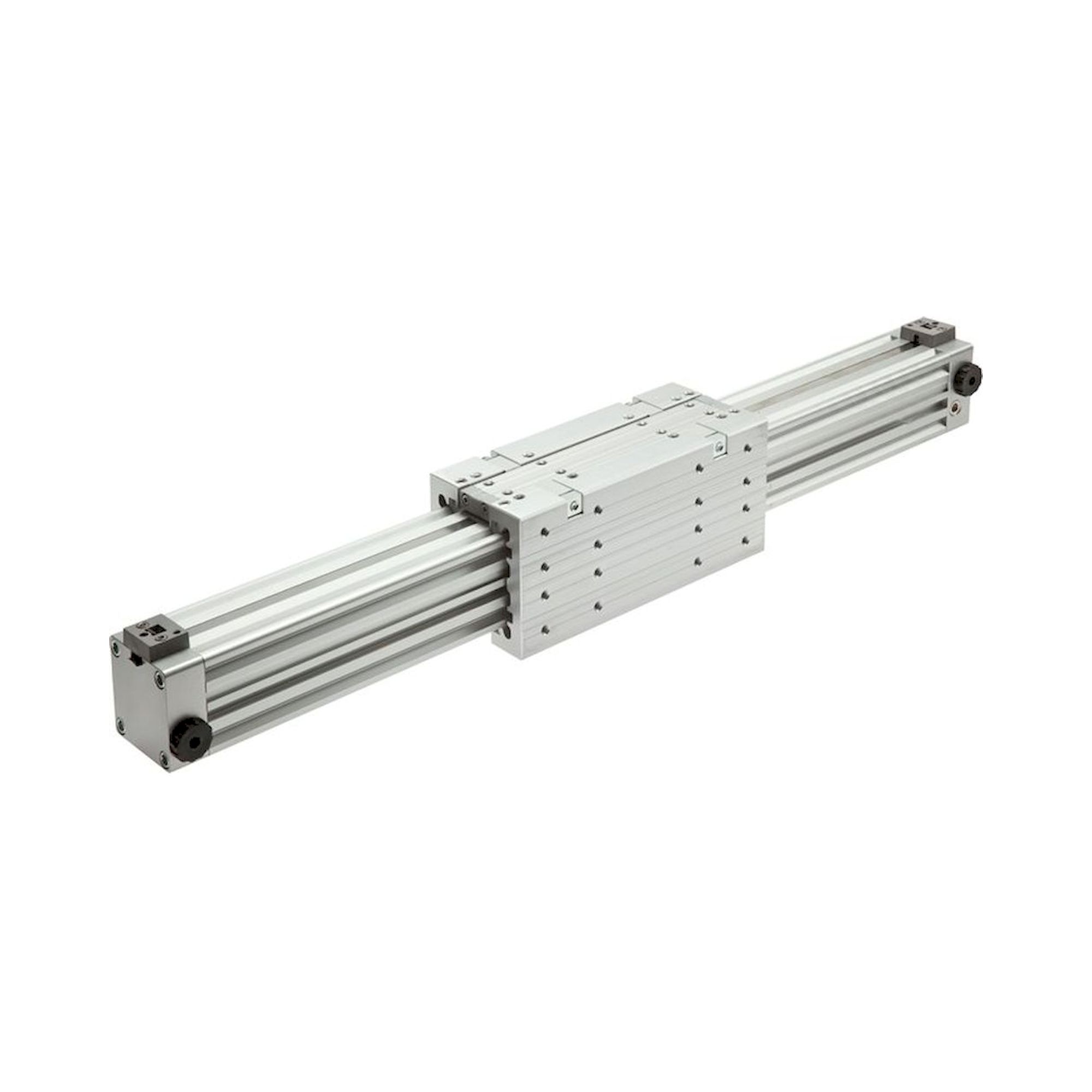

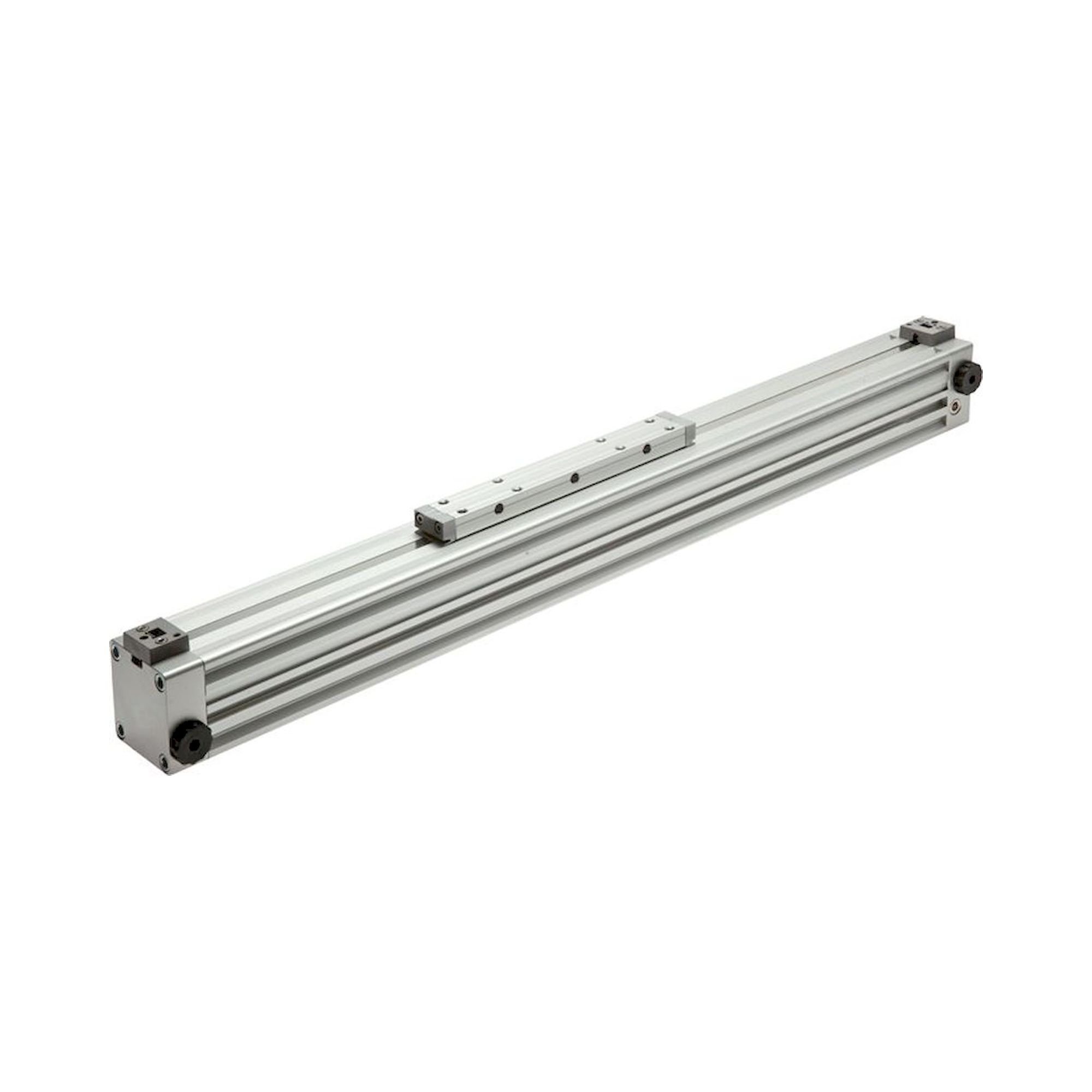

Standard cylinder with guide LZ
Rodless cylinders
Standard rodless guide cylinders of the LZ series transfer piston force to an external carriage via a magnetic or mechanical coupling system, with no piston rod extending from the cylinder body. Bore diameters from 18 to 63 mm are available with strokes from 100 to 2,000 mm. The extruded aluminium profile contains a T-slot for precise positioning of sensors and accessories. Repair kits (REP) for all bore sizes and stroke lengths are available separately.
Bore 18-63 mm - all common force ranges for horizontal and vertical axes
Stroke 100-2,000 mm - long travel on a compact machine footprint
Integrated guide rail - carriage absorbs lateral forces, protecting the cylinder internals
T-slot in aluminium profile - sensor holders and accessories positioned without drilling
Repair kits (REP) - seal kits for all bore sizes and stroke lengths available
| Bore (mm) | Strokes (mm) |
|---|---|
| 18 | 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000 |
| 25 | 100-2,000 (same steps as 18 mm) |
| 32 | 100-2,000 |
| 40 | 100-2,000 |
| 50 | 100-2,000 |
| 63 | 100-2,000 |
Typical applications: Workpiece transport on transfer lines, gantry axes and pick-and-place systems, positioning of grippers and tool carriers, infeed and sorting stations, and protective covers requiring long travel within a short installed length.
