LZ 32/2500 REP. Reparatursatz für Kolben-stangenlose Zylinder

Name: LZ 32/2500 REP. Reparatursatz für Kolben-stangenlose Zylinder
Brand: Fluidics equipment
SKU: FL-LZ-32/2500-REP
Price: 14498 EUR
Availability: InStock

€14,498.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LZ-32/2500-REP

Manufacturer Nr.

LZ 32/2500 REP

Reparatursatz für Kolben-stangenlose Zylinder

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LZ 32/2500 REP. Reparatursatz für Kolben-stangenlose Zylinder
€14,498.00
Excl. 19% VAT , excl. Shipping Cost

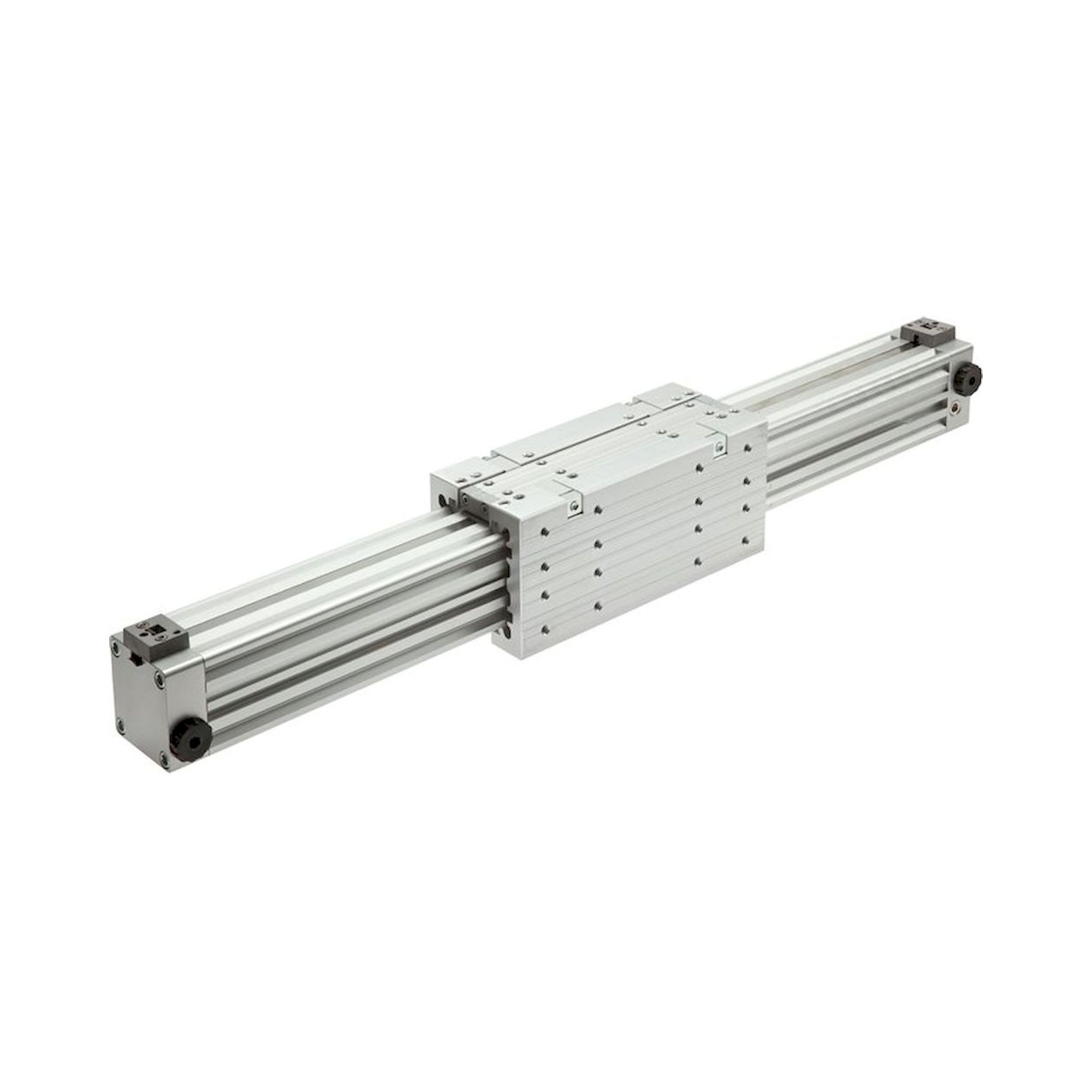

LZFF 50/400. Kolbenstangenloser Zylinder, Kolben 50 mm, Hub 400 mm
€108,302.00
Excl. 19% VAT , excl. Shipping Cost

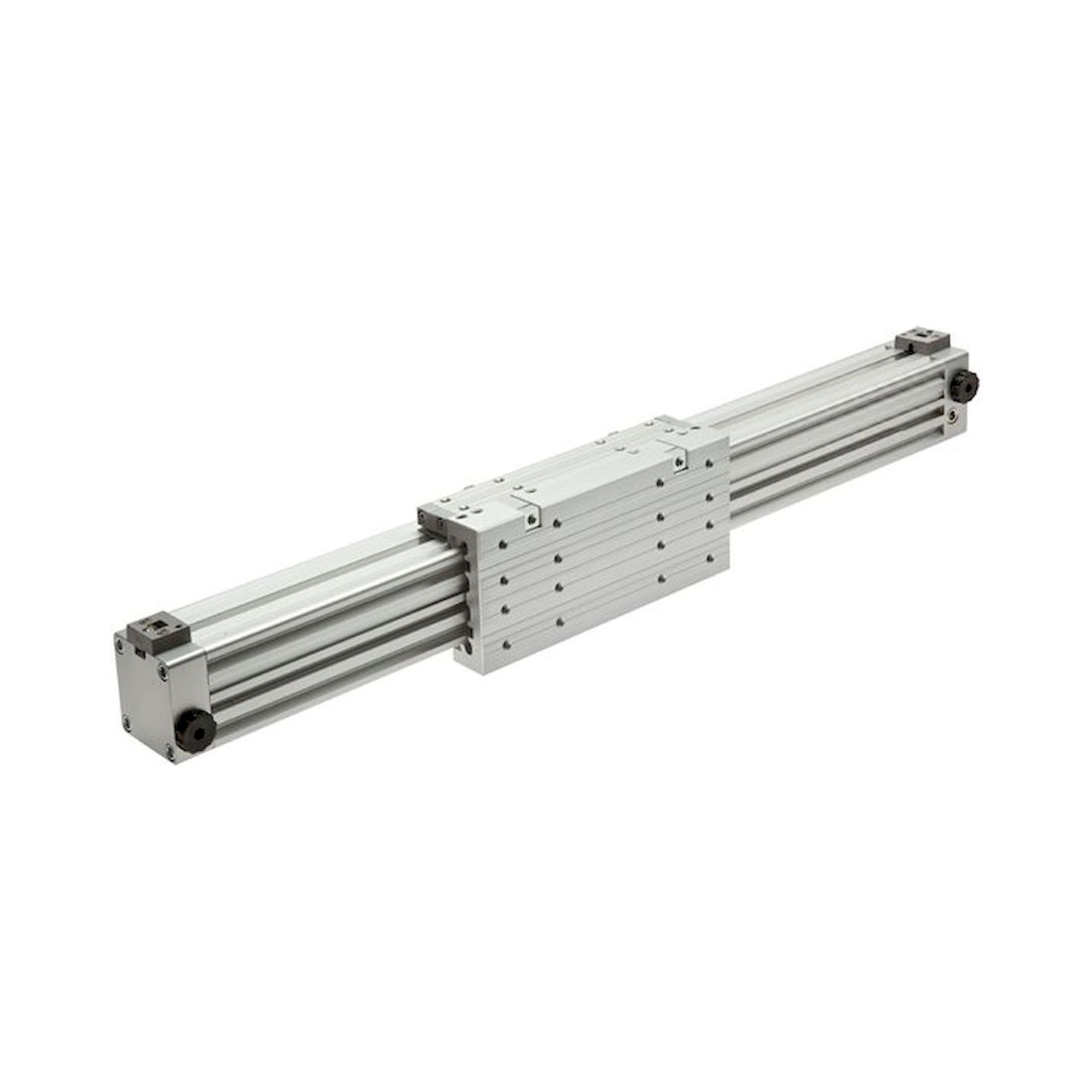

LZF 18/1000. Kolbenstangenloser Zylinder, Kolben 18 mm, Hub 1000 mm
€60,603.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm]	32
Version	Repair set (with all wear parts for stroke up to 2500 mm)

Information

More Information
Manufacturer Nr.	LZ 32/2500 REP
Manufacturer	Fluidics equipment
EAN	4050571469535
Weight	125.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
