LZ 32/300. Kolbenstangenloser Zylinder, Kolben 32 mm, Hub 300 mm

Fluidics equipment
€36,978.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-LZ-32/300

Manufacturer Nr.
LZ 32/300
Kolbenstangenloser Zylinder, Kolben Ø 32 mm, Hub 300 mm
Add to Wish List Add to Compare

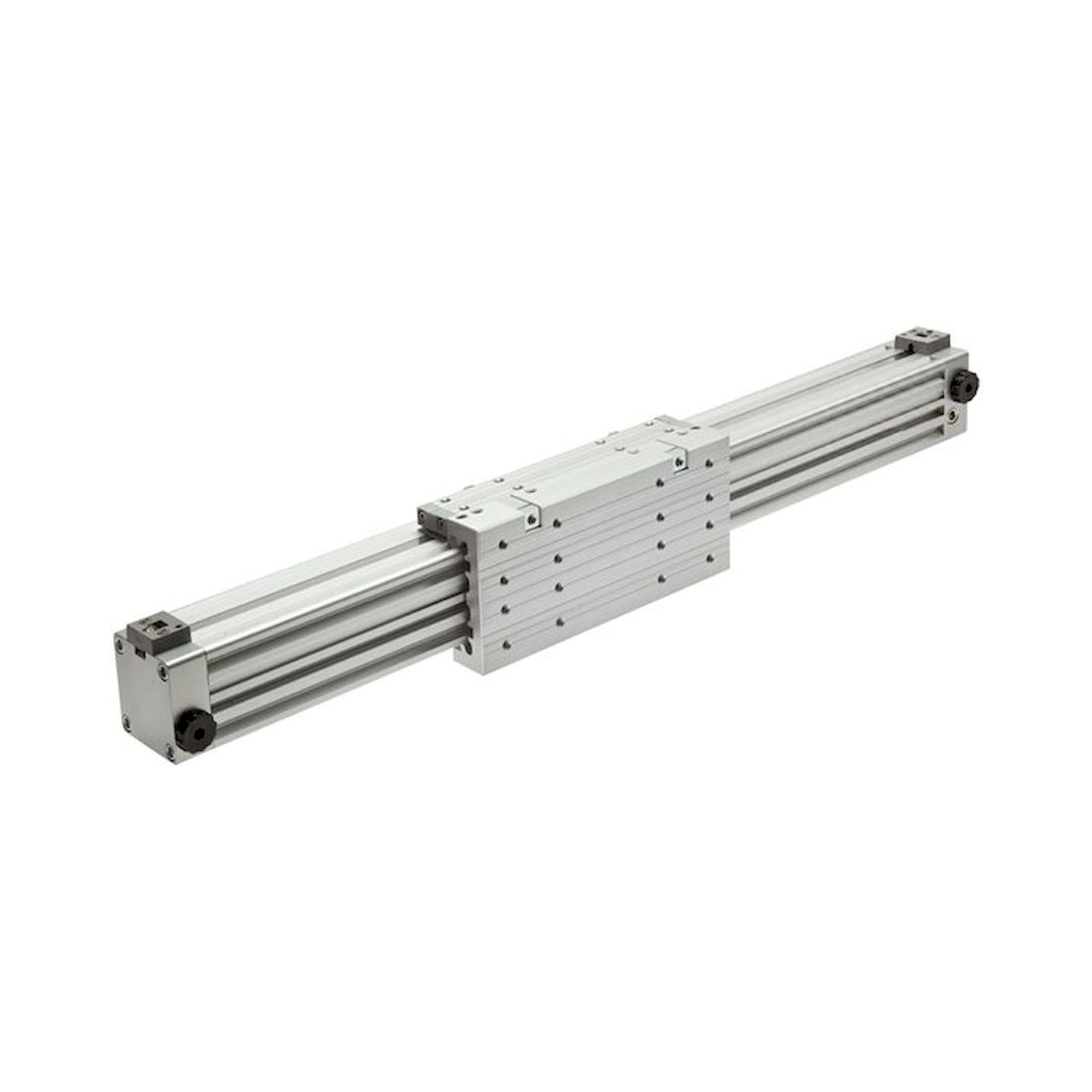

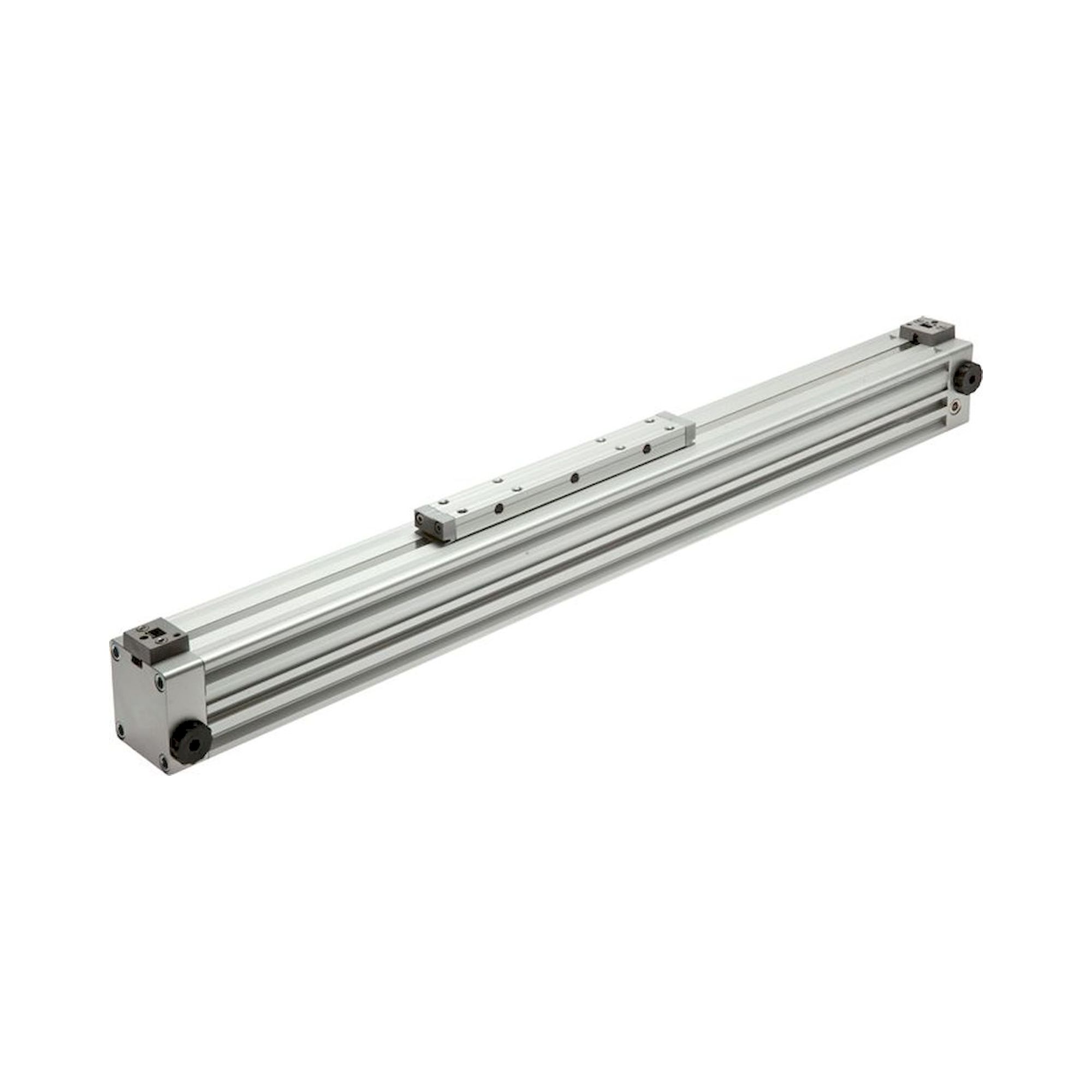

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm] 32
Stroke [mm] 300
Version Standard
D (compressed air port) G 1/8"
Repair sets (with all wear parts) LZ 32/2500 REP
Repair sets (only damping ring and grooved ring) LZ 32 REP
lateral force permissible [N] 0
A [mm] 120
A1 [mm] 77,5
AF [mm] 100
AF1 [mm] 35
AM [mm] 16
B [mm] 55
E [mm] 171
E1 [mm] 86
F [mm] 140
F1 [mm] 55
G [mm] 70
J [mm] 4,5
M [mm] 25,0
MF [mm] 80
N M 5
N1 [mm] 9,0
O [mm] 5,5
OP [mm] 5,3
S [mm] 41,0
T M 5
T1 [mm] 10
U [mm] 52
W [mm] 65,0
WF [mm] 78
Damper length [mm] 24
More Information
Manufacturer Nr. LZ 32/300
Manufacturer Fluidics equipment
EAN 4050571818081
Weight 24.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
