LZ 63/900. Kolbenstangenloser Zylinder, Kolben 63 mm, Hub 900 mm

Fluidics equipment
€77,359.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-LZ-63/900

Manufacturer Nr.
LZ 63/900
Kolbenstangenloser Zylinder, Kolben Ø 63 mm, Hub 900 mm
Add to Wish List Add to Compare

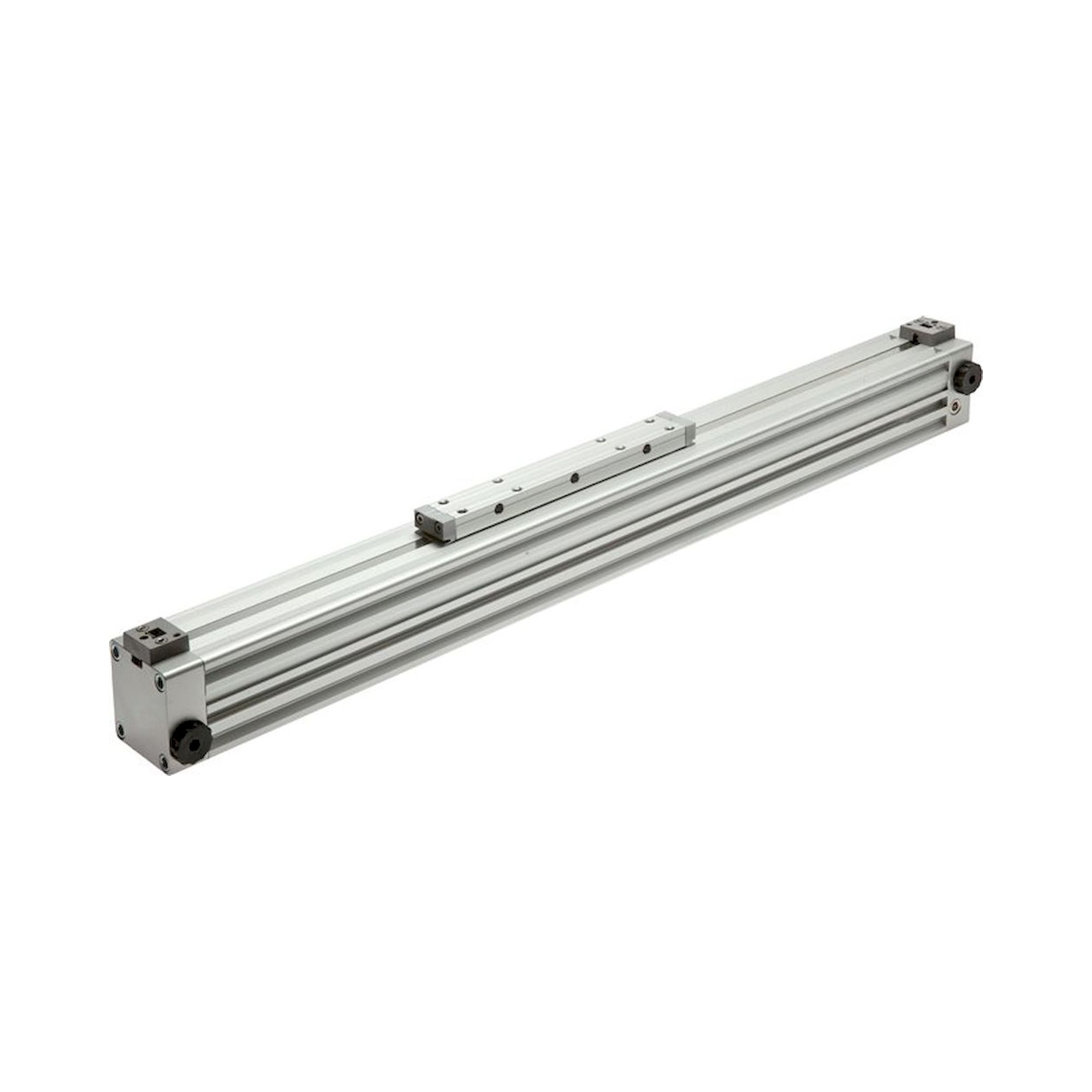

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm] 63
Stroke [mm] 900
Version Standard
D (compressed air port) G 3/8"
Repair sets (with all wear parts) LZ 63/2500 REP
Repair sets (only damping ring and grooved ring) LZ 63 REP
lateral force permissible [N] 0
A [mm] 215
A1 [mm] 125,0
AF [mm] 230
AF1 [mm] 70
AM [mm] 40
B [mm] 105
E [mm] 333
E1 [mm] 153
F [mm] 280
F1 [mm] 100
G [mm] 140
J [mm] 8,0
M [mm] 54,0
MF [mm] 136
N M 8
N1 [mm] 15,0
O [mm] 9,0
OP [mm] 8,8
S [mm] 78,0
T M 8
T1 [mm] 12
U [mm] 93
W [mm] 113,5
WF [mm] 134
Damper length [mm] 49
More Information
Manufacturer Nr. LZ 63/900
Manufacturer Fluidics equipment
EAN 4050571818593
Weight 15.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
