LZF 18/100. Kolbenstangenloser Zylinder, Kolben 18 mm, Hub 100 mm

Name: LZF 18/100. Kolbenstangenloser Zylinder, Kolben 18 mm, Hub 100 mm
Brand: Fluidics equipment
SKU: FL-LZF-18/100
Price: 53255 EUR
Availability: InStock

€53,255.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-LZF-18/100

Manufacturer Nr.

LZF 18/100

Kolbenstangenloser Zylinder, Kolben Ø 18 mm, Hub 100 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: LZF 18/100. Kolbenstangenloser Zylinder, Kolben 18 mm, Hub 100 mm
€53,255.00
Excl. 19% VAT , excl. Shipping Cost

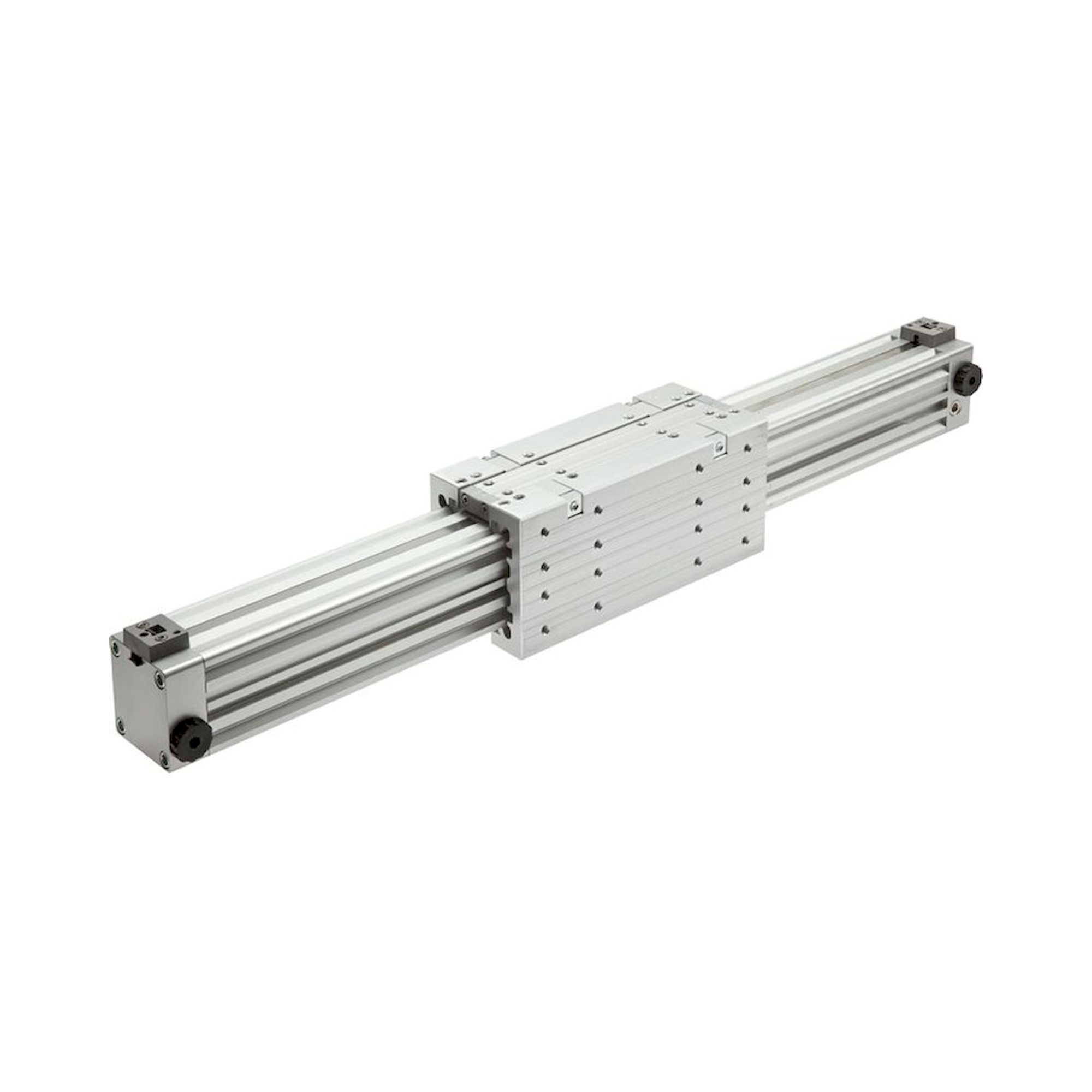

LZFF 32/1400. Kolbenstangenloser Zylinder, Kolben 32 mm, Hub 1400 mm
€9,507.00
Excl. 19% VAT , excl. Shipping Cost
LZ 18/400. Kolbenstangenloser Zylinder, Kolben 18 mm, Hub 400 mm
€27,429.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm]	18
Stroke [mm]	100
Version	with sliding guide
D (compressed air port)	M 5
Repair sets (with all wear parts)	LZ 18/2500 REP
Repair sets (only damping ring and grooved ring)	LZ 18 REP
lateral force permissible [N]	250
A [mm]	80
A1 [mm]	57,5
AF [mm]	50
AF1 [mm]	15
AM [mm]	10
B [mm]	35
E [mm]	103
E1 [mm]	58
F [mm]	75
F1 [mm]	30
J [mm]	3,0
M [mm]	15,5
MF [mm]	50
N	M 4
N1 [mm]	7,5
O [mm]	3,5
OP [mm]	3,4
S [mm]	23,5
T	M 3
T1 [mm]	7
U [mm]	30
W [mm]	39,0
WF [mm]	48
Damper length [mm]	15

Information

More Information
Manufacturer Nr.	LZF 18/100
Manufacturer	Fluidics equipment
EAN	4050571818609
Weight	65.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
