LZF 50/1200. Kolbenstangenloser Zylinder, Kolben 50 mm, Hub 1200 mm

Fluidics equipment
€105,261.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-LZF-50/1200

Manufacturer Nr.
LZF 50/1200
Kolbenstangenloser Zylinder, Kolben Ø 50 mm, Hub 1200 mm
Add to Wish List Add to Compare

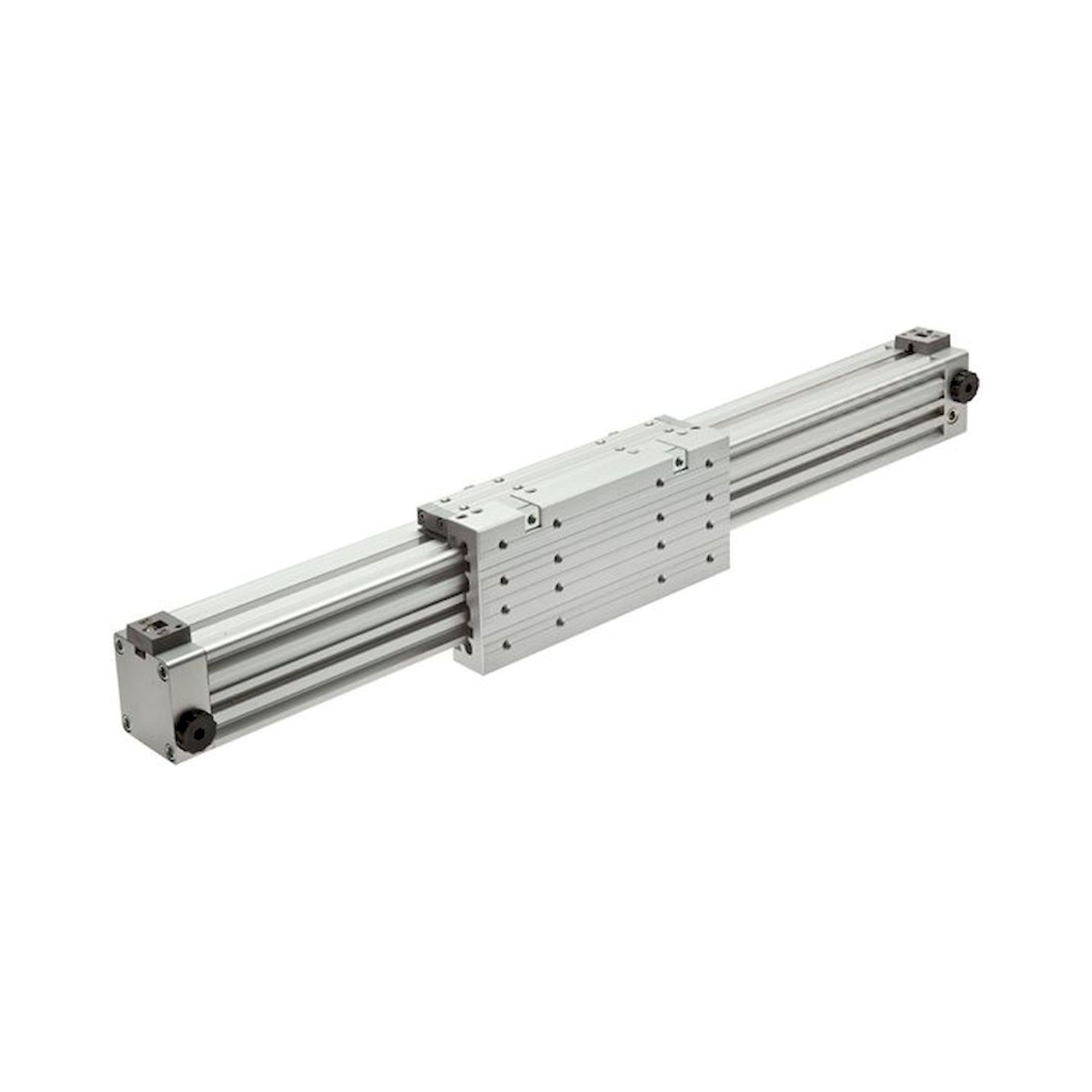

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction type:
Rodless cylinder with direct force reduction through the pipe-slit on the yoke, both sides with adjustable end position damping, can be swapped with many other manufacturers

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Piston diameter [mm] 50
Stroke [mm] 1200
Version with sliding guide
D (compressed air port) G 1/4"
Repair sets (with all wear parts) LZ 50/2500 REP
Repair sets (only damping ring and grooved ring) LZ 50 REP
lateral force permissible [N] 1550
A [mm] 180
A1 [mm] 105,0
AF [mm] 180
AF1 [mm] 46
AM [mm] 29
B [mm] 85
E [mm] 280
E1 [mm] 130
F [mm] 220
F1 [mm] 70
G [mm] 110
J [mm] 6,5
M [mm] 42,0
MF [mm] 116
N M 8
N1 [mm] 12,5
O [mm] 7,0
OP [mm] 6,8
S [mm] 63,0
T M 8
T1 [mm] 12
U [mm] 78
W [mm] 96,0
WF [mm] 114
Damper length [mm] 40
More Information
Manufacturer Nr. LZF 50/1200
Manufacturer Fluidics equipment
EAN 4050571819224
Weight 10.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
