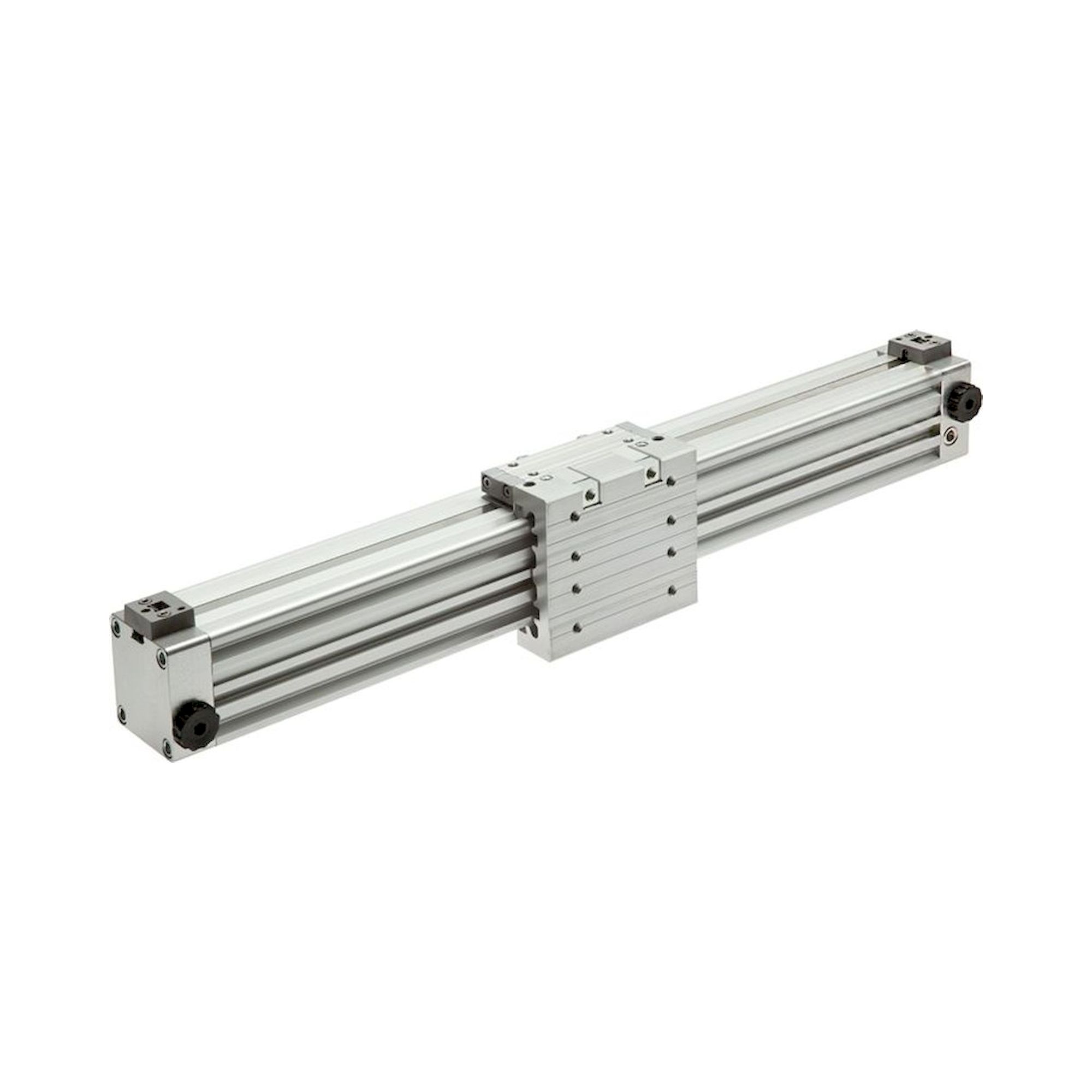

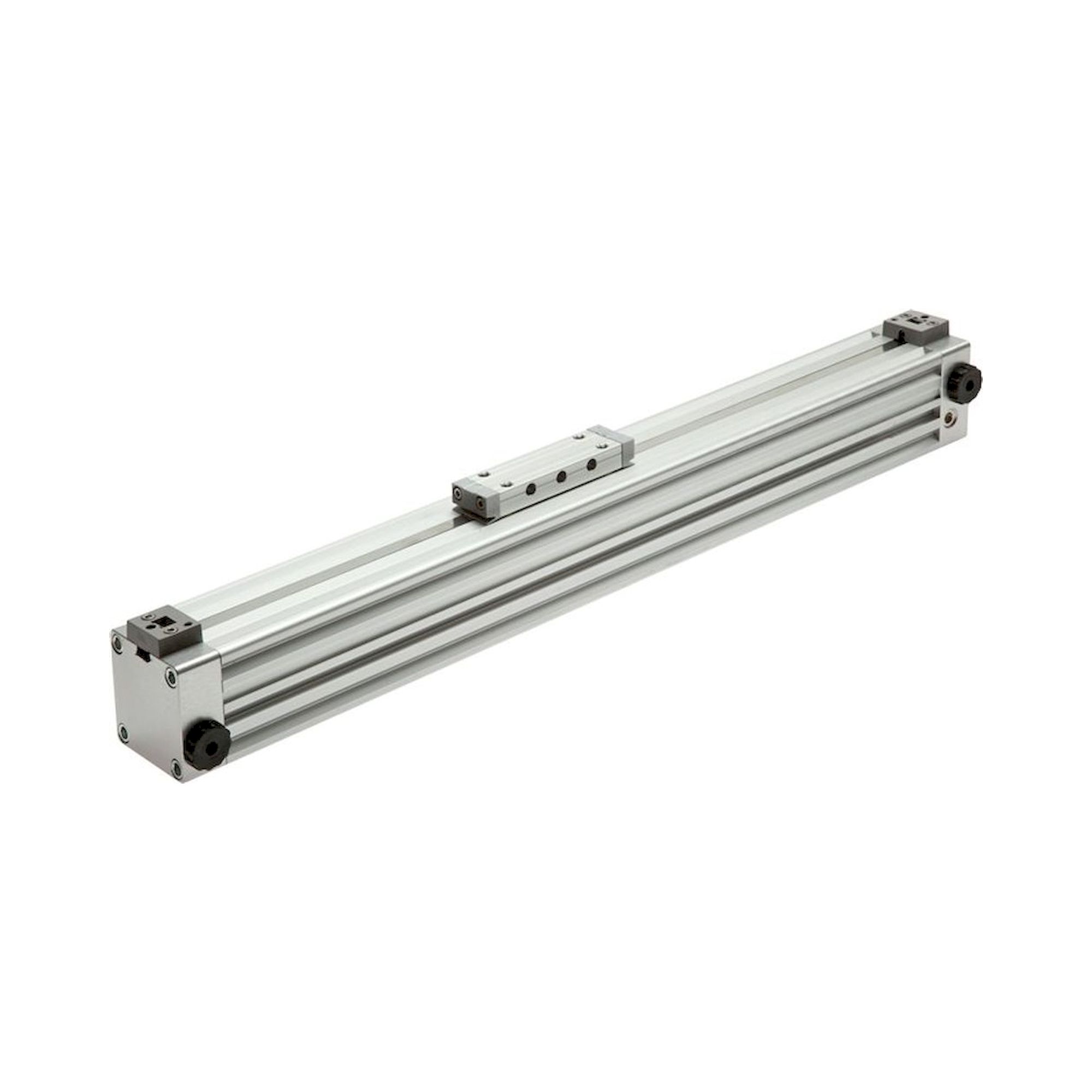

LZKF 32/700. Kolbenstangenloser Zylinder, Kolben 32 mm, Hub 700 mm

Construction type:
Piston rod-less cylinder with direct power take-off through the pipe slit to the power bridge, end-position damping adjustable on both sides, short installation shape

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Advantages:
•fits up to 42% shorter than the standard model series,
•space-saving, even compared to the short-stroke standard cylinders with piston rod,
•cost-effective compact construction

Piston diameter [mm]	32
Stroke [mm]	700
Version	with sliding guide
D (compressed air port)	G 1/8"
Repair sets (with all wear parts)	LZ 32/2500 REP
Repair sets (only damping ring and grooved ring)	LZ 32 REP
lateral force permissible [N]	170
A [mm]	120
A1 [mm]	77,5
AF [mm]	100
AF1 [mm]	35
AM [mm]	16
B [mm]	55
E [mm]	171
E1 [mm]	86
F [mm]	140
F1 [mm]	55
G [mm]	70
J [mm]	4,5
M [mm]	25,0
MF [mm]	80
N	M 5
N1 [mm]	9,0
O [mm]	5,5
OP [mm]	5,3
S [mm]	41,0
T	M 5
T1 [mm]	10
U [mm]	52
W [mm]	65,0
WF [mm]	78
Damper length [mm]	24
