Airtec NAE 80/5-AG. ISO 21287 cylinders, single acting, piston 80 mm, stroke 5 mm
€13,032.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NAE-80/5-AG
Manufacturer Nr.
NAE 80/5-AG
ISO 21287 cylinders, single acting, piston 80 mm, stroke 5 mm
Frequently Bought Together
-
This Item:
€13,032.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAEE 25/15-AG. ISO 21287 cylinders, single acting, piston 25 mm, stroke 15 mm
€7,976.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAE 25/5-AG. ISO 21287 cylinders, single acting, piston 25 mm, stroke 5 mm
€4,861.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 80 |
| Stroke [mm] | 5 |
| Version | Piston rod with male thread |
| KK (piston rod male thread) | M 16x1,5 |
| G (compressed air port) | G 1/8" |
| Repair sets | NAD 80 REP |
| A [mm] | 20 |
| AK [mm] | 28 |
| B [mm] | 12 |
| BG [mm] | 15,0 |
| CH [mm] | 17 |
| E [mm] | 95,5 |
| LA [mm] | 3,0 |
| RT | M 10 |
| TG [mm] | 72,0 |
| WH [mm] | 10 |
| ZA [mm] | 54 |
| ZB [mm] | 64 |
| ZC [mm] | 38 |
| Manufacturer Nr. | NAE 80/5-AG |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571521813 |
| Weight | 13.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Airtec NAEE 100/10-AG. ISO 21287 cylinders, single acting, piston 100 mm, stroke 10 mm
€30,454.00
Excl. 19% VAT ,
excl. Shipping Cost

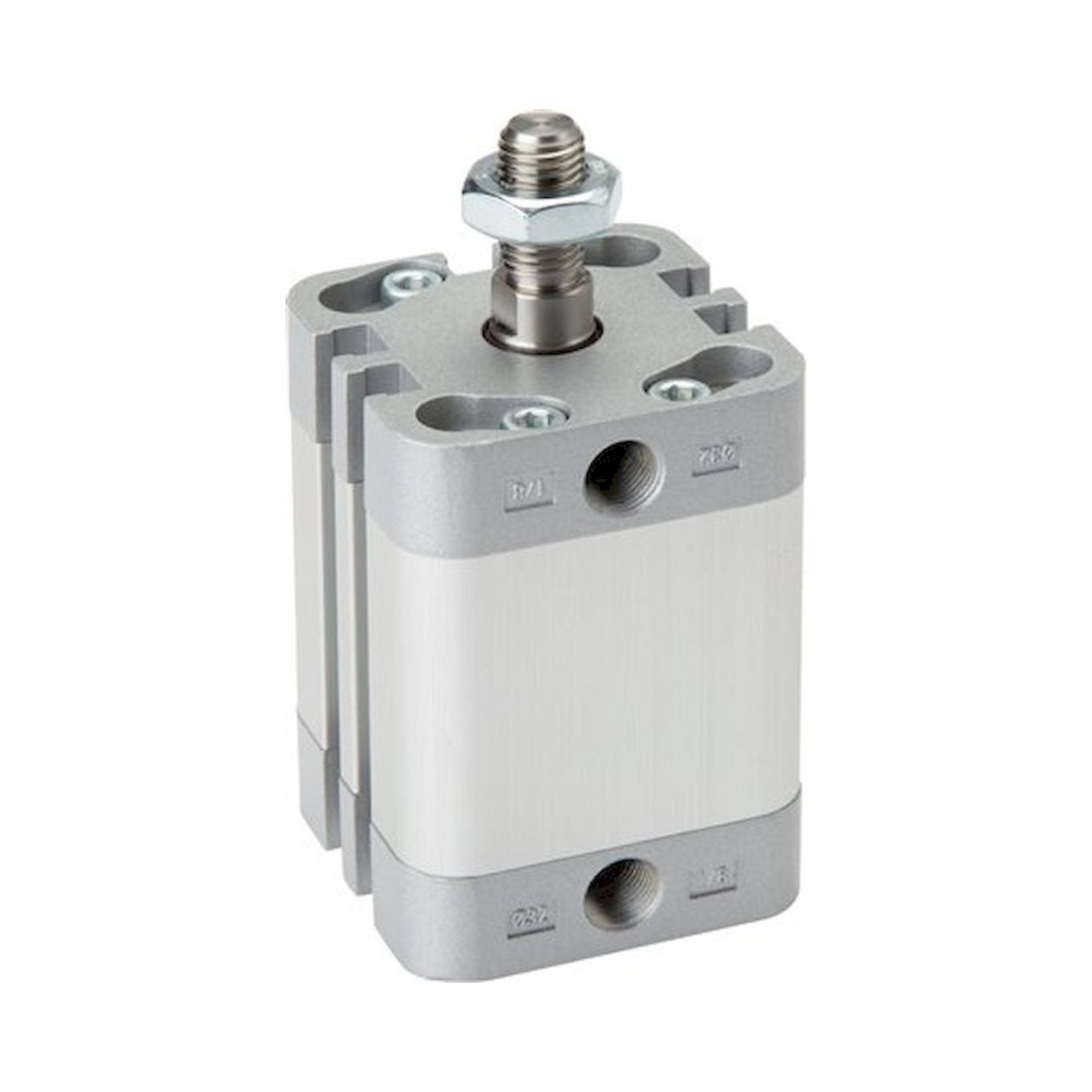

Airtec NAE 63/10-AG. ISO 21287 cylinders, single acting, piston 63 mm, stroke 10 mm
€10,123.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAEE 63/25. ISO 21287 cylinders, single acting, piston 63 mm, stroke 25 mm
€1,522.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAEE 20/5-AG. ISO 21287 cylinders, single acting, piston 20 mm, stroke 5 mm
€7,825.00
Excl. 19% VAT ,
excl. Shipping Cost

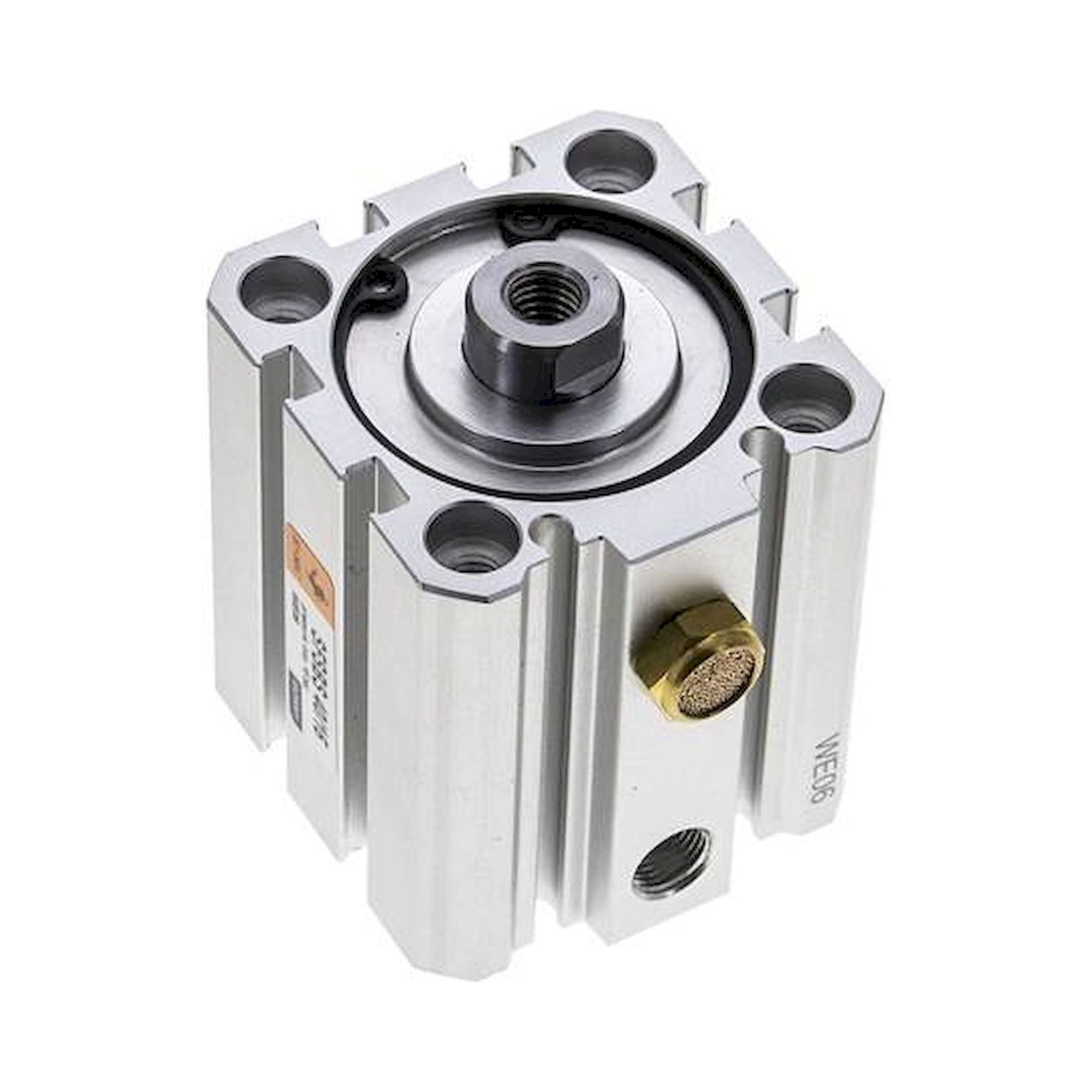

EMC SFSBS 40/15. ISO 21287 cylinders, single acting, piston 40 mm, stroke 15 mm
