NDM 16/30. Short-stroke cylinders, double acting, piston 16 mm, stroke 30 mm

Name: NDM 16/30. Short-stroke cylinders, double acting, piston 16 mm, stroke 30 mm
Brand: Fluidics equipment
SKU: FL-NDM-16/30
Price: 4714 EUR
Availability: InStock

€4,714.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NDM-16/30

Manufacturer Nr.

NDM 16/30

Short-stroke cylinders, double acting, piston 16 mm, stroke 30 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: NDM 16/30. Short-stroke cylinders, double acting, piston 16 mm, stroke 30 mm
€4,714.00
Excl. 19% VAT , excl. Shipping Cost
ND 12/20. Short-stroke cylinders, double acting, piston 12 mm, stroke 20 mm
€3,331.00
Excl. 19% VAT , excl. Shipping Cost

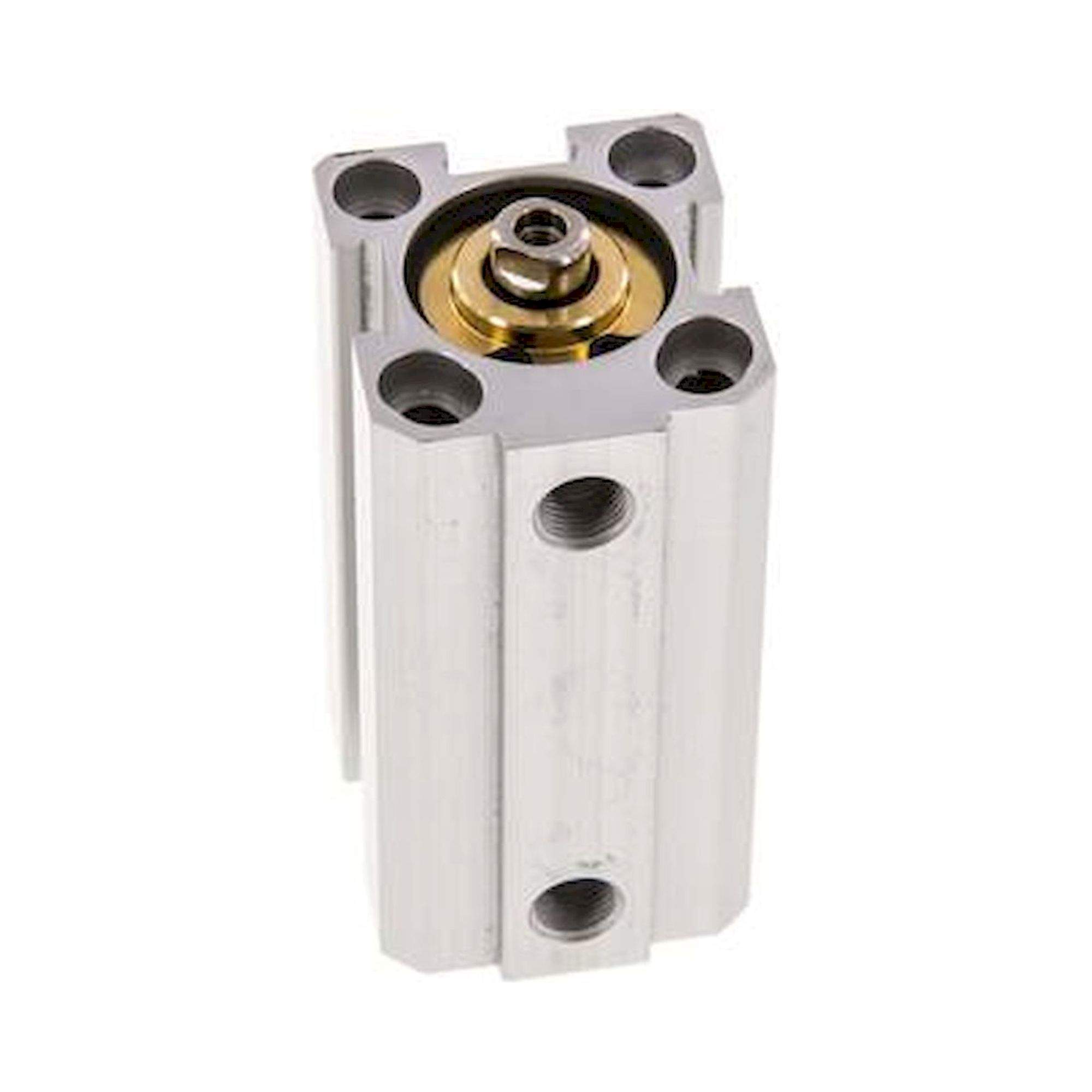

NDM 25/40. Short-stroke cylinders, double acting, piston 25 mm, stroke 40 mm
€575.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	16
Stroke [mm]	30
Version	with magnetic piston
C1 (piston rod thread)	M 4
P (compressed air port)	M 5
Repair sets	ND 16 REP
A [mm]	34,0
B [mm]	30
D [mm]	8
F [mm]	4,7
G [mm]	7,5
H [mm]	19,0
I [mm]	18
J [mm]	8,0
L [mm]	38,0
M [mm]	12,0
N [mm]	20,0
O [mm]	10,0
Q [mm]	4,6
R [mm]	3,5
S [mm]	32,0
T [mm]	8
V [mm]	6
W [mm]	4,5

Information

More Information
Manufacturer Nr.	NDM 16/30
Manufacturer	Fluidics equipment
EAN	4050571523954
Weight	135.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
