EMC SFS 80/50. ISO 21287 cylinders, double acting, piston 80 mm, stroke 50 mm
€6,506.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SFS-80/50
Manufacturer Nr.
SFS 80/50
ISO 21287 cylinders, double acting, piston 80 mm, stroke 50 mm
Frequently Bought Together
-
This Item:
€6,506.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAD 80/200-AG. ISO 21287 cylinders, double acting, piston 80 mm, stroke 200 mm
€11,761.00Excl. 19% VAT , excl. Shipping Cost
-
Airtec NAD 100/60-AG. ISO 21287 cylinders, double acting, piston 100 mm, stroke 60 mm
€13,142.00Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
| Piston diameter [mm] | 80 |
| Stroke [mm] | 50 |
| Version | Standard |
| KF (piston rod female thread) | M 12 |
| G (compressed air port) | G 1/8" |
| Repair sets | SFS 80 REP |
| AD [mm] | 25 |
| AF [mm] | 21 |
| BG [mm] | 25 |
| CH [mm] | 22 |
| E [mm] | 92,0 |
| E1 [mm] | 3,5 |
| LA [mm] | 5 |
| PL1 [mm] | 17,0 |
| PL2 [mm] | 15,0 |
| RT | M 10 |
| S [mm] | 10 |
| TG [mm] | 72,0 |
| WH [mm] | 10 |
| ZA [mm] | 54 |
| ZB [mm] | 64 |
| Manufacturer Nr. | SFS 80/50 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571929268 |
| Weight | 17.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Airtec NAD 63/60. ISO 21287 cylinders, double acting, piston 63 mm, stroke 60 mm
€7,422.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NADA 80/60. ISO 21287 cylinders, double acting, piston 80 mm, stroke 60 mm
€14,391.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 80/350. ISO 21287 cylinders, double acting, piston 80 mm, stroke 350 mm
€14,143.00
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NAD 80/200. ISO 21287 cylinders, double acting, piston 80 mm, stroke 200 mm
€11,761.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFS 25/25-B. ISO 21287 cylinders, double acting, piston 25 mm, stroke 25 mm
€2,444.00
Excl. 19% VAT ,
excl. Shipping Cost
EMC SFSA 25/50. ISO 21287 cylinders, double acting, piston 25 mm, stroke 50 mm
€4,122.00
Excl. 19% VAT ,
excl. Shipping Cost

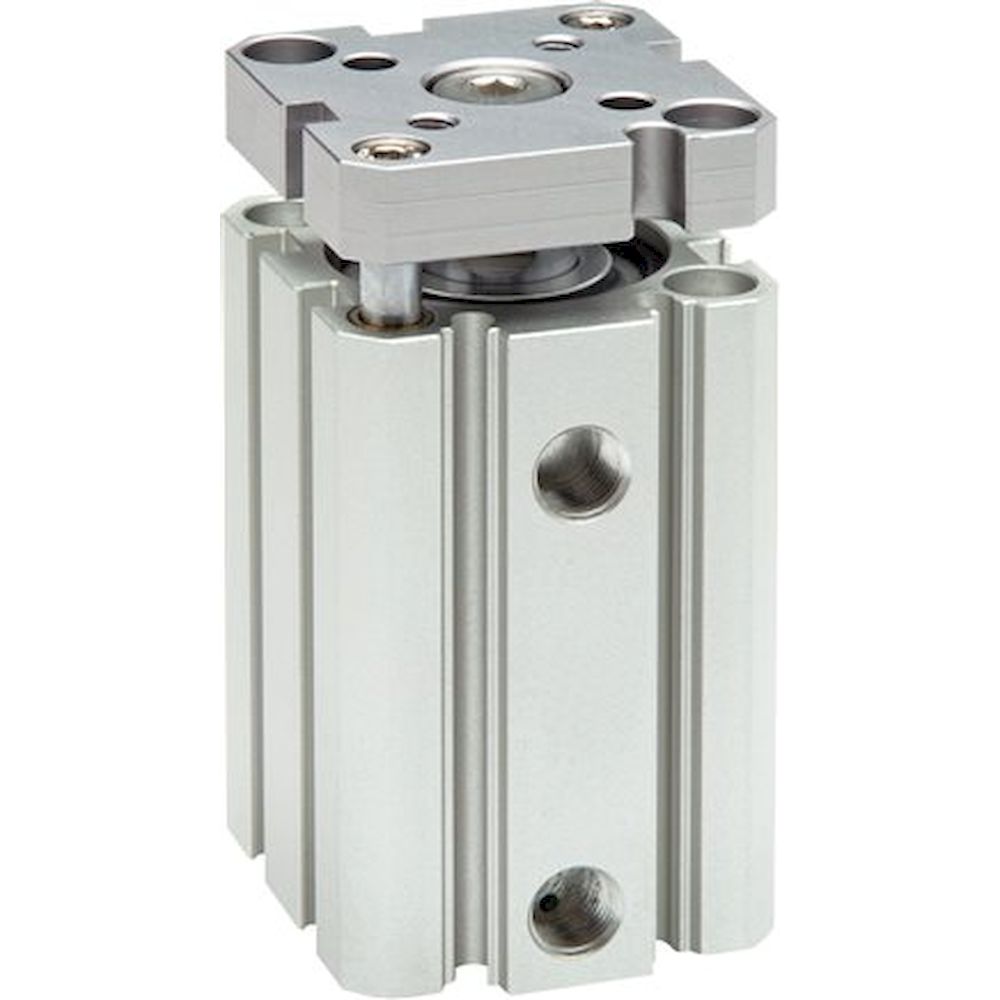

EMC SFSA 40/20. ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm
