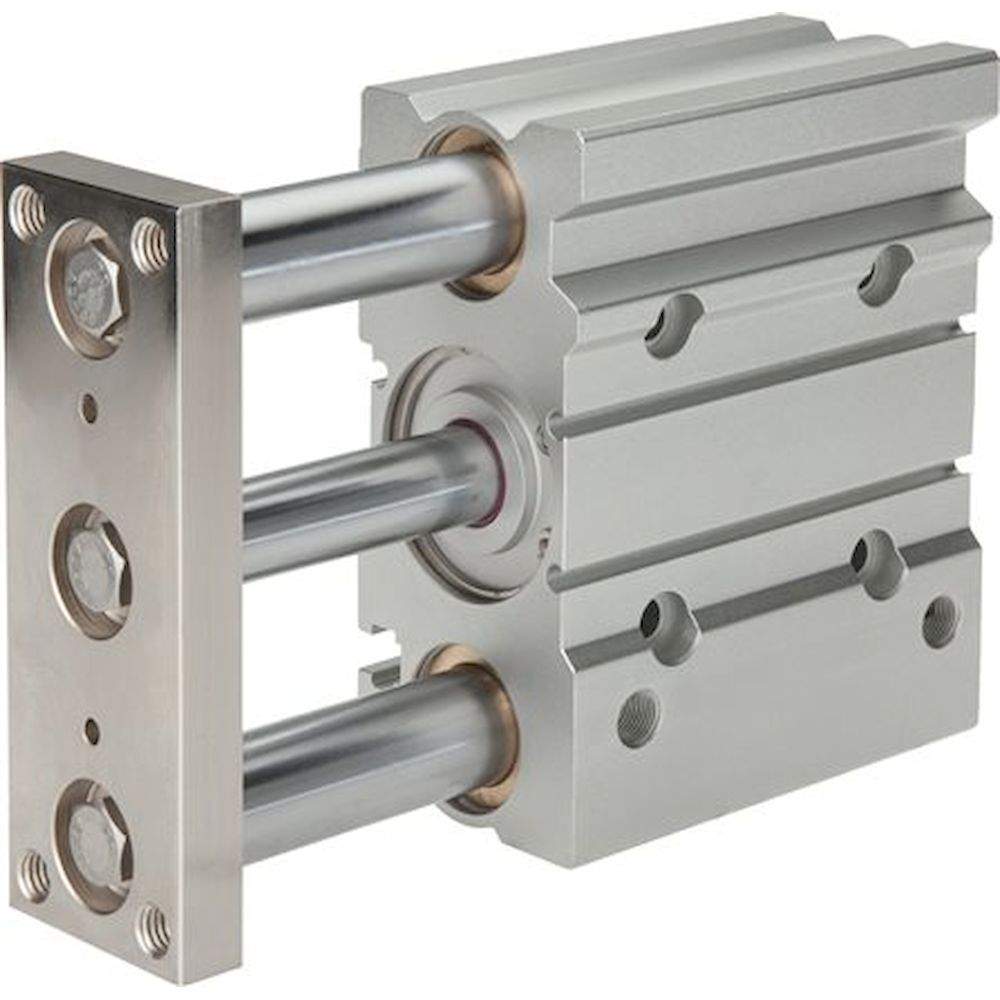

EMC SGM 20/50. Guide cylinder, with slide bearing, pistons 20mm, stroke 50mm

E.MC
€10,861.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-SGM-20/50

Manufacturer Nr.
SGM 20/50
Guide cylinder, with slide bearing, pistons 20mm,stroke 50mm
Add to Wish List Add to Compare
main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM

Piston diameter [mm] 20
Stroke [mm] 50
Version with slide bearing
G (compressed air port) G 1/8"
Repair sets SGM 20 REP
lateral force permissible [N] 112
permissible torque at the end-plate [Nm] 2,15
C [mm] 37,0
D [mm] 12
D1 [mm] 10
E [mm] 0
FA [mm] 10
FB [mm] 16
GA [mm] 9,0
GB [mm] 10,5
GC [mm] 10,5
GD [mm] 12,5
GE [mm] 10,5
H [mm] 83
J [mm] 25,0
K [mm] 39
L1 [mm] 6
L2 [mm] 3
M M 6
M1 [mm] 12
ML [mm] 13
MM M 5
N [mm] 17
NN [mm] 44
P [mm] 5,2
PA (+0,03 / -0) [mm] 3
PP [mm] 3,5
Q [mm] 18
QL [mm] 70
R (± 0,02) [mm] 28
RR [mm] 54
T [mm] 9.5 (5.5 deep)
V [mm] 44
VA [mm] 8,4
VB [mm] 5,4
VC [mm] 4,5
VD [mm] 2,8
VE [mm] 7,8
W [mm] 36
WA [mm] 72
WB [mm] 24
WL [mm] 81
WW [mm] 30
More Information
Manufacturer Nr. SGM 20/50
Manufacturer E.MC
EAN 4050571872663
Weight 9.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
