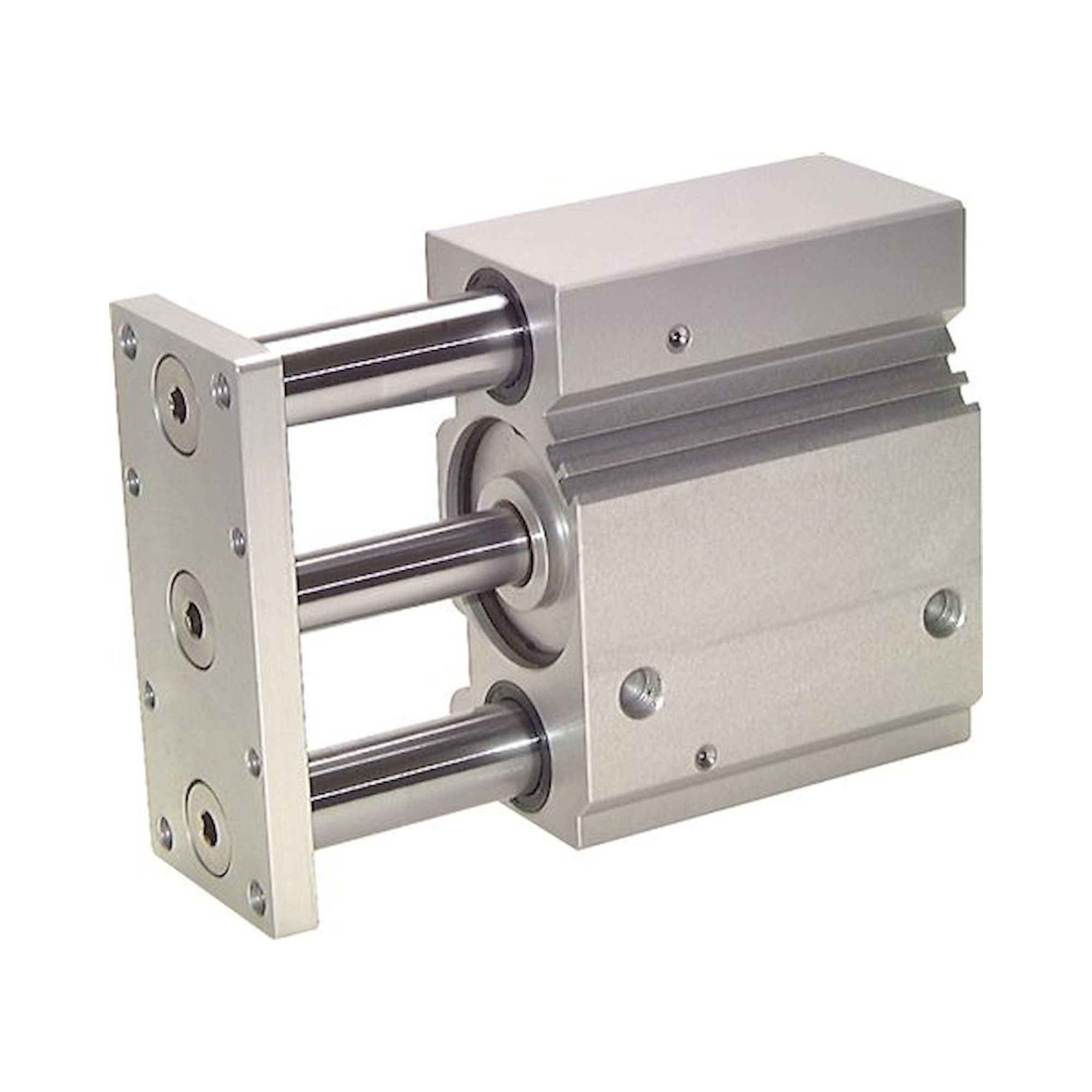

EMC SGM 40/100. Guide cylinder, with slide bearing, pistons 40mm, stroke 100mm

Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10°C to +60°C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
