EMC SGM 40/175. Guide cylinder, with slide bearing, pistons 40mm, stroke 175mm

Name: EMC SGM 40/175. Guide cylinder, with slide bearing, pistons 40mm, stroke 175mm
Brand: E.MC
SKU: FL-SGM-40/175
Price: 26276 EUR
Availability: InStock

€26,276.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-SGM-40/175

Manufacturer Nr.

SGM 40/175

Guide cylinder, with slide bearing, pistons 40mm,stroke 175mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

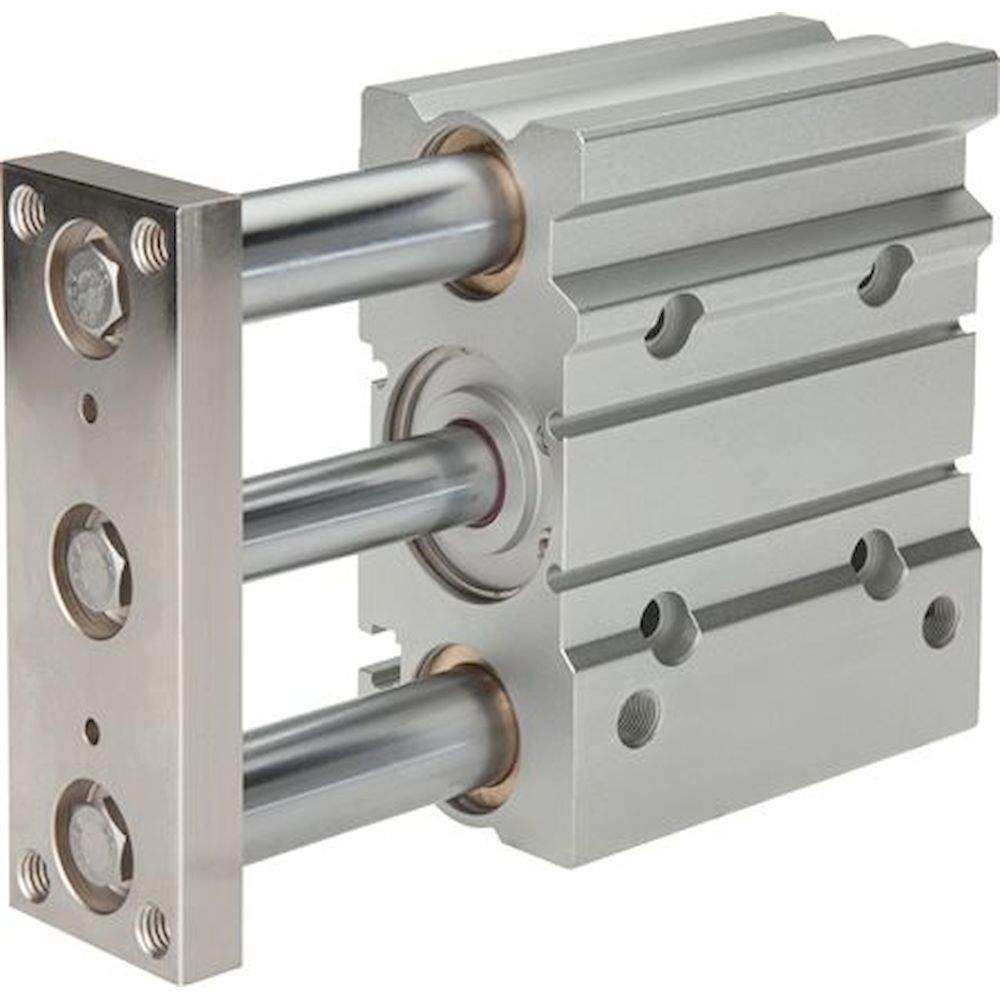

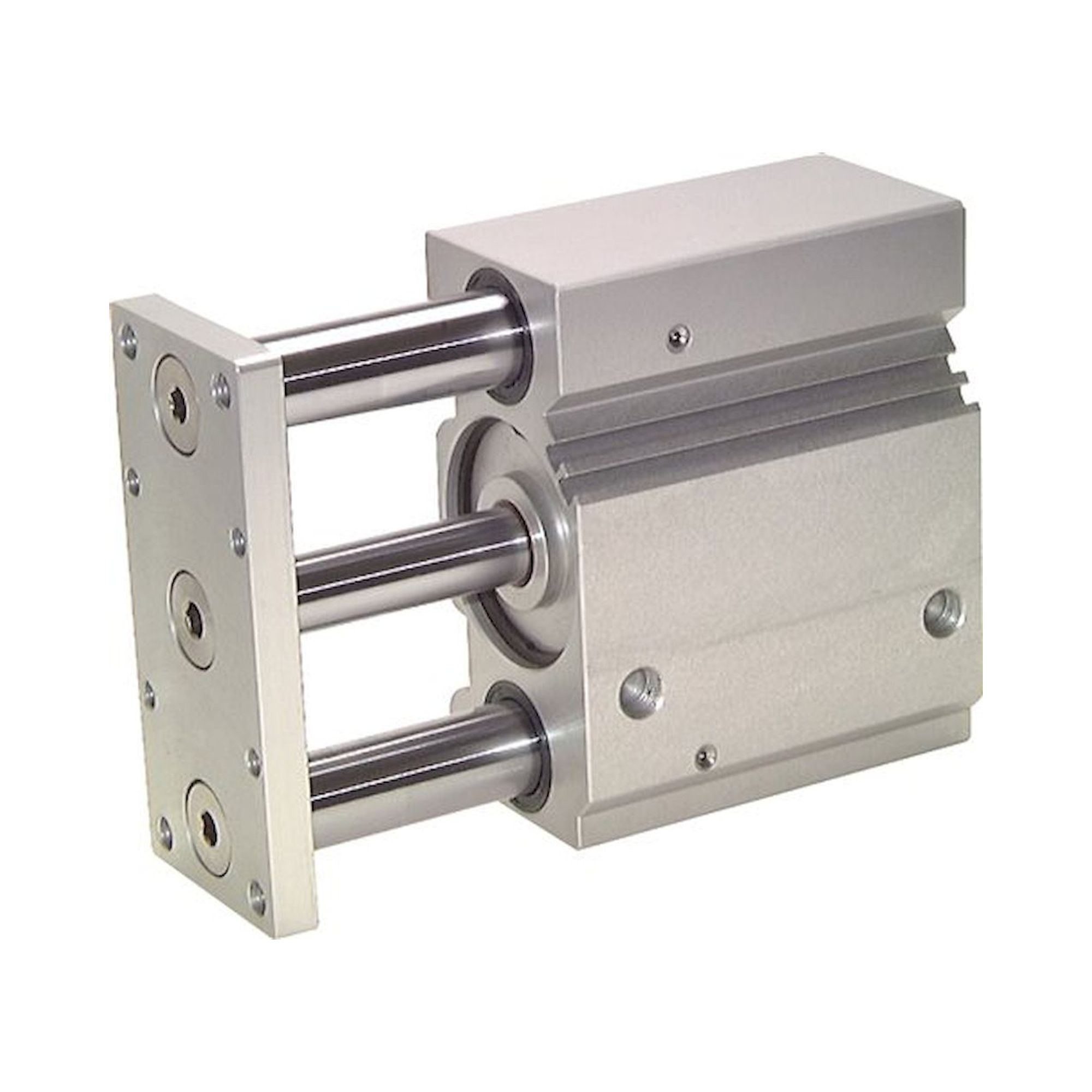

The product may differ from the illustration

Frequently Bought Together

This Item: EMC SGM 40/175. Guide cylinder, with slide bearing, pistons 40mm, stroke 175mm
€26,276.00
Excl. 19% VAT , excl. Shipping Cost
EMC SGM 25/40. Guide cylinder, with slide bearing, pistons 25mm, stroke 40mm
€12,539.00
Excl. 19% VAT , excl. Shipping Cost
EMC SGM 50 REP. Reparatursatz für SGM-Zylinder 50mm
€971.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM

Piston diameter [mm]	40
Stroke [mm]	175
Version	with slide bearing
G (compressed air port)	G 1/8"
Repair sets	SGM 40 REP
lateral force permissible [N]	116
permissible torque at the end-plate [Nm]	3,98
C [mm]	44,0
D [mm]	20
D1 [mm]	16
E [mm]	52,0
FA [mm]	12
FB [mm]	22
GA [mm]	10,0
GB [mm]	14,0
GC [mm]	18,0
GD [mm]	13,0
GE [mm]	14,0
H [mm]	120
J [mm]	38,0
K [mm]	84
L1 [mm]	6
L2 [mm]	3
M	M 8
M1 [mm]	16
ML [mm]	20
MM	M 8
N [mm]	22
NN [mm]	124
P [mm]	6,9
PA (+0,03 / -0) [mm]	4
PP [mm]	4,5
Q [mm]	30
QL [mm]	104
R (± 0,02) [mm]	50
RR [mm]	86
T [mm]	11.0 (7.5 deep)
V [mm]	72
VA [mm]	10,5
VB [mm]	6,5
VC [mm]	5,5
VD [mm]	4,0
VE [mm]	11,0
W [mm]	54
WA [mm]	106
WB [mm]	40
WL [mm]	118
WW [mm]	44
