EMC SQN 100/45 SZ. Compact cylinders, double acting, piston 100 mm, stroke 45 mm

Name: EMC SQN 100/45 SZ. Compact cylinders, double acting, piston 100 mm, stroke 45 mm
Brand: E.MC
SKU: FL-SQN-100/45-SZ
Price: 1098 EUR
Availability: InStock

€1,098.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-SQN-100/45-SZ

Manufacturer Nr.

SQN 100/45 SZ

Compact cylinders, double acting, piston 100 mm, stroke 45 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: EMC SQN 100/45 SZ. Compact cylinders, double acting, piston 100 mm, stroke 45 mm
€1,098.00
Excl. 19% VAT , excl. Shipping Cost

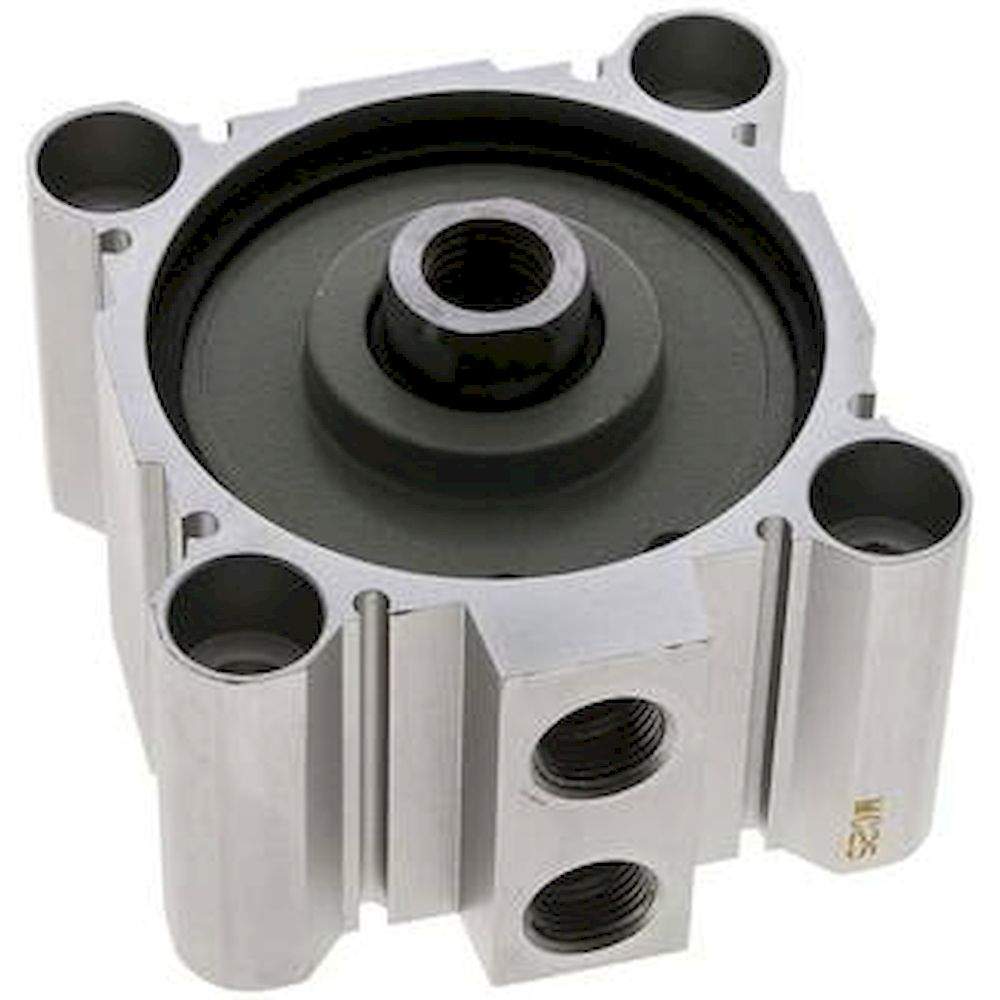

EMC SQ 80/70 SZ. Compact cylinders, double acting, piston 80 mm, stroke 70 mm
€89.00
Excl. 19% VAT , excl. Shipping Cost
EMC SQN 50/75 SZ. Compact cylinders, double acting, piston 50 mm, stroke 75 mm
€4,815.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)

Piston diameter [mm]	100
Stroke [mm]	45
H (piston rod thread)	M 20
G (compressed air port)	G 3/8"
Repair sets	SQN 100 REP
A [mm]	75,0
B [mm]	63,0
C [mm]	27
D [mm]	30
E [mm]	117
F [mm]	13,0
J [mm]	6,5
K [mm]	27
L [mm]	12,0
M [mm]	94
N [mm]	11,0
O [mm]	17 (11 deep)
P	M 12
P1 [mm]	35,5
Q [mm]	23,0

Information

More Information
Manufacturer Nr.	SQN 100/45 SZ
Manufacturer	E.MC
EAN	4050571638399
Weight	27.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
