TM 320/25. ISO 15552 cylinders, piston 320 mm, stroke 25 mm, ECO

Name: TM 320/25. ISO 15552 cylinders, piston 320 mm, stroke 25 mm, ECO
Brand: Fluidics equipment
SKU: FL-TM-320/25
Price: 289772 EUR
Availability: InStock

€289,772.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-TM-320/25

Manufacturer Nr.

TM 320/25

ISO 15552 cylinders, piston 320 mm, stroke 25 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

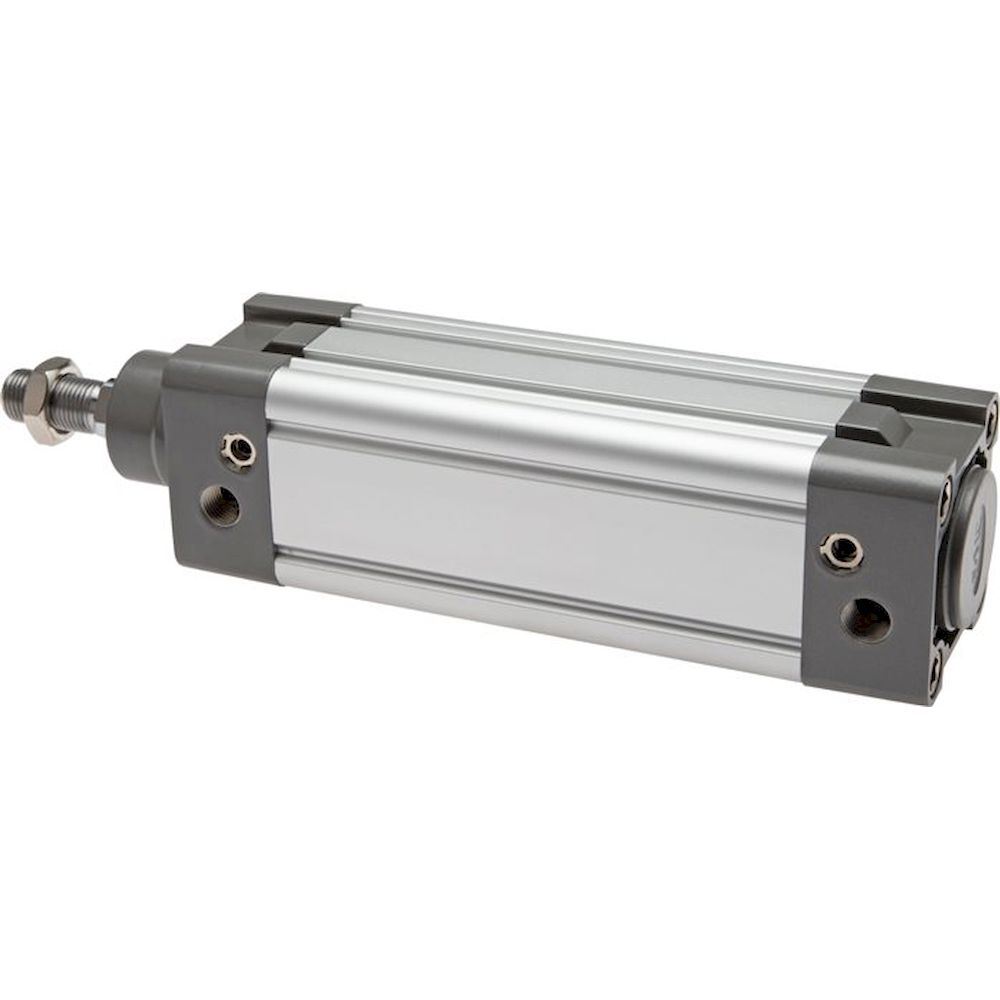

The product may differ from the illustration

Frequently Bought Together

This Item: TM 320/25. ISO 15552 cylinders, piston 320 mm, stroke 25 mm, ECO
€289,772.00
Excl. 19% VAT , excl. Shipping Cost
TM 320/800. ISO 15552 cylinders, piston 320 mm, stroke 800 mm, ECO
€496,681.00
Excl. 19% VAT , excl. Shipping Cost
TM 200/900. ISO 15552 cylinders, piston 200 mm, stroke 900 mm, ECO
€117,602.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	320
Stroke [mm]	25
A (piston rod thread)	M 48x2
G (compressed air port)	G 1"

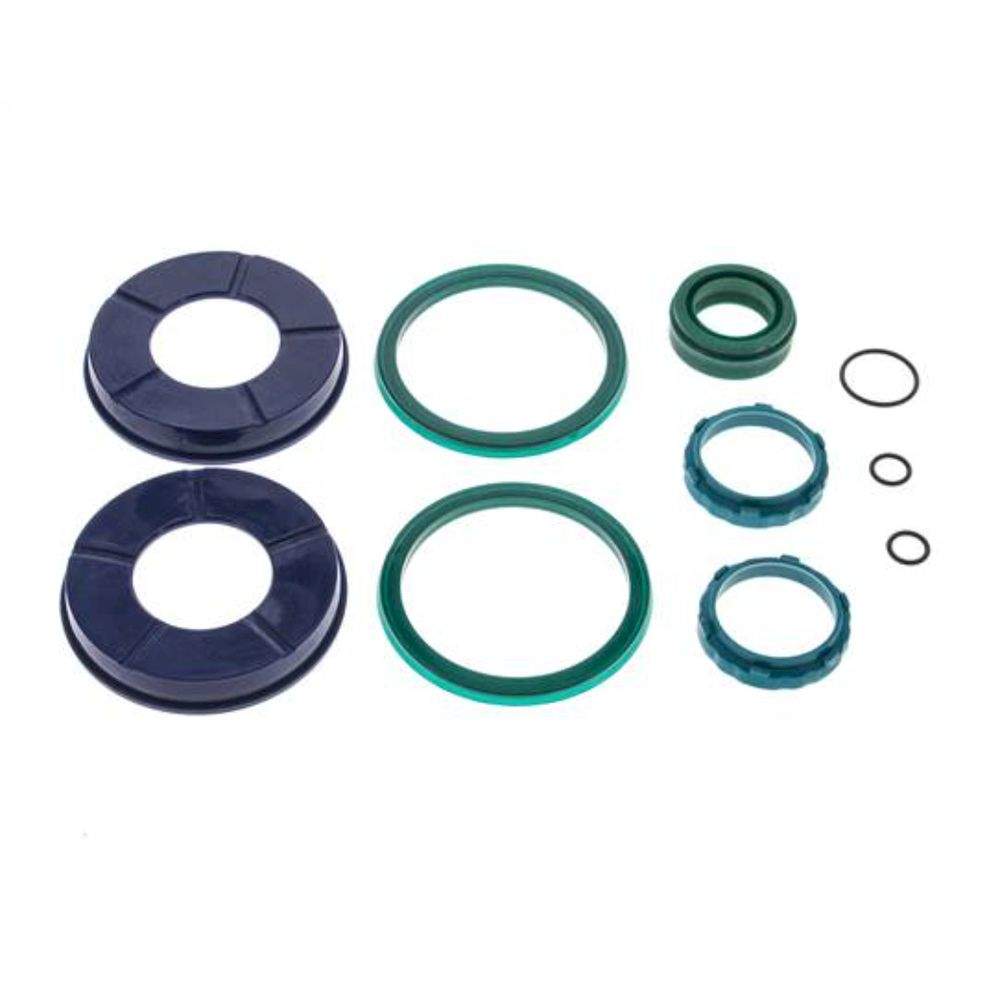

Repair sets	TM 320 REP
B [mm]	63
C [mm]	110
D [mm]	90
F [mm]	96
G [mm]	120
H [mm]	340
K [mm]	10,0
M [mm]	350,0
N [mm]	270,0
CH [mm]	55
RT	M 24

Information

More Information
Manufacturer Nr.	TM 320/25
Manufacturer	Fluidics equipment
EAN	4050571699420
Weight	1.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
