VILP 32. Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min

Name: VILP 32. Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min
Brand: Fluidics equipment
SKU: FL-VILP-32
Price: 116107 EUR
Availability: InStock

€116,107.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-VILP-32

Manufacturer Nr.

VILP 32

Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: VILP 32. Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min
€116,107.00
Excl. 19% VAT , excl. Shipping Cost

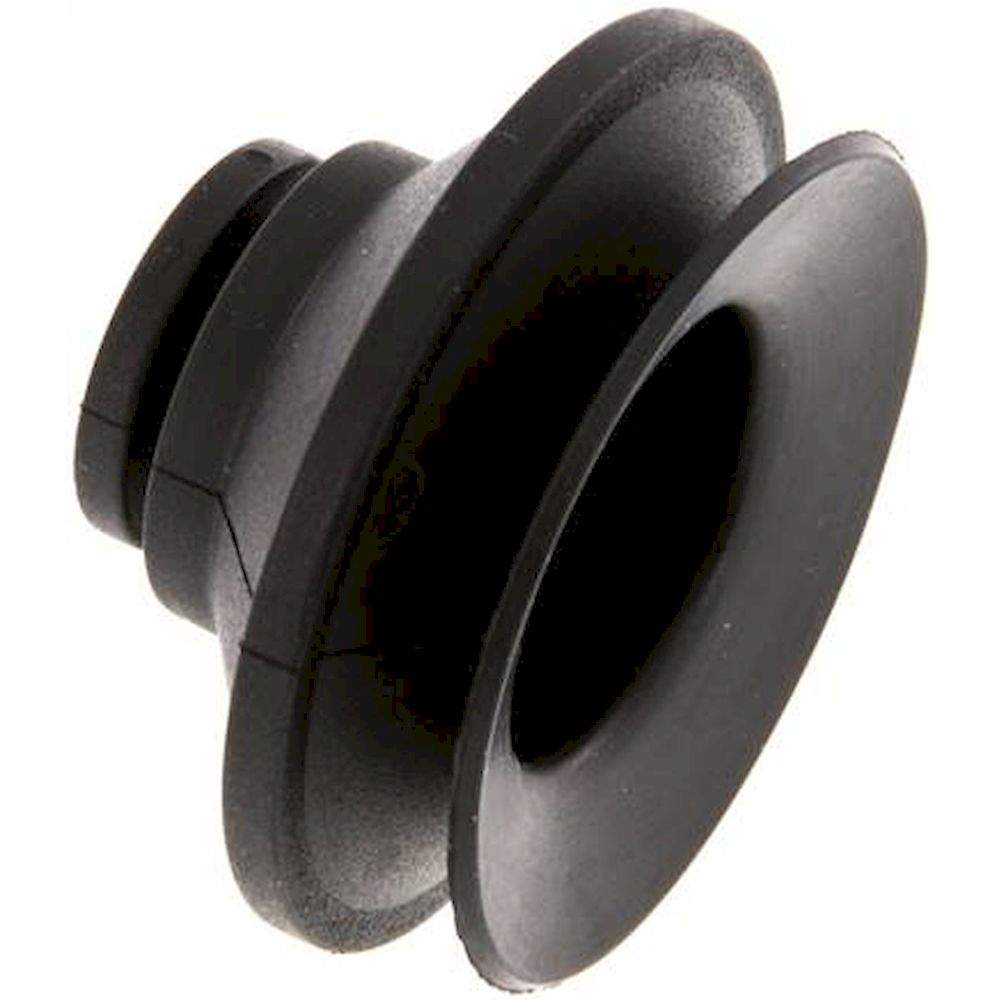

VSP 40 B1 CR. Bellows suction pad, 1,5-way, P-series, 42x9mm, CR (50A), black
€5.00
Excl. 19% VAT , excl. Shipping Cost

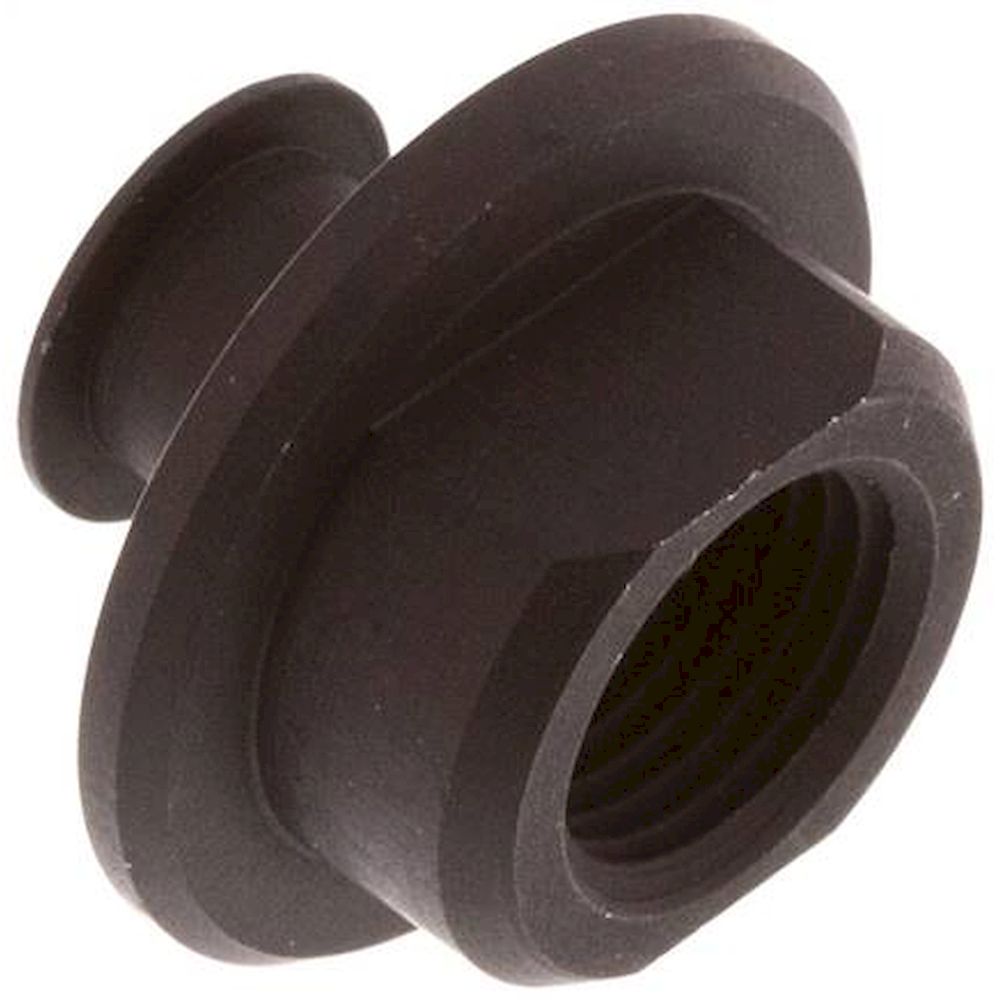

VSPH D18 I. Suction cup fixations, Type D, G 1/8" (IG)
€464.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: anodised aluminium, nozzles: brass, seal: neoprene

Temperature range:
-20 to +80 °C

Operating pressure:
1 to 7 bar (optimum 4 - 6 bar)

Pressure gauge connection:
G 1/4"

Advantages:
•high vacuum,
•higher flow,
•low cost,
•maintenance free,
•high vacuum, ideal for vacuum packaging or large forces with small suction caps with a simultaneous high vacuum flow

Suction performance [l/min]	2100
Thread Supply air	G 3/8"
Thread vacuum	G 1-1/2"
Thread exhaust air	G 1-1/2"
Air consumption* [l/min]	700
Silencer**	FFSD 112
Vacuum meter	MW -163
L [mm]	250
B [mm]	97
H [mm]	65
Evacuation time (1 ltr. to 10%) [s/l]	0,00300
Evacuation time (1 ltr. to 20%) [s/l]	0,00500
Evacuation time (1 ltr. to 30%) [s/l]	0,010
Evacuation time (1 ltr. to 40%) [s/l]	0,0300
Evacuation time (1 ltr. to 50%) [s/l]	0,0500
Evacuation time (1 ltr. to 60%) [s/l]	0,080
Evacuation time (1 ltr. to 70%) [s/l]	0,130
Evacuation time (1 ltr. to 80%) [s/l]	0,23
Evacuation time (1 ltr. to 90%) [s/l]	0,850
Flow at 0% vacuum [l/min]	2.100
Flow at 10% vacuum [l/min]	1.500
Flow at 20% vacuum [l/min]	980
Flow at 30% vacuum [l/min]	520
Flow at 40% vacuum [l/min]	360
Flow at 50% vacuum [l/min]	300
Flow at 60% vacuum [l/min]	215
Flow at 70% vacuum [l/min]	140
Flow at 80% vacuum [l/min]	84

Information

More Information
Manufacturer Nr.	VILP 32
Manufacturer	Fluidics equipment
EAN	4050571719630
Weight	26.000000
HS-Code	84141089
Article authenticity	Original product
Condition of article	New
