Airtec XL 100/900-EK. ISO 15552 cylinders, piston 100 mm, stroke 900 mm

Name: Airtec XL 100/900-EK. ISO 15552 cylinders, piston 100 mm, stroke 900 mm
Brand: Airtec
SKU: FL-XL-100/900-EK
Price: 56053 EUR
Availability: InStock

€56,053.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-100/900-EK

Manufacturer Nr.

XL 100/900-EK

ISO 15552 cylinders, piston 100 mm, stroke 900 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

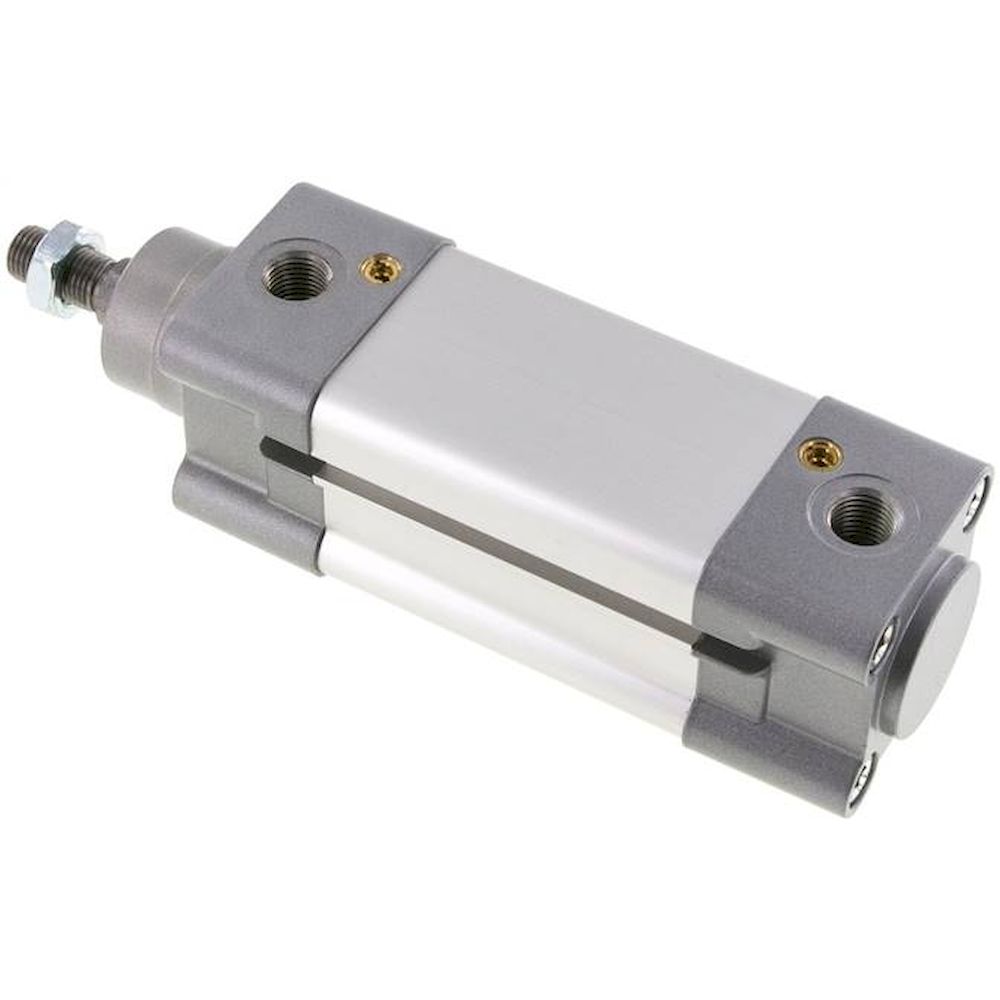

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XL 100/900-EK. ISO 15552 cylinders, piston 100 mm, stroke 900 mm
€56,053.00
Excl. 19% VAT , excl. Shipping Cost

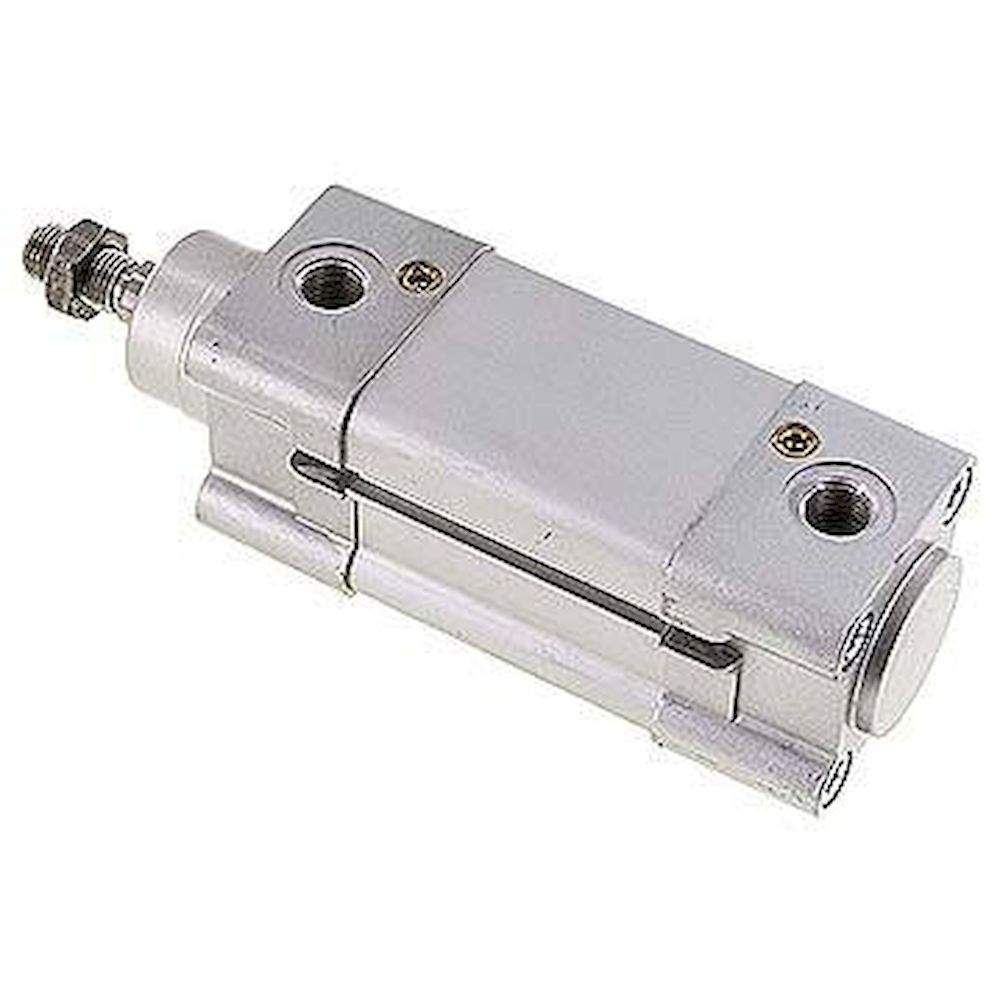

Airtec XL 40/25-EK. ISO 15552 cylinders, piston 40 mm, stroke 25 mm
€10,088.00
Excl. 19% VAT , excl. Shipping Cost

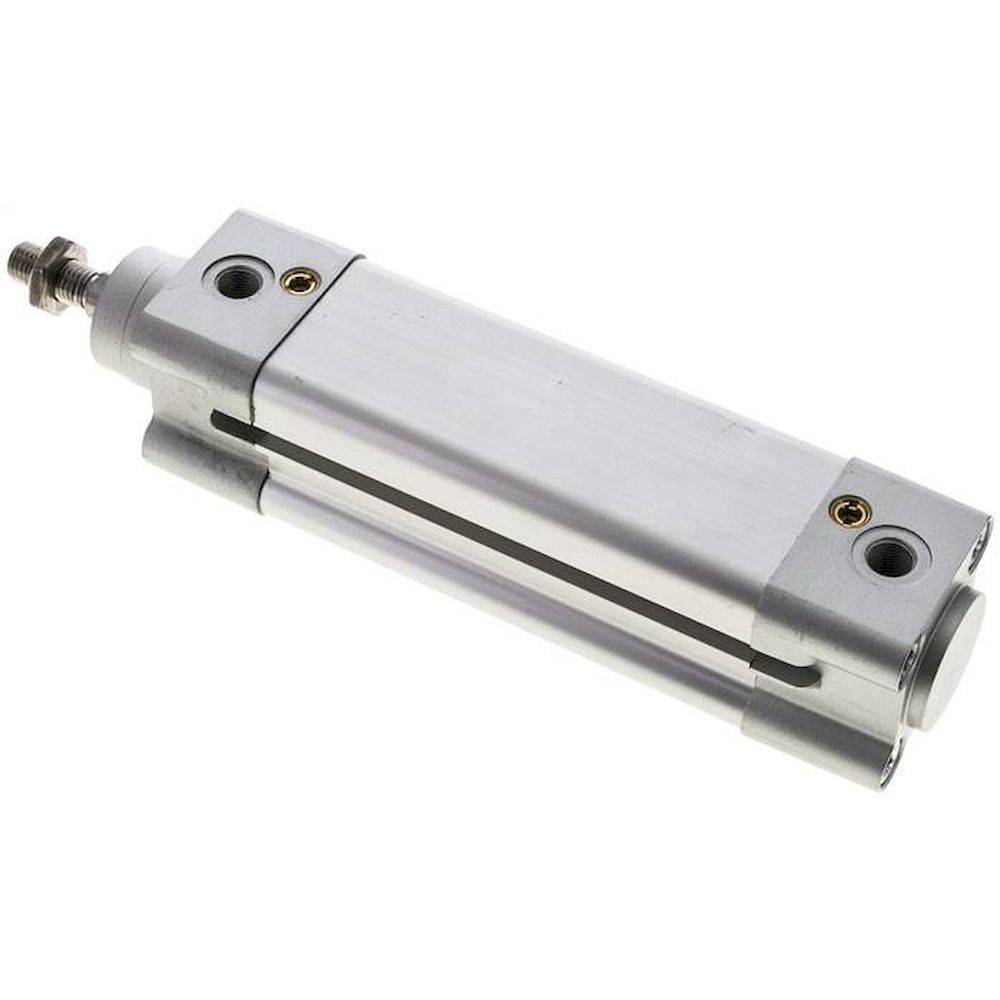

Airtec XL 32/80-EK. ISO 15552 cylinders, piston 32 mm, stroke 80 mm
€9,478.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	100
Stroke [mm]	900
Version	Stainless steel piston rods
A (thread)	M 20x1,5
G (compressed air port)	G 1/2"
Repair sets	XL 100 REP
B [mm]	25
C [mm]	55
D [mm]	38,0
F [mm]	40
G [mm]	51
H [mm]	189
K [mm]	4
M [mm]	110,0
N [mm]	89,0
CH [mm]	22
RT	M 10

Information

More Information
Manufacturer Nr.	XL 100/900-EK
Manufacturer	Airtec
EAN	4050571797249
Weight	13.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
