Pneumatic cylinder, double-acting 32-125 mm
Pneumatic cylinders ISO 15552
Double-acting pneumatic cylinders 32-125 mm to ISO 15552 form the core range for linear pneumatic drives in general mechanical engineering. The Airtec XL series covers bore diameters from 32 to 125 mm with strokes from 10 mm through to the long-stroke range above 1,200 mm; cushioned end-position variants are available as the EK version. Repair kits (XL..REP) and stroke/bore combinations with integrated position sensor slots complete the programme.
ISO 15552-compliant - mounting dimensions for all accessory parts and sensors
Bore Ø 32-125 mm - XL series (Airtec), strokes 10-1,200 mm and beyond
Double-acting - air pressure in both forward and return stroke, defined force in each direction
EK cushioning - adjustable pneumatic end-position cushioning reduces impact energy at high speeds
Repair kits XL..REP - seal sets for all bore sizes, maintenance-friendly
| Bore Ø (mm) | Stroke examples (mm) | Variants |
|---|---|---|
| 32 | 10, 25, 50, 100, 200, 400 | Standard, EK (end cushioning) |
| 40 | 10, 25, 50, 100, 200, 400 | Standard, EK |
| 50 | 10, 25, 50, 100, 200, 400 | Standard, EK |
| 63 | 10, 25, 50, 100, 200, 400 | Standard, EK |
| 80 | 10, 25, 50, 100, 200, 400 | Standard, EK |

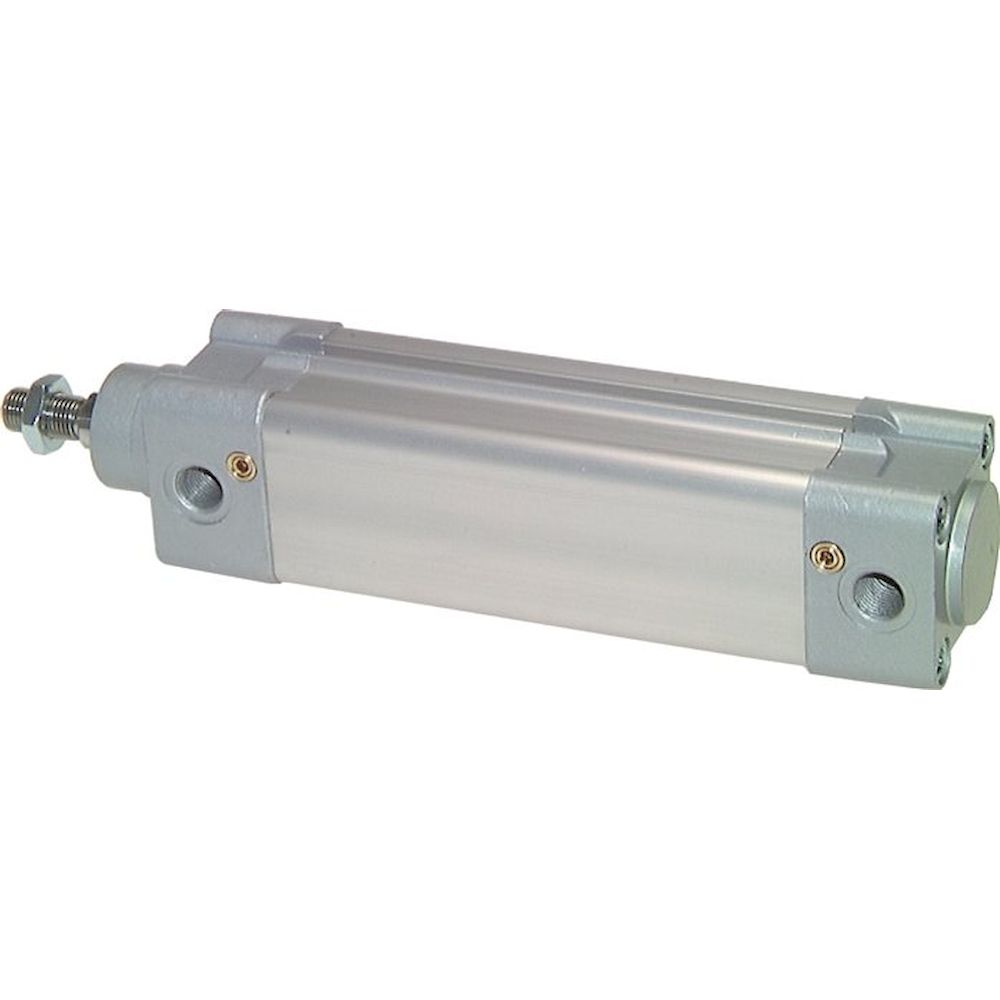

| 100 | 10, 25, 50, 100, 200, 400, 1,000 | Standard, EK |
| 125 | 10, 25, 50, 100, 200, 400, 1,200 | Standard, EK |
Typical applications: Linear drives in assembly and handling technology, clamping fixtures, sliding and lifting devices, conveyor systems, and test equipment in general mechanical engineering, the automotive industry, and electronics manufacturing.
