Airtec XL 63/10. ISO 15552 cylinders, piston 63 mm, stroke 10 mm

Name: Airtec XL 63/10. ISO 15552 cylinders, piston 63 mm, stroke 10 mm
Brand: Airtec
SKU: FL-XL-63/10
Price: 15452 EUR
Availability: InStock

€15,452.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-63/10

Manufacturer Nr.

XL 63/10

ISO 15552 cylinders, piston 63 mm, stroke 10 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XL 63/10. ISO 15552 cylinders, piston 63 mm, stroke 10 mm
€15,452.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 125/600-EK. ISO 15552 cylinders, piston 125 mm, stroke 600 mm
€69,476.00
Excl. 19% VAT , excl. Shipping Cost

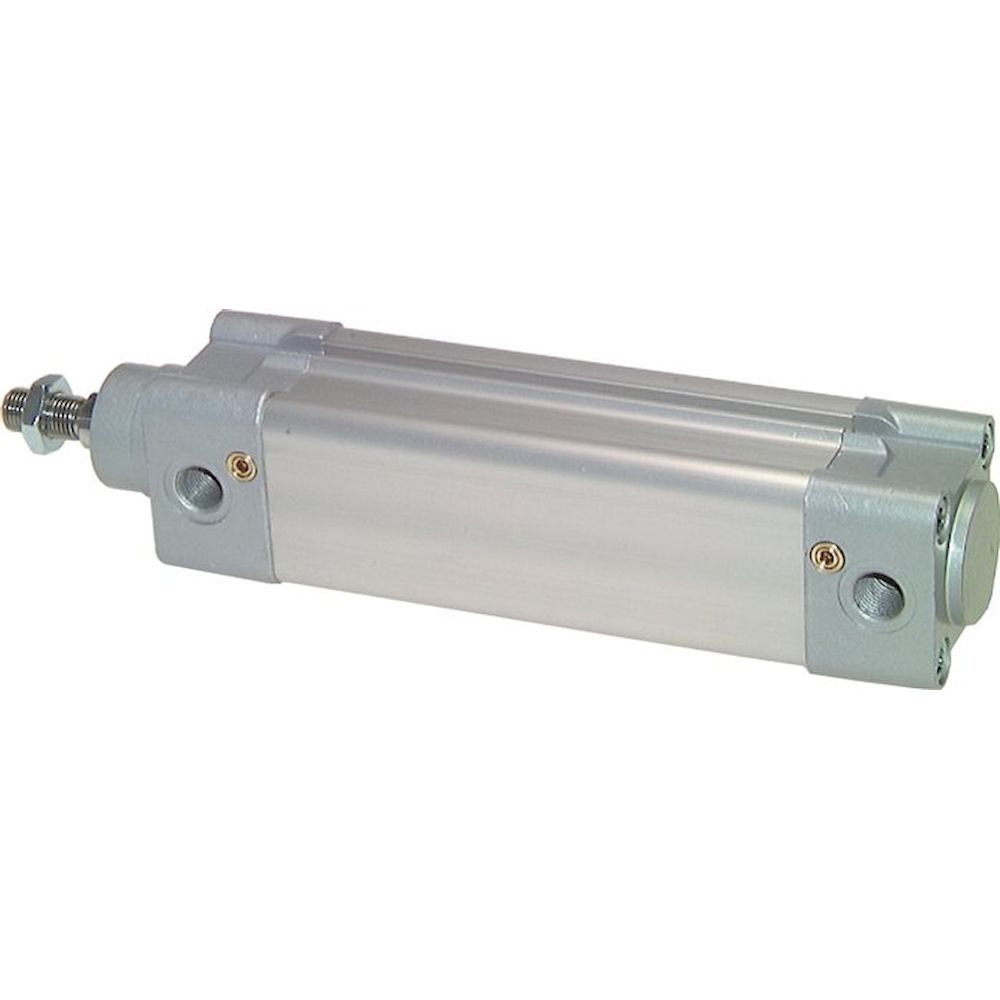

Airtec XLK 80/400. ISO 15552 cylinders, piston 80 mm, stroke 400 mm
€44,216.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	63
Stroke [mm]	10
Version	Standard
A (thread)	M 16x1,5
G (compressed air port)	G 3/8"
Repair sets	XL 63 REP
B [mm]	20
C [mm]	45
D [mm]	25,0
F [mm]	32
G [mm]	37
H [mm]	158
K [mm]	4
M [mm]	74,0
N [mm]	56,5
CH [mm]	17
RT	M 8

Information

More Information
Manufacturer Nr.	XL 63/10
Manufacturer	Airtec
EAN	4050571799199
Weight	19.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
