Airtec XLK 125/80. ISO 15552 cylinders, piston 125 mm, stroke 80 mm

Name: Airtec XLK 125/80. ISO 15552 cylinders, piston 125 mm, stroke 80 mm
Brand: Airtec
SKU: FL-XLK-125/80
Price: 76505 EUR
Availability: InStock

€76,505.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLK-125/80

Manufacturer Nr.

XLK 125/80

ISO 15552 cylinders, piston 125 mm, stroke 80 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XLK 125/80. ISO 15552 cylinders, piston 125 mm, stroke 80 mm
€76,505.00
Excl. 19% VAT , excl. Shipping Cost

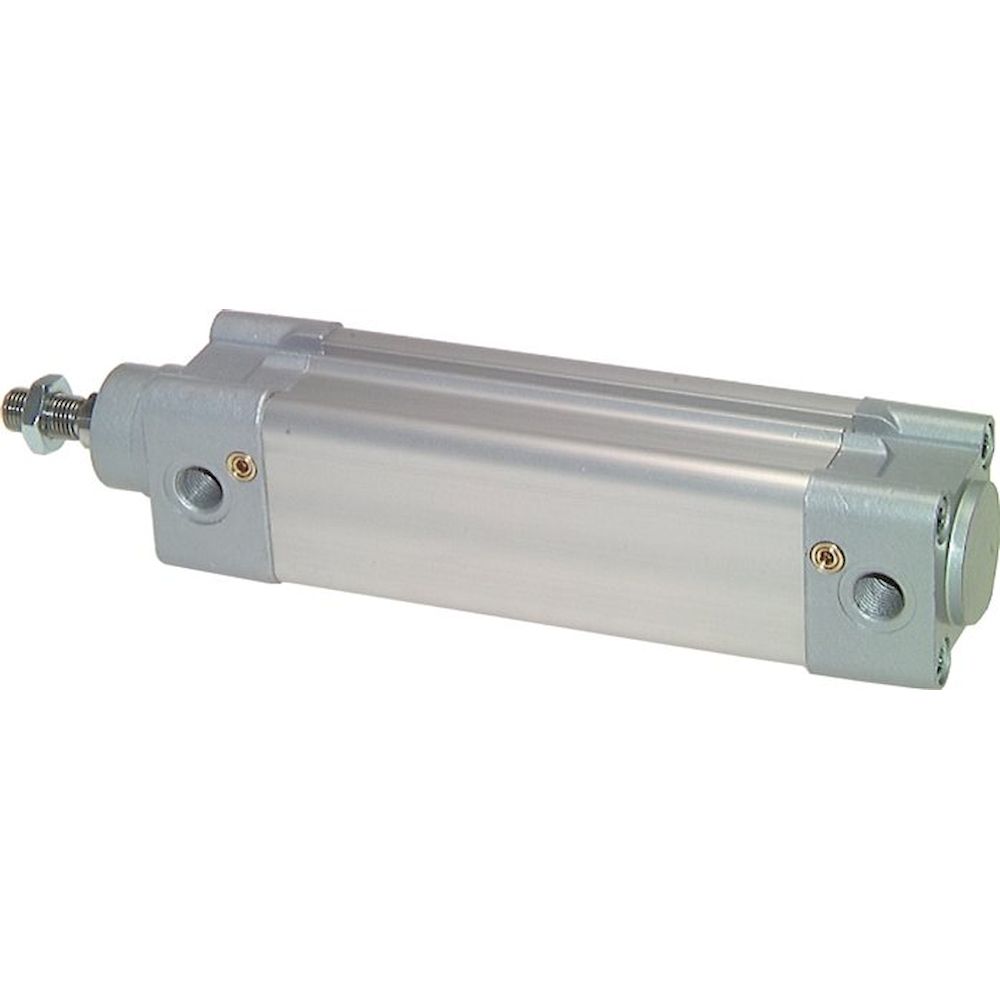

Airtec XL 125/50-EK. ISO 15552 cylinders, piston 125 mm, stroke 50 mm
€37,266.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 80/40. ISO 15552 cylinders, piston 80 mm, stroke 40 mm
€17,134.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	125
Stroke [mm]	80
Version	continuous piston rod
A (thread)	M 27x2
G (compressed air port)	G 1/2"
Repair sets	XL 125 REP
B [mm]	32
C [mm]	60
D [mm]	46,0
F [mm]	54
G [mm]	65
H [mm]	225
K [mm]	6
M [mm]	137,5
N [mm]	110,0
CH [mm]	27
RT	M 12

Information

More Information
Manufacturer Nr.	XLK 125/80
Manufacturer	Airtec
EAN	4050571801809
Weight	1.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
