ZDFM 16/20 G. Guide cylinder, with slide bearing, pistons 16mm, stroke 20mm

Fluidics equipment
€17,047.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-ZDFM-16/20-G

Manufacturer Nr.
ZDFM 16/20 G
Guide cylinder, with slide bearing, pistons 16mm,stroke 20mm
Add to Wish List Add to Compare

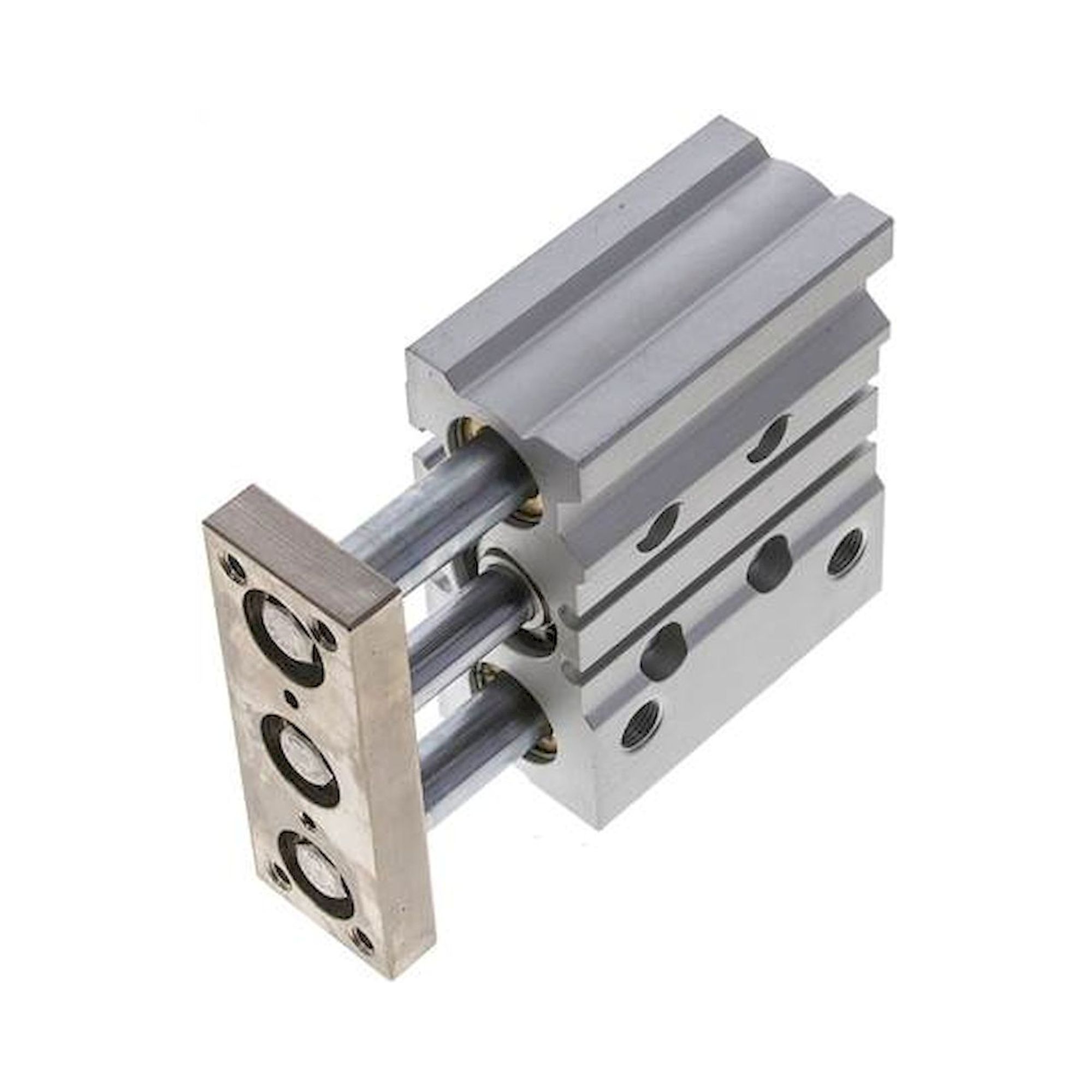

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm] 16
Stroke [mm] 20
Version with slide bearing
F (compressed air port) M 5
Repair sets ZDFM 16 REP
lateral force permissible [N] 29
permissible torque at the end-plate [Nm] 0,45
A [mm] 10
B [mm] 0
C [mm] 10
D [mm] 8
E1 [mm] 52
E2 [mm] 16
F1 [mm] 10,5
F2 [mm] 9
F3 [mm] 6
G1 [mm] 62
G2 [mm] 25
H [mm] 42
H1 [mm] 40
L1 [mm] 33,0
L2 [mm] 46,0
L3 [mm] 46,0
M1 [mm] 64
M2 [mm] 33
N [mm] 22
N1 [mm] 15
N2 [mm] 18
O1 [mm] 13
O2 [mm] 7
O3 [mm] 54
P1 M 5
Q [mm] 20
R [mm] 8,0
T1 [mm] 2,5
T2 [mm] 5,5
More Information
Manufacturer Nr. ZDFM 16/20 G
Manufacturer Fluidics equipment
EAN 4050571810047
Weight 39.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
