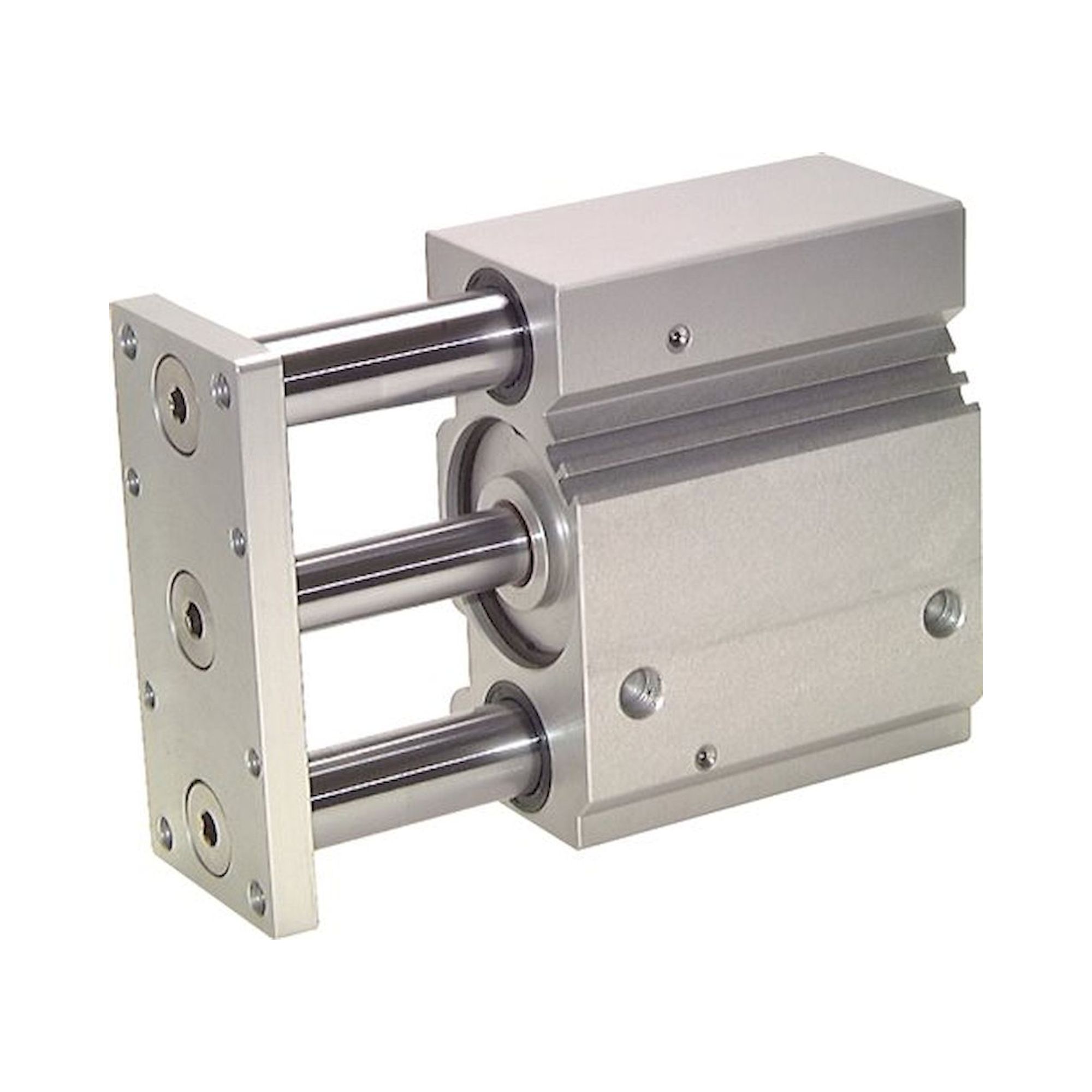

ZDFM 20/200 G. Guide cylinder, with slide bearing, pistons 20mm, stroke 200mm

Fluidics equipment
€50,114.00
Excl. 19% VAT , excl. Shipping Cost
Article
FL-ZDFM-20/200-G

Manufacturer Nr.
ZDFM 20/200 G
Guide cylinder, with slide bearing, pistons 20mm,stroke 200mm
Add to Wish List Add to Compare
main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm] 20
Stroke [mm] 200
Version with slide bearing
F (compressed air port) G 1/8"
Repair sets ZDFM 20 REP
lateral force permissible [N] 31
permissible torque at the end-plate [Nm] 0,56
A [mm] 10
B [mm] 30,0
C [mm] 12
D [mm] 10
E1 [mm] 60
E2 [mm] 18
F1 [mm] 11,0
F2 [mm] 9
F3 [mm] 8
G1 [mm] 72
G2 [mm] 29
H [mm] 52
H1 [mm] 46
L1 [mm] 37,0
L2 [mm] 49,0
L3 [mm] 79,0
M1 [mm] 74
M2 [mm] 36
N [mm] 26
N1 [mm] 17
N2 [mm] 19
O1 [mm] 13
O2 [mm] 10
O3 [mm] 64
P1 M 5
Q [mm] 20
R [mm] 8,0
T1 [mm] 2,5
T2 [mm] 4,5
More Information
Manufacturer Nr. ZDFM 20/200 G
Manufacturer Fluidics equipment
EAN 4050571810184
Weight 2.000000
HS-Code 84123100
Article authenticity Original product
Condition of article New
