EMC EXSM 32/75. Double piston cylinder, piston 32mm, stroke 75mm

Name: EMC EXSM 32/75. Double piston cylinder, piston 32mm, stroke 75mm
Brand: E.MC
SKU: FL-EXSM-32/75
Price: 23298 EUR
Availability: InStock

€23,298.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EXSM-32/75

Manufacturer Nr.

EXSM 32/75

Double piston cylinder, piston 32mm, stroke 75mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

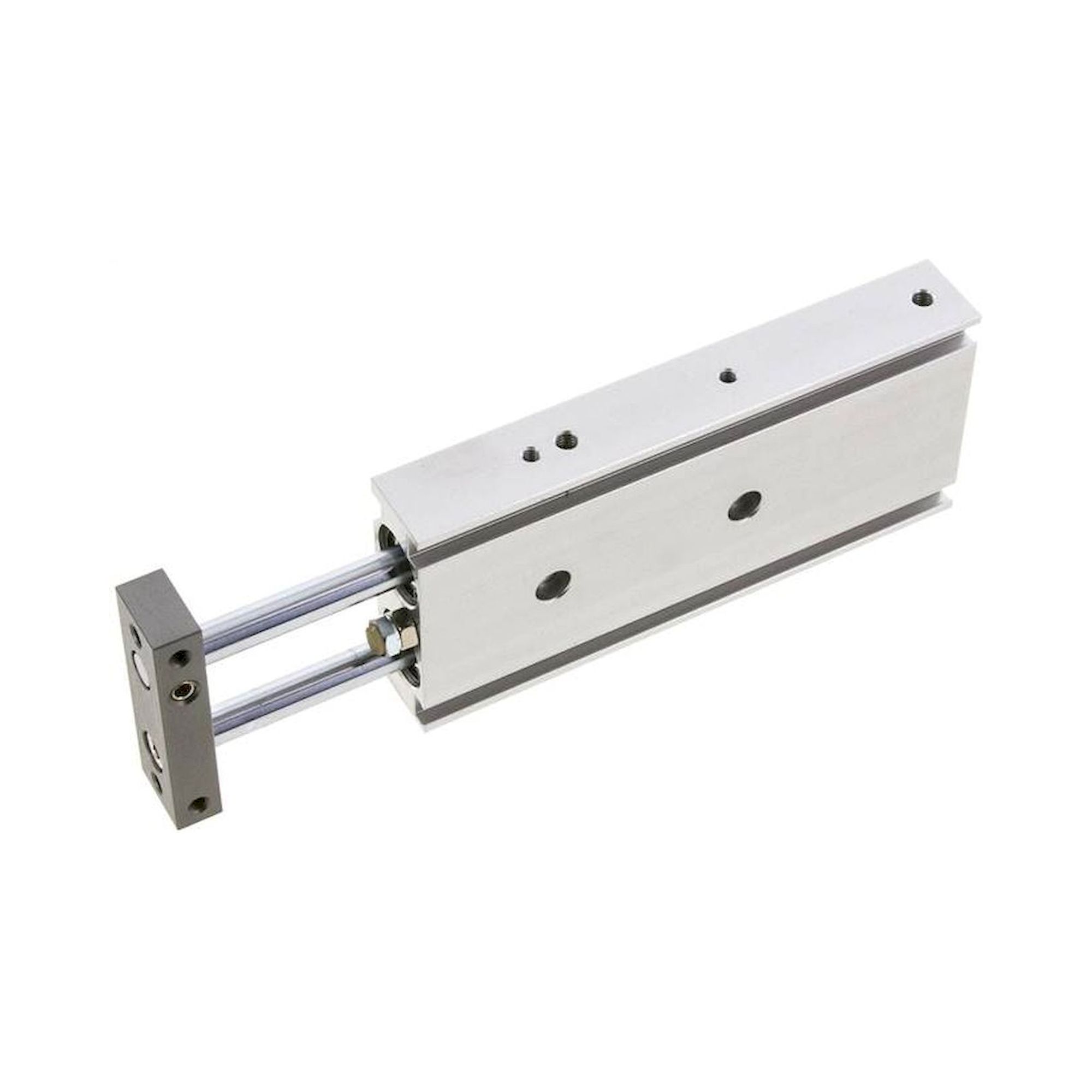

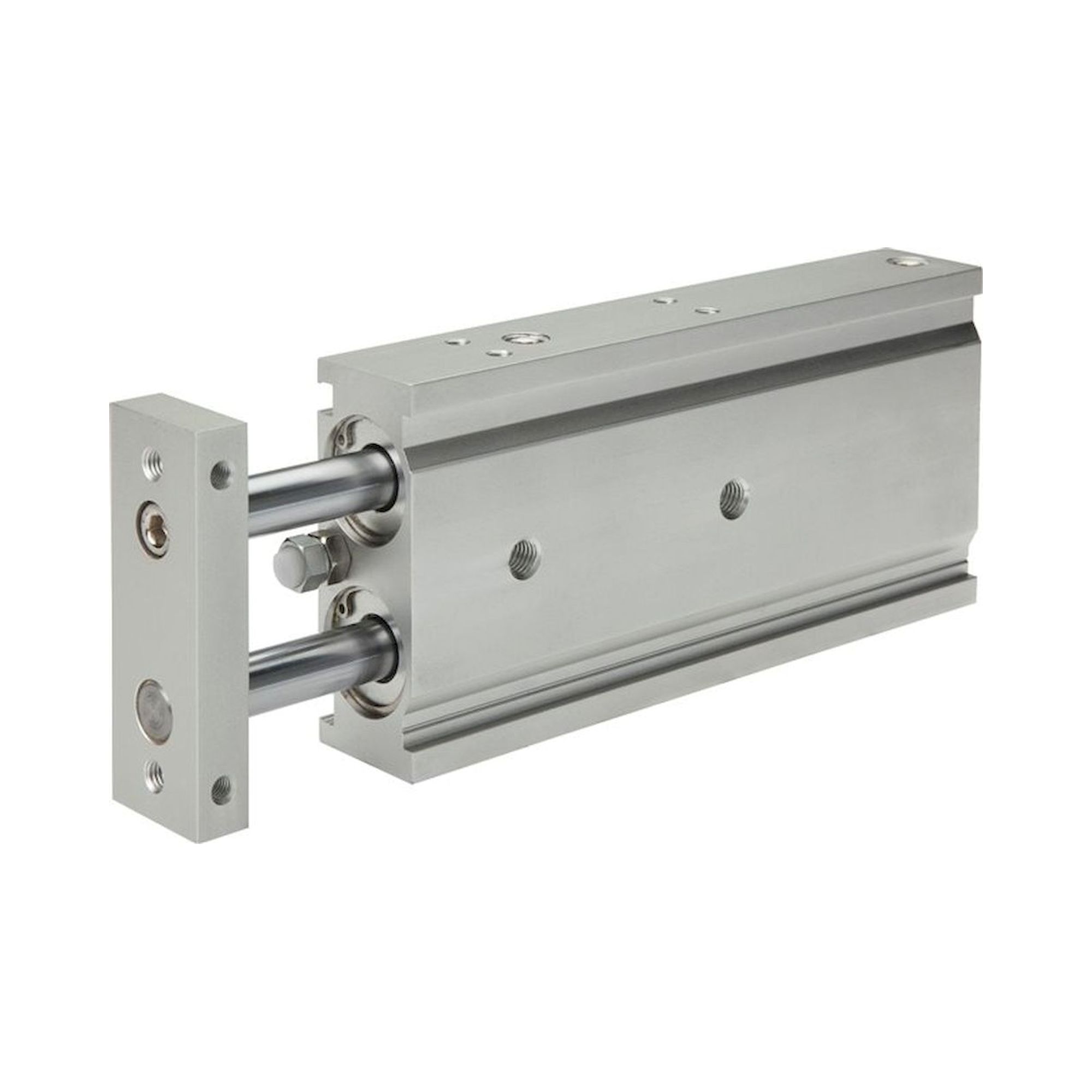

The product may differ from the illustration

Frequently Bought Together

This Item: EMC EXSM 32/75. Double piston cylinder, piston 32mm, stroke 75mm
€23,298.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 25/75. Double piston cylinder, piston 25mm, stroke 75mm
€17,952.00
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 20/75. Double piston cylinder, piston 20mm, stroke 75mm
€16,633.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body and plate: Anodized aluminium, piston rods: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•Guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.2° (±),
•ideal for Pick-and-Place applications,
•stroke adjustment range 0 to -5 mm,
•air connection from the top or below (closed with stopper plugs),
•main installation dimensions identical to SMC series CXS

Piston diameter [mm]	32
Stroke [mm]	75
Stroke (adjustment range) [mm]	70 - 75
Version	Double piston cylinder
G (compressed air port)	G 1/8"
Repair sets	EXSM 32 REP
lateral force permissible [N]	12,5
A [mm]	112,0
B [mm]	30,0
C [mm]	82
D [mm]	70
D1	70
E [mm]	30
E1 [mm]	30
F [mm]	76,0
H [mm]	14
I [mm]	44
K [mm]	75
L [mm]	96
M [mm]	36
N1 [mm]	53,0
N2 [mm]	10,0
R [mm]	11,5
S [mm]	98
T [mm]	38
V [mm]	16
W [mm]	20,0
P1	11.0 (6.3 deep)
P2	M 8
P3	M 6
P4	M 5
P5 [mm]	6,8
P6	M 5
Q2 [mm]	12
Q4 [mm]	8,0
Q6 [mm]	7,0
