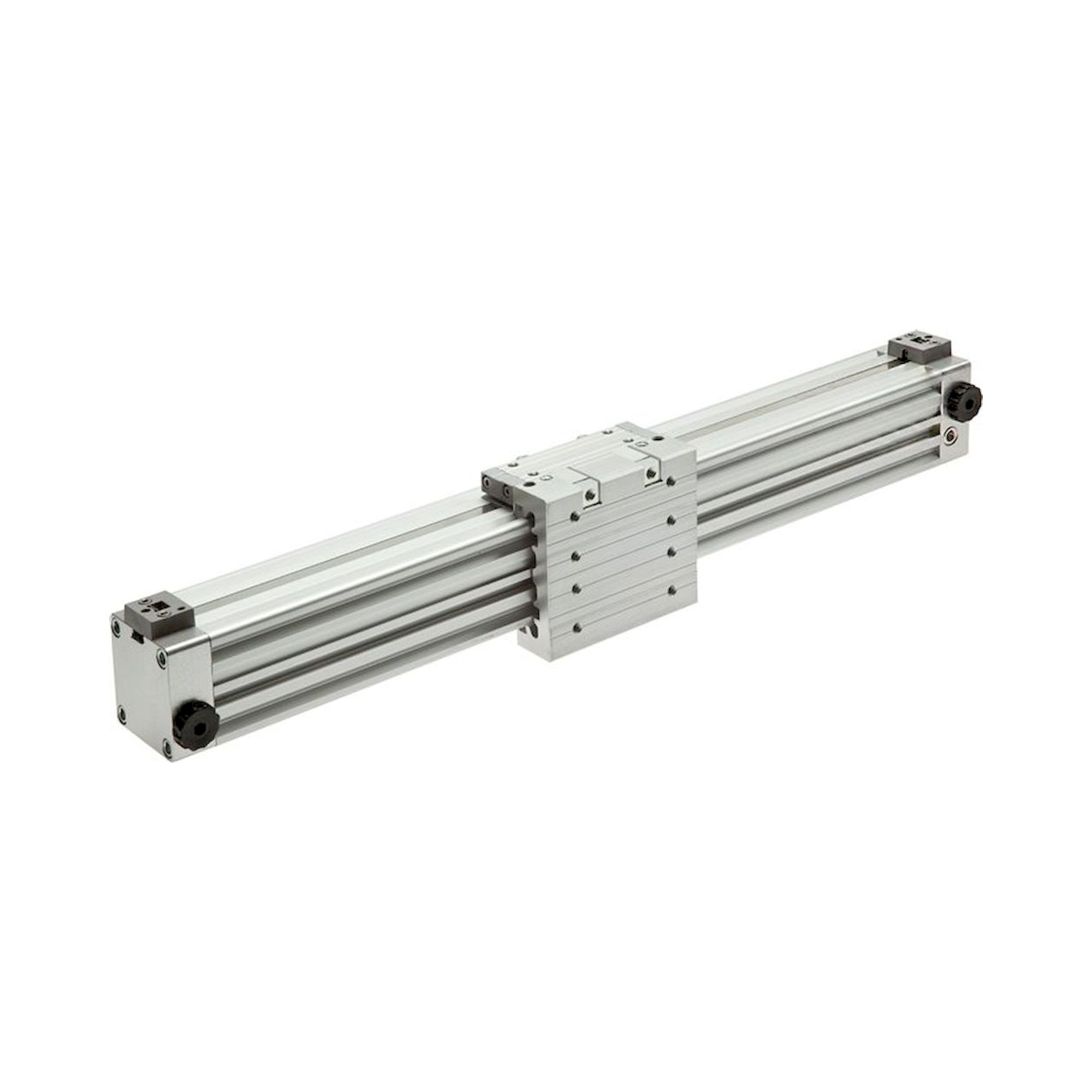

LZKF 50/1800. Kolbenstangenloser Zylinder, Kolben 50 mm, Hub 1800 mm

Construction type:
Piston rod-less cylinder with direct power take-off through the pipe slit to the power bridge, end-position damping adjustable on both sides, short installation shape

Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel

Temperature range:
-20 to +80 °C

Operating pressure:
max. 8 bar

Stroke:
at will up to 6,000 mm

Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.

Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)

Version:
With Magnetic piston

Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)

Advantages:
•fits up to 42% shorter than the standard model series,
•space-saving, even compared to the short-stroke standard cylinders with piston rod,
•cost-effective compact construction

Piston diameter [mm]	50
Stroke [mm]	1800
Version	with sliding guide
D (compressed air port)	G 1/4"
Repair sets (with all wear parts)	LZ 50/2500 REP
Repair sets (only damping ring and grooved ring)	LZ 50 REP
lateral force permissible [N]	440
A [mm]	180
A1 [mm]	105,0
AF [mm]	180
AF1 [mm]	46
AM [mm]	29
B [mm]	85
E [mm]	280
E1 [mm]	130
F [mm]	220
F1 [mm]	70
G [mm]	110
J [mm]	6,5
M [mm]	42,0
MF [mm]	116
N	M 8
N1 [mm]	12,5
O [mm]	7,0
OP [mm]	6,8
S [mm]	63,0
T	M 8
T1 [mm]	12
U [mm]	78
W [mm]	96,0
WF [mm]	114
Damper length [mm]	40
