NDM 40/50 A. Short stroke cylinder, non-rotating, 40, stroke 50mm

Name: NDM 40/50 A. Short stroke cylinder, non-rotating, 40, stroke 50mm
Brand: Fluidics equipment
SKU: FL-NDM-40/50-A
Price: 13118 EUR
Availability: InStock

€13,118.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NDM-40/50-A

Manufacturer Nr.

NDM 40/50 A

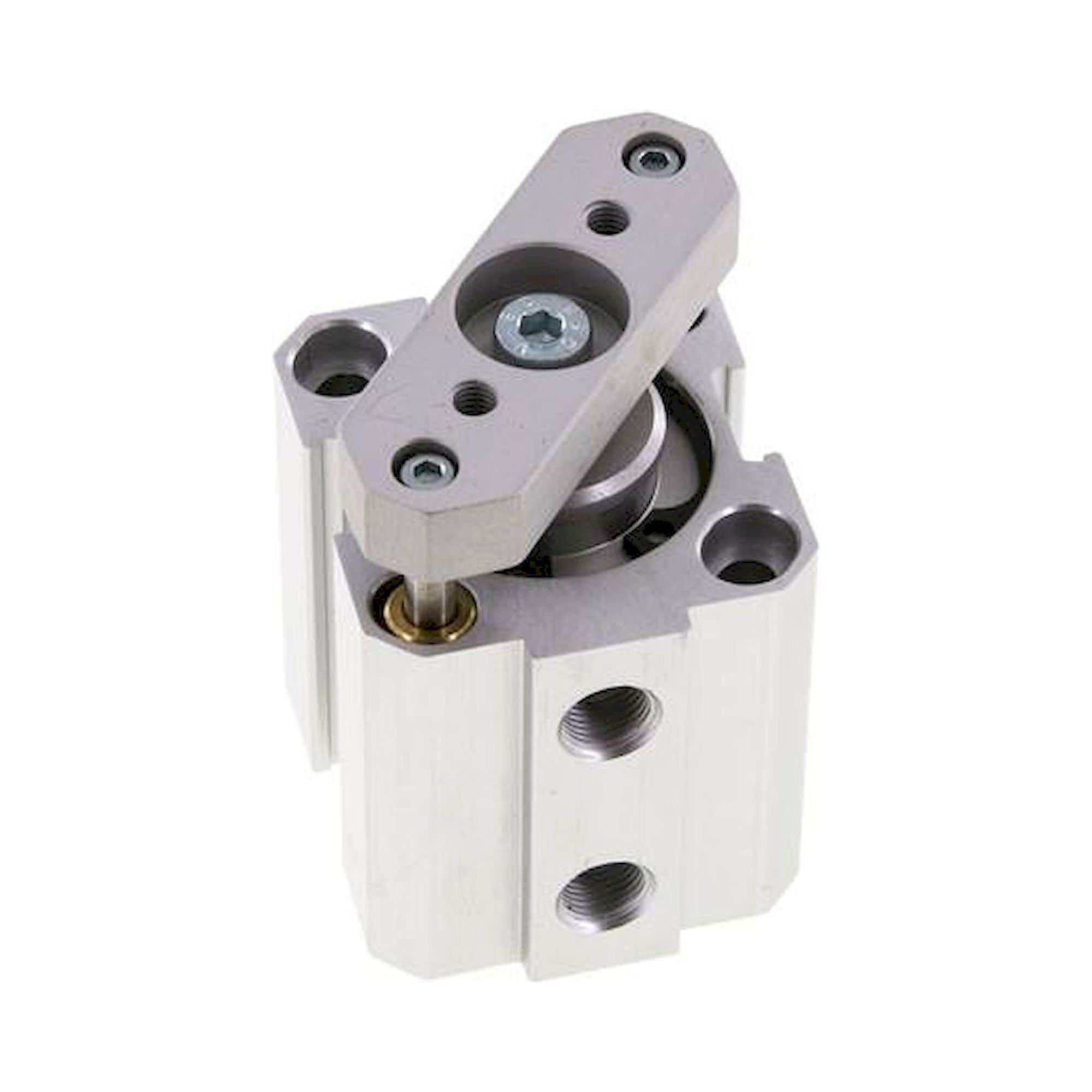

Short stroke cylinder, non-rotating, 40, stroke 50mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: NDM 40/50 A. Short stroke cylinder, non-rotating, 40, stroke 50mm
€13,118.00
Excl. 19% VAT , excl. Shipping Cost
NDM 20/40 A. Short stroke cylinder, non-rotating, 20, stroke 40mm
€9,243.00
Excl. 19% VAT , excl. Shipping Cost
NDM 80/40 A. Short stroke cylinder, non-rotating, 80, stroke 40mm
€24,098.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
G

Piston diameter [mm]	40
Stroke [mm]	50
P (compressed air port)	G 1/8"
A [mm]	58,0
B [mm]	55
C2	M 5
D [mm]	12
E [mm]	28,0
F [mm]	5,8
G [mm]	9,0
H [mm]	30,5
I [mm]	42
J [mm]	11,0
K [mm]	42
L [mm]	39,5
N [mm]	40,0
Q [mm]	5,7
S [mm]	55,0
T [mm]	12
U [mm]	6,0
V [mm]	10
W [mm]	6,0
X [mm]	33
Y [mm]	17
Z [mm]	20
AA [mm]	12,5
AB [mm]	10

Information

More Information
Manufacturer Nr.	NDM 40/50 A
Manufacturer	Fluidics equipment
EAN	4050571524586
Weight	55.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
