Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm

Name: Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm
Brand: Airtec
SKU: FL-NE-63/15-M10
Price: 7857 EUR
Availability: InStock

€7,857.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NE-63/15-M10

Manufacturer Nr.

NE 63/15 M10

Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm
€7,857.00
Excl. 19% VAT , excl. Shipping Cost

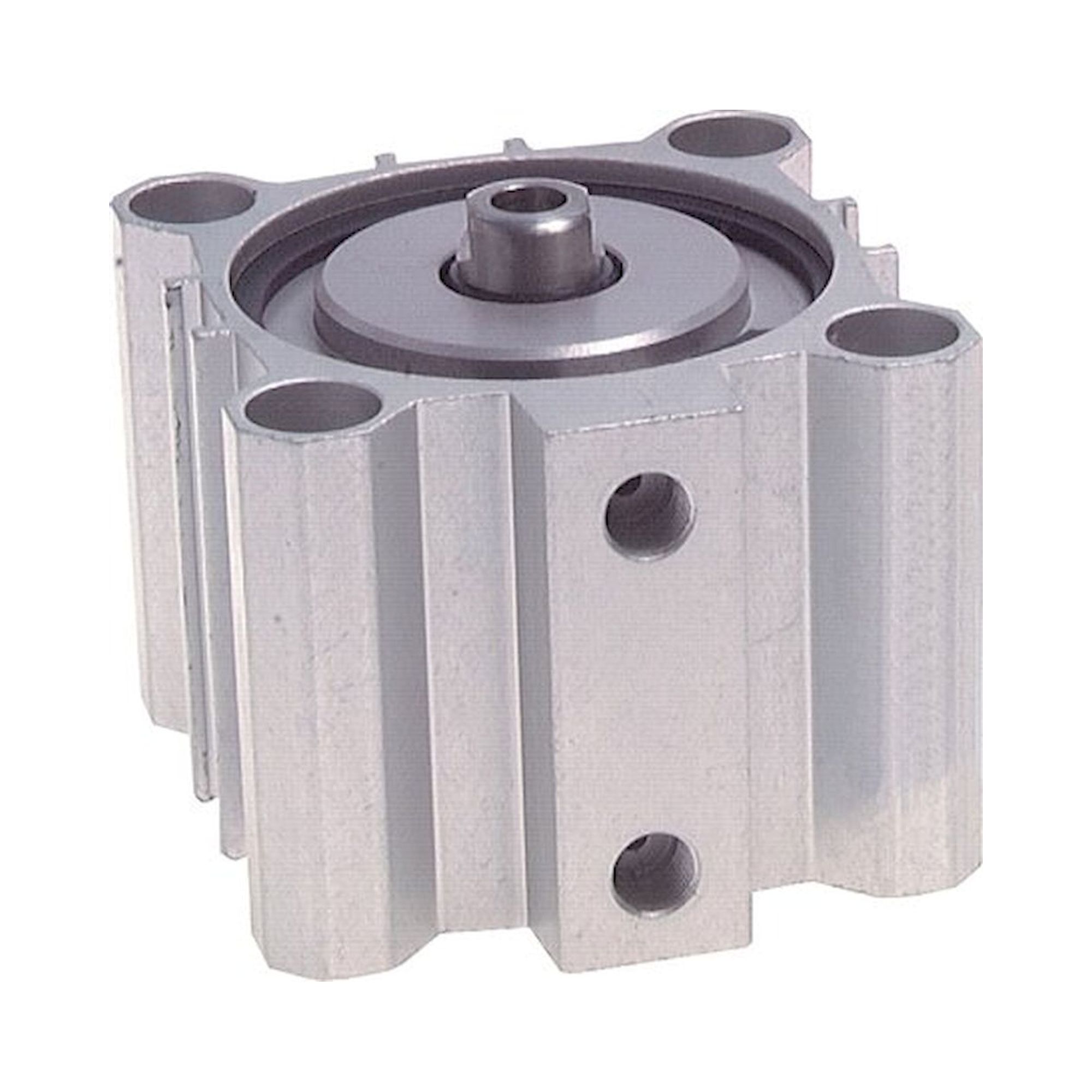

NEM 32/10. Short-stroke cylinders, single acting, piston 32 mm, stroke 10 mm
€6,156.00
Excl. 19% VAT , excl. Shipping Cost

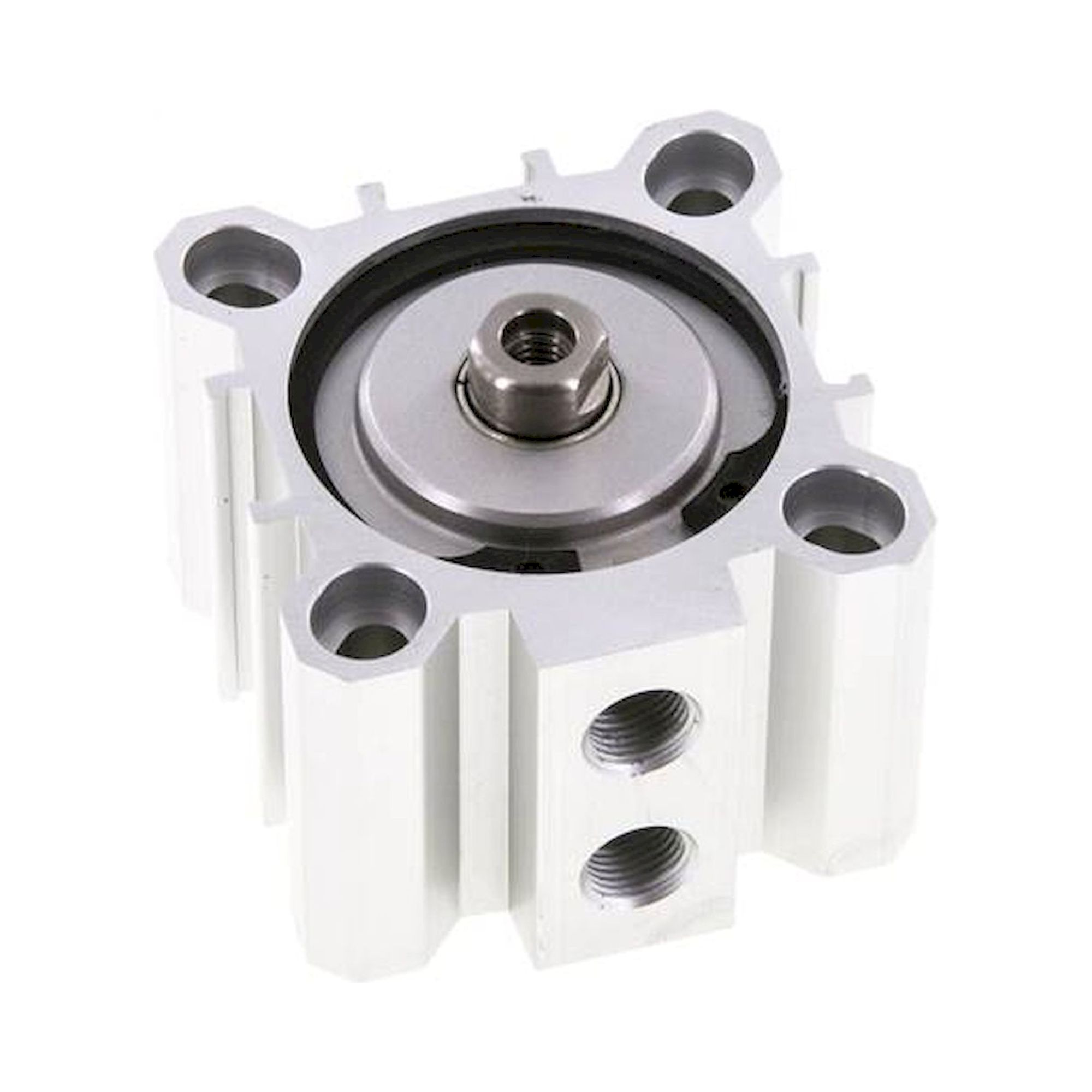

NE 40/10. Short-stroke cylinders, single acting, piston 40 mm, stroke 10 mm
€5,493.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	63
Stroke [mm]	15
Version	without magnetic piston
C1 (piston rod thread)	M 10
P (compressed air port)	G 1/8"
A [mm]	86,0
B [mm]	80
D [mm]	16
F [mm]	9,0
G [mm]	14,0
H [mm]	46,0
I [mm]	62
J [mm]	11,0
K [mm]	62,0
L [mm]	37,0
N [mm]	60,0
Q [mm]	8,8
S [mm]	80,0
T [mm]	14
V [mm]	13
W [mm]	7,0
X [mm]	50
Y [mm]	22
Z [mm]	30
AA [mm]	15,0
AB [mm]	12

Information

More Information
Manufacturer Nr.	NE 63/15 M10
Manufacturer	Airtec
EAN	4050571525545
Weight	6.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
