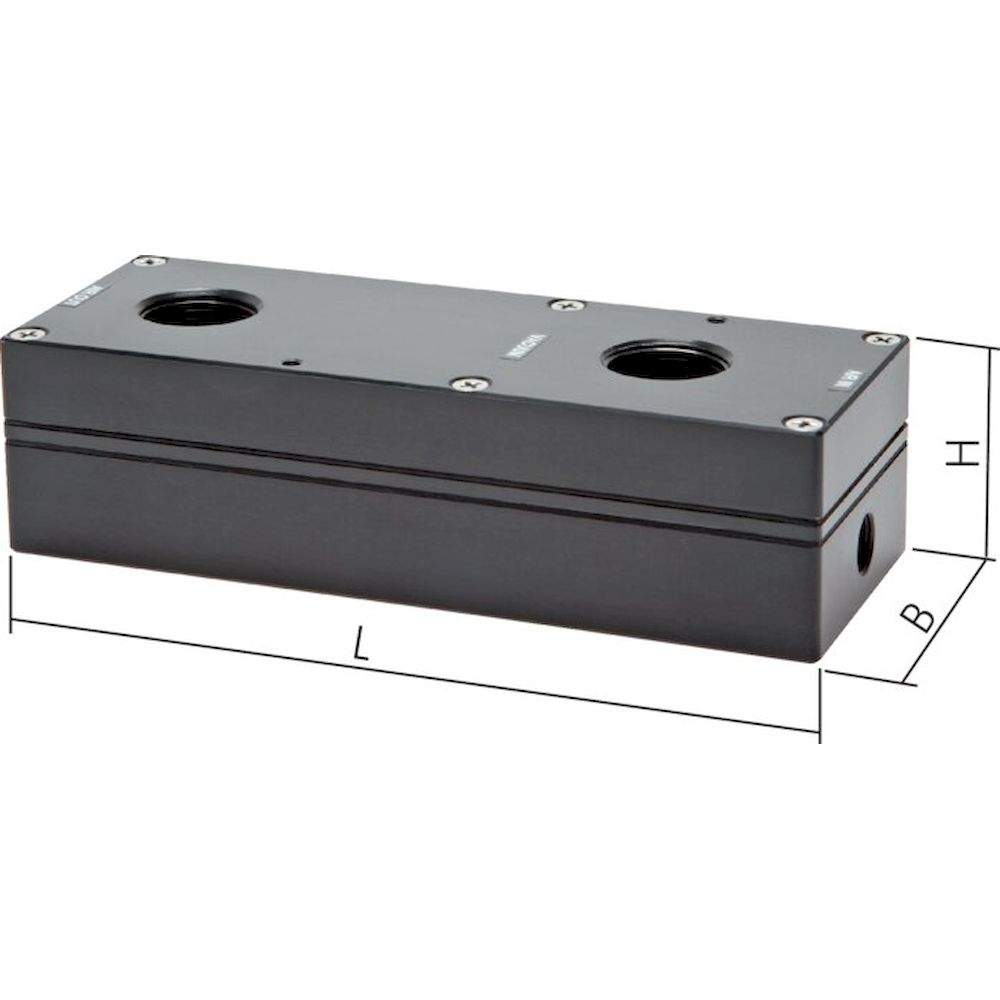

VILP 8. Multi stage ejectors to 90% vacuum, G 3/4", to 500 l/min

Materials:
Body: anodised aluminium, nozzles: brass, seal: neoprene

Temperature range:
-20 to +80 °C

Operating pressure:
1 to 7 bar (optimum 4 - 6 bar)

Pressure gauge connection:
G 1/4"

Advantages:
•high vacuum,
•higher flow,
•low cost,
•maintenance free,
•high vacuum, ideal for vacuum packaging or large forces with small suction caps with a simultaneous high vacuum flow

Suction performance [l/min]	500
Thread Supply air	G 1/4"
Thread vacuum	G 3/4"
Thread exhaust air	G 3/4"
Air consumption* [l/min]	190
Silencer**	FFSD 34
Vacuum meter	MW -163
L [mm]	182
B [mm]	67
H [mm]	47
Evacuation time (1 ltr. to 10%) [s/l]	0,01000
Evacuation time (1 ltr. to 20%) [s/l]	0,02400
Evacuation time (1 ltr. to 30%) [s/l]	0,050
Evacuation time (1 ltr. to 40%) [s/l]	0,1230
Evacuation time (1 ltr. to 50%) [s/l]	0,2300
Evacuation time (1 ltr. to 60%) [s/l]	0,340
Evacuation time (1 ltr. to 70%) [s/l]	0,580
Evacuation time (1 ltr. to 80%) [s/l]	0,95
Evacuation time (1 ltr. to 90%) [s/l]	3,500
Flow at 0% vacuum [l/min]	500
Flow at 10% vacuum [l/min]	398
Flow at 20% vacuum [l/min]	224
Flow at 30% vacuum [l/min]	138
Flow at 40% vacuum [l/min]	100
Flow at 50% vacuum [l/min]	78
Flow at 60% vacuum [l/min]	60
Flow at 70% vacuum [l/min]	42
Flow at 80% vacuum [l/min]	23
