VILP 96. Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min

Name: VILP 96. Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min
Brand: Fluidics equipment
SKU: FL-VILP-96
Price: 254232 EUR
Availability: InStock

€254,232.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-VILP-96

Manufacturer Nr.

VILP 96

Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: VILP 96. Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min
€254,232.00
Excl. 19% VAT , excl. Shipping Cost
F 20 VU. Vacuum filter G 2"
€39,905.00
Excl. 19% VAT , excl. Shipping Cost

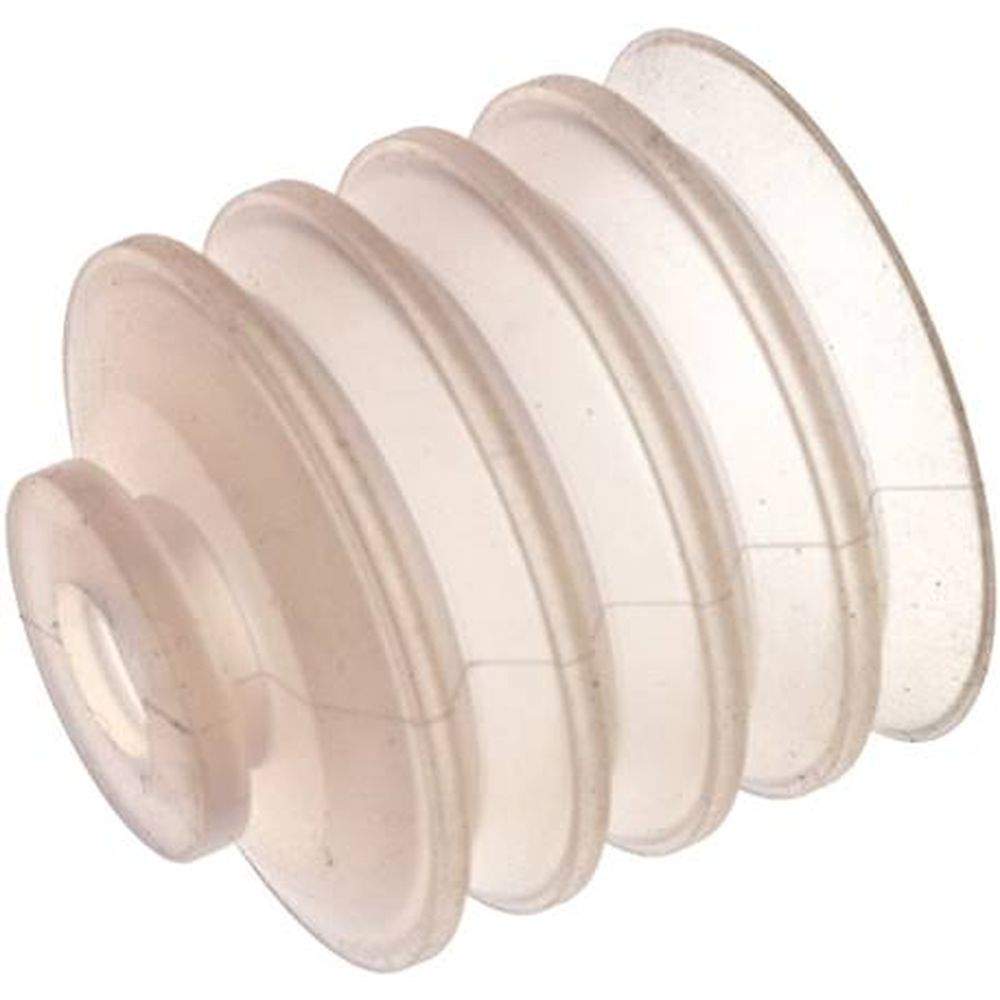

VSP 50 B4 SI. Bellows suction pad, 4,5-way, P-series, 50x30mm, Silicone (50A), transparent
€1,932.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Body: anodised aluminium, nozzles: brass, seal: neoprene

Temperature range:
-20 to +80 °C

Operating pressure:
1 to 7 bar (optimum 4 - 6 bar)

Pressure gauge connection:
G 1/4"

Advantages:
•high vacuum,
•higher flow,
•low cost,
•maintenance free,
•high vacuum, ideal for vacuum packaging or large forces with small suction caps with a simultaneous high vacuum flow

Suction performance [l/min]	6400
Thread Supply air	G 1/2"
Thread vacuum	G 2"
Thread exhaust air	2x G 1-1/2"
Air consumption* [l/min]	1.900
Silencer**	FFSD 112
Vacuum meter	MW -163
L [mm]	250
B [mm]	196
H [mm]	95
Evacuation time (1 ltr. to 10%) [s/l]	0,00077
Evacuation time (1 ltr. to 20%) [s/l]	0,00180
Evacuation time (1 ltr. to 30%) [s/l]	0,004
Evacuation time (1 ltr. to 40%) [s/l]	0,0100
Evacuation time (1 ltr. to 50%) [s/l]	0,0180
Evacuation time (1 ltr. to 60%) [s/l]	0,028
Evacuation time (1 ltr. to 70%) [s/l]	0,046
Evacuation time (1 ltr. to 80%) [s/l]	0,08
Evacuation time (1 ltr. to 90%) [s/l]	0,294
Flow at 0% vacuum [l/min]	6.400
Flow at 10% vacuum [l/min]	4.470
Flow at 20% vacuum [l/min]	2.970
Flow at 30% vacuum [l/min]	1.500
Flow at 40% vacuum [l/min]	1.060
Flow at 50% vacuum [l/min]	840
Flow at 60% vacuum [l/min]	640
Flow at 70% vacuum [l/min]	420
Flow at 80% vacuum [l/min]	250

Information

More Information
Manufacturer Nr.	VILP 96
Manufacturer	Fluidics equipment
EAN	4050571719685
Weight	6.000000
HS-Code	84141089
Article authenticity	Original product
Condition of article	New
