Airtec XLK 40/100. ISO 15552 cylinders, piston 40 mm, stroke 100 mm

Name: Airtec XLK 40/100. ISO 15552 cylinders, piston 40 mm, stroke 100 mm
Brand: Airtec
SKU: FL-XLK-40/100
Price: 20546 EUR
Availability: InStock

€20,546.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLK-40/100

Manufacturer Nr.

XLK 40/100

ISO 15552 cylinders, piston 40 mm, stroke 100 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

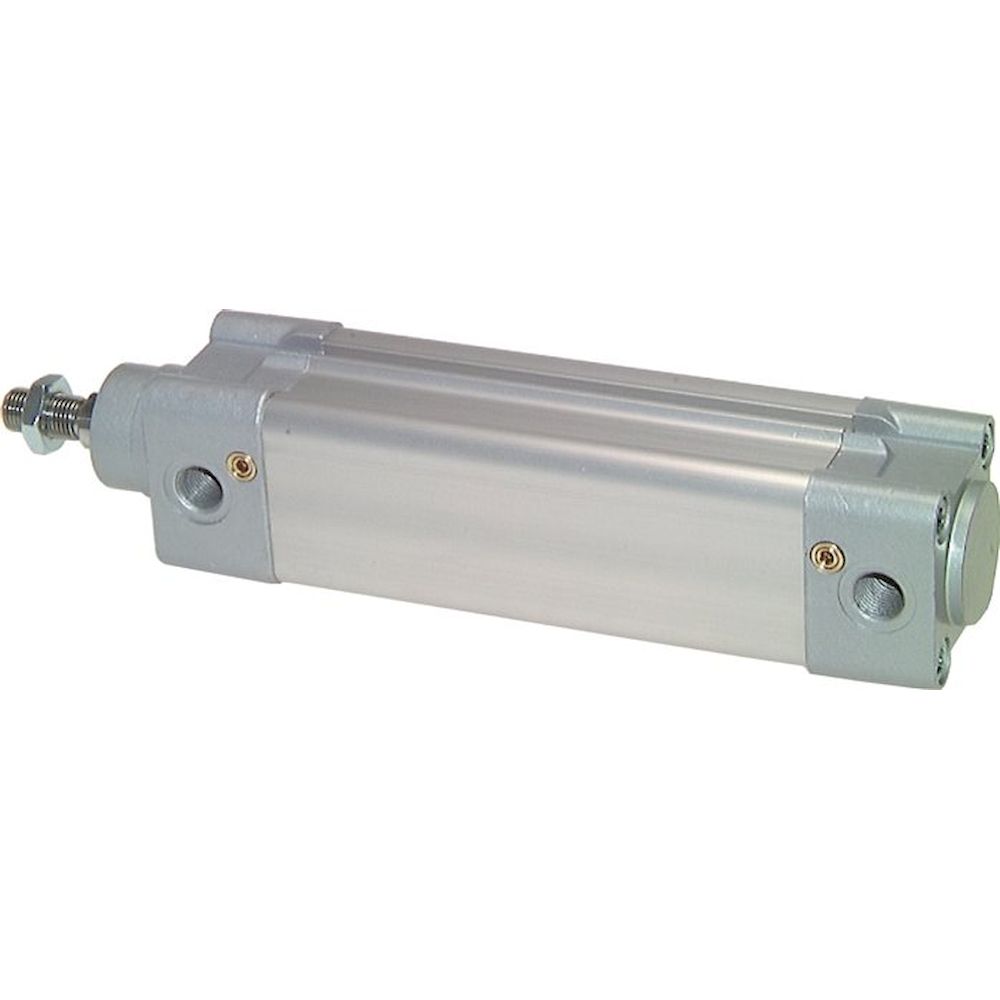

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XLK 40/100. ISO 15552 cylinders, piston 40 mm, stroke 100 mm
€20,546.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 80/25-EK. ISO 15552 cylinders, piston 80 mm, stroke 25 mm
€18,325.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 63/30. ISO 15552 cylinders, piston 63 mm, stroke 30 mm
€1,571.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	40
Stroke [mm]	100
Version	continuous piston rod
A (thread)	M 12x1,25
G (compressed air port)	G 1/4"
Repair sets	XL 40 REP
B [mm]	16
C [mm]	35
D [mm]	22,0
F [mm]	24
G [mm]	30
H [mm]	135
K [mm]	4
M [mm]	54,0
N [mm]	38,0
CH [mm]	13
RT	M 6

Information

More Information
Manufacturer Nr.	XLK 40/100
Manufacturer	Airtec
EAN	4050571801946
Weight	1.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
